O ring the head and bored out



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: O ring the head and bored out
Posted: Sat Aug 26, 2006 4:07 pm
Getting Side Ways
Offline

Age: 31

Posts: 1679

Joined: 9th Jul 2005

Gallery: 8 images

Ride: BA XR6 TURBO

Location: Newcastle
NSW, Australia

hello
ive heard this quote being thrown around and wonder what exactly does it mean to o ring the head? Im lookin for ideas on head work I can do to gain some power. Also what is "boring out"? I met a guy that was pulling some serious numbers and asked what he had done and he said he has just had it all bored out. So what is this?
Top
 Profile


Posted: Sat Aug 26, 2006 7:00 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

They run O-rings instead of std head gaskets in high compression applications... Not needed in your street Falcons.

Boring is when they machine the bores to fit over sized pistons.
Top
 Profile


Posted: Sat Aug 26, 2006 7:32 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Boring is watching slides with the in-laws.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Sat Aug 26, 2006 7:34 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

Walker wrote:
They run O-rings instead of std head gaskets in high compression applications... Not needed in your street Falcons.

Boring is when they machine the bores to fit over sized pistons.


so does boring increase your cc?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Sat Aug 26, 2006 7:40 pm
Getting Side Ways
Offline

Age: 34

Posts: 409

Joined: 5th Nov 2004

Ride: EL Fairmont

Location: Look at that RICE!!
SA, Australia

smiley235 wrote:
Walker wrote:
They run O-rings instead of std head gaskets in high compression applications... Not needed in your street Falcons.

Boring is when they machine the bores to fit over sized pistons.


so does boring increase your cc?


Sure does. It will also increase your compression ratio in a 0deck height engine



_________________

Soo many idiots. So few bullets

Top
 Profile


Posted: Sat Aug 26, 2006 8:05 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

When you have the head o-ringed you still use a standard head gasket, they simply cut a small grove around the combustion area of each cylinder, then put a small wire in the grove. This wire sits higher then the deck high, so when you put your head back on the engine the wire puts extra pressure on to the head gasket, which helps it seal better. For boosted application it’s good, on a street NA engine I don’t think it would have any advantages. I would just run the standard AU steal head gasket.

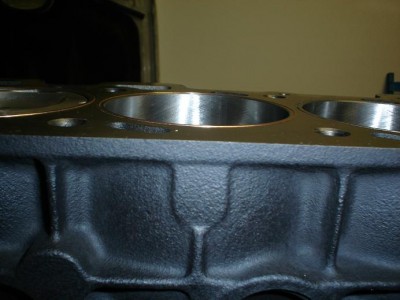

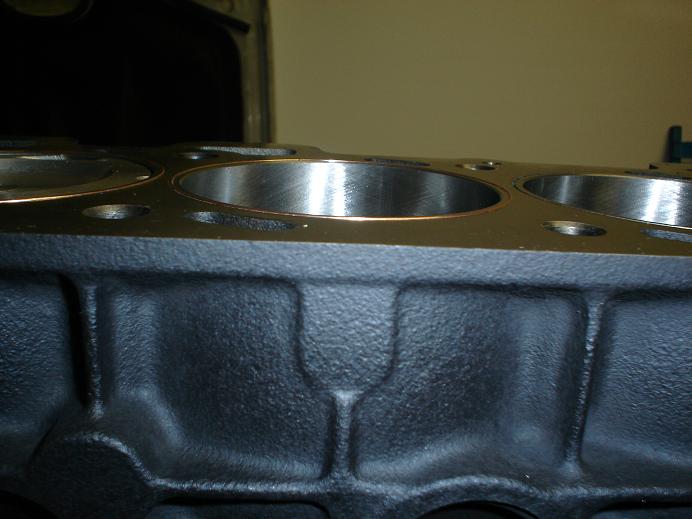

This is a picture of a O-ringed block, as you can see the steal wire sits higher then the deck height. The cylinder on the far right has not had the wire put in it and you can see the grove that’s been cut.





Attachments:
o-ring.JPG [ 54.54 KiB | Viewed 49 times ]
Top
 Profile


Posted: Sat Aug 26, 2006 9:55 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

Is that your engine tjb?
What comp ratio is that thing running?
Top
 Profile


Posted: Sat Aug 26, 2006 9:57 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

smiley235 wrote:
Walker wrote:
They run O-rings instead of std head gaskets in high compression applications... Not needed in your street Falcons.

Boring is when they machine the bores to fit over sized pistons.


so does boring increase your cc?


Sorry but boring DOES NOT increase engine size overall. The manufacturers actually lower the deck height of the piston so overall size is not increased.



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Sat Aug 26, 2006 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

xhute0 wrote:
smiley235 wrote:
Walker wrote:
They run O-rings instead of std head gaskets in high compression applications... Not needed in your street Falcons.

Boring is when they machine the bores to fit over sized pistons.


so does boring increase your cc?


Sorry but boring DOES NOT increase engine size overall. The manufacturers actually lower the deck height of the piston so overall size is not increased.


so what is the advantage then?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Sat Aug 26, 2006 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

lowering the deck height of the piston would increase engine size, but reduce compression. Its still more capacity!



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sat Aug 26, 2006 10:16 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

Boring does increase cc.
You don't really do it to increase cc, we've always bored enough to remove any lips, gouges or oval bores. I always try and go 20 thou to allow room for another rebore down the track.
You'd have to open up the bores a fair bit for any real power gain.
A lot of guys actually sleeve the whole block and bore them out, std blocks don't have enough thickness in the cyl walls.
Top
 Profile


Posted: Sat Aug 26, 2006 10:21 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

yeah, the only things that determine engine size/displacement is bore and stroke. Deck height, piston dish etc only change the compression ratio.

And yes, there is very little performance advantage in enlarging the bores. There is very little advantage, and some disadvantages.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Aug 27, 2006 10:18 am
Getting Side Ways
Offline

Age: 31

Posts: 1679

Joined: 9th Jul 2005

Gallery: 8 images

Ride: BA XR6 TURBO

Location: Newcastle
NSW, Australia

so has anyone got ANY suggestions for head work to get decent power gain? apart from shaving
Top
 Profile


Posted: Sun Aug 27, 2006 10:35 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1380

Joined: 6th Nov 2004

Gallery: 3 images

Ride: FPV BF MKII F6

Location: Brisbane
QLD, Australia

lol a cam and then port it go see the guys at mcnaughtons, where i got my stuff done, and they will sort you out depending how much u want to spend



_________________

OBS35N is gooonnnneeee.
Gone for good..... Damn fence posts!!!!!

OBS35N #2 (XXF6XX) just bought, bring it on

Top
 Profile


Posted: Sun Aug 27, 2006 12:17 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

These heads don't need a lot of work on the ports as such, you get a lot of gain by doing the bowls though.

When i done the head on mine i basically cleaned the casting through the ports and ripped into the bowls... It made a big difference right through the power range and from go it was very responsive.
