Odd Spark Plug Colour



Page 1 of 1 [ 14 posts ]


 Post subject: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 12:07 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

I just checked the spark plugs on my AU VCT (after 20,000 kms), and five of them look like you would expect - white to brown/grey insulator. But one (#5) looks silvery like aluminium, including on the centre electrode. What causes this, and should I be concerned? I have read that this could be a sign of lean detonation. But the AU has a very active knock sensor, so that would surprise me.

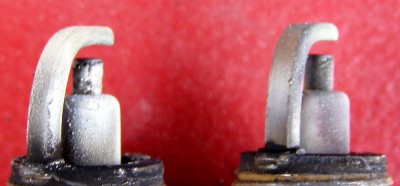

Below is a pic of the silvery plug on the left, compared to a normal one on the right.

Thanks for your help.





Attachments:
P7280121.JPG [ 305.05 KiB | Viewed 142 times ]



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 1:12 pm
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Have seen this on cars with leaking intake manifold gaskets and with blocked injectors but the cars also ran like they had problems. How's you're car run?
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 2:18 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Seems to be running fine, other than 10 seconds or so of hunting idle shortly after a cold start. Will check for a gasket leak with starting spray. I also have a spare set of AU injectors (to go into my EF), so will swap one of those in and see if it makes any difference to plug colour. Thanks heaps for the advice. Cheers.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 4:19 pm
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Cleaning the ISC usually will fox that cold atart
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 4:38 pm
Getting Side Ways
Offline

Age: 72

Posts: 2542

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

Pakrat wrote:
Cleaning the ISC usually will fox that cold atart

after you FOX the cold start,change all the injectors or try injector cleaner on the old ones,it may fix or replace it.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 6:19 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Thanks for all the help. That's a lot of good ideas.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Sat Jul 28, 2012 9:31 pm
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

hans hartman wrote:
Pakrat wrote:
Cleaning the ISC usually will fox that cold atart

after you FOX the cold start,change all the injectors or try injector cleaner on the old ones,it may fix or replace it.

Oh come on mate, one spelling mistake and you jump on it, it's called predictive text...if you know what that is.
Rather then changing all injectors remove the one in the cylinder with the lean plug and take it to be flow tested, will tell you if you're on the right track or if you almost wasted a stack of cash on new injectors.. If it is flowing poorly get the lot of you're injectors sonic cleaned and re kitted.
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Thu Aug 02, 2012 2:40 pm
Getting Side Ways
Offline

Age: 33

Posts: 1109

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

it would be cheaper to just buy a new set on Ebay
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Mon Aug 06, 2012 8:26 am
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Well, it was definitely a problem with the fuel injector. I swapped a reconditioned one in #5 cylinder and the spark plug colour is now normal. Also, the hunting idle on cold start is effectively gone. Thanks for all the helpful suggestions.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Mon Aug 06, 2012 11:47 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

EF_wanabe wrote:
it would be cheaper to just buy a new set on Ebay



Until you get sold crap and have stuff all chance of a replacement at zero cost.
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Mon Aug 06, 2012 9:37 pm
Technical Contributor
Offline
User avatar

Age: 59

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

efxr6wagon wrote:
I also have a spare set of AU injectors (to go into my EF), so will swap one of those in and see if it makes any difference to plug colour.

Pakrat wrote:
Rather then changing all injectors remove the one in the cylinder with the lean plug and take it to be flow tested, will tell you if you're on the right track or if you almost wasted a stack of cash on new injectors.. If it is flowing poorly get the lot of you're injectors sonic cleaned and re kitted.
You can flow check them yourself.
Undo the 4 bolts holding the injector rail and raise it up as far as the hoses will let it, will give you decent access of #1 & #2 positions, which you cycle all original 6 injectors through in those positions in pairs, then your spares too.
In the E series, you can earth the top right pin of the diag connector, turn IGN on, and the pump will run, AU is probably same. Being XR, fuel pressure with no vacuum should be around 300KPa.
You can make up a power loom with a switch and an injector/EB/ED/EL coil plug, and hook it up to the car battery. Idea is then to power up the fuel pump, check injector under test for leaking, then power it and let it flow into a container for a few secs to remove air pockets, empty it into a gash container, then power the injector and let it flow for 60 secs into the container, check the spray pattern as well.
Have a measuring container sitting on a bench top, empty the fuel into it - mark the fuel level and empty it into your gash container. Do the same for injector at #2 position, then swap them over with another two, and so on.
Keep note of the levels of each injector, and you can actually measure a particular fuel level with a syringe or measuring cup, to see actually how much fluid there is.
Typically I've found AU injectors to flow 190-195ML/min @ 300Kpa. This then gives you a benchmark to work on. Without it you're clutching with straws. Return the fuel in your gash container back into the fuel tank.
I use a $50 ultrasonic cleaner to do my injectors - I soak them in straight undiluted injector cleaner(remove pintle caps and O rings) - I don't pulse them like the pros do, I might rig something up eventually, but if they're not heavily clogged, you should find the cleaner still does a good job.
Then you can flow test again if some of your injectors were low.
Key things:
-Safety specs and eyewash or water handy, fire extinguisher if handy, make sure injectors are properly clipped on the fuel rail, be aware IGN is on while the pump is running, so switch off after each flow test. The test power lead is intended to reduce spark hazard.
Leave rail for a few minutes to depressurise/and/or power up injector into container.
As usual, safety and common sense.

I've had good success with this in recent times, so I might make up a test rig with a fuel pump and injector rail for this purpose.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Wed Aug 08, 2012 10:02 pm
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

I have access to a sonic cleaner at work so i just use it, but you're way could give you a sorta idea of what's going on if you sorta know whats going on.
Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Thu Aug 09, 2012 12:50 am
Technical Contributor
Offline
User avatar

Age: 59

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

In a sorta way, yes.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Odd Spark Plug Colour
Posted: Thu Aug 09, 2012 8:34 pm
Getting Side Ways
Offline

Age: 32

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Sorta
