Oil gauge



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: Oil gauge
Posted: Mon Oct 16, 2006 7:35 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Hey lads what has to be done to attach a oil gauge onto a EF? tried a search, just comes up with 100+ posts on what type of oil to use in engines lol



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 7:40 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

oil temperature or oil pressure? mechanical or electric? aftermarket or replacing the factory low series cluster wiht a mid/high cluster.

try providing some more info buddy.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Oct 16, 2006 7:42 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 839

Joined: 10th Sep 2006

Gallery: 3 images

Ride: V8 Falcon, Nissan Patrol

Location: Brisbane, Bouncing off 5800RPM
QLD, Australia

You have to get a gauge with a sender that matches the gauge and get yourself a 'T' piece and put in the the engine were the current oil light sender is, then put the current oil sender in to the back of the 'T' piece and put you new sender into the side opening of the 'T' piece



_________________

1993 Ford Fairmont EB II 5.0L V8 Wagon
1992 Nissan Patrol TI 4.2L Diesel 4x4 Wagon

Top
 Profile


Posted: Mon Oct 16, 2006 7:43 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Ok sorry didnt know there was that much in it, just a aftermarket oil pressure gauge, its for a GLI so theres no oil pressure gauge standard.



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 7:44 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

just the std xr cluster?
if so... just add the cluster (police or XR) into the car and replace the oil switch for a sender unit.

If you want a mechanical guage.. you need a T-piece and plumb it to the block and add the sender/pipe too it.

if you want 2 electrical guages.. I'd advise you add 2 senders and have 2 readings... as the factory one prolly doesn't use the same resistance of the aftermarket one.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Mon Oct 16, 2006 7:45 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

heh... same time

least we all had simular answers!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Mon Oct 16, 2006 7:45 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

What sender is in a EF GLI?



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 7:45 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

basic on/off switch



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Mon Oct 16, 2006 7:47 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Ok thanks lads



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 7:53 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 839

Joined: 10th Sep 2006

Gallery: 3 images

Ride: V8 Falcon, Nissan Patrol

Location: Brisbane, Bouncing off 5800RPM
QLD, Australia

not a problem



_________________

1993 Ford Fairmont EB II 5.0L V8 Wagon
1992 Nissan Patrol TI 4.2L Diesel 4x4 Wagon

Top
 Profile


Posted: Mon Oct 16, 2006 8:09 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

just put one in my car a few weeks ago! GO the electric one as no oil vac line is used, and is easy to put in.



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


Posted: Mon Oct 16, 2006 8:10 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

whats the electric one look like? got any pics?



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 8:37 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

the electric one looks the same as the others,i've got the spitfire 2' perfect size I recon,i'll try and upload some photos,if you get one and have trouble pm me!



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


Posted: Mon Oct 16, 2006 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

awsome, will do mate.



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Mon Oct 16, 2006 8:45 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

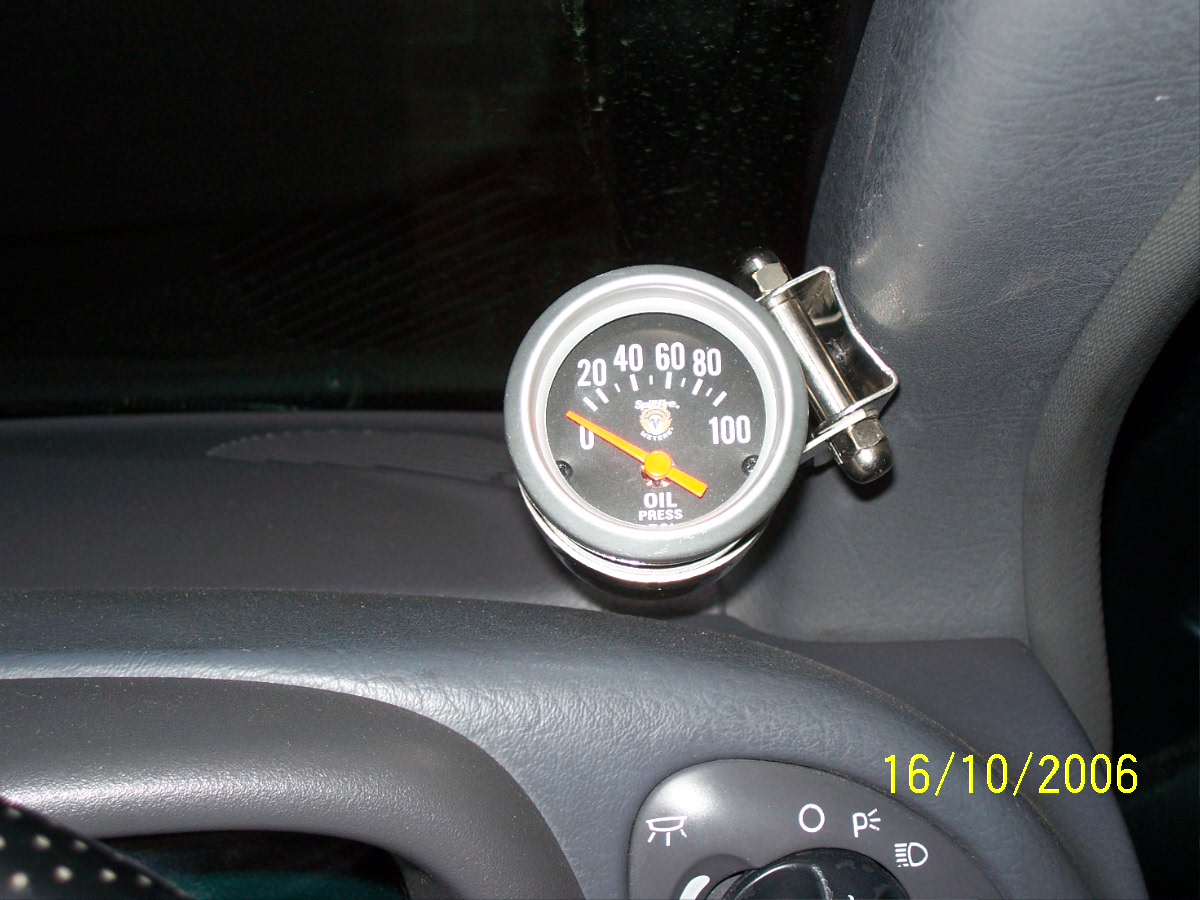

hope this works





Attachments:
100_1513.jpg [ 304.59 KiB | Viewed 8 times ]



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile
