ok ppl's i need help!!!! With BA futura 2003



Page 1 of 1 [ 10 posts ]


 Post subject: ok ppl's i need help!!!! With BA futura 2003
Posted: Mon Mar 19, 2007 4:25 pm
Tyre Shredder
Offline

Age: 30

Posts: 391

Joined: 24th Jul 2006

Gallery: 2 images

Location: melb
VIC, Australia

hey there ppl today i found out that i got sumthing leaking i don't know what the hell the part is called but its right next to the engine near the front

so yer i know that doesn't help but i took sum pics of it so yer hopefully u ppl can tell me if its bad or not i hope its not and i hope its not going to cost s**t loads to get it fix :(


the car is a BA futura 2003

pic's were taken with my mob so yer mybad :(





Attachments:

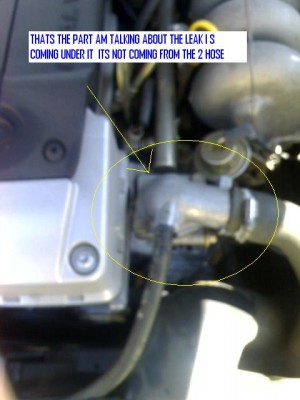

File comment: the part i am talking about were the leak is coming from its coming from under it
pic1.JPG [ 41.33 KiB | Viewed 28 times ]

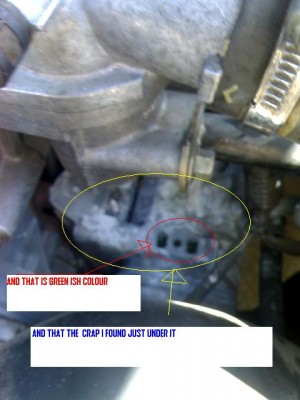

File comment: the water/ green stuff
pic2.JPG [ 44 KiB | Viewed 29 times ]

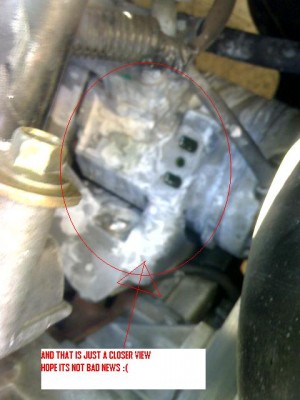

File comment: this is just a closer look
pic3.JPG [ 45.08 KiB | Viewed 27 times ]
Top
 Profile


Posted: Mon Mar 19, 2007 4:30 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 624

Joined: 5th Jul 2005

Gallery: 6 images

Ride: Fairlane NC

Location: Melbourne. SE
VIC, Australia

the first pic looks like the thermostat to me. i dont think theyre 2 expensive.



_________________

NC Fairlane Ghia. AU engine. Pacemaker 4499. 2.5" Redback Zorst, tints, red dash. 17in ba xr (e-series). Suzuki Across (suzi) Sexy in Black

Top
 Profile


Posted: Mon Mar 19, 2007 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

Its your thermostat. Although not common, your thermostat gasket might have gone, very cheap to replace and easy to do it yourself, just be prepared for a fair bit of water to splurt out when you unbolt it (unless you choose to drain the coolant from one of the pipes first.) The green stuff is coolant.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Mon Mar 19, 2007 4:38 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

wasn't it you who was asking questions about your XR6T's a while back>



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Mon Mar 19, 2007 4:49 pm
Tyre Shredder
Offline

Age: 30

Posts: 391

Joined: 24th Jul 2006

Gallery: 2 images

Location: melb
VIC, Australia

fnp me asking about XR6T's? nah not me

anyways should i still be driving the car around or should i not be driving the car?
Top
 Profile


Posted: Mon Mar 19, 2007 6:22 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

if its a slow leak its fine.

if there coolant in the overflow tank go nuts.

just pull the top off it, and clean up both top and bottom surfaces, put a small smear of sealant on it and tighten it up.

although they say these dont need sealant, i prefer to use a tiny about just to be safe, as ive seen them leak without it before.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Mon Mar 19, 2007 6:50 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

I agree with Gaz

A small amount of Selastic sealant will prevent it leaking again.

If you don't want a mess, siphon coolant out of the coolant tank, till the tank is empty.

Once you have finished and topped the system back up. Run the engine at idle until the coolant in the tank is hot. This ensures the thermostat is open and any air in the system has returned to the tank.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Mon Mar 19, 2007 9:02 pm
Getting Side Ways
Offline

Age: 29

Posts: 573

Joined: 5th Jun 2005

Ride: BA XR6 Turbo

Power: 221 rwkw

Location: A
ACT, Australia

If you actually look at the second picture you will notice that its not the thermostat gasket leaking but the heater hose "O" ring that is leaking. All you need to do is a replacement "O" ring from repco ask them for a water pump "O" ring then get a 10mm spaner and undo the bolt that is holding the heater hose into the thermostat housing and pull it away, water will be gushing out wait till it dies away then pull the old "O"ring off with a little flat blade screw driver.
Now use a little bit of Vasso on the new "O" ring and slide it on to the end of the hose and push the hose back into the housing.
After you have done the 10mm bolt up tight start the car and fill up the coolant leave remembering to turn the heater on FULL and leave the cap off until the car is at operating temp and the coolant leave is up to max then do the cap back up and all is done.
It will take you about 10mins to do all up.
If you want it to heat up quicker put it in nutrual (im assuming it auto here) and hold your foot flat, you dont need it flat but yea and it will sit at 3,000rpm no more and that will heat it up quicker.

Griffo

ps the bolt and hose i am talking about is the big gold looking one in the third picture you have up there. I wasnt sure if you where going to be able to tell which bolt i was talking about



_________________

ED XR6 manual for sale. MOMO steering wheel and alot of extra's. PM for more info.


BA XR6 Turbo- 238.8rwkw

Top
 Profile


Posted: Mon Mar 19, 2007 9:17 pm
Tyre Shredder
Offline

Age: 30

Posts: 391

Joined: 24th Jul 2006

Gallery: 2 images

Location: melb
VIC, Australia

griffo161 thanks mate for that info =)
Top
 Profile


Posted: Mon Mar 19, 2007 9:20 pm
Getting Side Ways
Offline

Age: 29

Posts: 573

Joined: 5th Jun 2005

Ride: BA XR6 Turbo

Power: 221 rwkw

Location: A
ACT, Australia

Too easy mate, if you actually look you can see the same s**t that is on ur A/C (dried coolant) as on were the heater hose goes into the thermostat housing. Thats how you can tell its leaking from there and not the actual thermostat gasket

Griffo



_________________

ED XR6 manual for sale. MOMO steering wheel and alot of extra's. PM for more info.


BA XR6 Turbo- 238.8rwkw

Top
 Profile
