Oxy Sensor??



Page 2 of 3 [ 37 posts ] Go to page Previous  1, 2, 3  Next


Posted: Thu Jun 14, 2007 3:37 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

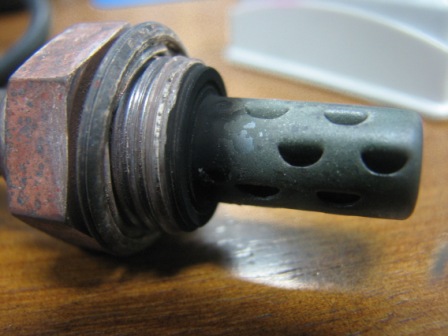

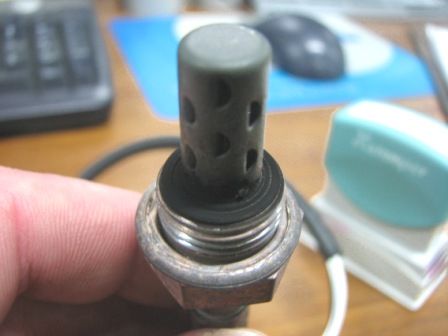

Ok i removed the Oxy sensor and found alot of black carbon indicating a rich mixture. Im seriously leaning toward the IAT sensor that i will replace tomorrow. See pics below.





Attachments:
IMG_1681.jpg [ 35.84 KiB | Viewed 36 times ]
IMG_1680.jpg [ 41.83 KiB | Viewed 29 times ]
Top
 Profile


Posted: Thu Jun 14, 2007 3:49 pm
Getting Side Ways
Offline

Age: 48

Posts: 535

Joined: 22nd Sep 2005

Ride: EF wagon & EF fairmont wagon & M

Location: melbourne
VIC, Australia

when I changed the oxy sensor it improved my consumption by about 20%+ with both gas and petrol.
I do have cold running issues with lpg but I understand that's pretty normal.
Top
 Profile


Posted: Thu Jun 14, 2007 4:24 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Mine is pretty good on petrol consumption on Hwy trips but may be drinking the petrol cold start ups. Will let you know how it goes after replacing the IAT sensor which may be your problem Richard with cold starts.
Top
 Profile


Posted: Thu Jun 14, 2007 5:17 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

i replaced my batery and that helped, used to stutter for 30 secs first thing down the road



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Thu Jun 14, 2007 5:20 pm
Getting Side Ways
Offline

Age: 48

Posts: 535

Joined: 22nd Sep 2005

Ride: EF wagon & EF fairmont wagon & M

Location: melbourne
VIC, Australia

I have a spare one too. off an old taxi so it may be stuffed LOL
I was thinking of swapping it to see what happens. bloody frozen today though....brrrr
Top
 Profile


Posted: Thu Jun 14, 2007 8:46 pm
Getting Side Ways
Offline

Age: 28

Posts: 554

Joined: 24th Mar 2007

Gallery: 2 images

Ride: ef 5 speed

Location: melbourne
VIC, Australia

i had same problem with my ef and it ended up being a coil after 4 months then it died and i put a coil on it and never had problem since



_________________

i am in need of a new front bar or good condation secondhand for a 95 ef futra,
lsd for a for ef ,modifed au sump to go in and ef , working air con compressor

Top
 Profile


Posted: Fri Jun 15, 2007 9:52 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

fiftyone wrote:
i replaced my batery and that helped, used to stutter for 30 secs first thing down the road


Battery is only 4 months old and is a 550CCA so id doubt its that but thanks for the tip anyways.
Top
 Profile


Posted: Sat Jun 16, 2007 12:05 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Ok i installed the IAT sensor this afternoon, it did change the smell of the exhaust fumes (not as rich) the idle improved slightly but may have to wait for the ECU to re-learn the new mixtures. One thing that i found weird was the old IAT sensor was moist with fuel and the intake appeared moist. I have no idea on how thats happened unless it was that rich there was unburnt fuel in the cylinders that somehow blew back into the intake. I will check the timing again tomorrow and set the base idle again then erase the ECU for any faults. basically start from scratch in the KAM.
Top
 Profile


 Post subject: oxy sensor
Posted: Sat Jun 16, 2007 11:02 am
Stock as a Rock
Offline
User avatar

Age: 40

Posts: 118

Joined: 14th Jun 2006

Gallery: 11 images

Ride: eb2xr6

Location: auckland
New Zealand

i cruzed into repco over here and asked for an oxy sensor..the guy had to get it brought over from another repco..i said "ok thats cool"...then asked"uh how much is it?"....he said..$350!!!!!!! i said "ur kidding"..he say " im sure we can do a lil better than that"..i said"yea but not a qaurter of the price aye mate" and left.....**??????** thats just crazy. surely thats wrong :?



_________________

save petrol and reduce congestion....bury all holden

Top
 Profile


Posted: Sat Jun 16, 2007 5:48 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

An oxy sensor (or HEGO sensor) from Repco is around $67 and the IAT is $37. Now that was with a discount but $350 for the oxy sensor is way too much. Anyways ive replaced both and the hesitation when cold is gone. So the Oxy sensor improved fuel economy and the IAT got the fuel mix right from cold start up. I still have a slight miss on idle but mainly in park or neutral, is fine in drive.

I read in my manual that a faulty Canister purge control soleniod can cause poor idle, stalling and poor drivability. It can be found next to the carbon canister insite the left wheel arch.
Top
 Profile


Posted: Sat Jun 16, 2007 6:34 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

ahh good to hear. i might have to grab an IAT sensor and try it over the holidays



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sun Jun 17, 2007 5:35 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Hey all ive been thinking that my ignition timing problem may have contributed to the IAT sensor failing. It was moist with fuel when removed, now my timing thanks to a Haynes Automotive repair manual that forgot to mention that from ED onwards that the Ignition timing procedure was different (waiting approx 2min after the idle raises then drops straight after starting engine self test mode) my timing was approx 7-8 deg retarded which may have caused over time for unburnt fuel to blow back into the intake manifold covering the IAT sensor causing it to read wrong, this may have been worse on a cold start as more fuel was injected but not fully burnt. So from EXPERIENCE dont trust every manual you read!!!!
Top
 Profile


Posted: Sun Jun 17, 2007 12:17 pm
Tyre Shredder
Offline

Age: 29

Posts: 379

Joined: 17th May 2006

Gallery: 26 images

Ride: 2003 BA XR6 TURBO!!!!!

Location: Melbourne
VIC, Australia

i would also check you coolent temperature sensor.
its f**k piss easy to change, just get one from wreckers.
its the little thing that goes into the thermostat.
one clip on one bolt.
just gotta watch the coolant level...
Top
 Profile


Posted: Sun Jun 17, 2007 12:56 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

elvondel wrote:
just gotta watch the coolant level...
Use a syphon pump (those ones for $5 from Supercrap, etc) and drain the overflow tank - the pump should fit down the hose to the radiator, drain it down by a few inches.
When the water level is below the thermostat housing, you won't lose a drop.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jun 17, 2007 1:25 pm
Fordmods Newbie
Offline

Age: 30

Posts: 14

Joined: 11th Feb 2007

Location: melbourne
VIC, Australia

my ea was doing the same thing i change the o2 sensor and that helped but what got rid of it completly was cleaning out the iac, the iac driver had seized
Top
 Profile
