 Post subject: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 9:54 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

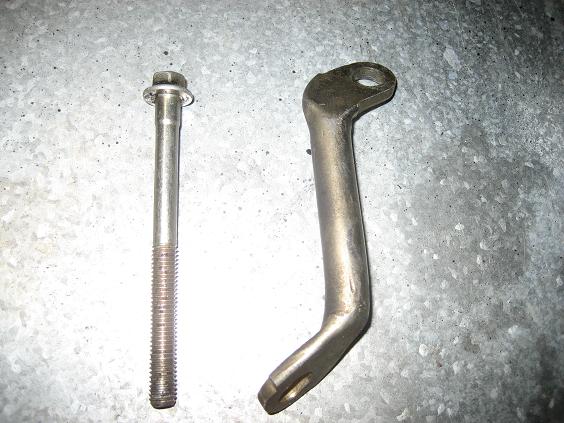

ended up with these parts after putting the head back on
any idea where they go or can someone point me to a picture that shoes where they go. The car is a 6 cylinder el





Attachments:
IMG_3033.JPG [ 53.5 KiB | Viewed 8 times ]



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Bolt looks to be one from the power steer bracket, and the other thing is a support for the BBM.
How big is the bolt?



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

The throttlebody has a bracket that goes from I think the inlet manifold to the throttle bdy maby thats it I forget wat it looks like



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 10:08 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

yeah that bracket does look like its a bbm support...just dont know where abouts it goes....its underneath somewhere? hard to see.
the bolt is 9.5cm long



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 10:28 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

ea_falcon wrote:
yeah that bracket does look like its a bbm support...just dont know where abouts it goes....its underneath somewhere? hard to see.
the bolt is 9.5cm long


Bracket looks like the throttle body to manifold/head support. It sits on the side facing the front of the engine and angles forward.

The bolt might be the one that holds the alternator support bracket/pole/stabilizer bar to the head. The pole/stabilizer bar/whatever you call it, goes from the top of the alternator to the head. Only other thing I can think of is water pump bolts...but doubt you removed the water pump...



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 11:17 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

the bracket bolts on the bottom of the throttlebody just above the air intake temp sender, the other end goes to the top manifold bolt just infront of number 3 injector.
when you put the intake bolts back in, did you notice one was about 5mm longer than the rest? this allows for the width of the bracket.

the other bolt goes in the bottom hole of the power steer bracket, goes through the timing cover and into the block, also goes though the brace from off the top of the alternator .
this bolt leaks oil if you dont put silicon on near the head of the bolt
Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 11:21 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

XRfairmont67 wrote:
the bracket bolts on the bottom of the throttlebody just above the air intake temp sender, the other end goes to the top manifold bolt just infront of number 3 injector.
when you put the intake bolts back in, did you notice one was about 5mm longer than the rest? this allows for the width of the bracket.

the other bolt goes in the bottom hole of the power steer bracket, goes through the timing cover and into the block, also goes though the brace from off the top of the alternator .
this bolt leaks oil if you dont put silicon on near the head of the bolt


Brace...that's what it's called.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Sun Jan 16, 2011 11:28 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

looks like stage 1 weight reduction to me



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Mon Jan 17, 2011 12:49 am
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

cheers for the replies...will check it out tomoro



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Mon Jan 17, 2011 12:55 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1507

Joined: 14th Aug 2009

Gallery: 12 images

Ride: BA XT V8

Location: Gosnells, Perth
WA, Australia

lol.. i always end up with spare nuts and bolts.. sometimes worrying but iv never had anythin go wrong yet..



_________________

BA XT V8. Ice Mint. 18" Speedys. XR6T LSD. Full Pacemaker twin 2 1/2inch Stainless Steel system. Custom CAI. Black XR interior with white trimming. Powerbond underdrive kit 25%.
13.65@102mph. 2800 hi-Stall.
230RWKW@5250 rpm. 625NM.

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Tue Jan 18, 2011 5:02 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

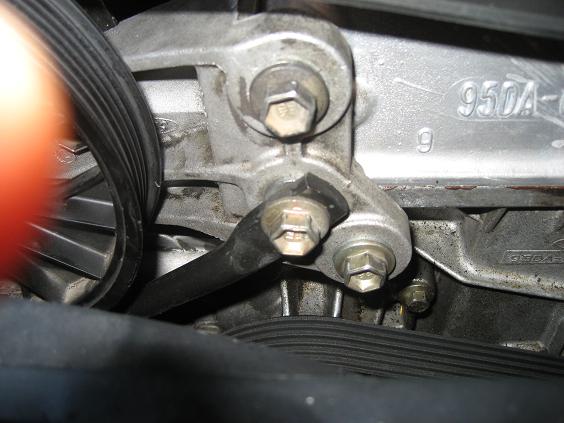

Thanks guys for the responses was realy helpfull...I have put the bracket on but i cant seem to find where the long bolt goes heres a pic of the front bracket on the power steering pump.





Attachments:
IMG_3034.JPG [ 44.56 KiB | Viewed 12 times ]



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Tue Jan 18, 2011 8:18 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

does the long bolt go on the bottom of this bracket? if so where does the bolt that i have there go?
is the alternator bracket bolted onto the wrong position?



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Tue Jan 18, 2011 8:41 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

does the long bolt go on the bottom of this bracket? if so where does the bolt that i have there go?
is the alternator bracket bolted onto the wrong position?



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Tue Jan 18, 2011 8:43 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

ea_falcon wrote:
does the long bolt go on the bottom of this bracket? if so where does the bolt that i have there go?
is the alternator bracket bolted onto the wrong position?


The other end of the brace should be bolted to the top of the alternator I believe, using the alternator bolt. It isn't as long as the on pictured.

Could it be one of the tensioner bolts? I think there are 3 bolts on the belt tensioner.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: parts left over after head gasket replacement
Posted: Tue Jan 18, 2011 9:53 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I'm guessing its a 10mm bolt head?



_________________

>>>EF Futura T build<<<

Top
