PISTONS IN CALIPARS WONT OPEN FOR NEW PADS



Page 1 of 1 [ 11 posts ]


 Post subject: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 3:04 pm
Fordmods Newbie
Offline

Age: 42

Posts: 9

Joined: 4th Apr 2010

Ride: ef ford

Location: melbourne
VIC, Australia

1995 MODEL EF WAGON..
ANY TIPS?
STARTED WITH PASSENGER SIDE THEN OVER TO THE DRIVERS SIDE.
BOTH THE SAME.
MY SON TOUCHED THE BRAKES WHILE THE CALIPARS WERE OF THE ROTORS, NOT SUR IF THE EFFECTS THE MASTER CYLINDER..
CHEERS GUYS..
Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 3:23 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

Are these the front or rear callipers?
The front ones should just push in with a G clamp. Just make sure your pushing it in square and not on an angle.
The rear ones you need to use a piston resetting tool as they screw in. The tool shouldnt set you back anymore than 25 bucks or so. The tool just connects to a normal socket set ratchet.

Thats the only thing i can think of, i'm not sure if the EF has the pistons that wind in. You can usually tell because there is a notch in the piston on the outer side. All i now is that my EA had it and so does my XG ute.

Good luck with it buddy



_________________

XG Ute. BBM conversion, EL ECU + J3 Chip, 3" Stainless Steel Intake Pipe, K&N Pod Filter, Wade 1673 Camshaft, Pacemaker extractors, 2.5 Inch Hi-Flow Cat, 2.5 Inch exhaust, Cab Extension, 18" FG GT Rims, resprayed in blueprint.

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 3:25 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Well I use a big 'G" clamp to push the callipers back. If that doesn't do it you may have a seized calliper.

And take the cap off the Master cylinder first



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 3:29 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

EF calipers all push in, it's only the earlier ones that wind in, Make sure you are pushing it SQUARELY (I eithier use a brake piston resetting tool, or a big G Clamp) I'd say if u are pushing it nice and squarely, you just arent pushing it hard enough, even seized calipers will move eventually, try undoing the bleed nipple (this means you will have to bleed the brakes). I reckon if u push it hard enough, push it squarely, and undo the bleed nipple, the piston will go back.

Gab
Top
 Profile


 Post subject: Ef fairmont $500 ono
Posted: Sat Feb 12, 2011 4:00 pm
Parts Gopher
Offline

Age: 38

Posts: 95

Joined: 31st Jan 2010

Gallery: 33 images

Ride: 96 Ford Fairmont EF II n others

Location: Kingston
QLD, Australia

I did my front n rear brakes with a 10 dollar g clamp from supacheap they should go back in wasnt hard at all, but yer if cant move it as stated above undo bleed nipple n should take the pressure off piston even if ceased,drench the piston n surrounds in wd40 or sumthin to lube it up



_________________

Lowndes,wincup & courtney ..Number 1 Tr888tors.....bring Ambrose back

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 4:17 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

depressing the brakes with the assembly removed is possibly the worste thing you could have happen. couldve caused a plethora of problems.

also when your pushing the piston back in make sure to give it time to retract, don't just go all rambo on it because it won't move.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sat Feb 12, 2011 8:42 pm
Stock as a Rock
Offline

Age: 31

Posts: 183

Joined: 17th Jan 2009

Location: Australia
SA, Australia

Just a little bit off topic. As before when i was talking about the brakes on the rear of my old ea and xg how they are the wind in piston style. How is it that the piston can come out and apply pressure to the rotor when it cannot unscrew itself due to the notch in the actual brake pad because when u install it this notch has to go in the recess in the piston and this would stop it from turning clockwise or anti clockwise.

I understand how to change my brake pads but I have always wondered why this is the case.



_________________

XG Ute. BBM conversion, EL ECU + J3 Chip, 3" Stainless Steel Intake Pipe, K&N Pod Filter, Wade 1673 Camshaft, Pacemaker extractors, 2.5 Inch Hi-Flow Cat, 2.5 Inch exhaust, Cab Extension, 18" FG GT Rims, resprayed in blueprint.

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sun Feb 13, 2011 1:15 am
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

I replaced front/back brake pads in my EL Fairmont in under 2hrs in the carport about 1yr ago on a lazy sunday afternoon. It's a piece of piss. As other guys have mentioned buy a disc caliper spreader tool for $20 and you will sort it out easy.



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sun Feb 13, 2011 1:50 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

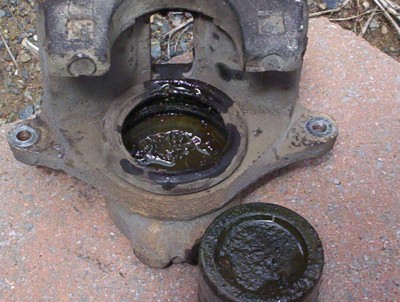

Unless the calipers look like this inside......





Attachments:
Lance's P76 rotors for AUII ABS tone wheels 07 002.jpg
Lance's P76 rotors for AUII ABS tone wheels 07 002.jpg [ 418.27 KiB | Viewed 83 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: PISTONS IN CALIPARS WONT OPEN FOR NEW PADS
Posted: Sun Feb 13, 2011 7:38 am
Fordmods Newbie
Offline

Age: 42

Posts: 9

Joined: 4th Apr 2010

Ride: ef ford

Location: melbourne
VIC, Australia

I SEEM TO HAVE SIEZED CALIPERS..
OPENED THE BLEEDER NIPPLE TO HELP RELIEVE CALIPERS WITH NO SUCCESS..
HAD TO USE A BENCH VICE TO OPEN ONE OF THEM UP. (NOT GOOD)
WILL NEED TO REPLACE THEM TODAY..ANYONE GOT CALIPERS FOR A EF FORD?
THANKS FOR YOUR HELP AGAIN GUYS..
Top
 Profile


 Post subject: Need to sell Ef fairmont $500 ono make me an offer
Posted: Sun Feb 13, 2011 8:44 pm
Parts Gopher
Offline

Age: 38

Posts: 95

Joined: 31st Jan 2010

Gallery: 33 images

Ride: 96 Ford Fairmont EF II n others

Location: Kingston
QLD, Australia

jaysmodels wrote:
I SEEM TO HAVE SIEZED CALIPERS..
OPENED THE BLEEDER NIPPLE TO HELP RELIEVE CALIPERS WITH NO SUCCESS..
HAD TO USE A BENCH VICE TO OPEN ONE OF THEM UP. (NOT GOOD)
WILL NEED TO REPLACE THEM TODAY..ANYONE GOT CALIPERS FOR A EF FORD?
THANKS FOR YOUR HELP AGAIN GUYS..

dang if mine dont sell by tuesday im wrecking it so yes i will have sum ill give u first offer on them
