Picked up a spare BBM instake manifold with plans to polish it up.

Well - after many hours of hard rubbing and grinding - I have finally finished!
At least as far as I can be bothered.

Work in progress - just over half way;

Completed manifold;

I also spent an hour and a half yesterday fitting it.
Pretty daunting task for an accountant - but it's done with only one minor bit of damage - snapped a small t-piece vacuum hose joiner at the back of the manifold. Will update with a picture of the engine bay soon.



_________________

BIONIC 2005 BA Mk2 XR6 - XR8 Snorkle - Typhoon 2nd CAI - K & N Panel Filter - polished BBM intake - polished ceramic coated Pacemaker 4490 headers - Magnaflow 3.5" high flow Cat - Full mandrel stainless exh syst - 4speed SSS -BPT Custom tune - 20% UDrive - XR8 Calipers/rotors - 175 rwkw

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 12:40 pm
Parts Gopher
Offline
User avatar

Age: 28

Posts: 69

Joined: 7th Apr 2009

Ride: FG F6 310

Location: Boronia
VIC, Australia

now that looks good, i talked to some guy bout doing this to mine he

just said it wasnt possible (eg. he couldnt be botherd helping me out)

>> how i did you go about it, iv got a few spare bbm's lying round might

give it a go myself
Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 1:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Nice job...takes a bit doesn't it?.....I'm over polishing stuff like that...looks good when its first on, but it takes a bit to keep it that way......so paint does it now....LOL.
Remember to keep up polishing it, or it will degrade.......once again, nice job...... :mrgreen:



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 1:33 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

Nicely done mate, did you give a coat of clear paint to make sure your not re polishing it all the time?



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 4:19 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

I take my hat off to you mate, excellent job there!! Ive done it to my BBM so i know whats involved and its not easy at all, its no wonder a lot of metal polishing places wont do jobs like that hey..

What did you use for grinding it back? Just sand paper or did you use some sort of grinding wheel/discs? Also what polishing compound did you use? Came out looking bloody awesome, the finish is perfect!! :wink:



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 4:53 pm
Stock as a Rock
Offline
User avatar

Age: 46

Posts: 144

Joined: 24th Sep 2009

Ride: Bionic BA MkII XR6

Power: 175 rwkw

Location: Perth
WA, Australia

Thanks all for the feedback.
It looks much better in the pictures I tell you - After doing the first half and centre section, I got slack, but most of the back half is under the air inlet piping anyway. And to get inbetween the humps is very hard - but you cant see it unless you stick your hear right over the top of it - so I just did what i could as best I could.

I lost count of the hours, and I never really got a system going - so I didn't get much efficiency happening. I would just work on one "hump", then next time I'd come back and do the next.
Worst bit would be when you dinged a bit you'd done, creating more work to correct it, etc.

Tools I used were;

Drill with accessories
- brass wire brush to get rid of dirt and bring up clean;
- flap sanders - 60 grit, 80 grit, 120 grit;

Air die grinder with various shaped tips

Dremel with various tips to get in the hard to reach places

Wet and dry sandpaper - 400/600/800 - I only used them dry though - didn't want to make a wet mess

Drill with "sizal" disk - used a black polishing compound that came in the polishing kit I got from bunnings

Drill with soft disk and Autosol polish



The rough flap sanders really helped smooth off the casting pores.


After having done by hand the thermostat cover, and starting to do the front of the rocker cover - and now this - I think I am over it too! My wife thinks I am a tool because no-one will really ever see it - but I know you guys understand :)

I have not coated it in anything- but remember reading a polish with some wax might help maintain the shine?




_________________

BIONIC 2005 BA Mk2 XR6 - XR8 Snorkle - Typhoon 2nd CAI - K & N Panel Filter - polished BBM intake - polished ceramic coated Pacemaker 4490 headers - Magnaflow 3.5" high flow Cat - Full mandrel stainless exh syst - 4speed SSS -BPT Custom tune - 20% UDrive - XR8 Calipers/rotors - 175 rwkw

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 5:01 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

Man thats a thourough job, flap sanders do a good job aye, i used those quite a bit when i did mine. I went half assed on the last 3 runners lol, the intake piping hides mine really well :lol:

I havent coated mine, just left it with the polished surface and all it needs is a quick run over with Autosol once a month if your fussy as it keeps its shine pretty well. Spraying clear coat will make the alloy lose most of its shine as ive found with spraying clear coat over most polished alloy things, dont know if a clear powdercoat might work or not though :roll:



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 7:20 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

^^^
Clear on it will actually tarnish a yellowy colour most likley, due to heat etc.

Looking good, how hard was it to refit, as I'm thinking of doing one, but concerned about removal and refit.

Also does anyone know what the internal construction of one is like, eg, does it have a whole lot of tiny cavity or just 6 big carving?

Got a pic of it fitted next to the barra. Also considered the ecu? come on... :lol:



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: Polished upper BBM
Posted: Tue Sep 29, 2009 8:25 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

OZBMX wrote:
Also does anyone know what the internal construction of one is like, eg, does it have a whole lot of tiny cavity or just 6 big carving?

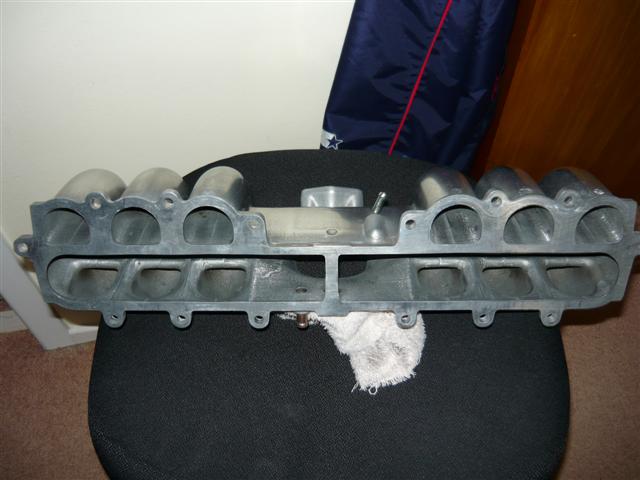

This is the inside of the upper part of it
