 Post subject: Port and Polish
Posted: Thu Aug 23, 2007 10:34 pm
Smokin em up
Offline

Age: 34

Posts: 213

Joined: 17th Nov 2005

Gallery: 14 images

Ride: EL XR6

Location: Waikerie
SA, Australia

Since buying my writen off EF I am tossing up weather to do the head up and put it in my car, and one of our mechanics said porting and polishing is easy you just need a di grinder, is that true or should i get it done by pro's



_________________

1996 EL XR8, Dynamic White, 18inch Simmons Wheels, Lowered all round with pedders shocks and springs, Clear tail lights and clear side repeaters

Top
 Profile


Posted: Thu Aug 23, 2007 10:44 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

It is easy in that you can make ports bigger with a die grinder.

However, doing it in a way that will actually lead to more power does require research. There are some good guides on the net explaining how to go about it. I suggest doing a lot of reading and then go ahead if you feel comfortable with it.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


 Post subject: Re
Posted: Thu Aug 23, 2007 10:49 pm
Smokin em up
Offline

Age: 34

Posts: 213

Joined: 17th Nov 2005

Gallery: 14 images

Ride: EL XR6

Location: Waikerie
SA, Australia

and where can I research that?



_________________

1996 EL XR8, Dynamic White, 18inch Simmons Wheels, Lowered all round with pedders shocks and springs, Clear tail lights and clear side repeaters

Top
 Profile


Posted: Thu Aug 23, 2007 10:50 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

google



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Thu Aug 23, 2007 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 7031

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Have anyone of you have heard of high velocity port job? :wink:

this is were all the car makers are slowly heading.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Fri Aug 24, 2007 12:12 am
Stock as a Rock
Offline

Age: 48

Posts: 175

Joined: 4th Jul 2007

Ride: eb

Location: callala bay
NSW, Australia

you really need to have access to a flow bench to achieve maximum potential from cylinder head porting,see the pros
Top
 Profile


Posted: Fri Aug 24, 2007 1:21 am
Fordmods Junkie
Offline
User avatar

Age: 37

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

Agree let the pro's do that.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Fri Aug 24, 2007 2:52 am
Getting Side Ways
Offline
User avatar

Age: 59

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

nothing wrong with just giving it a cleanup, bit of match porting etc is there????



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


Posted: Fri Aug 24, 2007 11:08 am
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

hot-04l wrote:
you really need to have access to a flow bench to achieve maximum potential from cylinder head porting,see the pros


Yes but if your going for maximum potential you will need a degree in fluid dynamics as well.

The truth is that most pro's wont flow street heads unless the customer asks (and pays) for it anyway.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Aug 24, 2007 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Here's a head that I did myself. It takes a lot of time and know how. Yes, port matching is benificial, but you gotta know how to do it in such a way that no matter how many times you take the inlet manifold off, it always goes on in the same spot no matter what. Same for the exhaust.
Otherwise your wasting your time.
You need more than just a diegrinder, you need the right burrs for it, flapper wheels, polishing tips & compounds, and know where to remove metal, and where to leave it be and smooth it over.





Attachments:

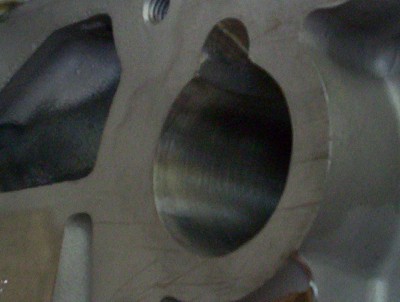

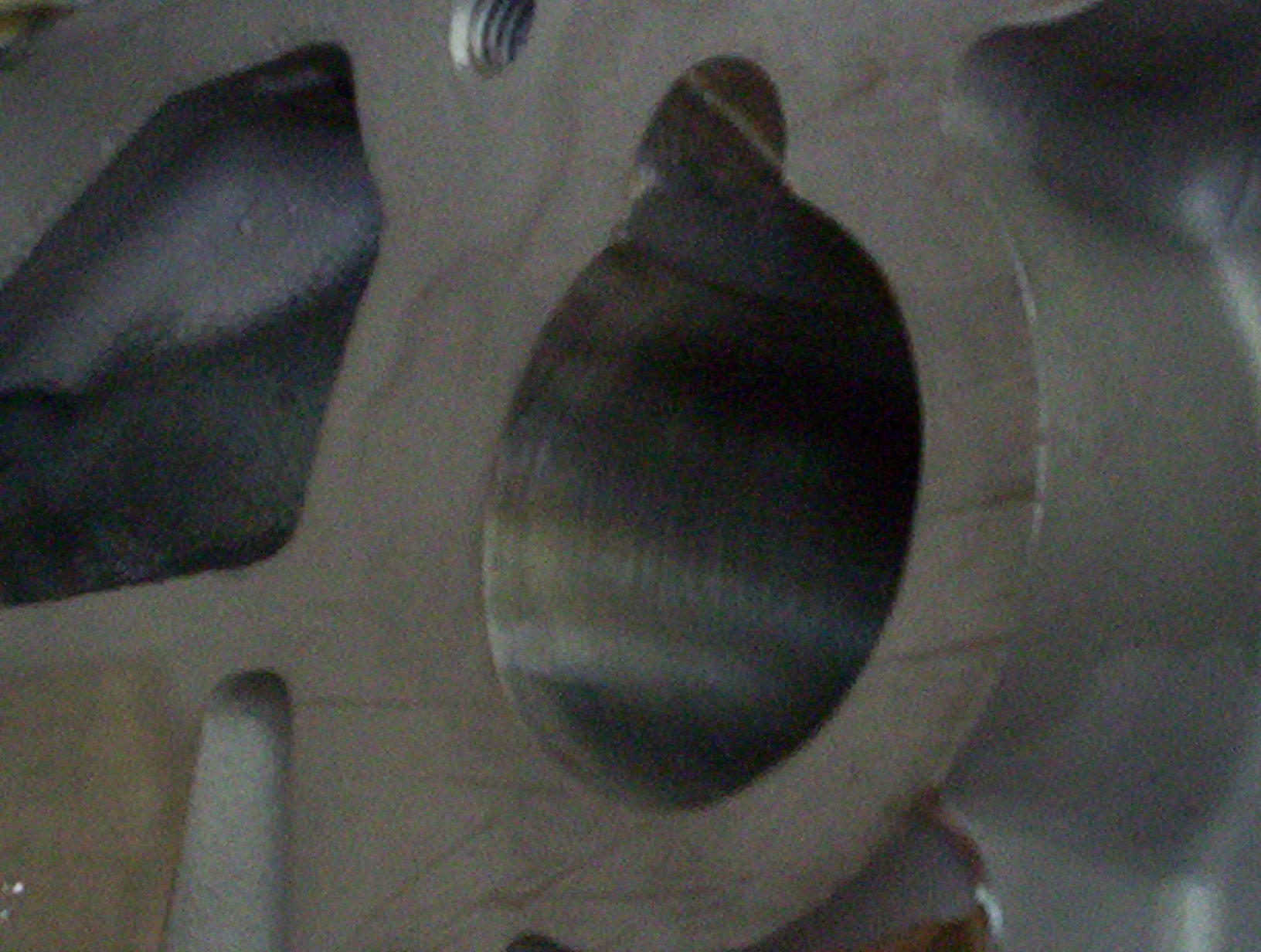

My EA88 cyl head, ex ports..jpg
My EA88 cyl head, ex ports..jpg [ 436.68 KiB | Viewed 150 times ]

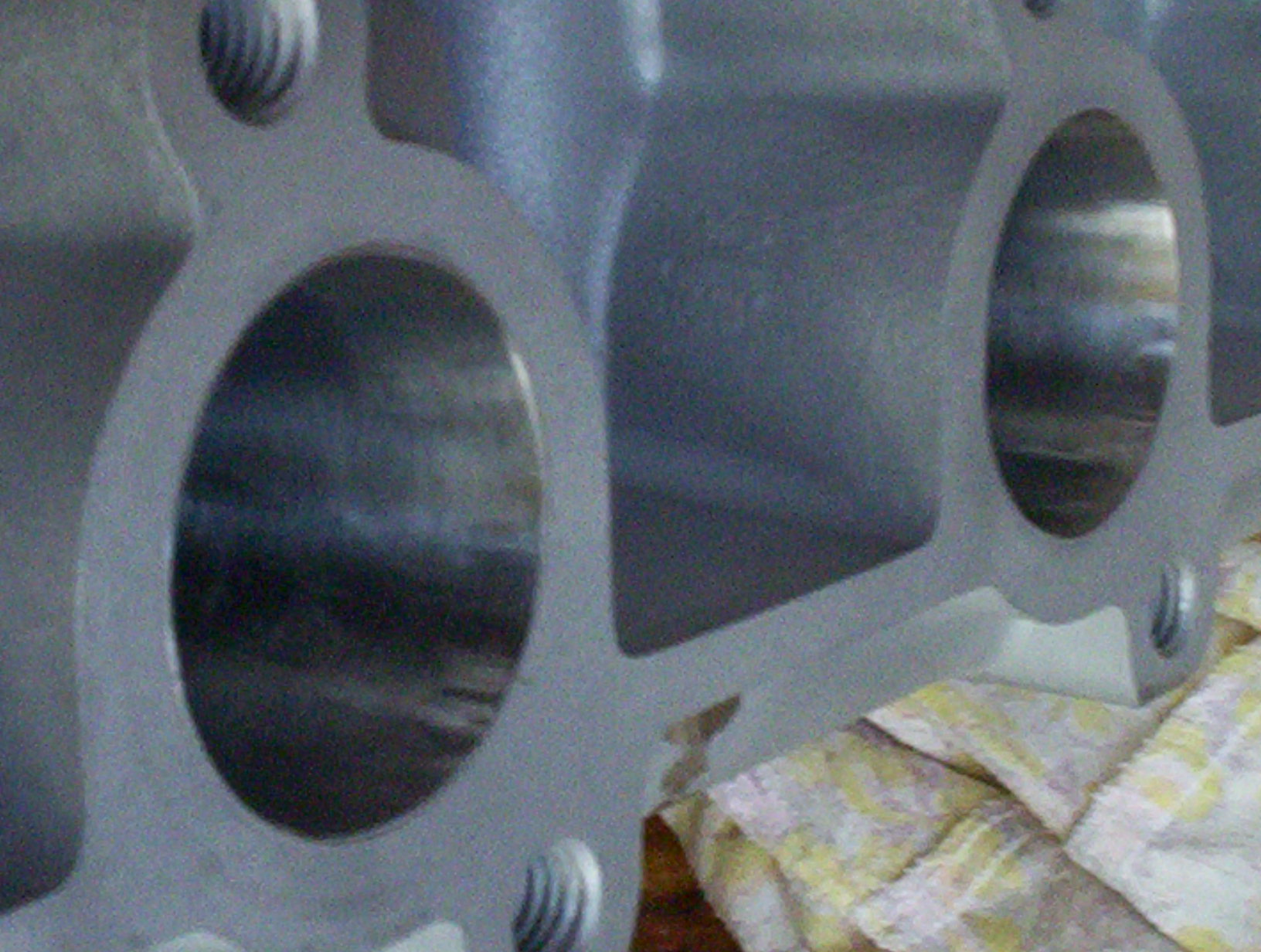

My 88EA cyl head ported & polished. 004.jpg
My 88EA cyl head ported & polished. 004.jpg [ 332.32 KiB | Viewed 140 times ]

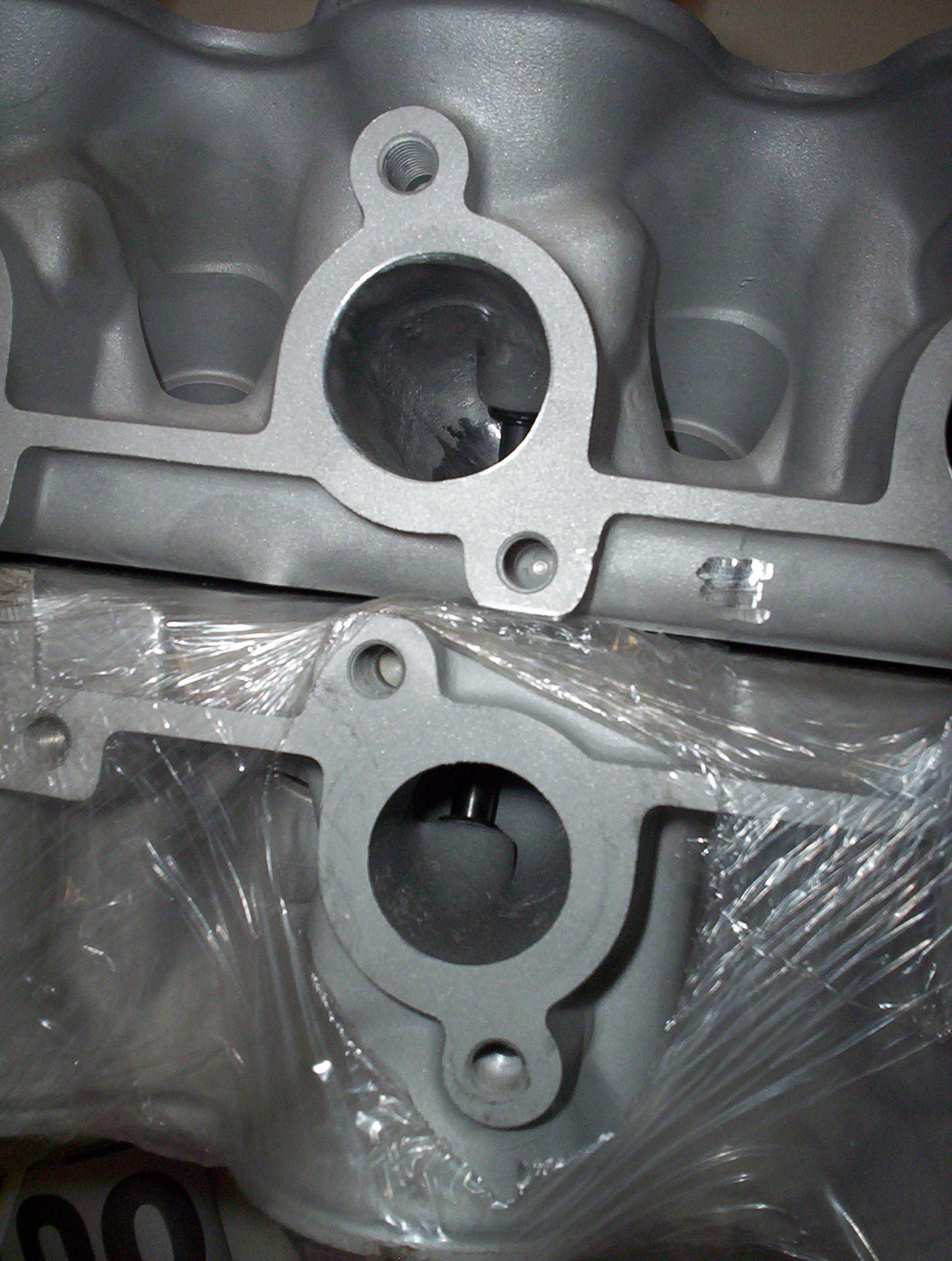

My 88EA cyl head ported & polished. 002.jpg
My 88EA cyl head ported & polished. 002.jpg [ 406.48 KiB | Viewed 143 times ]

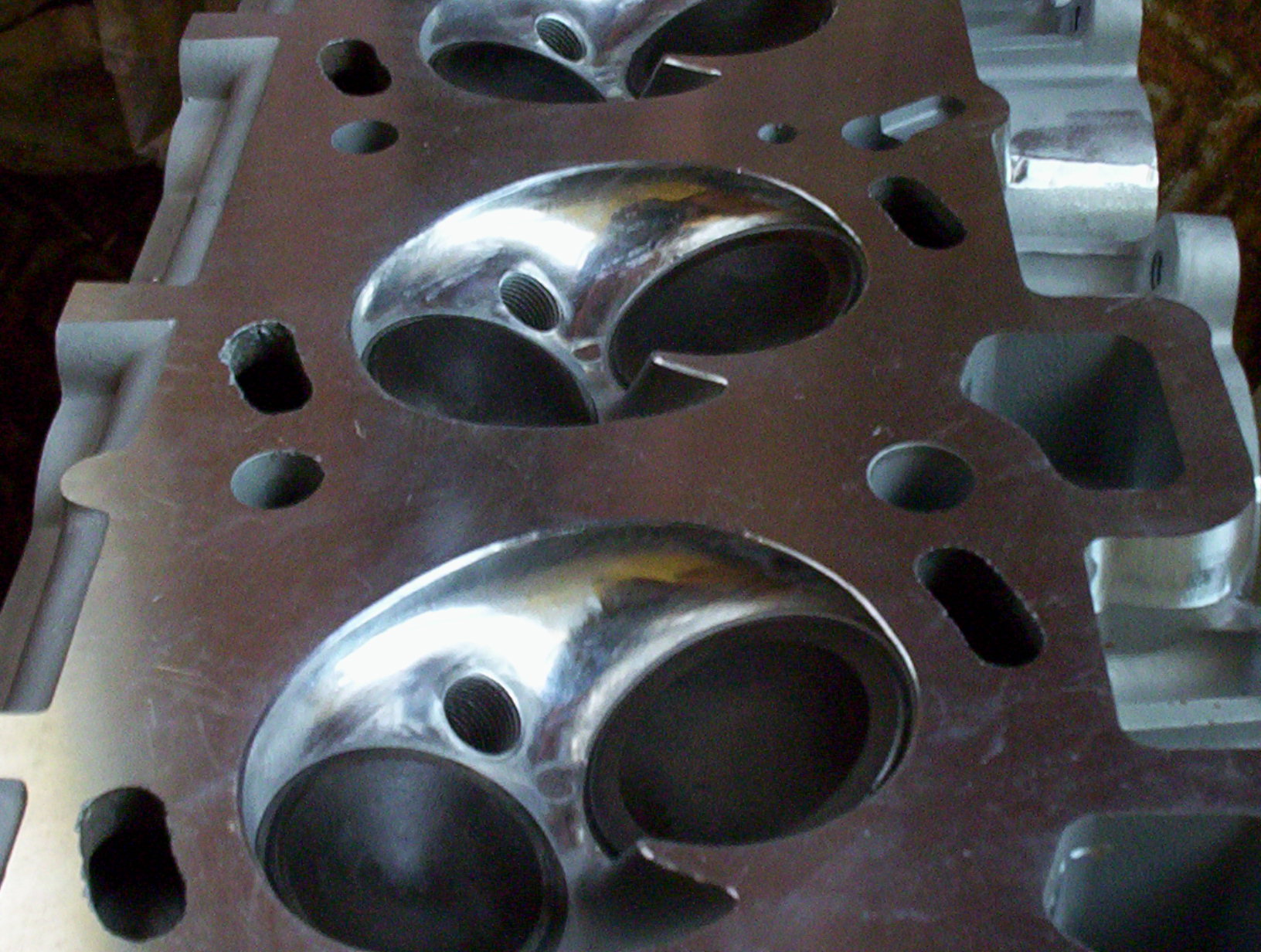

My 88EA cyl head ported & polished. 003.jpg
My 88EA cyl head ported & polished. 003.jpg [ 334.13 KiB | Viewed 139 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Aug 25, 2007 12:25 am
Stock as a Rock
Offline

Age: 37

Posts: 112

Joined: 5th Feb 2006

Ride: EL gli

Location: Perth, NOR
WA, Australia

CJH have you got any flow ratings for that head you done?
I am keen to know how it goes.
Top
 Profile


Posted: Sat Aug 25, 2007 12:36 am
Fordmods Junkie
Offline
User avatar

Age: 37

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

i'l let you know what kinda flow ratings $1000 bucks gets ya next week when i get my head back.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile


Posted: Sat Aug 25, 2007 3:11 am
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

cjh wrote:
Here's a head that I did myself. It takes a lot of time and know how. Yes, port matching is benificial, but you gotta know how to do it in such a way that no matter how many times you take the inlet manifold off, it always goes on in the same spot no matter what. Same for the exhaust.
Otherwise your wasting your time.
You need more than just a diegrinder, you need the right burrs for it, flapper wheels, polishing tips & compounds, and know where to remove metal, and where to leave it be and smooth it over.

I agree with everything bar the perfect line up, check the slack with a manifold when u bolt it up... It wont go backin the same spot unless you work it out with pressure, even then you wont be 100%!
Bowl work is the most important part as the std ports are pretty big.
Top
 Profile


Posted: Sat Aug 25, 2007 2:55 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

$1000 bux where ya gettin that done at i got 380 hp at 0.500inch lift on inlet and full head reco for $440



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Sat Aug 25, 2007 3:14 pm
Fordmods Junkie
Offline
User avatar

Age: 37

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

horis wrote:
$1000 bux where ya gettin that done at i got 380 hp at 0.500inch lift on inlet and full head reco for $440


this one should be over 400 according to him. at 500 it also includes a shave for 10.5:1 , and double valve springs fitted. Its getting done at headsense at coopers plains.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque
