Porting Head this weekend



Page 2 of 3 [ 33 posts ] Go to page Previous  1, 2, 3  Next


Posted: Tue Sep 27, 2005 5:44 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

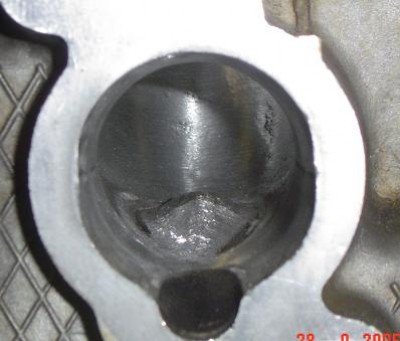

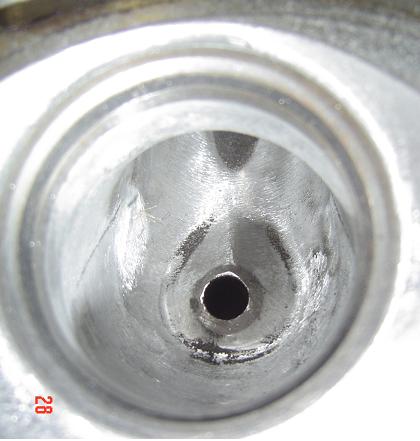

Missed the ported exhaust bowl





Attachments:
File comment: Exhaust bowl ported
DSC02965.JPG [ 77.86 KiB | Viewed 59 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Tue Sep 27, 2005 1:05 pm
Getting Side Ways
Offline

Age: 34

Posts: 409

Joined: 5th Nov 2004

Ride: EL Fairmont

Location: Look at that RICE!!
SA, Australia

Did you take much port material out or just blend the port roofs/floor into the seats?



_________________

Soo many idiots. So few bullets

Top
 Profile


Posted: Wed Sep 28, 2005 9:35 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Gday Wakinshaw, On the intakes i took a small amount out of the bowl area but mainly to blend to the valve insert, the main area where I removed material was at the entry to the port, it tapers off quite quickly creating a bump so I blended the first 25/35mm for a smoother transition. On the exhaust the original port is quite small and goes around a slight bend, so I reduced the short radius, took out about 2mm of material blending back into the port roof, looking down the port it heads to the left so I took out about 2mm from the right hand side radius (could have taken more I think). The casting on the head are supprisingly good but there is still a fair bit of room for improvement. Hope the effort has been worth it spent 22hrs in total but I am pretty fussy, probably could have gained the same results in 2/3rds that time but im more than happy with results.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Wed Sep 28, 2005 9:39 am
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Good stuff... better to take your time, your not paying yourself by the hour :D
Im keen to hear about the results. On a side note, whats involved in stripping and re assembling the head? Any special tools needed?
Top
 Profile


Posted: Wed Sep 28, 2005 10:02 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

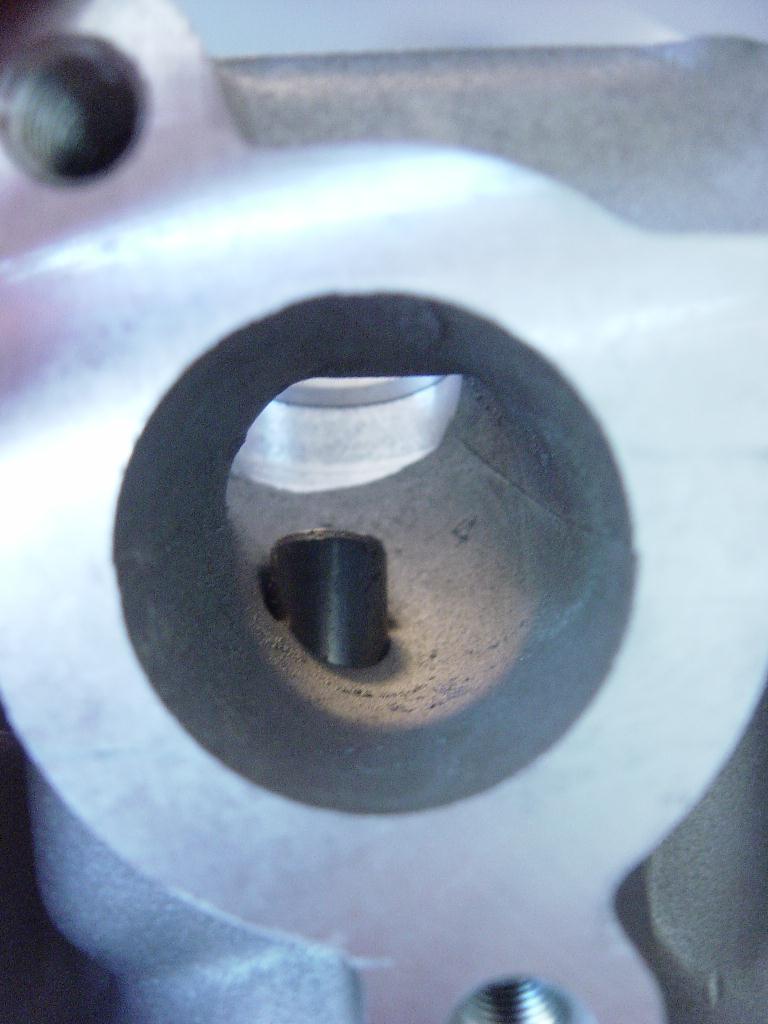

Intake ports.





Attachments:

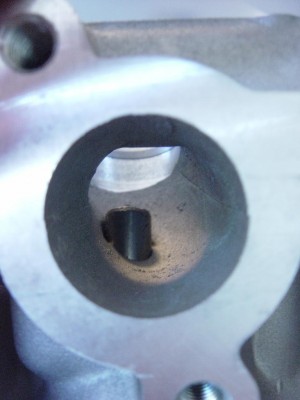

File comment: Intake original
DSC02934.JPG [ 86.47 KiB | Viewed 55 times ]

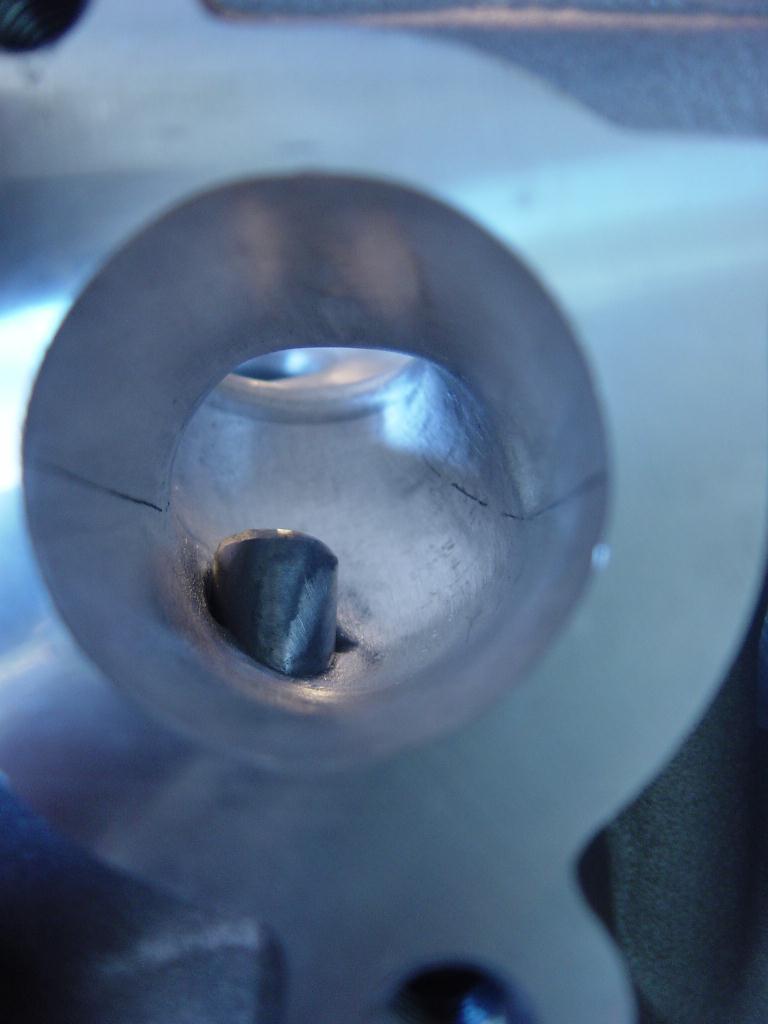

File comment: Intake ported
DSC02952.JPG [ 68.15 KiB | Viewed 59 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Wed Sep 28, 2005 10:17 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

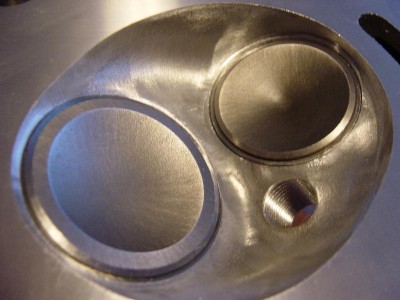

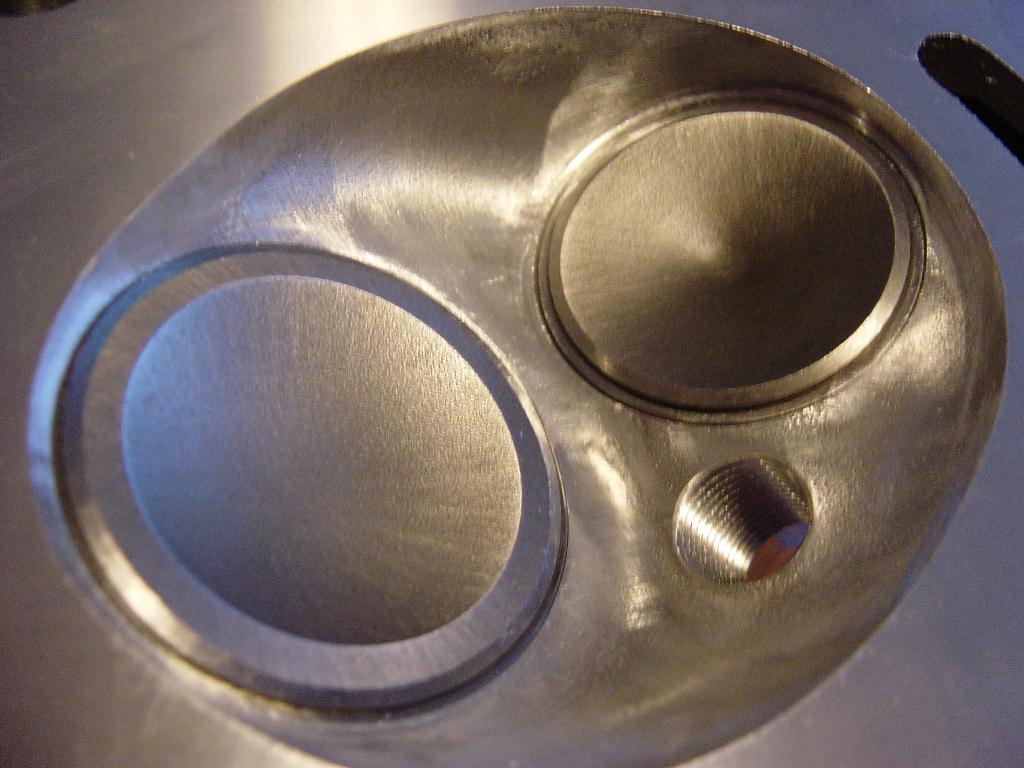

Exhaust ports. Got the valves fitted today, got a three angle cut done and had the leading edges on the valve face chamfered. Its the only mods done so far but it lays the basis for alot more.





Attachments:
File comment: Valves fitted
DSC02968.JPG [ 108.34 KiB | Viewed 49 times ]

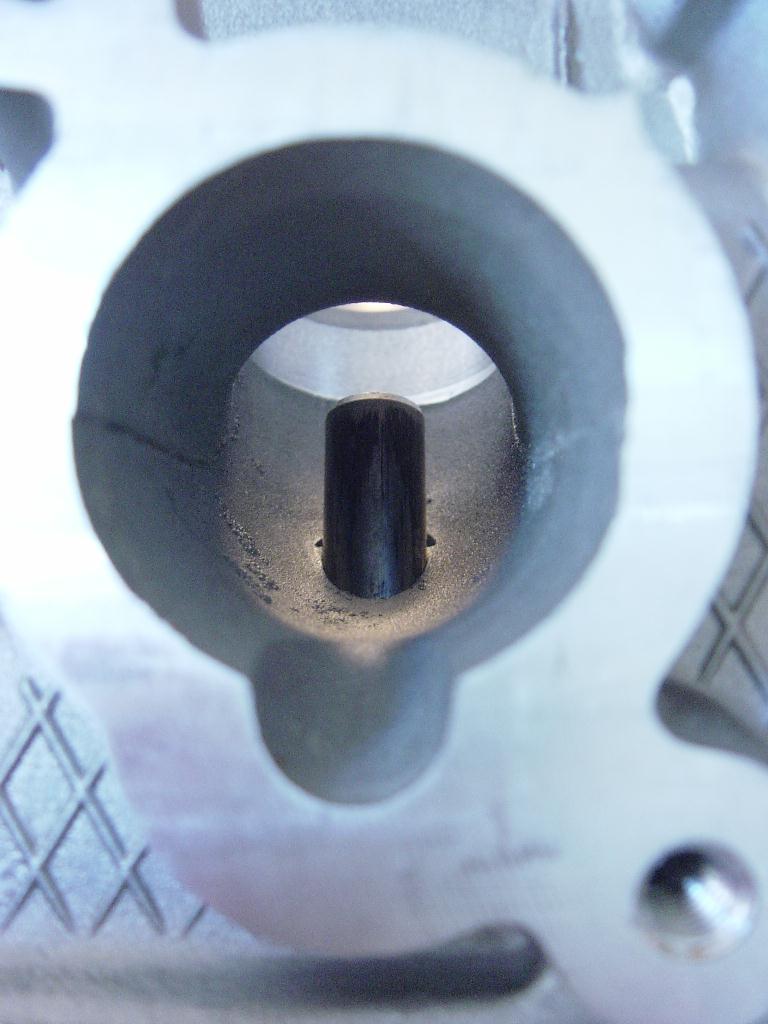

File comment: Exhaust original
DSC02931.JPG [ 83.38 KiB | Viewed 41 times ]

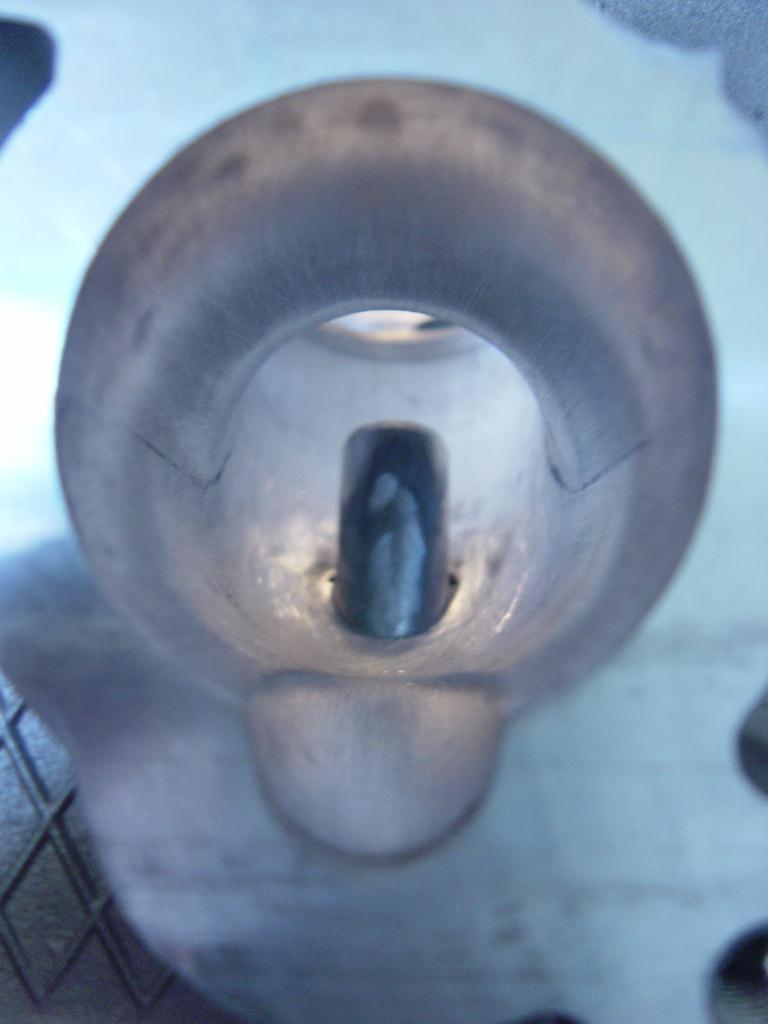

File comment: Exhaust ported
DSC02953.JPG [ 64.7 KiB | Viewed 47 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Wed Sep 28, 2005 10:34 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

*drool*



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Wed Sep 28, 2005 11:15 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Only removed one set of valves so I could have a prtactice removing material before attacking the new head. I used a couple larger sockets and a F/G clamp, had to rattle or knock the socket on the spring side to loosen the collets. Had the engine shop remove and refit the valves and springs.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Wed Sep 28, 2005 12:21 pm
Getting Side Ways
Offline

Age: 34

Posts: 409

Joined: 5th Nov 2004

Ride: EL Fairmont

Location: Look at that RICE!!
SA, Australia

Are you going to get your handy work flow benched? Would be very intresting to see what improvement has been made.



_________________

Soo many idiots. So few bullets

Top
 Profile


Posted: Wed Sep 28, 2005 12:44 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

As much as I'de like to the the fairmont station wagon is my wifes family taxi and its been off the road for nine days now while i figured out what was wrong and then indulged myself with the port work. I hope to have pacemaker PH4499's and a lukey 2 1/2 exhaust fitted this week and then visit Kwinana drag strip, should get a few laughs in the gradpa wagon.





Attachments:
File comment: Wifes Taxi
DSC02351.JPG [ 994.38 KiB | Viewed 35 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Wed Sep 28, 2005 1:00 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

off topic i know, but nicee part of the world mandurah is :)
Top
 Profile


Posted: Wed Sep 28, 2005 1:14 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

my 2c worth





Attachments:

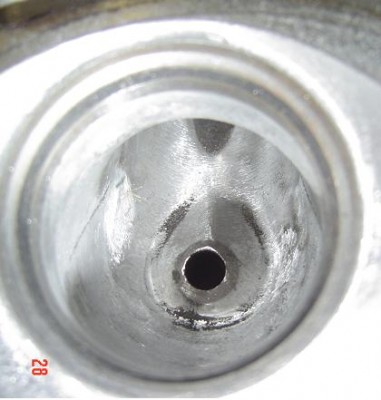

Worked E's Port.JPG
Worked E's Port.JPG [ 19.1 KiB | Viewed 45 times ]

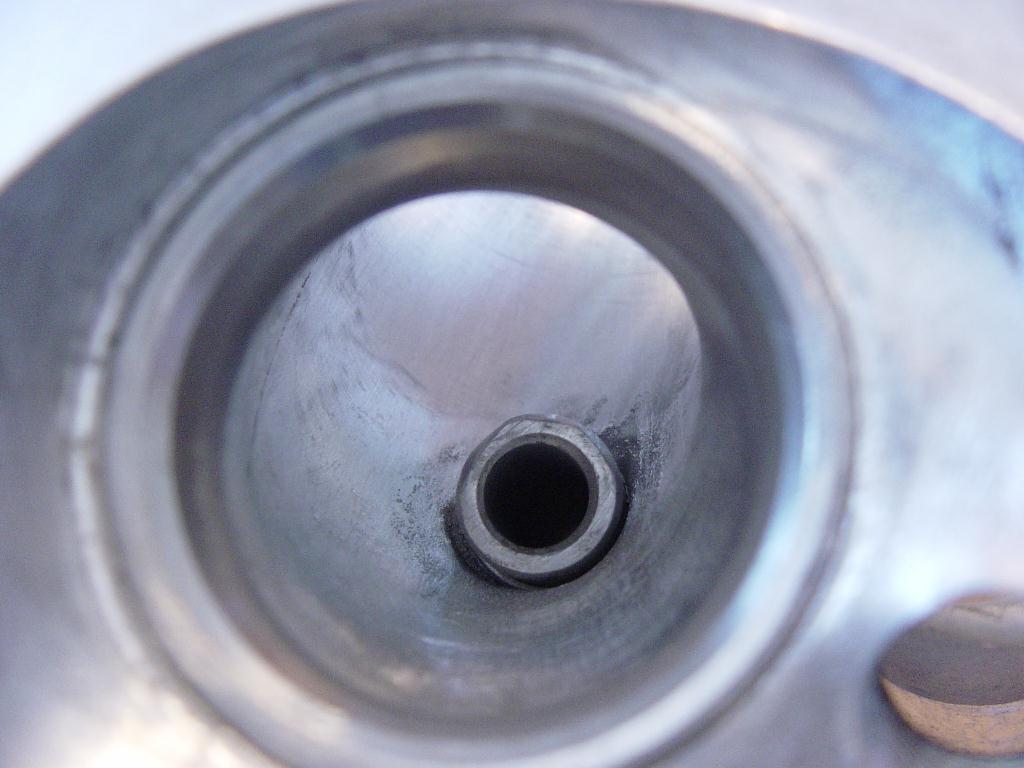

worked E's IN port.JPG
worked E's IN port.JPG [ 23.88 KiB | Viewed 48 times ]



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Wed Sep 28, 2005 1:52 pm
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Fri Jun 06, 2014 4:57 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Sep 28, 2005 8:42 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

good stuff :P

do you Cc after porting?



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Wed Sep 28, 2005 8:53 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Wow, I didn't know you could remove the valve guide down level with the port floor, obviously the valve stem is still there but that mod has got to be a big flow gain. Iv'e kept the soft head so I can have a play and see how far you can take the porting. I was pretty conservative having never done any thing like this before and having a brand new head, but seeing photos like that one makes me realise you can go a fair bit further and not stuff things up, food for thought for future mod's. Yes Mandurah is a pretty special place, you take a bit for granted when you live here.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
