 Post subject: Porting Head this weekend
Posted: Fri Sep 23, 2005 12:30 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Did a head gasket last week, got the head checked for hardness and its soft as, the previouse owner must of got it hot at some stage. Picked up an new in the box original ford blank head from the local engine recon shop for $780 thats including macining ready to fit back on the engine. have got the blank head for the weekend before it goes back in for the valves and springs to be fitted, I have a die grinder carbide burs and will pick up some flap wheels and cartridge wheels tomorrow. Any advice on what to or not ot do, Iv'e got a fair idea on what to do ie port match intake ports, blend valve seats to bowl, smooth out small radius, rough finish intake ports, polish exhaust ports and de shroud valves in combustion chambers. Just what to know other peoples experiences and learn from there successes or mistakes.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Fri Sep 23, 2005 12:39 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Be sure to take lots of before, during, and after pics.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Sep 23, 2005 12:51 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

....and be careful with the new head!



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Fri Sep 23, 2005 1:12 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

umm s**t forgot the site there was a good site with pics on how to port match a head...

google is your friend



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Sep 23, 2005 8:52 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Good luck with it, lots of pics would be great as Im going to do the same soon as my headgasket goes
Top
 Profile


Posted: Mon Sep 26, 2005 12:11 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

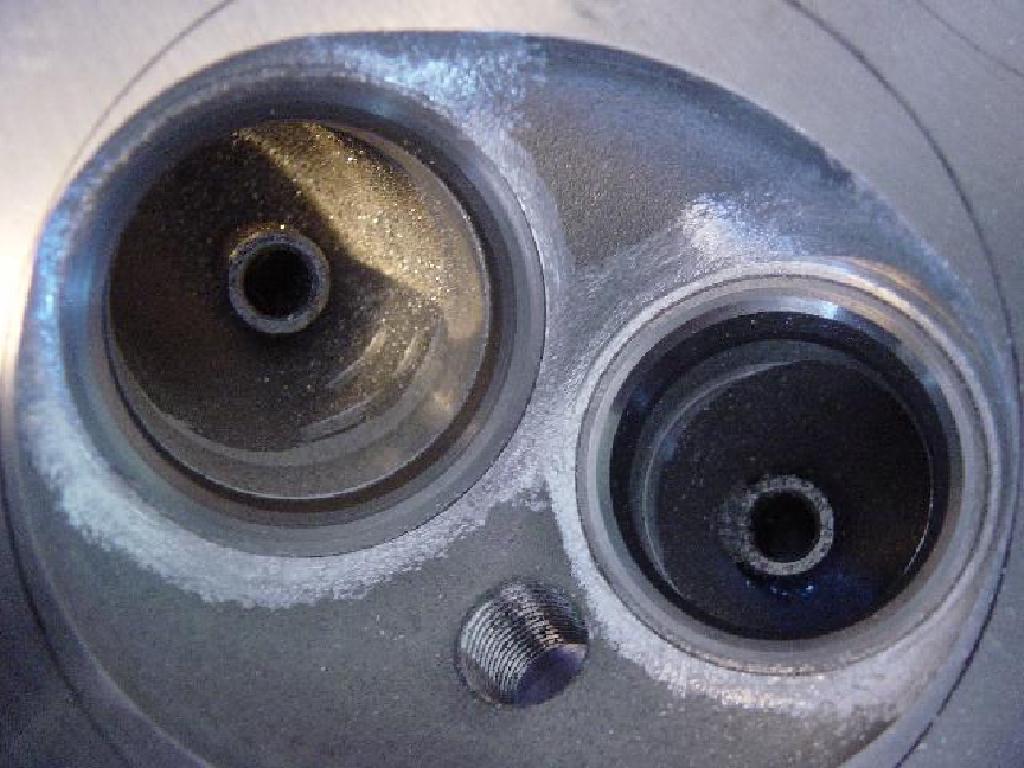

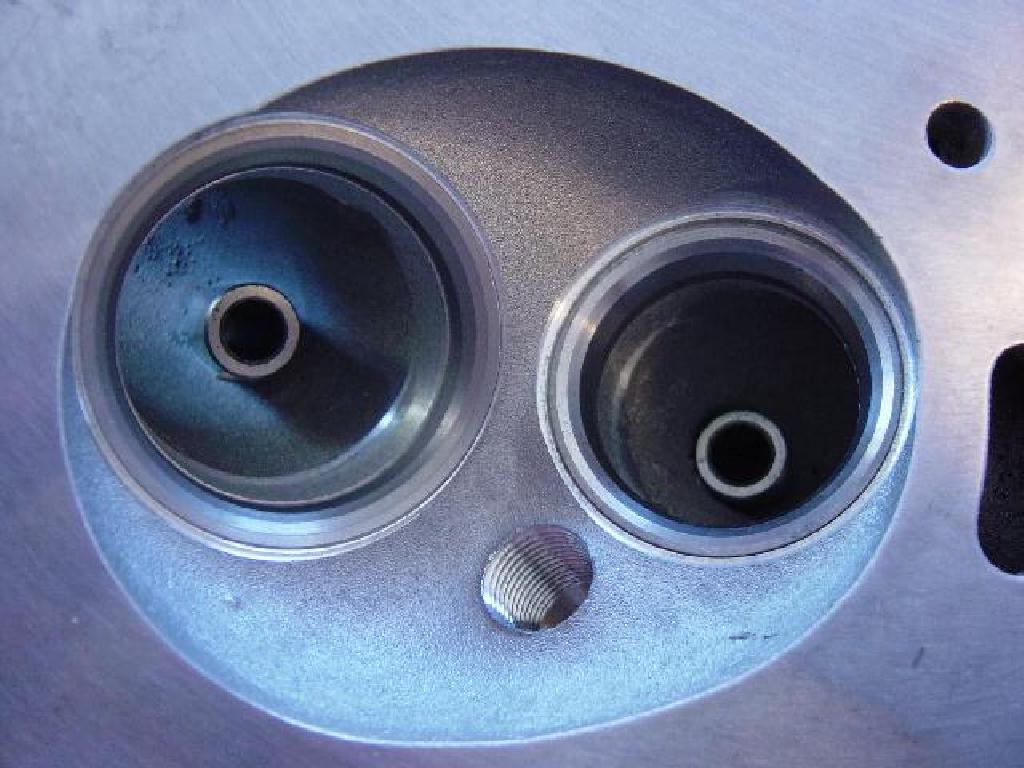

Got the combustion chambers done Saturday, Blended in the valve seats and de-shrouded the area around the valves then polished the chamber. Lots more involved than I thought, took 6hrs all up bit happy with the results. Pictures #1 Before, #2 Blend valve seats, #3 polised chambers.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Mon Sep 26, 2005 12:23 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Obviously stuffed something up with the pictures, i'll have another go. Any tricks to attaching pictures cause i'm not getting it right.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Mon Sep 26, 2005 12:24 am
Smokin em up
Offline
User avatar

Age: 32

Posts: 260

Joined: 6th Nov 2004

Ride: EL XR6

Power: 141 rwkw

Location: Liverpool
NSW, Australia

cant see the pics man???
Top
 Profile


Posted: Mon Sep 26, 2005 12:35 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

dunno, I host my own pics. But sounds like you had fun. Looking forward to the pics.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Sep 26, 2005 1:09 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Maybe this time.





Attachments:

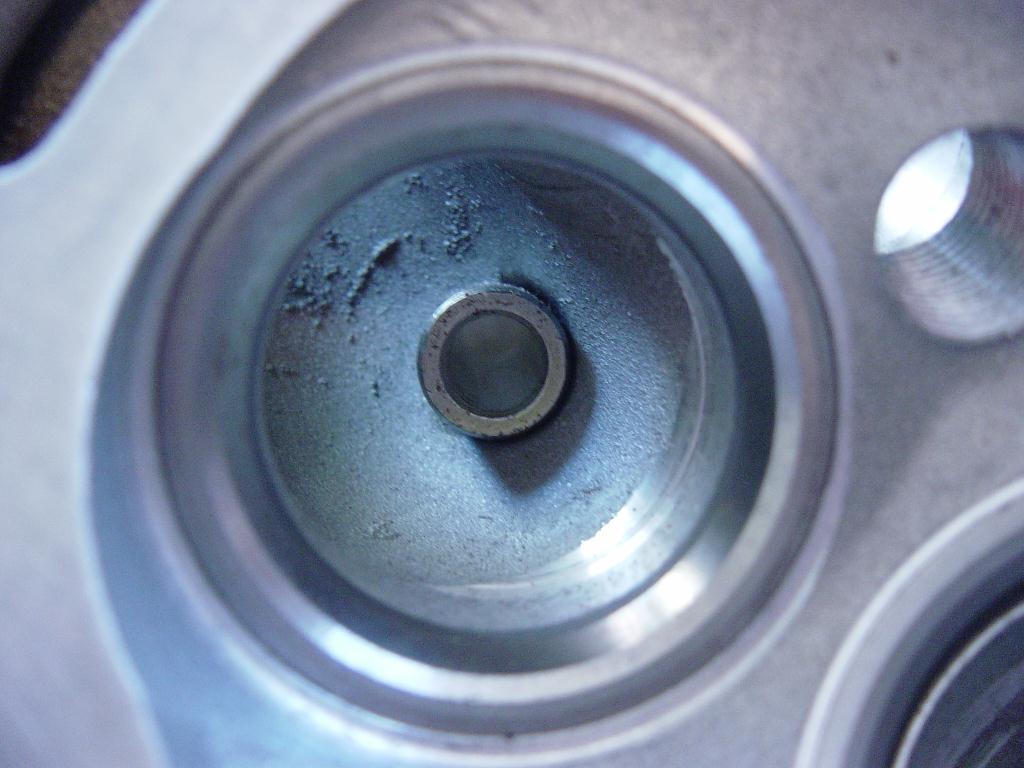

File comment: Polished chamber
DSC02950.JPG [ 107.75 KiB | Viewed 73 times ]

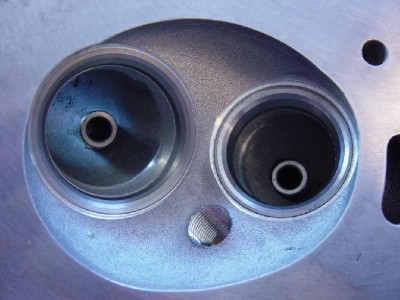

File comment: Blended Valve seats
DSC02949.JPG [ 117.17 KiB | Viewed 73 times ]

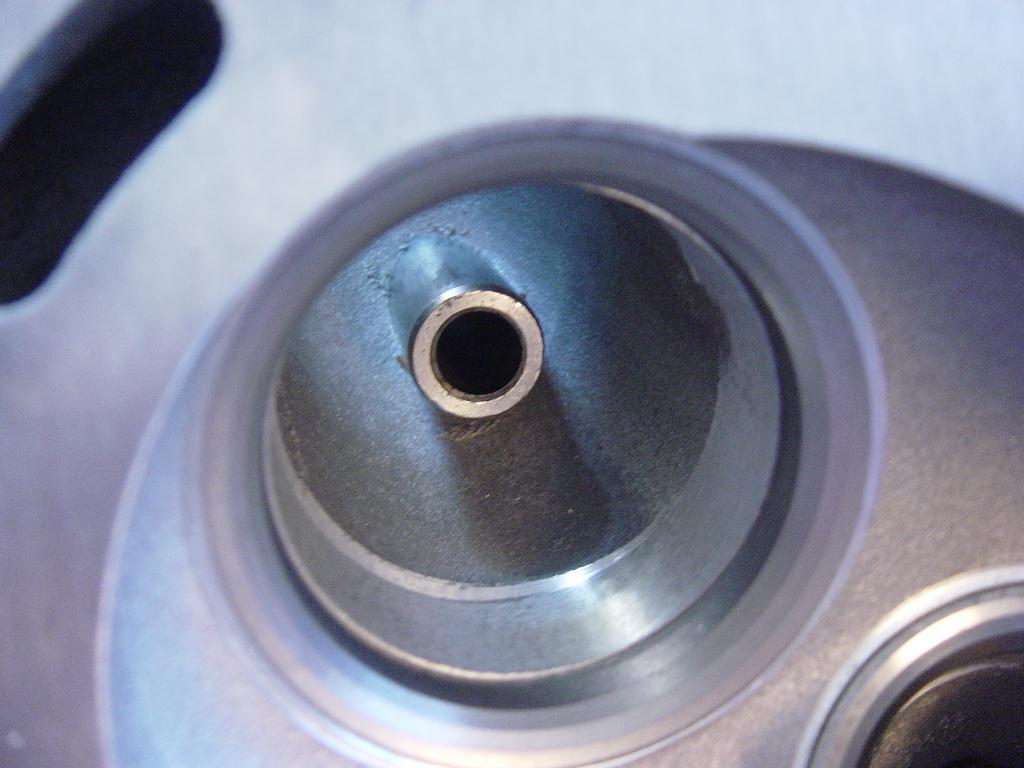

File comment: Standard Chamber
DSC02939.JPG [ 114.44 KiB | Viewed 74 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


Posted: Mon Sep 26, 2005 3:29 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

s**t not a bad job mate! good stuff!

hows the rest going?



_________________

RIP SCOTT

Top
 Profile


Posted: Mon Sep 26, 2005 3:49 pm
Getting Side Ways
Offline

Age: 34

Posts: 409

Joined: 5th Nov 2004

Ride: EL Fairmont

Location: Look at that RICE!!
SA, Australia

Top work there mate, keep shooting the pictures through.



_________________

Soo many idiots. So few bullets

Top
 Profile


Posted: Mon Sep 26, 2005 3:55 pm
Getting Side Ways
Offline

Age: 34

Posts: 780

Joined: 5th Nov 2004

Ride: EF XR6

Location: Adelaide
SA, Australia

yup, we love these pics.



_________________

Not lost any demerit points

Top
 Profile


Posted: Mon Sep 26, 2005 5:00 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Looks good... nothing like a few extra kws for free
Top
 Profile


Posted: Tue Sep 27, 2005 5:42 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

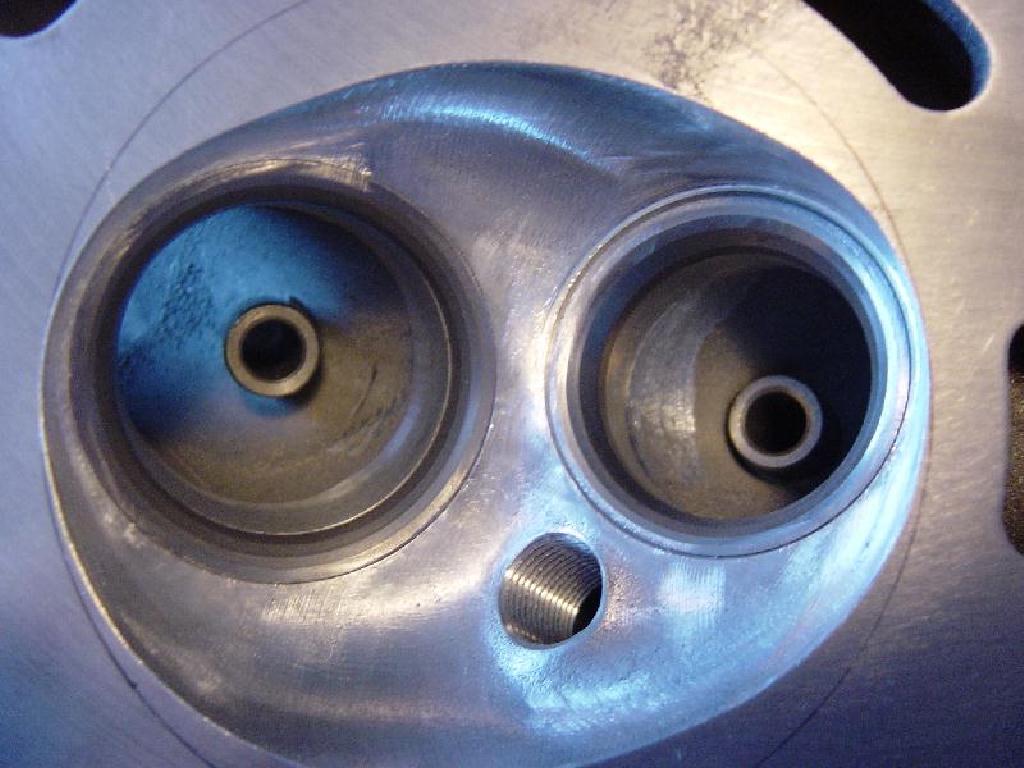

All but finished now, here are the bowls shaped and blended to the valve inserts.





Attachments:
File comment: Exhaust bowl original
DSC02936.JPG [ 91.24 KiB | Viewed 66 times ]

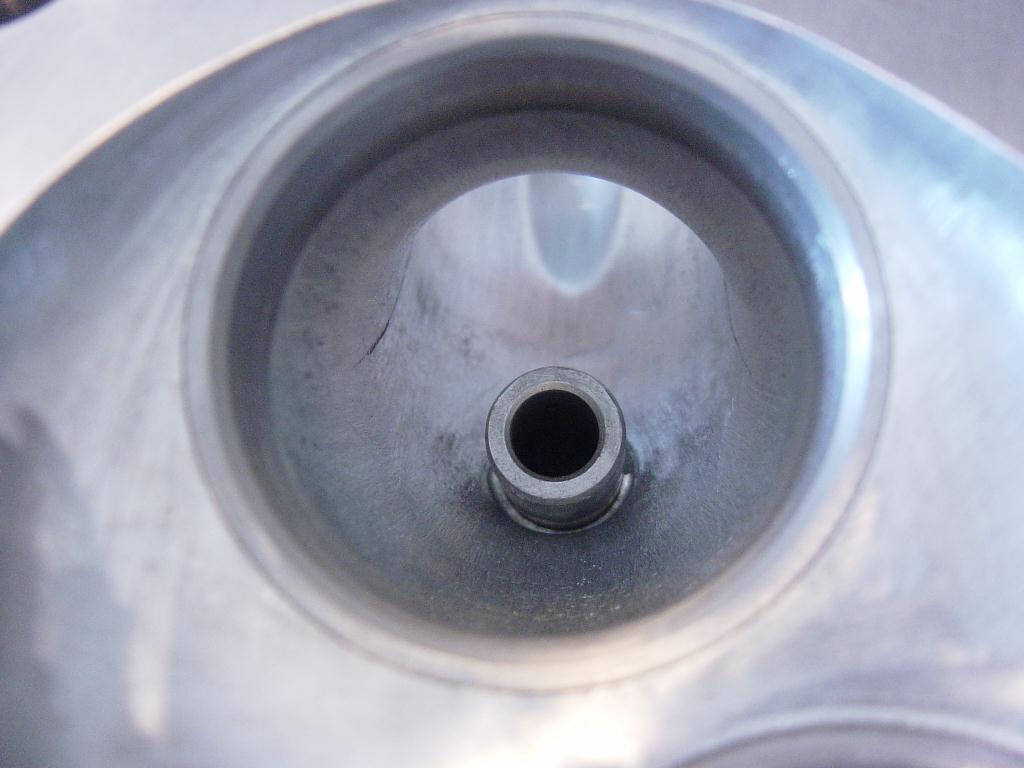

File comment: Intake bowl ported
