 Post subject: Porting Question
Posted: Sat Nov 17, 2007 12:23 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

I am doing some porting work on my VCT head and need to know how much material can be taken out of the exhaust port. If I look down the port I can see a flat section on the floor where is enters the bowl, the port does not line up with the bowl and turns a sharp corner, can I remove a bit out of here?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Nov 17, 2007 12:32 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

leave the flat floor there. you'll hurt the port by rounding it out



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Nov 17, 2007 1:45 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

tickford_6 wrote:
leave the flat floor there. you'll hurt the port by rounding it out



Like what he said ^^^^^^, don't touch the floors, can be smoothed, but take none off.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Nov 17, 2007 2:07 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Not the floor but the sharp(ish) turn the port takes to line up with the bowl.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Nov 17, 2007 2:17 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

twason wrote:
Not the floor but the sharp(ish) turn the port takes to line up with the bowl.


Do you mean a casting line/ridge??? Where the sections of the mould join together.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Nov 17, 2007 2:23 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

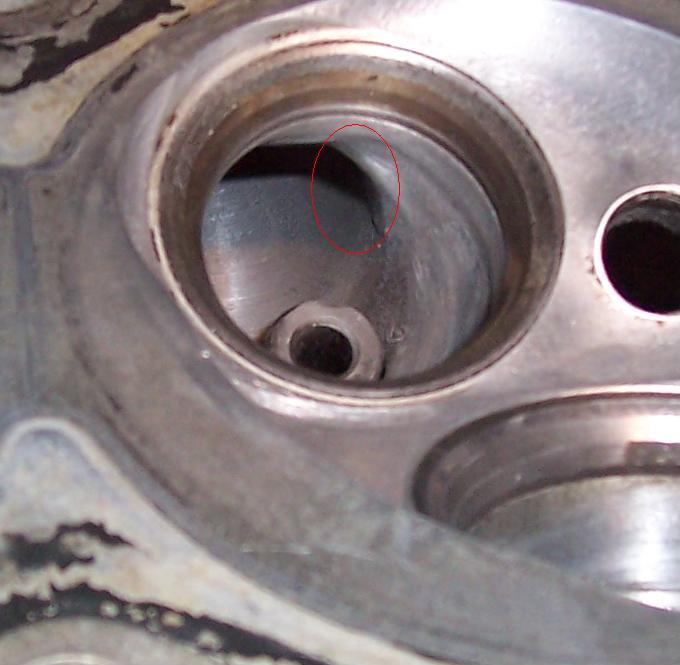

No, the 3 o'clock part of the port where it enters the bowl and adjacent the guide is where I am talking about.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Nov 17, 2007 2:53 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

http://www.autospeed.com/cms/A_109232/article.html



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Sat Nov 17, 2007 2:55 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

twason wrote:
No, the 3 o'clock part of the port where it enters the bowl and adjacent the guide is where I am talking about.


Can you post a photo???



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Nov 17, 2007 4:08 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

TURBO_GHIA wrote:
http://www.autospeed.com/cms/A_109232/article.html
Yes that has been my reference document so far.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Nov 21, 2007 10:36 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

After an extended search I have found the USB cable.

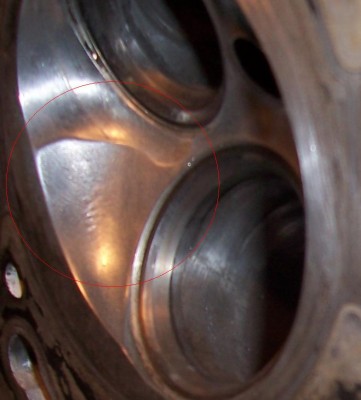

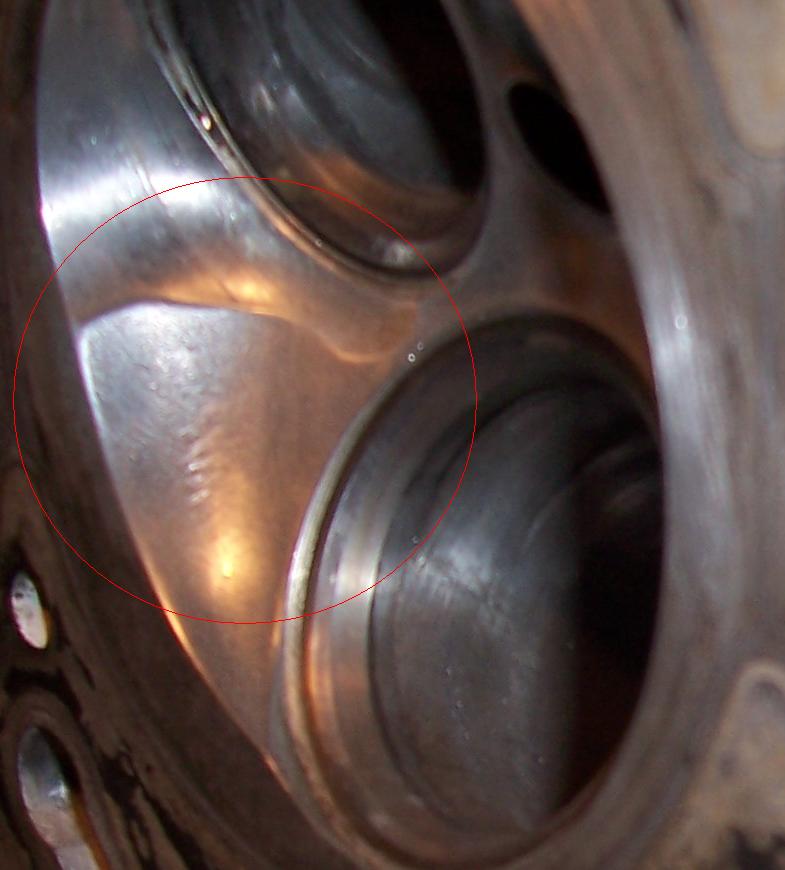

Here is the area I am taking about circled in red.





Attachments:
File comment: Area circled in red
Exhaust.JPG [ 45.54 KiB | Viewed 66 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu Nov 22, 2007 7:24 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Are all the ports like that or just the one?
Use a inside calibre to measure the circumference of the throat entry into the bowl. which ever is the largest you use that as your target for the rest.

personally I'll just give it a clean without going to far. you don't want to hinder gas velocity to much.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Thu Nov 22, 2007 7:39 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Thanks Slick good point, they are all like that. It was not so much the guide to wall volume that concerned me but the sharp bend. I am probably not going to do anything there now as I am nervous about the water gallery.

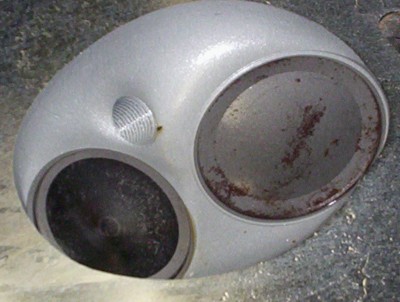

Next question, is this area a hangover from the swirl ridge on an EA or is it purposefull on an AU?





Attachments:
File comment: Chamber
swirl.JPG [ 53.51 KiB | Viewed 67 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu Nov 22, 2007 8:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

twason wrote:
Thanks Slick good point, they are all like that. It was not so much the guide to wall volume that concerned me but the sharp bend. I am probably not going to do anything there now as I am nervous about the water gallery.

Next question, is this area a hangover from the swirl ridge on an EA or is it purposefull on an AU?


What is that head off???? Is it an AU????

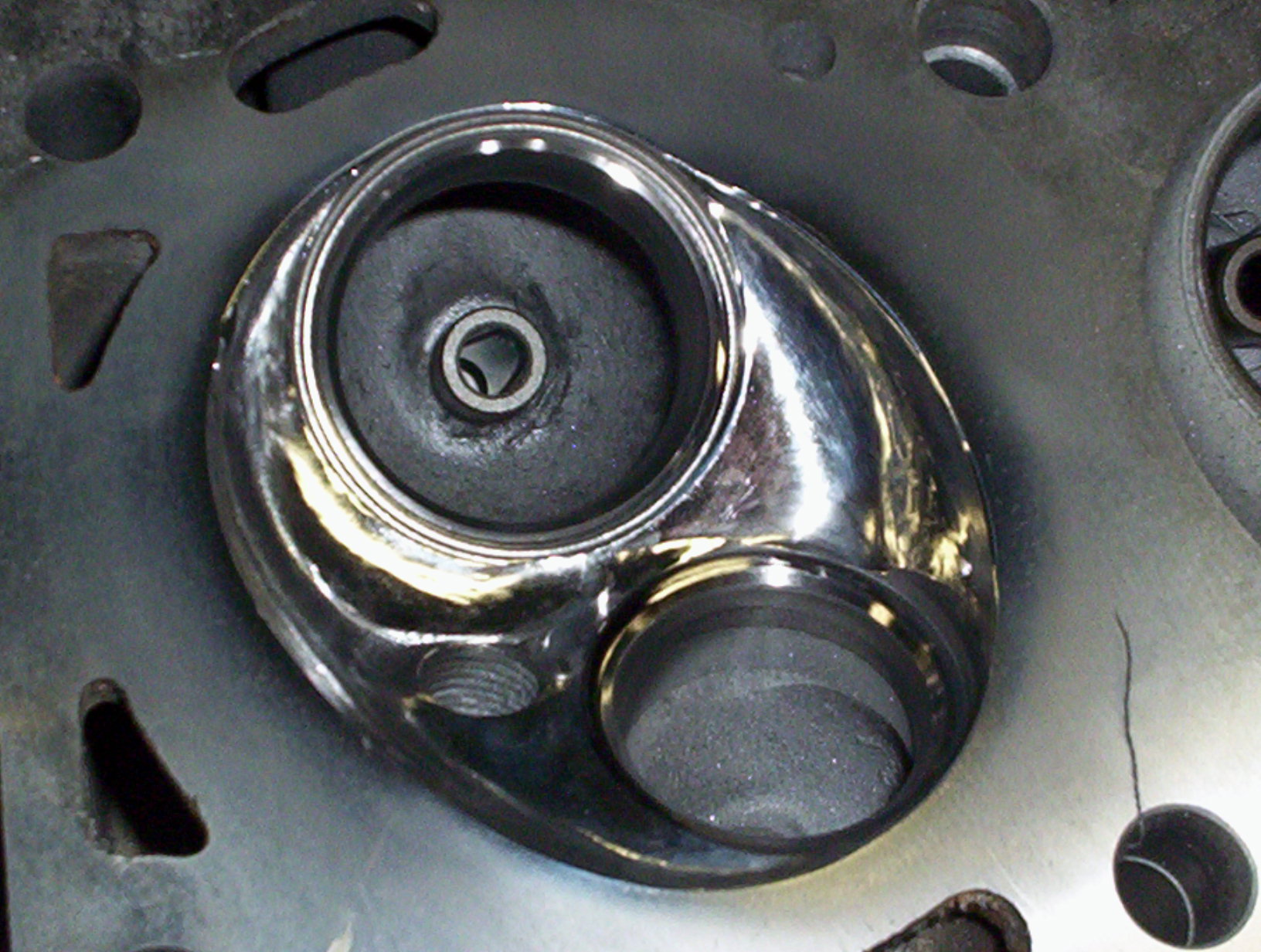

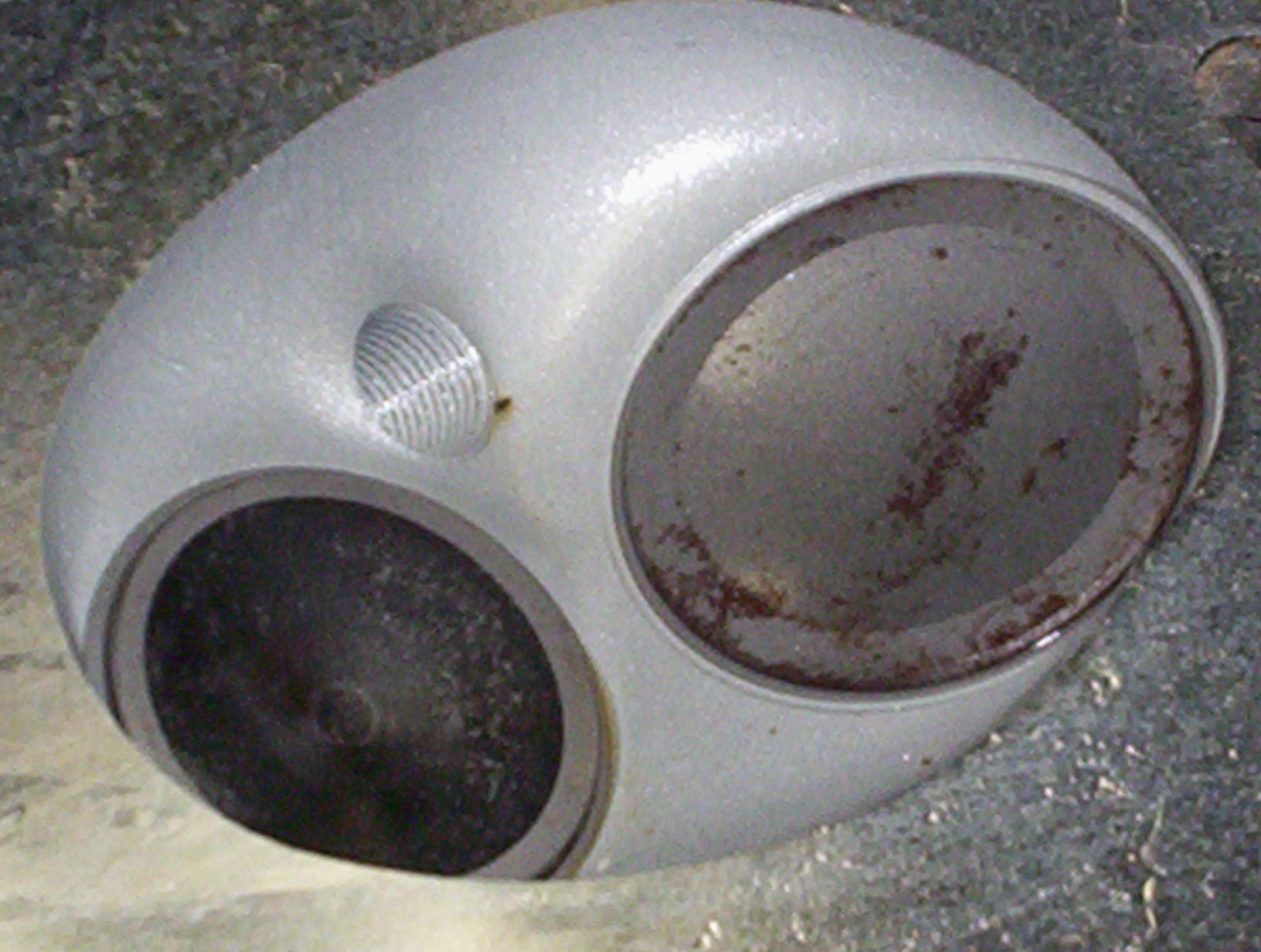

This pic is of an EF head, a 94 AB. The pics are before and after polishing, as you can see, there was no little ridge. I haven't done many AU head gaskets, so I haven't seen this before.
