 Post subject: Power Steering Leak (from somewhere!)
Posted: Tue May 26, 2009 10:29 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

I have a power steering leak (Ford Falcon AU) but I can't locate where the leak is.

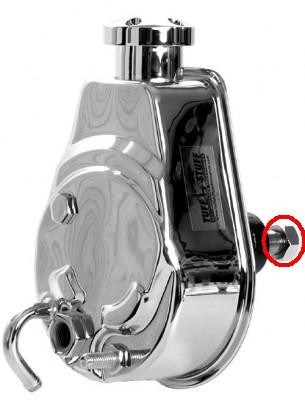

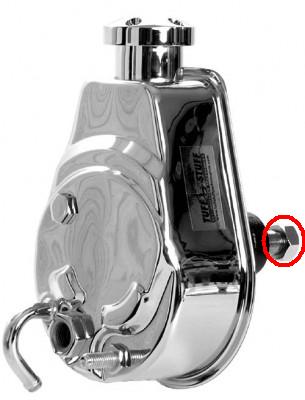

I tightened the nut (see photo below - circled in red)

After I tightened the nut, the leak dissapeared - but the leak came back after a few days.

Help! where could this leak be coming from and how to fix it?

Attachment:
saginaw.jpg [ 17.42 KiB | Viewed 142 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Tue May 26, 2009 11:11 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

At a guess, it's probably the shaft seal in the front of the pump housing. I think you can buy overhaul kits for them. Are all the hose fittings tight?



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Tue May 26, 2009 11:15 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

yes tight hoses



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Tue May 26, 2009 11:17 pm
Parts Gopher
Offline

Posts: 72

Joined: 13th Mar 2007

Location: Melbourne
VIC, Australia

They don't have a nut on the shaft, the pulley is press fitted.
Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Wed May 27, 2009 10:53 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

The problem is the fluid is leaking out from that nut and then onto another component underneath the tank.

Not sure what the component is but it's got metal windings inside it which are exposed.



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

falcon1999 wrote:
Not sure what the component is but it's got metal windings inside it which are exposed.

That would be the Alternator. I wouldnt know for sure where the leak is from or how to go about it, but its best you get it fixed asap, before the leak gets into the alternator and stuffs it



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 7:47 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Is the alternator part of the Power steering system?

Or another system



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 7:58 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

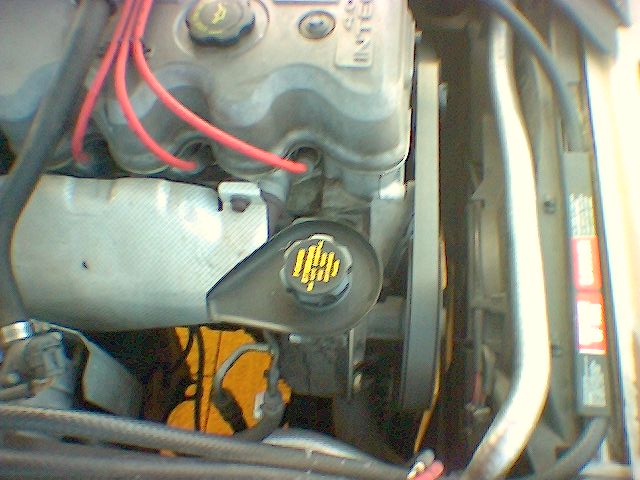

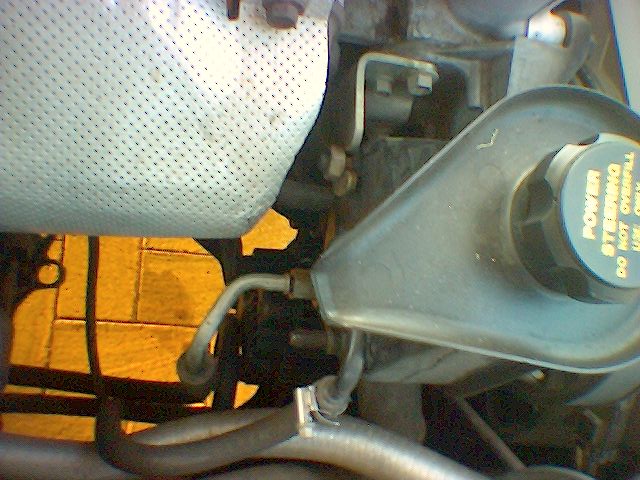

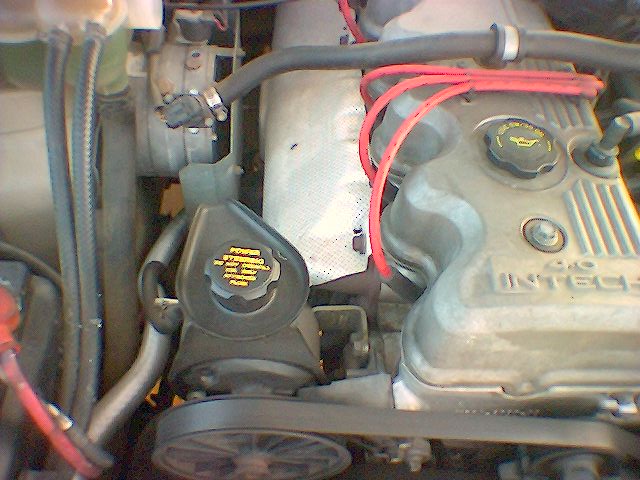

Have a look at these photos:

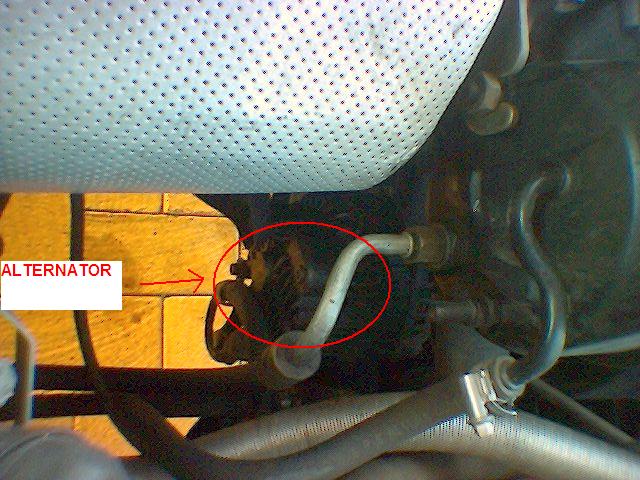

The power steering system leak is dripping onto the alternator (circled in red)

You can also just see the leak on the floor!

Help!

Attachment:
image_00045.jpg [ 62.58 KiB | Viewed 219 times ]


Attachment:
image_00046.jpg [ 57.65 KiB | Viewed 164 times ]


Attachment:
image_00047.jpg [ 72.38 KiB | Viewed 161 times ]


Attachment:
image_00048.jpg [ 78.27 KiB | Viewed 245 times ]



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 8:05 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 302

Joined: 5th Sep 2007

Gallery: 1 images

Ride: 09 FG XR6

Power: 208 rwkw

Location: Wallerawang
NSW, Australia

Standard, high preshure power steering line conector, it's almost imposible to remove the line from the conector and replace the fitting you'l need to replace the line + conector and make shure you put oil on the "o" ring before you fit it



_________________

2 FOR TURNING & 2 FOR BURNING

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 8:17 pm
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

brad17djr wrote:
Standard, high preshure power steering line conector, it's almost imposible to remove the line from the conector and replace the fitting you'l need to replace the line + conector and make shure you put oil on the "o" ring before you fit it


So are you suggesting I replace both the line and connector?



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Thu May 28, 2009 8:22 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 302

Joined: 5th Sep 2007

Gallery: 1 images

Ride: 09 FG XR6

Power: 208 rwkw

Location: Wallerawang
NSW, Australia

yep cause it's almost impossible to get the conector of the line only if ur good with a angle grinder, your lucky tho that its a 6 there easy to replace not like the Ts Te50 lines there not cheap tho



_________________

2 FOR TURNING & 2 FOR BURNING

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Fri May 29, 2009 4:57 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

This leak usually happens after driving for a while and turning the engine off. A small leak of 1 drop every couple of seconds may be evident coming from the bottom of that union fitting were talking about.

That's what happened to me. I actually got it replaced and the replacement fitting was faulty from new so I had that problem a 2nd time in as many days. Fcuk I was angry. I had completely degreased the engine bay after the initial one was replaced. All for fcuken nought!
And that is what my car is all about. It has been busting my balls since the day I bought it. EVERYTHING, is a drama, and most things that are replaced don't work the first time and I need to do the same work all over again the next day.
It's the biggest time waster in my life. And it's not as if I don't show it love, it's an a***hole to me. We might as well get married, but it can't give me kids, let alone drive normally....
Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Fri May 29, 2009 10:22 am
Getting Side Ways
Offline
User avatar

Posts: 449

Joined: 15th Apr 2009

Ride: Falcon AU

Location: Perth
WA, Australia

Kit wrote:
This leak usually happens after driving for a while and turning the engine off. A small leak of 1 drop every couple of seconds may be evident coming from the bottom of that union fitting were talking about.

That's what happened to me. I actually got it replaced and the replacement fitting was faulty from new so I had that problem a 2nd time in as many days. Fcuk I was angry. I had completely degreased the engine bay after the initial one was replaced. All for fcuken nought!
And that is what my car is all about. It has been busting my balls since the day I bought it. EVERYTHING, is a drama, and most things that are replaced don't work the first time and I need to do the same work all over again the next day.
It's the biggest time waster in my life. And it's not as if I don't show it love, it's an a***hole to me. We might as well get married, but it can't give me kids, let alone drive normally....


How much did it cost you each time?



_________________

What do you call a Hyundai with dual exhausts?

A wheelbarrow.

Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Fri May 29, 2009 1:58 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

Hiteck in Wangara did mine. $70.00 for the part. Second time was a warranty job so, free. Seems ok now.
Top
 Profile


 Post subject: Re: Power Steering Leak (from somewhere!)
Posted: Fri May 29, 2009 3:31 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

brad17djr wrote:
yep cause it's almost impossible to get the conector of the line only if ur good with a angle grinder, your lucky tho that its a 6 there easy to replace not like the Ts Te50 lines there not cheap tho

im in the same boat with my ef v8s--but i cant buy the lines,only the snap over nuts and have to grind the lines,bought a spare to change over and practice on.



_________________
