Quick Harmonic Balancer Question



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Quick Harmonic Balancer Question
Posted: Mon Aug 22, 2005 3:25 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 126

Joined: 6th Nov 2004

Location: Gosford
NSW, Australia

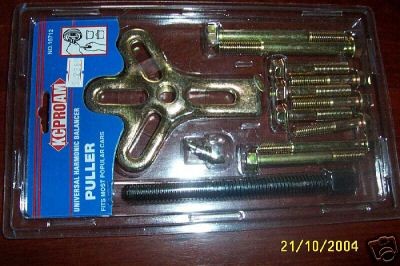

hey guys, I'm doing the timing cover gaskets tomorrow, and would like to know if this is the right puller for the job. By the way, I've got an ED 6 cylinder.

Thanks a lot,

GazzaED





Attachments:
31_1_b.JPG [ 30.95 KiB | Viewed 40 times ]
Top
 Profile


Posted: Mon Aug 22, 2005 3:43 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

That's the one.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Mon Aug 22, 2005 3:44 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

That'll do fine. I'm just putting my timing chain cover back on, and used the same puller. Just be careful when you put the three bolts in that you have it all square with the motor, I've put one on a little sidewards and when I turned the centre bolt it ended up bending it. I’ve found the easiest was is to put the three bolts in finger tight, wind the centre bolt in finger tight and slowly tighten up the three bolts until they are very tight, then use the centre bolt. Most of the time just using the three outside bolts will loosen the balancer and the centre one will pull it the rest of the way off.

Good luck.
Top
 Profile


Posted: Mon Aug 22, 2005 3:51 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 126

Joined: 6th Nov 2004

Location: Gosford
NSW, Australia

Thanks for that guys, i'm travelling down to my dad's factory to use his hoist i for the day to do a fairly decent service, and it would have been a pain to get there and figure I have the wrong part! Thanks again.
Top
 Profile


Posted: Mon Aug 22, 2005 6:51 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Right type of puller... Wrong bolts in the package though.

You will need 3 x M10 bolts. Longish (120mm I think mine were) to reach all the way into the balancer. I got the bolts from Bunnings. Just the gold coloured high tensile bolts will do the job.
Top
 Profile


Posted: Mon Aug 22, 2005 7:13 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Hate to be the put a dampener on you spirits. I had one of those pullers I found the centre bolt too small & too course a thread and it stripped the thread in the puller body. ended up borrowing one with a large dia, fine threaded centre bolt that worked effortlessly.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Mon Aug 22, 2005 7:21 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

madmax wrote:
Hate to be the put a dampener on you spirits. I had one of those pullers I found the centre bolt too small & too course a thread and it stripped the thread in the puller body. ended up borrowing one with a large dia, fine threaded centre bolt that worked effortlessly.


The entre bolt doesnt need to thread in - there is a little cap which sits on top of the centre bolt and pushes against the end of the crank....



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Mon Aug 22, 2005 7:32 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 1040

Joined: 5th Nov 2004

Gallery: 5 images

Ride: EA Fairmont Ghia

Location: Melbourne
VIC, Australia

I think in my kit like that, I found that I could only get 2 bolts in and lined up, but it still pulled the balancer off no problem.



_________________

Full working BA Shifter now upgraded to BF Shifter.
BA headlight inserts in my EA headlights.

Top
 Profile


Posted: Mon Aug 22, 2005 7:38 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

4.9 EF Futura wrote:
madmax wrote:
Hate to be the put a dampener on you spirits. I had one of those pullers I found the centre bolt too small & too course a thread and it stripped the thread in the puller body. ended up borrowing one with a large dia, fine threaded centre bolt that worked effortlessly.


The entre bolt doesnt need to thread in - there is a little cap which sits on top of the centre bolt and pushes against the end of the crank....


Yes I know the bolt stripped out of the puller body.
With a course thread the puller tries to pull too much per rotation of the centre bolt, a fine thread takes more turns and eases the balancer off slowly.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Tue Aug 23, 2005 10:04 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

And if you're running the centre bolt down inside the crank (ie. with crank/ballancer bolt removed) - MAKE SURE THE END OF THAT PULLER BOLT FITS / BOTTOMS PROPERLY INSIDE THE CRANK BOLT HOLE AND IS NOT BINDING ON THE THREADS INSIDE THE CRANK!!!



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


Posted: Tue Aug 23, 2005 11:15 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

would'nt it be just as easy/safer to leave the centre bolt in, and just remove the washer??
Top
 Profile


Posted: Wed Aug 24, 2005 12:35 am
Fordmods Newbie
Offline

Posts: 14

Joined: 15th Mar 2005

Location: sydney
NSW, Australia

tjb45 wrote:
would'nt it be just as easy/safer to leave the centre bolt in, and just remove the washer??

That's what I did when I did mine a couple of weeks ago.
I unscrewed the bolt till it was nearly all the way out and then bolted the puller on. Wound the puller till the balancer hit the head of the bolt, undid the puller and then the balancer slipped off easy.
Top
 Profile


Posted: Wed Aug 24, 2005 12:42 am
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

The balancer should pull off over the top of the bolt as long as you have removed the large washer.. I've found that you can damage the thread if you don’t have the bolt screwed in a fair way.
Top
 Profile


Posted: Wed Aug 24, 2005 1:46 am
Getting Side Ways
Offline

Age: 61

Posts: 437

Joined: 11th Nov 2004

Ride: EL GHIA

Location: adelaide
SA, Australia

dont 4get to apply some grease to the thread of the puller centre bolt :shock:

Last edited by tiny56 on Wed Aug 24, 2005 3:40 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Aug 24, 2005 1:03 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

tjb45 wrote:
The balancer should pull off over the top of the bolt as long as you have removed the large washer.. I've found that you can damage the thread if you don’t have the bolt screwed in a fair way.


Hmmm - I think I've just discovered that I did mine the wrong way :oops: duh-OH!! Driving the puller against the bolt head is obviously the right way to do it tho I didn't realise it at the time - aargh! - I am half Irish after all but it's still embarassing.



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile
