Quote on el engine conversion



Page 2 of 5 [ 75 posts ] Go to page Previous  1, 2, 3, 4, 5  Next


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:09 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

sump is slightly different is it? Are AU's coil pack or dizzy? Is there something different about bolt holes on the bell housing?



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:16 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

timmytimtim wrote:
sump is slightly different is it? Are AU's coil pack or dizzy? Is there something different about bolt holes on the bell housing?


yes sump is different..au,s originally are coil pack.. but the block still has the dizzy hole and a dizzy can be fitted..
(im running a au vct with a dizzy in my ed!!)
and yes i forgot about the bellhousing... but if its auto this can be rectified by using an au bellhousing, as the e series box bolts straight up to the au bellhousing..
or you can use e series bellhousing, its just a matter of the 2 bottom bolts not lining up with the e series bellhousing...
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:20 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

oh ok so just gotta run the e series engine loom to use the dizzy then and your all set?

Is the manual box the same Troy? AU bell housing lines up all holes? Do you have to use AU engine mounts or are they no different?



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:26 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

what kind of place would i need to goto to get the sump modified?

Will the AU bell housing come with the AU engine?

as you could probably tell im not very experienced as far as engines go
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:29 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

timmytimtim wrote:
oh ok so just gotta run the e series engine loom to use the dizzy then and your all set?

Is the manual box the same Troy? AU bell housing lines up all holes? Do you have to use AU engine mounts or are they no different?


the e series manual box works fine with the au engine..(im still running ea t5) the e series box will bolt straight up to the au manual t5 bellhousing..(if you can find one)
unfortunatly the au t5 box extension housing is about 2" longer than e series so its not an ideal fit.(as the manual shift sits further back)..

its best to use the e series mounts.. as in fitting it to eb. use ea-ed mounts..
as in ef-el im not 100% sure.. but i think the au ones can be used..
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:30 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

bell housing are usually sold with the gearbox if anything... Very unlikely to get one with a engine... You'd have to find someone wrecking an AU who is happy to part with it separate from the box... if your handy with a welder and angle grinder you can mod the sump yourself... Troy would know, Au's are still a steel sump aren't they, not alloy til BA?



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:31 pm
Stock as a Rock
Offline

Age: 106

Posts: 188

Joined: 24th Nov 2009

Gallery: 19 images

Ride: BA Fairmont Giah v8+more

Location: albury/wodonga
NSW, Australia

you guys are right on the money about the sump and the computer but you can also run a el sump but then you lose the advantage of the four bolt bottom end i work at mjr in aldury/wodonga we do this all the time and i cand tell you all the info is right but its not hard to cahange the loom and computer when the motors out
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:34 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Something slightly off the money here, but maybe you know troy, although very expensive, maybe one day I'd like a 6 speed BF box behind my ED motor, when they are cheaper, if ever... Can this be don't with the AU bell housing do you know, I know its a few inches long and gear stick is further back... Or is it an impossibility?


TROYMAN wrote:
timmytimtim wrote:
oh ok so just gotta run the e series engine loom to use the dizzy then and your all set?

Is the manual box the same Troy? AU bell housing lines up all holes? Do you have to use AU engine mounts or are they no different?


the e series manual box works fine with the au engine..(im still running ea t5) the e series box will bolt straight up to the au manual t5 bellhousing..(if you can find one)
unfortunatly the au t5 box extension housing is about 2" longer than e series so its not an ideal fit.(as the manual shift sits further back)..

its best to use the e series mounts.. as in fitting it to eb. use ea-ed mounts..
as in ef-el im not 100% sure.. but i think the au ones can be used..



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:35 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

timmytimtim wrote:
bell housing are usually sold with the gearbox if anything... Very unlikely to get one with a engine... You'd have to find someone wrecking an AU who is happy to part with it separate from the box... if your handy with a welder and angle grinder you can mod the sump yourself... Troy would know, Au's are still a steel sump aren't they, not alloy til BA?


the au sums is alloy, very similar to ba..

fairmont54 wrote:
you guys are right on the money about the sump and the computer but you can also run a el sump but then you lose the advantage of the four bolt bottom end i work at mjr in aldury/wodonga we do this all the time and i cand tell you all the info is right but its not hard to cahange the loom and computer when the motors out


isnt the rear main cap different/ meaning the cap needs to be changed/modified to allow a steel sump to be fitted??? or can this be rectified by using el hybrid main caps??
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:41 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Any Machine shop should do the work for you, as long as they can weld Alloy.

ford-4l-and-6-cylinder-f1/au-sump-mod-for-e-series-t79648.html



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:42 pm
Stock as a Rock
Offline

Age: 106

Posts: 188

Joined: 24th Nov 2009

Gallery: 19 images

Ride: BA Fairmont Giah v8+more

Location: albury/wodonga
NSW, Australia

the late el caps are the go they dont have the side drillings
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

timmytimtim wrote:
Something slightly off the money here, but maybe you know troy, although very expensive, maybe one day I'd like a 6 speed BF box behind my ED motor, when they are cheaper, if ever... Can this be don't with the AU bell housing do you know, I know its a few inches long and gear stick is further back... Or is it an impossibility?


yes it can be done..i believe you can use your ed bell housing? not 100% on that though.. even though the shift sits a little further back it still will fit into the car.

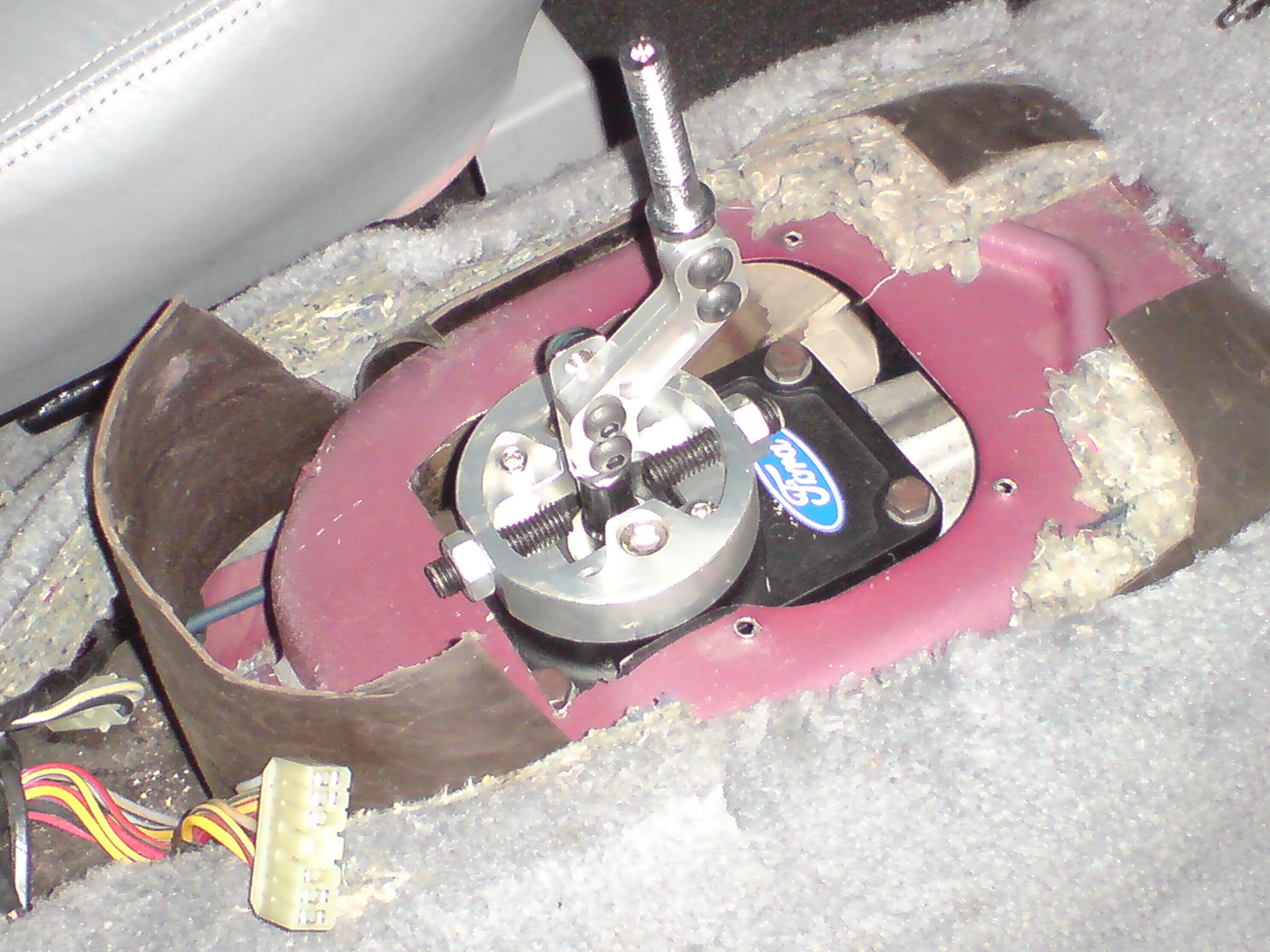

here are a pic from xfwagons build thread showing the au box in an e series..
Attachment:
DSC01347.JPG [ 446.6 KiB | Viewed 16 times ]
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:49 pm
Stock as a Rock
Offline

Age: 106

Posts: 188

Joined: 24th Nov 2009

Gallery: 19 images

Ride: BA Fairmont Giah v8+more

Location: albury/wodonga
NSW, Australia

if you guys need any parts for your fords give us a ring at mjr automotive we also wreck fords
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:51 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

fairmont54 wrote:
if you guys need any parts for your fords give us a ring at mjr automotive we also wreck fords


where abouts are you located mate? Looks like im going to need an AU bell housing
Top
 Profile


 Post subject: Re: Quote on el engine conversion
Posted: Thu Nov 26, 2009 8:56 pm
Stock as a Rock
Offline

Age: 106

Posts: 188

Joined: 24th Nov 2009

Gallery: 19 images

Ride: BA Fairmont Giah v8+more

Location: albury/wodonga
NSW, Australia

im in wodonga vic but mjr is in albury nsw 711 drome street its the border but i have a au belhousing 50$its yours
