Fordmods Logo

Remove the Drive Belt // removing EF belt // remove belt



Page 1 of 1 [ 11 posts ]


 Post subject: Remove the Drive Belt // removing EF belt // remove belt
Posted: Mon Nov 10, 2008 10:55 pm
Stock as a Rock
Offline

Age: 67

Posts: 190

Joined: 15th Oct 2008

Location: Bumsville
QLD, Australia

How do you remove the belt on an EF Falcon? The only pulley I can find that is not part of another mechanical piece has no bolt on it!? It has 2 10mm(?) bolts either side.............................. any help would be great.....
Top
 Profile


Posted: Mon Nov 10, 2008 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

IIRC, the pulley closest to the thermostat has a 3/8 drive hole in it, whack a ratchet in there and turn it, it loosens the pulley and you can slip the belt off.



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Mon Nov 10, 2008 11:02 pm
Stock as a Rock
Offline

Age: 67

Posts: 190

Joined: 15th Oct 2008

Location: Bumsville
QLD, Australia

I will go have another look but couldnt see it before... will take a photo if something looks sus.

BTW, WTF does IIRC mean? everytime I see it I think of "as far as I can recall" it's pissing me off more than the belt :evil:
Top
 Profile


Posted: Mon Nov 10, 2008 11:04 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

IIRC = If I Remember Correctly
AFAIK = As Far As I Know



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Mon Nov 10, 2008 11:14 pm
Stock as a Rock
Offline

Age: 67

Posts: 190

Joined: 15th Oct 2008

Location: Bumsville
QLD, Australia

thanks dude, every thread i read it s**t me

anyway back to this bloody belt

here's the pics


as you can see form left to right- power steering pump, altenator, water pump, harmonic balancer, 2 random pulleys with a bolt either side, ac thing

can anyone tell me why the hell there's a bit covering the place where the socket would go??
Top
 Profile


Posted: Mon Nov 10, 2008 11:15 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

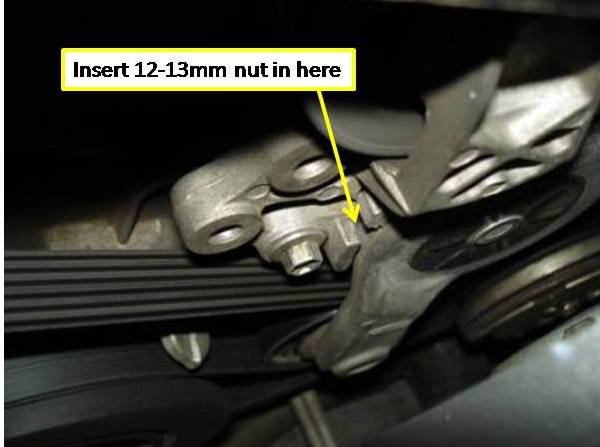

Its easiest to remove the thermo fans first by removing the intake and belt cover (1x 10mm nut and power steer cap) then the fans (2x 10mm bolts top left and right) along with the fan plug. Then with a 12-13mm nut handy pull up on the top of the belt to open up the gap as shown in below image. Insert nut into the gap and release the belt. There should be enough slack to then remove it fully. When done refit belt and pull up on belt so nut can be removed. Oh yeah remove the throttle cable by twisting the cable around through slot!!





Attachments:
Sepentine tensioner.jpg
Sepentine tensioner.jpg [ 27.48 KiB | Viewed 21008 times ]
Top
 Profile


Posted: Mon Nov 10, 2008 11:22 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

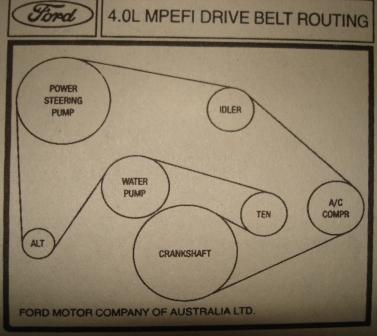

If you forget how it was routed see below image.





Attachments:
DSC01585.JPG [ 28.06 KiB | Viewed 21104 times ]
Top
 Profile


 Post subject: ef belt removal
Posted: Mon Nov 10, 2008 11:24 pm
Oompa Loompa
Offline

Age: 59

Posts: 39

Joined: 8th Dec 2004

Gallery: 1 images

Ride: ef xr falcon

Location: sydney
NSW, Australia

The belt tensioner is the key here,you can use a socket wrench(with no socket) or i found the easiest way is to pull the belt by hand ,between tensioner and air con compresor,you will see the tensioner move when you pull on it. BUT HERE'S THE TRICK you must stop the tensioner returning to normal position,use a drill bit or small diameter rod ,only 3" or 4" long because there's not much room in there. As you pull tensioner up use the drill bit etc to jam the tensioner in the up position,the bit goes in the left side bottom of main tensioner assembly,there's a point, the bit goes under it .
You need the tensioner up so you can get belt back on,the belt slips off the tensioner ,and it's easy from there.
sorry description is a bit vage ,doing this from memory a few months ago.
Hope this helps!!! ....Trev
Top
 Profile


Posted: Mon Nov 10, 2008 11:26 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

^^ thats what i was trying to explain (badly lol) in my first post.

thanks for clearing that up lol :)



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Mon Nov 10, 2008 11:29 pm
Stock as a Rock
Offline

Age: 67

Posts: 190

Joined: 15th Oct 2008

Location: Bumsville
QLD, Australia

wow would NEVER have figured that out! ill go give it a shot and return with what happened.

thanks guys!
Top
 Profile


Posted: Tue Nov 11, 2008 7:26 am
Stock as a Rock
Offline

Age: 67

Posts: 190

Joined: 15th Oct 2008

Location: Bumsville
QLD, Australia

mission accomplished. :wink:
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 1  [ 11 posts ]

Who is online

Users browsing this forum: No registered users and 17 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Sun Dec 17, 2017 12:54 am All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
