Removing engine and gearbox on crane



Page 1 of 1 [ 14 posts ]


 Post subject: Removing engine and gearbox on crane
Posted: Tue Feb 06, 2007 1:54 pm
Stock as a Rock
Offline

Posts: 150

Joined: 30th Mar 2005

Location: geelong
VIC, Australia

i am ready to take the engine out and have my massive crane ready. i have everything unplugged ready to go and the radiator out etc. now how do i go about lifting the engine on the right angle to clear everything? also do i need to change the lifting angle at all while the engine is on the crane? any other tips/advice would be great.
Top
 Profile


Posted: Tue Feb 06, 2007 3:45 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

long chains with quite a few shackles on hand would help. yes you need to change the lift angle a couple of times. Moreso when its going back in than coming out though. Practice makes perfect.

tip: get 4x 1m long chains.
better tip: get an engine lift load leveller!



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Tue Feb 06, 2007 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Might find it easier with the front of the car raised a bit too. But one of the engine lift load levellers makes life really easy.



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Tue Feb 06, 2007 5:31 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 212

Joined: 5th Nov 2006

Gallery: 8 images

Ride: 93 ED

Location: WAGGA WAGGA
NSW, Australia

I use a single chain that is about 1.5 metres long going to the rear mount a chain type winch going to the front mount that way you can change the angle on the go.
Top
 Profile


Posted: Tue Feb 06, 2007 10:26 pm
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

I haven't removed an engine for about 10 years, but if I remember correctly it was a matter of having to adjust the angle quite a few times as we went.

Recently had someone remove the engine from the car I'm wrecking, and I know it can be all too easy to accidentally crack the windscreen on the way out, so just be careful!
Top
 Profile


Posted: Wed Feb 07, 2007 5:50 pm
Stock as a Rock
Offline
User avatar

Posts: 190

Joined: 30th May 2006

Location: Third Rock From The Sun
Oustide Australia

1 raise the front of the vehicle.
2 undo eng and trans mounts {if taking out together}.
3 lift trans to clear x member pulling engine forward
4 when x member is cleared raise engine a bit
5 lower the vehicle
6 I had the chain connected to the crane at the very front of engine
7 Raise the crane until radiator support is cleared .



_________________

God save Allan Moffat, God bless d**k-Johnson and thank Christ for Marcos Ambrose.........

Top
 Profile


Posted: Wed Feb 07, 2007 5:54 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

Are you planning on bringing the engine out with the gbox still attached? Its a tight squeeze, and in most cases you'll do a bit of minor damage to the radiator support trying to make the squeeze.



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Wed Feb 07, 2007 5:57 pm
Fordmods Junkie
Offline
User avatar

Posts: 2839

Joined: 6th Nov 2004

Gallery: 50 images

Ride: MYSTERY EL's & Maverick LWB

Power: 198 rwkw

Location: parramatta
NSW, Australia

or you could take the gearbox out first and lift the motor out without damaging the firewall and rad surport , thats how i would do it you want no damage . or look at the pik





Attachments:

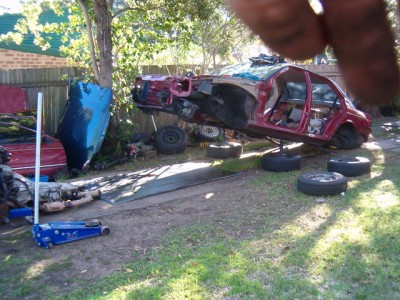

File comment: removing motor n box at same time . damage free :D
HPIM1737.JPG [ 130.83 KiB | Viewed 115 times ]



_________________

Chance Favors The Prepared Mind !
For Sale : EL Fairmont 4L 5spd offers, AU Fairlane Ghia 4L vct Stock no mods $3.5k ono

Top
 Profile


Posted: Wed Feb 07, 2007 6:36 pm
Parts Gopher
Offline

Posts: 59

Joined: 2nd Jan 2007

Ride: falcon s

Location: s/e melbourne
VIC, Australia

just becareful of the lines that run along the firewall, dont do what idone with my ea and catch the brakeline with the rockercover bolt and bend it all outa shape i also put a dent in the firewall arggg.

i had the engine leaning heavily to the drivers side and the engine almost vertical, its a long and tireing process but keep your cool and you will be fine.
Top
 Profile


Posted: Wed Feb 07, 2007 9:15 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

xwfreak wrote:
just becareful of the lines that run along the firewall, dont do what idone with my ea and catch the brakeline with the rockercover bolt and bend it all outa shape i also put a dent in the firewall arggg.

i had the engine leaning heavily to the drivers side and the engine almost vertical, its a long and tireing process but keep your cool and you will be fine.
Thats sounds familiar, amazing how far the brake lines stretch :shock: Also if you are dropping the motor during the lift take car it does not sit on the power steering rack lines as they bend also. Another point that got me was don't put a plastic bag over the gearbox extension housing and expect it to hold back the oil, I did and mine let go but fortunately most of it went down the exhaust pipe :x



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Wed Feb 07, 2007 9:45 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 264

Joined: 5th Jan 2007

Ride: E-Hybrid Falcon

Location: nowra, nsw
NSW, Australia

wow that wouldve stunk like cats p!ss for a while..

jacking the car up over the body isn't an option with the falcons.

the angle must be changed a few times. get one of those threaded angle changer thinga-ma-jigs, thats what i used, couldn't imagine life without one.



_________________

crow cam,cai,exaust,bbm,190 reg & el injectors,xr6 interior,guages,white cluster,pioneer/mtx stereo,big boot install w.i.p, 17"rims,koni/pedders shocks&springs with nolathane re-bush,ssv kit,stainless inserts,clear lights,t5 & short shifter,chardonay/pearl paint

Top
 Profile


Posted: Wed Feb 07, 2007 11:51 pm
Fordmods Junkie
Offline
User avatar

Posts: 2839

Joined: 6th Nov 2004

Gallery: 50 images

Ride: MYSTERY EL's & Maverick LWB

Power: 198 rwkw

Location: parramatta
NSW, Australia

vibr8n wrote:
jacking the car up over the body isn't an option with the falcons.

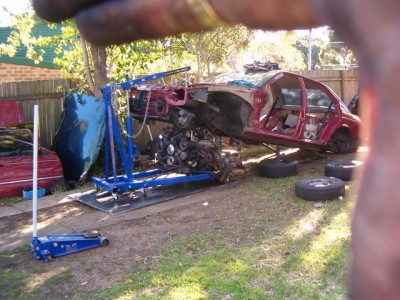

well how do you think they got there in the first place ,
its easy to undo 8 bolts on the xmember and 4 on gearbox xmember,
and then lift body up , any engine hoist can do it - you just need to know how to do it .
all i can say is if you dont really need to take the gearbox out leave it in - or take it out first ....





Attachments:
HPIM1739.JPG [ 134.47 KiB | Viewed 58 times ]



_________________

Chance Favors The Prepared Mind !
For Sale : EL Fairmont 4L 5spd offers, AU Fairlane Ghia 4L vct Stock no mods $3.5k ono

Top
 Profile


Posted: Thu Feb 08, 2007 2:06 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

Get an engine balancer. I can take a pic of mine if you want. Fantastic for aligning engine to gearbox aswell.



_________________

Member Number 8804

Top
 Profile


Posted: Thu Feb 08, 2007 7:09 am
Stock as a Rock
Offline

Posts: 150

Joined: 30th Mar 2005

Location: geelong
VIC, Australia

well if i want to take the gearbox out seperately is it just a matter of undoing the nuts on the gearbox that connect it to the engine and it comes straight off? , or is there anything special i need to know so i dont wreck the clutch etc
