 Post subject: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 12:11 am
Stock as a Rock
Offline

Posts: 145

Joined: 4th Aug 2010

Ride: BA Ghia '03

I'm about to put on a new head (and replacing the head gasket) on my car in the next few days, and just wanted to know a few things before going through with it.

I've bought new head bolts and a gasket kit, and usually they say what torque settings to have the bolts at? However mine didn't come with this, and I've heard different settings, so I thought to ask here to make sure I've got the right settings. I'm putting on an ED XR6 Tickford Head onto an EB engine. So what should I have the torque settings at for the head bolts? I know the sequence just need to know this part.

Also what other little things should I buy to apply the new head and gasket? I heard I needed some lubricant for the head bolts, what about gasket goo? Will I be needing any of that?

Anything else I'll need to know? I've done some searching but I couldn't find all the answers I need, any help would be appreciated.
Top
 Profile


 Post subject: Re: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 1:54 am
Stock as a Rock
Offline

Posts: 151

Joined: 1st Dec 2009

Ride: 93 eb2 falcon

Location: toowoomba
QLD, Australia

hey mate i can get the torque number for you in the morning mate i'm off to bed now! as for gasket goo might be good idea, but I dont know for sure, some1 else confirm?
Top
 Profile


 Post subject: Re: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 2:18 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The is technique involved in making it last....the job, that is.
The block and head need to be clean.....clean enough to eat off.
I use ACL Hylomar on the headgasket, and Toyota black on the front timing cover seal.
For the head bolts, use engine oil on the threads, and a little moly grease under the flange.
Torque setting is 40Nm + 90*.
Make sure you remove the timing chain tensioner.
Get a workshop manual...read it.....understand it...... before starting.
Don't use coolant/inhibitor for 2 weeks after the head is done...just plain water....then flush & fill with the appropiate amount of coolant/inhibitor.

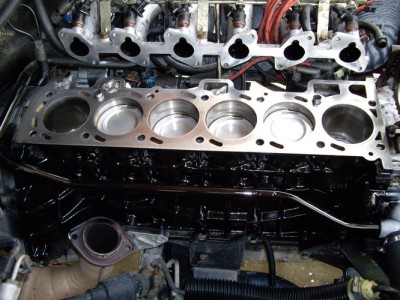

I clean and repaint the side of the block.....looks neater.....and easy to see if the gasket fails or welsh plugs fail.
Thats not a new engine....just cleaned.





Attachments:
IMGP0732_resize.JPG [ 139.29 KiB | Viewed 124 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 11:50 am
Stock as a Rock
Offline

Posts: 145

Joined: 4th Aug 2010

Ride: BA Ghia '03

Does the timing chain tensioner require that special tool to use? I heard it's like an Allen key?

I'm almost certain to go buy the manual today just to be sure, and that Hylomar stuff for the head gasket. Should I be applying gasket goo to any of the other gaskets I'll be replacing?

Thanks for the advice! Anything else?
Top
 Profile


 Post subject: Re: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 9:05 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

to undo the tensioner i just use a hammer and flat head scew driver after i have undone the tensioner bolt abit then hit the outer ring till i can undo it with my fingers
Top
 Profile


 Post subject: Re: Replacing EB head and gasket
Posted: Fri Oct 15, 2010 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

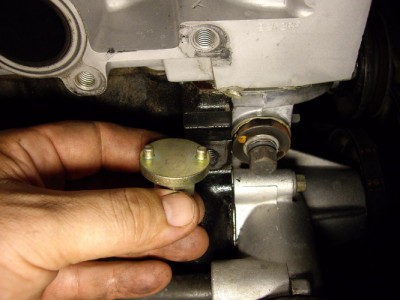

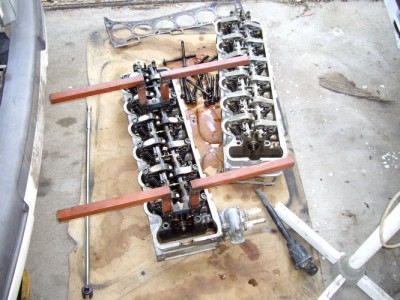

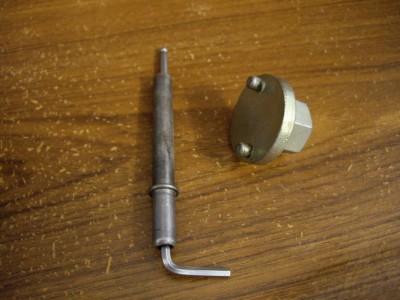

My tools for cyl head jobs. Not pictured are my tools for removing the cyl head alignment dowels, and rocker gear alignment dowels.

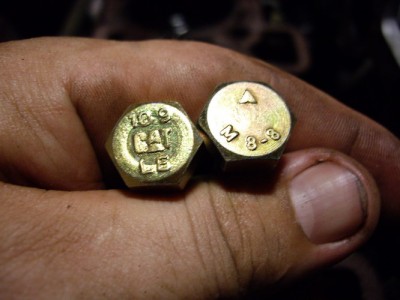

I also replace the cam bolt with a higher grade one ( from 8.8 to 10.9 ).....seen too many break from over tensioning by a previous idiot.





Attachments:
IMGP0719_resize.JPG [ 81.3 KiB | Viewed 48 times ]
IMGP1066_resize.JPG [ 101.46 KiB | Viewed 53 times ]
IMGP0736_resize.JPG [ 137.34 KiB | Viewed 96 times ]
IMGP0708_resize.JPG [ 90.06 KiB | Viewed 100 times ]
IMGP0707_resize.JPG [ 90.91 KiB | Viewed 56 times ]
