 Post subject: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 1:13 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Hey all! I'm going to replace my starter motor tonight as it's on the way out. So do I have to take the intake manifold off or has anyone done it with it left on?
My "gut" tells me to take it off cause it looks like a prick to do with it on! But hey I might be wrong.

Cheers,


Sorry if this has been asked before I couldn't find anything.



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 1:53 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

can be done with the manifold on, but it's a prick of a job either way.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 4:17 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Awesome, ill try with the manifold on first, see how it goes.
Cheers



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 5:34 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

With the EB I have found unless your going underneath the only way to get it from the top with out being a pain is to take the airbox and hoses etc out of car so the throttle body is bare, a long 1/4 inch extenstion bar and a good ratchet spanner you can get the top bolt no dramas and and if your handy you can manuvere it to get the bottom one



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 7:05 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Thanks Froudey, ill give it a go



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Fri Mar 01, 2013 9:35 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

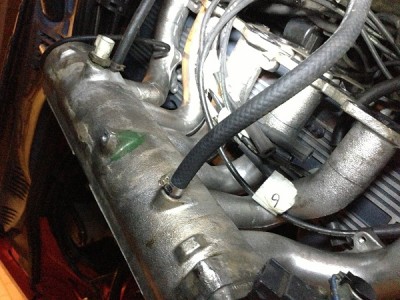

hi, iv just installed my starter motor (taken the manifold off) theres some type of vacuum connection snapped.
Attachment:
File comment: ???
IMG_0202.JPG [ 94.49 KiB | Viewed 105 times ]

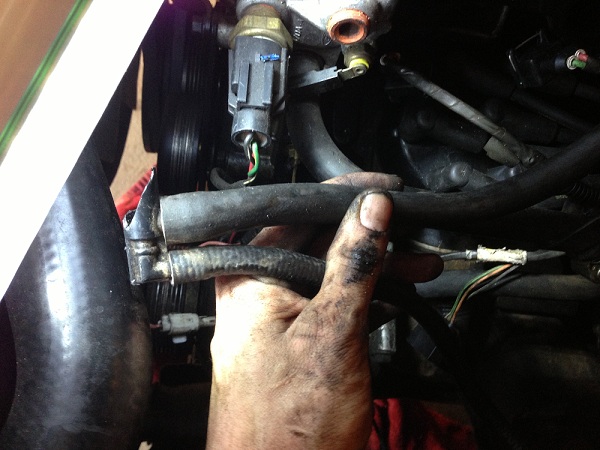

Attachment:
File comment: gjhty
IMG_0203.JPG [ 147.15 KiB | Viewed 87 times ]

^^^
when i suck on the line some type of valve opens, and closes when i blow

Attachment:

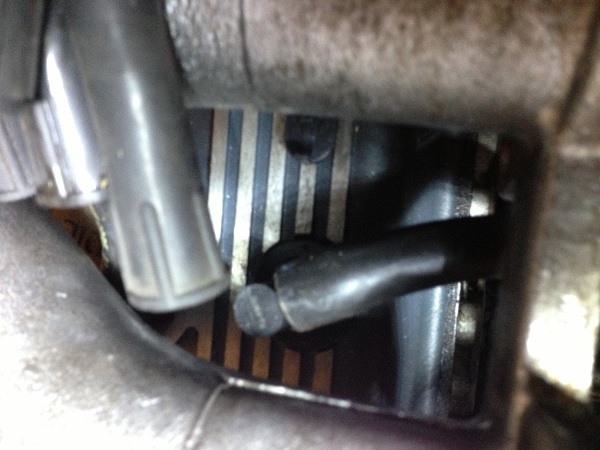

File comment: pcv?
IMG_0204.JPG [ 90.36 KiB | Viewed 49 times ]


^^^^^^^^
im pretty sure thats the pcv valve its connected to but im not to sure.

i just cant find where it came from, or if it was connected in the first place

any and all help is greatly appreciated



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 1:35 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

OK, so i fixed it after all of that!

Attachment:

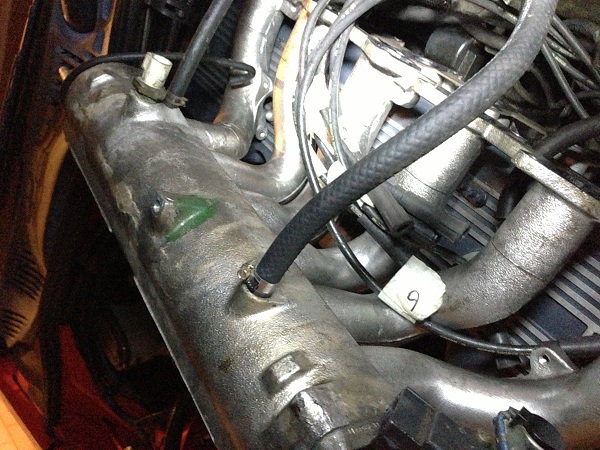

File comment: connected there
IMG_0207.JPG [ 142.39 KiB | Viewed 50 times ]

i found where the vacuum pipe went.

Attachment:

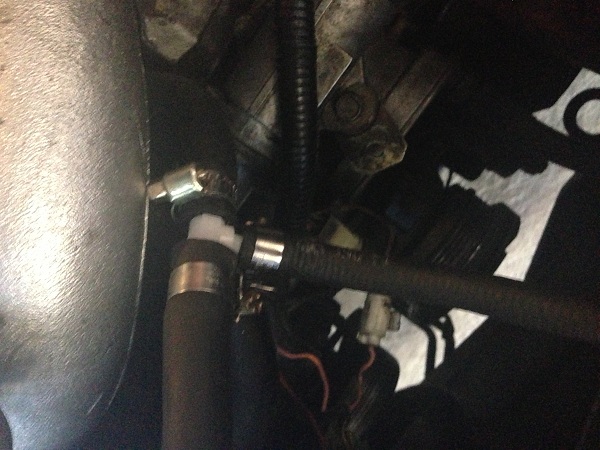

File comment: t connector
IMG_0208.JPG [ 104.1 KiB | Viewed 53 times ]


i bought a t connector from masters 2 sides with 8mm barb's and one side with a 6mm barb. car drives like normal and im just happy for once something got fixed relatively cheap and easy!



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 2:35 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i know you have already done it, but no need to remove the manifold, the starter is not hard to remove..
you turned a 20 min job into a few hour job...
Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 2:44 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Yer I looked at it from the top and thought bugger this! Maby I should have looked at it from the bottom. Oh well done now



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 4:09 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 849

Joined: 3rd Jan 2011

Gallery: 1 images

Ride: Subaru Liberty RX Wagon MY03

Location: North Richmond
NSW, Australia

Did you replace it with a BA model starter?



_________________

Current ride: MY03 Liberty RX Wagon
EBII S-XR6, Now 5 speed. Moved on to greener pastures...

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 4:50 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Nah ef, is there something special bout the ba? The ef starter was only 25 bucks



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 9:13 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 849

Joined: 3rd Jan 2011

Gallery: 1 images

Ride: Subaru Liberty RX Wagon MY03

Location: North Richmond
NSW, Australia

fullyforded wrote:
Nah ef, is there something special bout the ba? The ef starter was only 25 bucks


Smaller and easier starting.

Less to whinge about when removing too. Lol



_________________

Current ride: MY03 Liberty RX Wagon
EBII S-XR6, Now 5 speed. Moved on to greener pastures...

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sat Mar 02, 2013 10:17 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

Hahaha yer, it's all good now. Although if does sound a bit different to the original starter motor



_________________

Au series 1 ute. T5 manual, 2.5" redback zorst, Xtreme HD clutch

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sun Mar 03, 2013 10:42 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

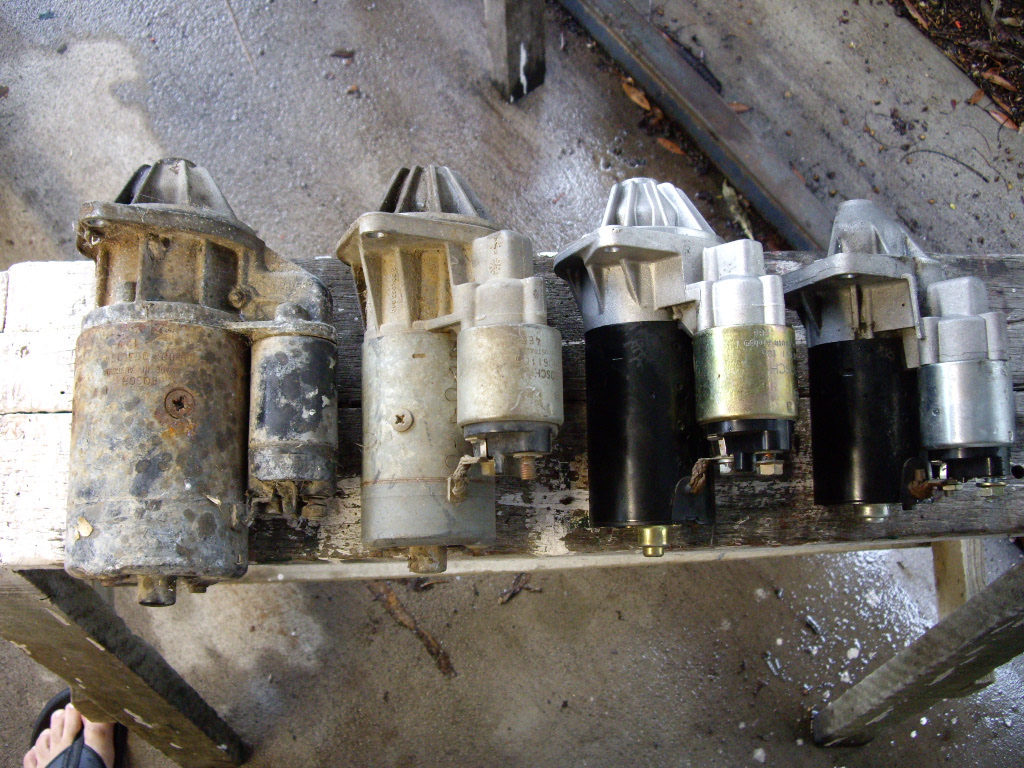

Here is a timeline of Falcon starter motors.
Left to right............
EA, ED, AU, and BA.





Attachments:
IMGP3548.JPG [ 458.19 KiB | Viewed 149 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Replacing ford eb starter motor
Posted: Sun Mar 03, 2013 12:47 pm
Tyre Shredder
Offline
User avatar

Age: 26

Posts: 303

Joined: 5th Oct 2012

Gallery: 3 images

Ride: 99 au ute

Location: Perth
WA, Australia

cjh wrote:
Here is a timeline of Falcon starter motors.
Left to right............
EA, ED, AU, and BA.


That's actually pretty cool! To me it's awesome how much smaller they got, maby more efficient/tighter copper windings?
