replacing rocker cover gasket



Page 1 of 1 [ 6 posts ]


 Post subject: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 7:40 pm
Stock as a Rock
Offline

Age: 29

Posts: 122

Joined: 21st May 2010

Ride: 1997 EL Ford Fairmont Ghia

Location: Brisbane
QLD, Australia

My rocker cover gasket is starting to leak significantly and as my car is going to be sitting for 3 months not really doing much, I figure I should change it before it gets worse (which it will). If I follow the changing head gasket doco, will that give me enough info? It seems like a pretty straight forward job, I just want to be sure im not going to run into any tricky bits.

As far as buying the gasket, can I just buy it from my local supercheap or repco? or do I have to buy a full head gasket kit?
Top
 Profile


 Post subject: Re: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 8:16 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

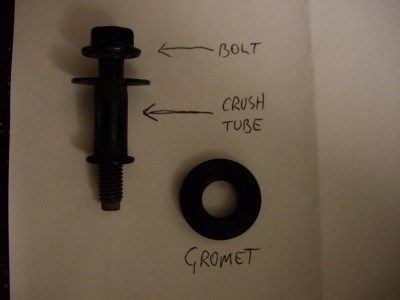

You will need more than the rocker cover gasket ( which is sort of like an 'O'ring ), you will need the 4 rubber gromet looking things that go under the heads of the bolts......these are what apply pressure to the gasket. The crush tube is what stops the bolt coming undone.....and has the larger area at the top to cover the gromet.





Attachments:
IMGP2928_resize.JPG [ 95.53 KiB | Viewed 126 times ]
IMGP2927_resize.JPG [ 85.61 KiB | Viewed 95 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

You can buy a rocker cover seal separately and they're available from most auto shops. After you remove all the air intake pipe with the top of the air box, several hoses connected to the rocker cover, brake vacuum hose, disconnect spark plug leads from the plugs, you're down to 4 bolts that hold the rocker cover on. After you replace the seal just tighten the bolts to 10 ft/lb & reassemble everything. Not too difficult. :D

ARRGH, cjh you beat me to it :) :lol:



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 9:08 pm
Stock as a Rock
Offline

Age: 29

Posts: 122

Joined: 21st May 2010

Ride: 1997 EL Ford Fairmont Ghia

Location: Brisbane
QLD, Australia

so you can you resuse the bolts, crush tubes and grommets?
Top
 Profile


 Post subject: Re: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 9:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

louie0408 wrote:
so you can you resuse the bolts, crush tubes and grommets?


Just replace the gromets



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: replacing rocker cover gasket
Posted: Fri Mar 02, 2012 9:37 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Remember to mark you're leads if they arnt already.
