 Post subject: retightning cam problem
Posted: Mon Feb 20, 2012 2:29 pm
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

Hi guys

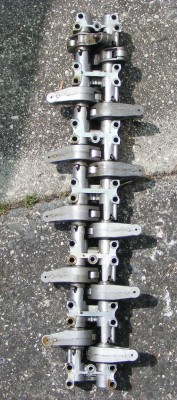

I just had my head shaved on my 1994 ef 4.0 & ran into a problem fastening cam back in.I'm having problem getting bolts 4 & 8 (right hand side of pic) back in to hole slots seems to be a metal blockage stopping bolts getting into place,is it ok to drill the holes ? or are there different size bolts/threads tho i do remember having trouble getting them out I remember the bolts being bent from those 2 holes,any advice most appreciated
[*]





Attachments:
DSCF3454.JPG [ 181.58 KiB | Viewed 36 times ]
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 9:41 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Make sure you have the HLA's in place properly, and the dowel holes are lined up as well.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 9:53 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

And tighen then all down a little at a time un a spiral to bring the gear down evenly otherwise it'll warp and be a hastle.
But make sure all the HLAs are in correctly and sitting on the valves correctly as mentioned. Don't drill anything for christs sake
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 10:17 pm
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

I think you have miss read what I wrote or maybe its the way I wrote it, I can only get 26 of the 28 bolts to sit in the holes even when free standing (no where near the head), holes number 4 & 8 on right hands side in pic, seem to be obstructed & bolts wont penetrate further enough to even touch the head, that's my problem.
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 10:21 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

devondevil wrote:
I think you have miss read what I wrote or maybe its the way I wrote it, I can only get 26 of the 28 bolts to sit in the holes even when free standing (no where near the head), holes number 4 & 8 on right hands side in pic, seem to be obstructed & bolts wont penetrate further enough to even touch the head, that's my problem.


Ah..right then.....did you disassemble the rocker gear??? If so, have you assembled it correctly???
If not, then you need to rotate the shafts a little.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 10:23 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

have you tryed putting the bolts in with all the hla's removed ?



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 10:55 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

If you put a little force down on them will it pop down, sometimes a couple don't sit in like you explained, I usually just give em a oust and they go through tho.
Might have Over heated her
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Mon Feb 20, 2012 11:17 pm
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

No cjh
didn't disassemble the rocker gear, new to this job/OHC & that's beyond me what are the hla's ?,will rotate shaft tho & give that a try
No didnt over heat the system , tho has I said before 2 bolts 4 & 8 I guess now, was hard to get out because they were bent when dissembling head for shaving.
tried putting pressure on bolts but that just damaged thread
Some questions might seem trivial but I'd rather ask you guys than go blind & its a great way to learn plus save stuff ups & money and I guess isn't that what this site is all about helping fellow ford owners.

thanks guys
but I might be back lol
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Tue Feb 21, 2012 2:46 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

HLA's....Hydraulic Lash Adjusters



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Wed Feb 22, 2012 10:40 am
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

thx cjh
I'm learning more & more I do a lot of reading & research on here about all subjects.
Now, with that shaft how do I rotate it when its inclosed? if I was to tighten down all the other bolts then turn engine over by hand would that rotate the shaft ?

kind regards
Dino
Top
 Profile


 Post subject: Re: retightning cam problem
Posted: Sat Feb 25, 2012 12:11 pm
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

Hi guys
I managed to get those 2 other bolts in,the amount of force it took by hand was frightening but in & tight
thanks all for your advice
Dino
