 Post subject: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

hey guys just a quick question Ive notice on the au motor that the top cog mark is at 9 o'clock when TDC. now when fitting EL tickford head & rocket gear do I set the timing up as normal u would on a EL.
Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:13 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Doubtful... On TDC firing no1 it is 3degrees above the rocker cover level on the right hand side... On TDC rocking no1 it'll be 3 degrees down on the left hand side... You sure you have the right TDC set up?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:16 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

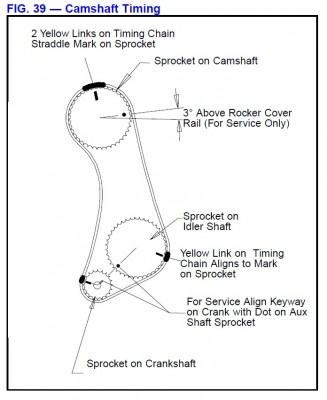

Straight out of the AU book...

Attachment:
Untitled.jpg [ 114.33 KiB | Viewed 58 times ]


Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:30 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

yep im pretty sure the no.1 piston was at the top
Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:37 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Of course the piston is at the top... It's at the top on both TDC no1 firing and TDC no1 rocking... What I'm asking is which one was it?

Remember it's a 4 stroke motor... For every 2 crank turns the cam does one... so if you had that mark at 9o'clock and rotated the crank one more turn to TDC again the cam would be at the 3 oclock position...

I am thinking you had the motor at the wrong TDC... No E/A series block times the crank in at 9 o'clock... To prove it I attached the photo from the Genuine Ford AUII Workshop manual above...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:45 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

okay thanks ill have to check it tomorrow after 3 when im get home from work if u cant wait until then getting late now
Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Sun Nov 10, 2013 9:52 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Doesn't phase me in the slightest... I'm here to help... But you need to understand when you wound the AU over to TDC before you pulled it apart it wasn't TDC firing no1... It was 180 cam degrees out (360 crank degrees)...

If you then try to time the ign to the crank you will probably cause damage if it back fires... You need to make sure you have the crank and cam in the right phase before inserting the dizzy and doing timing... Something you should understand before getting too involved to ensure you don't do any damage...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Mon Nov 11, 2013 4:26 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

I got the marks in the right spot now. on the verier gear im pretty sure its just got the one mark on it which is the line and that needs to be point at 3 o'clock yeah?
Top
 Profile


 Post subject: Re: setting up timing marks on AU motor with EL top gear
Posted: Mon Nov 11, 2013 5:07 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

yes
