Spark Plug Broken Off



Page 1 of 1 [ 11 posts ]


 Post subject: Spark Plug Broken Off
Posted: Sat Aug 13, 2005 9:15 pm
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

Hey all, hoping some1 can help em and my mate - he was taking out the spark plugs and cleaning them and wateva..one of them snapped off, leaving the top (the bent over part) and the thread in the head, and the rest came out, like all the ceremic and the small round electrode part....

so wtf do we do? try and get the threaded part out? can we disconnect the injector to that cylinder so we can drive it (otherwise it woudl flood? yes?) any ideas would be great!





Attachments:

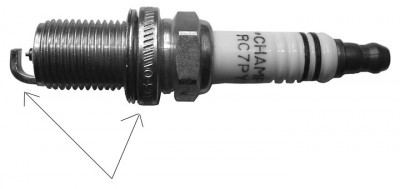

File comment: This is the part still in the engine!
ho_plug1 copy.jpg
ho_plug1 copy.jpg [ 35.53 KiB | Viewed 124 times ]
Top
 Profile


Posted: Sat Aug 13, 2005 9:32 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 10128

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

You could try to use one of those tap and die removers that drills in and jams - hopefully it will undo. Otherwise maybe better off heading to a mechanic and get some help. it won't be a problem flooding that cylinder as it will still go out the exhaust valve. So you should be able to drive to get some advice.



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Sat Aug 13, 2005 9:42 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yeah maybe an easy out as suggested by happy.... reverse threaded drill but may do the same (it will loosen the thread as it drills in).

Or try calling captain thread/thread doctor/whatever you have in NSW.

I wouldnt recommend driving it at all.

And tell your mate a bit of grease on the thread of the new plug will make life much easier :)



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Sun Aug 14, 2005 4:39 am
Getting Side Ways
Offline

Age: 39

Posts: 1494

Joined: 1st Dec 2004

Gallery: 2 images

Ride: BA MkII XT Wagon

Location: Maitland
NSW, Australia

dont try to knock it out cause u will f**k the thread whihc could end up meaning big probs, try and got somethin like an easy out, or anythin that maybe u can screw it out with and u should be right......



_________________


Top
 Profile


Posted: Sun Aug 14, 2005 9:39 am
Fordmods Newbie
Offline

Posts: 14

Joined: 15th Mar 2005

Location: sydney
NSW, Australia

4.9 EF Futura wrote:
And tell your mate a bit of grease on the thread of the new plug will make life much easier :)

Good call. A grease with copper in it is the one to use. All of the fuel co's make a version of it.. Like they say, try an easy-out. After you get it out make a nozzle (piece of garden hose?) to fit a vac cleaner and suck any shrapnel out of the cylinder. Good luck mate, I've never had that happen but I've always been wary.
Top
 Profile


Posted: Sun Aug 14, 2005 3:16 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 10128

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

easyout - that's what i was thinking off... I've had a plug snap off half way the top ceramic part but never below the bolt part...



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Sun Aug 14, 2005 10:07 pm
Getting Side Ways
Offline

Age: 43

Posts: 2215

Joined: 5th Nov 2004

Gallery: 17 images

Ride: Oettinger Golf GTI

Location: Sydney
NSW, Australia

how'd u go?
Top
 Profile


Posted: Mon Aug 15, 2005 4:18 pm
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

Got the easy out right in there on the ratchet but the F**k thing wouldn't budge. had the sparky thread soaking in WD40 beforehand too. i think the next thing to try is to disconnect the injector and heat up the engine to operating temp.... then give the "easy" (:P) out another go. . . will keep u posted . . cheers
Top
 Profile


Posted: Tue Aug 16, 2005 6:21 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1967

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

any luck yet ?



_________________


Top
 Profile


Posted: Tue Aug 16, 2005 6:21 pm
Fordmods Newbie
Offline

Posts: 3

Joined: 29th Nov 2004

Ride: Falcon AUII S

Location: Adelaide
SA, Australia

I did the same thing on a XF 6cyl. Ended up having to buy the re-thread kit. Had to drill out the broken off piece of plug, then had to cut in a thread one size bigger, and then screw in a thread insert that came with the kit.

If you go for this option, just make sure you use a magnet of some sort to pull out the pieces of plug out of the cylinder.

Good luck!!!
Top
 Profile


Posted: Tue Aug 16, 2005 11:33 pm
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

my mate took it to the mechanic, didnt have the time and patience to fuk around with it....$65 and its all good. i wanted to mess with it, but alls is good now so not worth worrying about. thanks guys
