Posted: Sat Apr 21, 2007 7:24 pm
Stock as a Rock
Offline
User avatar

Age: 39

Posts: 108

Joined: 12th Feb 2005

Gallery: 2 images

Ride: EF POWERED EA

Location: christchurch
New Zealand

Im in same boat as you ea falcon
except ive put ef motor into my 90 ea falc have same extra plug as you its in loom that stays in car and goes into fire wall under brake booster
Im thinking that we could splice it into the one plug thats replaced it as the wires are the same colours and must be after the same info
hopefully someone replys that actually knows what its for other wise Ill just try running car without it and see how it goes



_________________

EF POWERED EA
PACEMAKER EXTRACTERS
2.5 INCH EXHAUST POD filter
18 inch versus rims

Top
 Profile


Posted: Sat Apr 21, 2007 8:13 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

we have put everything back together and guess what......IT DONT START
Im not getting any spark......................

the manifold loom wires are not the same colour as the cpu plugs wires but they all line up except for the grey white wire in the manifold loom.........the cpu plug doesnt have it so thats the one that ive spliced into the old idle control loom thats on the passenger side inner guard.
I would have thought that someone would know how to do a cfi to mpfi 1990 4 spead auto conversion.

where do i go from here ...........is it worth going to an auto electrician?

ANYONE



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Sun Apr 22, 2007 2:06 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

work the basics, Check if you have power at the coil then dizzy
Top
 Profile


Posted: Sun Apr 22, 2007 4:47 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

whats the trick to get to the coil?



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Sun Apr 22, 2007 5:11 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

What model car was the MPFI set up off??
Ive heard if you use a loom other than the EA 3.9MPFI loom then they dont spark.
I had to track down an MPFI ea loom for mine...



_________________

If you're not driving a manual, you are only steering...

Top
 Profile


Posted: Sun Apr 22, 2007 5:12 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

Also, i think the easiest way to get to the coil is from underneath.. thats how i change them at work.. but then again, we have a hoist, its a pain in the a** on the ground..



_________________

If you're not driving a manual, you are only steering...

Top
 Profile


Posted: Mon Apr 23, 2007 12:21 am
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

the loom is the correct one



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Fri Apr 27, 2007 12:55 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

finally finished the conversion if i didnt have all the dramers like having the wrong throttle body and loom then taking the whole manifold of because i was getting no spark just to fine out it was a rooted dizzy modural the whole process of converting the car to mpfi wouldn't take more than 1 maybe 2 days to do
tip to every one make sure you get the right parts for your car throttle body and looms and ecu must correspond with your car and the transmission you have
cheers....



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Sun Jun 17, 2007 10:54 pm
Getting Side Ways
Offline

Age: 30

Posts: 410

Joined: 27th Jul 2005

Ride: Mazda CX-5 & 96 EL Falcon

Location: Adelaide
SA, Australia

Hi guys, I'm looking at doing this conversion myself, on my EB, only thing is its dual fuel. Would this require any extra / different parts?

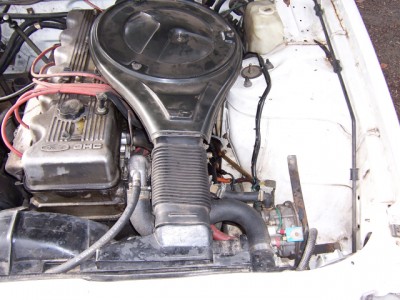

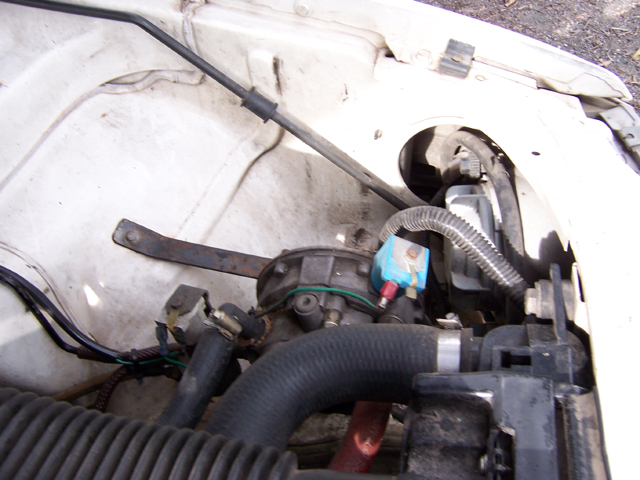

Also I've never seen the air filter box from a MPFI or later engine only the "tennis racquet" but from I've seen it just sits in the front right hand corner, only thing is its already occupied on my car, I've put a photo here to show you guys what its like and also to ask, would the air filter box fit??

Thanks for your help[/img]





Attachments:
File comment: pic 2
2.jpg [ 297.19 KiB | Viewed 15 times ]
File comment: Pic 1
1.jpg [ 238.55 KiB | Viewed 14 times ]



_________________

My EL Gli.

Top
 Profile
