 Post subject: Starting a engine Raw on the work bench
Posted: Sat Dec 16, 2006 1:19 pm
Stock as a Rock
Offline

Posts: 144

Joined: 29th Apr 2006

Location: Moonta
SA, Australia

howdy just wondered how do you start a engine raw on your work bench in the shed wether it be a ea - el engine because i am interested in learning and trying oneday as you told me before the ea 3.9 engines are give aways an oneday i would like to try it out oneday. is that just CFI or is it MPFI as well. the ea MPFI Manifolds are the same as the EB-2 ED MPFI manifolds as well arent they because i might try it on a ef engine oneday not sure when yet.i really want to know how to start a e series engine raw on the work bench or on the ground. i look foward to your reply
Top
 Profile


Posted: Sat Dec 16, 2006 1:23 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

you would need an ECU attached if im correct.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Sat Dec 16, 2006 1:29 pm
Stock as a Rock
Offline

Posts: 144

Joined: 29th Apr 2006

Location: Moonta
SA, Australia

so EA -ED MPFI manifolds are the same type arent they and i still dont get you on how to start a e series engine raw what else do you need apart from the ECU e.g. a starter motor, battery
Top
 Profile


Posted: Sat Dec 16, 2006 4:58 pm
Getting Side Ways
Offline

Age: 38

Posts: 1319

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

motor with all the injection gear on it (manifolds, wiring etc etc,)
You will need an ECU, and engine bay harness to suit, you need to splice the engine bay harness to provide KAM power and ignition power to the ECU, coil and injectors.
You need a fuel pump, set up and powered, also a bell housing, flex plate and starter motor.
Also you will need some kind of engine crate / stand / chainblock, as when it starts, it will more than likely tip over.

Much easier and better off playing with it in the car. just pickup a whole CFI ea for $200
Top
 Profile


Posted: Sat Dec 16, 2006 9:43 pm
Stock as a Rock
Offline

Posts: 144

Joined: 29th Apr 2006

Location: Moonta
SA, Australia

thankyou for your advice i might scan a wiring diagram for the engine management ans see what hapens not exactly sure when probably when i can find a EA-EL MPFI for next to nothing
Top
 Profile


Posted: Sat Dec 16, 2006 9:55 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Its a real pain in the a** to do it. It is SOOOOO much easier just to get a cheap car to drop it into (its not hard to get a falcon rolling body for free).

Basically you need to replicate what is in the car, so:

- fuel sustem = tank, supply and return lines, pump, reg, electrics, etc
- cooling = radiator, hoses, fans
- exhaust = the exhaust itself + fans to bring in fresh air so you dont die.
- engine management = the easy stuff, loom and ecu
- ignition barrel/switch for starting
- the engine itself, battery, bellhousing, starter, ...

and then you need a frame to hold it all together which isnt trivial.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sat Dec 16, 2006 10:00 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

What?

No spare tyre, battery, jerry can and a bucket of water?

whats the world coming to?



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Dec 16, 2006 10:34 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

There might be another way....

XF Distributor, pre TFI might bold in to a 3.9/4.0 - just needs power and a coil.

You should be able to use the CFI Manifold, and use a Webber Carby from an XF falcon on the CFI Manifold : Worst case you *might* need an adapter plate. No more need for a computer

You might be able to gravity-feed the webber, or you could buy a not to expensive electric pump for it.

You'll need a bellhousing to bolt the starter motor to, and an exhaust system/outlet of some kind.

Oh yeah - cooling - say a garden hose will work for a few mins I believe.

Nigel
Top
 Profile


Posted: Sat Dec 16, 2006 10:51 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Krytox wrote:
What?

No spare tyre, battery, jerry can and a bucket of water?

whats the world coming to?


Not to worry, theres still plenty of crossflow around. :lol:



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Sun Dec 17, 2006 10:03 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Nigel wrote:
There might be another way....

XF Distributor, pre TFI might bold in to a 3.9/4.0 - just needs power and a coil.

You should be able to use the CFI Manifold, and use a Webber Carby from an XF falcon on the CFI Manifold : Worst case you *might* need an adapter plate. No more need for a computer

You might be able to gravity-feed the webber, or you could buy a not to expensive electric pump for it.

You'll need a bellhousing to bolt the starter motor to, and an exhaust system/outlet of some kind.

Oh yeah - cooling - say a garden hose will work for a few mins I believe.

Nigel


thats exactly what i was going to suggest..
i have done that a few times on engines that havnt been tested before they were removed....
Top
 Profile


Posted: Sun Dec 17, 2006 12:42 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

Nigel wrote:
There might be another way....

XF Distributor, pre TFI might bold in to a 3.9/4.0 - just needs power and a coil.

You should be able to use the CFI Manifold, and use a Webber Carby from an XF falcon on the CFI Manifold : Worst case you *might* need an adapter plate. No more need for a computer

You might be able to gravity-feed the webber, or you could buy a not to expensive electric pump for it.

You'll need a bellhousing to bolt the starter motor to, and an exhaust system/outlet of some kind.

Oh yeah - cooling - say a garden hose will work for a few mins I believe.

Nigel




for the record an xf dizzy does not fit into an e series block..
and you will need an adapter plate to make the carby bolt up.. but other than that it may just work :)




-mitch



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Sun Dec 17, 2006 1:13 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

mitchg911 wrote:
Nigel wrote:
There might be another way....

XF Distributor, pre TFI might bold in to a 3.9/4.0 - just needs power and a coil.

You should be able to use the CFI Manifold, and use a Webber Carby from an XF falcon on the CFI Manifold : Worst case you *might* need an adapter plate. No more need for a computer

You might be able to gravity-feed the webber, or you could buy a not to expensive electric pump for it.

You'll need a bellhousing to bolt the starter motor to, and an exhaust system/outlet of some kind.

Oh yeah - cooling - say a garden hose will work for a few mins I believe.

Nigel




for the record an xf dizzy does not fit into an e series block..
and you will need an adapter plate to make the carby bolt up.. but other than that it may just work :)




-mitch

Im not sure if the dizzy has to be modified of not but i know the speedway boys use xf dizzys in e series blocks....





Attachments:

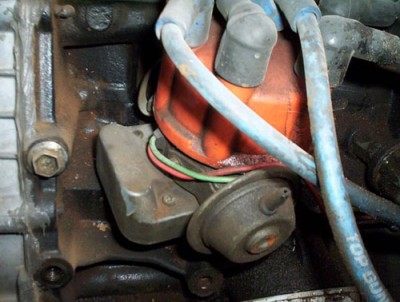

File comment: xf dizzy in 40l
XF DIZZY IN 4OL.jpg
XF DIZZY IN 4OL.jpg [ 70.6 KiB | Viewed 19 times ]
