taking the top off the fuel tank to swap fuel pumps



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:36 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

how can i undo the top of the fuel tank to get the fuel pump out without the special tool? im out of money until the end of the week and need my car tomorro for work



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:44 am
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

ill assume its an e series sedan...

cut the metal ring with tin snips its not needed...

then get a long screwdriver or similar and with a hammer knock the top plastic cover anti-clockwise until loose then unscrew
Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:45 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

tryed it on my old EF and it had been on so long i needed the special tool but my mate doesnt have it any more and now i have the same problem with this one it wont undo with the screwdriver :(



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:49 am
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

u are really not trying hard enough ive changed over 20 fuel pumps for ppl they all are a little stuck at 1st

really hit it

im only like a 12 hour drive away bring it down and ill change it for u lol
Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:51 am
Getting Side Ways
Offline

Age: 32

Posts: 480

Joined: 5th Nov 2004

Ride: EBXR6

Location: Gympie
QLD, Australia

Its a bit of a mission but with a mate, two short thin hunks of wood and two hammers you can both gently tap the flanges to unscrew the top. If you hit it to hard you can damage the plastic. It takes a lot of messing around though but if you don't know how to make the tool then that would be your best bet. When I did it I replaced my dead pump with a near dead pump in my ebxr6 so i took it in to get it replaced by a mechanic fearing i screwed up.... As it turns out what i did was fine but i needed another pump.... When i did it it cost $25 the mechanic $320...



_________________

lesbian nazi hookers abducted by aliens and forced in to weight loss programs..... the turtle is natures suction cap.....

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 11:15 am
Smokin em up
Offline

Age: 26

Posts: 218

Joined: 27th Apr 2008

Ride: EF Fairmont

Location: Perth
WA, Australia

get one person on each side to push it around with screwdrivers
Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 11:21 am
Getting Side Ways
Offline

Age: 32

Posts: 480

Joined: 5th Nov 2004

Ride: EBXR6

Location: Gympie
QLD, Australia

HAHAHAHA Looks like I took to long writing my reply lol



_________________

lesbian nazi hookers abducted by aliens and forced in to weight loss programs..... the turtle is natures suction cap.....

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 12:23 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

did u get it???
Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 2:55 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

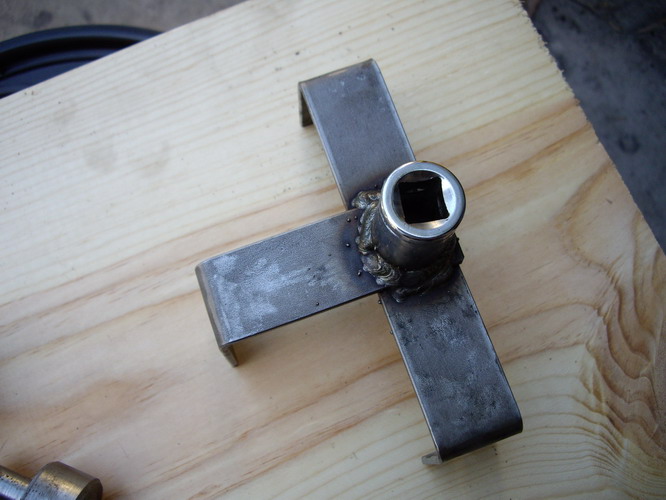

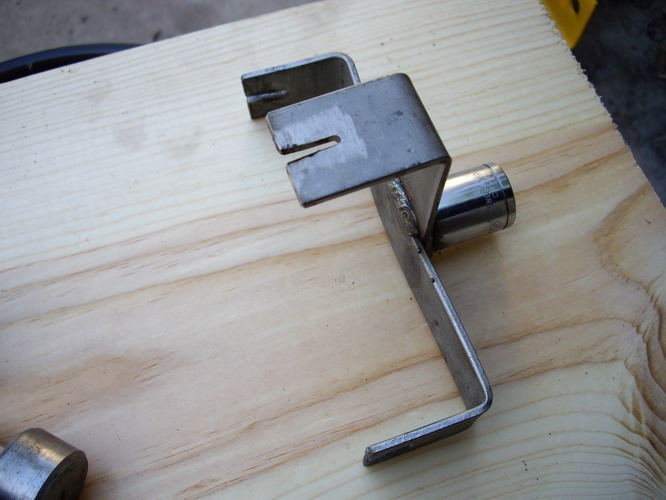

You should use a special tool, so as not to wreck the retaining ring....it is only plastic.
As for the comment about the " Not needing the steel clamp".....why would have Ford pay out $1 per vehicle to have one fitted if it didn't need it?????.... :roll: .....if Ford could save $1 per vehicle, they would.

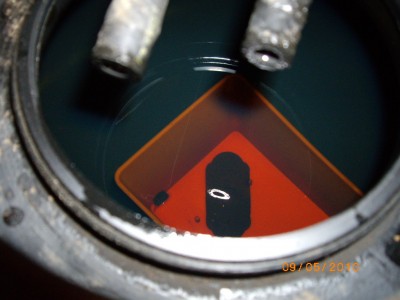

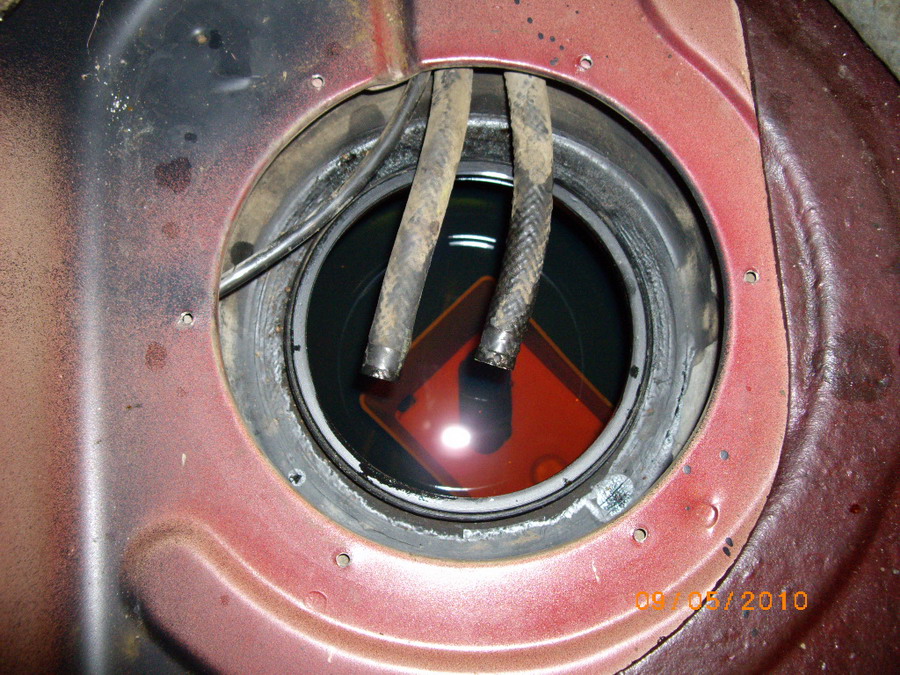

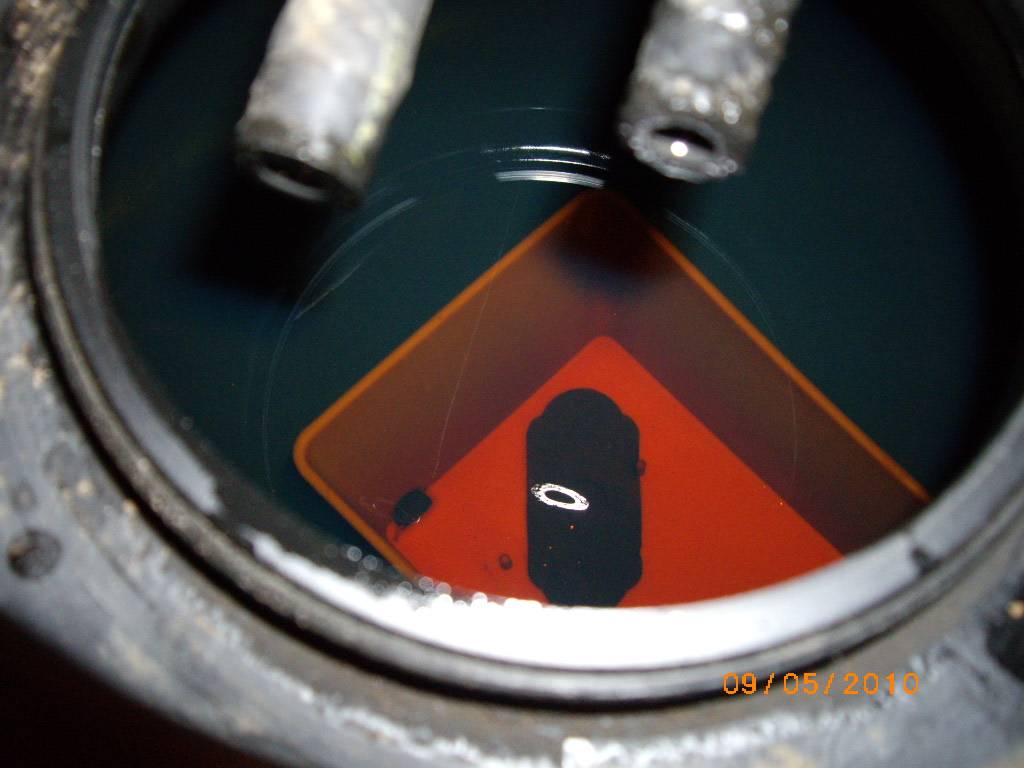

Attachments:
IMGP4485_resize.JPG [ 251.6 KiB | Viewed 23 times ]
IMGP1109_resize.JPG [ 79.93 KiB | Viewed 20 times ]
IMGP1108_resize.JPG [ 81.33 KiB | Viewed 28 times ]
IMGP4486.JPG [ 306.8 KiB | Viewed 25 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 4:34 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

got it with a screw driver and a hard thump of the palm of me hand haha, and now i got problems where it wasnt the pump it was the power supply to the pump, been told it could be the relay eitrher ecu relay or fuel pump relay, also could it be the mad sensor? a mates dad said it could be



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 8:38 pm
Getting Side Ways
Offline
User avatar

Posts: 407

Joined: 29th May 2008

Ride: Falcon EF GLi

Location: Perth
WA, Australia

Wish I had a mad sensor :mrgreen: sorry, couldn't resist...

Just make sure that when you put the plastic ring back on, you do it up REAL TIGHT or you will get a fuel leak. :wink:



_________________

EF2 Fairmont Ghia. AU2 engine running EF gear. Intake, exhaust, injection etc; 8" rear stockies with 265/50R15 rubber. Shiftkitted auto, J3, custom grille and dash cluster and lots of other useless crap...

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

you can buy the tool from Bursons. also don't cut the big clamp around the cap. it is needed



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

i never put the clamp back on either of my cars and never had a problem? and i ment map sensor lol, thanks for the help but it turns out all i needed was a new relay,just got it wired through so the pump works until tomorro arv wen i finish work



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:03 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the clamp is a safety item.. incase of unexpected pressure build up or accident impact,
the clamp locks the ring in position stoping the ring being forced out..
Top
 Profile


 Post subject: Re: taking the top off the fuel tank to swap fuel pumps
Posted: Wed Nov 03, 2010 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

Nothing worse than having your ring forced out! :shock:



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile
