tensioner/fan belt problem



Page 1 of 1 [ 10 posts ]


 Post subject: tensioner/fan belt problem
Posted: Sat Mar 25, 2006 3:56 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 740

Joined: 20th Nov 2004

Ride: BA Falcon

Location: Melbourne
VIC, Australia

the fan belt seems to be rubbing on the tensioner arm. as it comes off the water pump pulley it goes around the bottom tensioner pulley, its rubbing on the arm of the tensioner, causing the edge of the belt to start to fray... after a few weeks the belt splits a little and it gets ripped to shreds.

i had to pull the water pump pulley out a little because the belt wasnt running on it properly, which i thought would fix it, but the belt is still rubbing on the tensioner :(

ive used a few washers on the tensioner bolts to try and space it out a little further, but its still rubbing.

anyone else have this problem and know any fixes??

cheers lads and lasses
Top
 Profile


Posted: Sat Mar 25, 2006 6:08 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1534

Joined: 16th Aug 2005

Ride: 03 BA XR6

Location: Cranbourne VIC
VIC, Australia

from the sounds of it, i have a similar problem...though not quite as bad,

the problem for me (and possibly you) is a warped belt tensioner, apparently its a well known problem, it warps out of shape and appears normal..but while the car is driving it starts bit by bit to pull it off

hope this helps



_________________

2003 BA Ford Falcon XR6 | BF Typhoon Intake + K&N Filter | Lukey 2.5" catback zorst | More mods coming soon....

Top
 Profile


Posted: Sat Mar 25, 2006 7:51 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 740

Joined: 20th Nov 2004

Ride: BA Falcon

Location: Melbourne
VIC, Australia

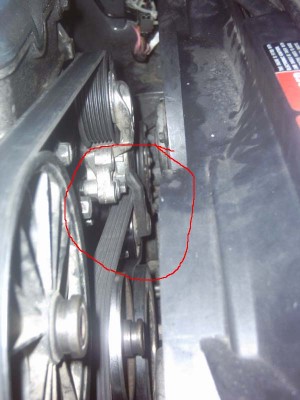

this might help explain the situation better...

its rubbing where ive circled





Attachments:
tensioner.jpg [ 65.18 KiB | Viewed 183 times ]
Top
 Profile


Posted: Sat Mar 25, 2006 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

your harmonic balancer hasn't slipped at all?

at my work we had an ef come in which had this same problem, and he was complaining about a knock noise.
the harmonic balancer was sliding back and forth, you could visually see it.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Sat Mar 25, 2006 10:04 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 740

Joined: 20th Nov 2004

Ride: BA Falcon

Location: Melbourne
VIC, Australia

where is that and how do i check it?
Top
 Profile


Posted: Sat Mar 25, 2006 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

it is driven off the crankshaft.
it's the really big lower pulley.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Sun Mar 26, 2006 1:20 am
Oompa Loompa
Offline

Posts: 20

Joined: 27th May 2005

Location: Sydney
NSW, Australia

There's only two reasons why you have your prob.

1. you need a new tensioner
2. Your harmonic balancer is about to fly out.

Its most likely that you need a new tensioner.
Top
 Profile


Posted: Sun Mar 26, 2006 9:17 am
Parts Gopher
Offline

Posts: 59

Joined: 4th Jul 2005

Location: Melbourne
VIC, Australia

i reckon you've got a warpped tensioner, i've had one before on a EF before.



_________________

97 EL Fairmont Ghia I6
EL GT's Lowered
Pacemakers 2 1/2" cat back,
EL GT air intake, Modified air box, K&N filter
3.45 LSD NOW MANUAL!

Top
 Profile


Posted: Sun Mar 26, 2006 5:49 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 740

Joined: 20th Nov 2004

Ride: BA Falcon

Location: Melbourne
VIC, Australia

thing is ive already replaced the tensioner... this one is only a few months old!
Top
 Profile


Posted: Sun Mar 26, 2006 5:57 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1534

Joined: 16th Aug 2005

Ride: 03 BA XR6

Location: Cranbourne VIC
VIC, Australia

when you get yourself a new belt tensioner, let me know how much it set you back.... i need one too!



_________________

2003 BA Ford Falcon XR6 | BF Typhoon Intake + K&N Filter | Lukey 2.5" catback zorst | More mods coming soon....

Top
 Profile
