Thermo fans wont kick in on high speed when motor gets hot.



Page 1 of 3 [ 33 posts ] Go to page 1, 2, 3  Next


 Post subject: Thermo fans wont kick in on high speed when motor gets hot.
Posted: Fri Apr 14, 2006 2:07 pm
Parts Gopher
Offline
User avatar

Age: 41

Posts: 59

Joined: 18th Jan 2006

Gallery: 2 images

Ride: AU II Fairmont

Location: Brisbane
QLD, Australia

Hello, all. I've got an issue with-in my el, the thermos dont appear to be kicking in on the high speed, yet, if i pull off the temp sender connector, they roar, (so the circuit is operational).
I've replaced the thermostat, the temp sender, the 3 relays behind l/h h/light, power module(computer), radiator(22,000klm ago), had the motor and radiator flushed, and yet still wants to get hot.

:!: HELP! ANYONE GOT ANY SUGGESTIONS? :shock: :?: :!:



_________________

AU II Fairmont congo green FG mags

Top
 Profile


Posted: Fri Apr 14, 2006 2:28 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

ecu triggers them, so possibly the ecu is f**k.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Fri Apr 14, 2006 2:33 pm
Parts Gopher
Offline
User avatar

Age: 41

Posts: 59

Joined: 18th Jan 2006

Gallery: 2 images

Ride: AU II Fairmont

Location: Brisbane
QLD, Australia

smoke_rubber wrote:
ecu triggers them, so possibly the ecu is f**k.

thats wat i thought- looks like i've got 2 shagged ecu's, then?

the one i put in was a new one...

at what temp should the high speed circuit kick in?



_________________

AU II Fairmont congo green FG mags

Top
 Profile


Posted: Fri Apr 14, 2006 4:11 pm
Getting Side Ways
Offline
User avatar

Posts: 1079

Joined: 18th Sep 2005

Ride: AUII Fairmont

Location: Belmont
WA, Australia

Do they come on with the A/C on fan on boost?
Top
 Profile


Posted: Fri Apr 14, 2006 4:43 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Not sure about this but is there a fuse for the positive side of the relay control or the fan power feeds, if either is blown it will stop the fans from operating.

You will find the ECU switches the negative to the relays to make them operate, I think about 75 degrees C RHS one switches on.



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Fri Apr 14, 2006 4:46 pm
Getting Side Ways
Offline
User avatar

Posts: 1079

Joined: 18th Sep 2005

Ride: AUII Fairmont

Location: Belmont
WA, Australia

He said if he pulls the coolant sensor they kick in so it's not fuses / relays.

Maybe it's the sensor itself just needs a clean
Top
 Profile


Posted: Fri Apr 14, 2006 4:49 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Sorry, My mistake



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Fri Apr 14, 2006 5:13 pm
Parts Gopher
Offline
User avatar

Age: 41

Posts: 59

Joined: 18th Jan 2006

Gallery: 2 images

Ride: AU II Fairmont

Location: Brisbane
QLD, Australia

Shouldnt be the sensor- its new...

When are they supposed to kick in? I thought 95 deg. It reached 101 deg the other day(between O and R), and still no high speed- just low idle speed.
they start to run at idle speed at 80 deg( just below L). :shock:

I know the exact temperature from having the odo in cluster diagnostics, on screen 2 (temperature) 8-)





Attachments:

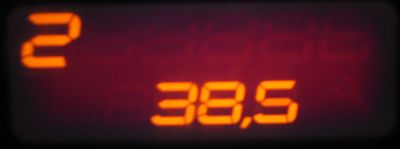

File comment: screen 2: engine temperature deg c- obviously the car wasn't running for long when i took this foto about 5 minutes before posting.
IMG_1657r.jpg [ 9.95 KiB | Viewed 556 times ]

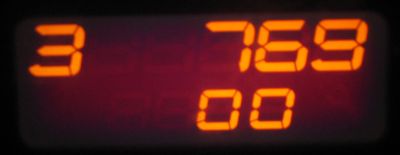

File comment: screen 3: top line engine speed, bottom line vehicle speed.
IMG_1656r.jpg [ 11.12 KiB | Viewed 556 times ]



_________________

AU II Fairmont congo green FG mags

Top
 Profile


Posted: Fri Apr 14, 2006 9:15 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Do an ECU diagnostic and see what codes come up(write them down), there are codes for the fans and the relays (only 2 of the 3). Clear the codes and do the tests detailed at the end of http://www.fordmods.com/forums/documents.php?doc=54 .
It may only be the need to reset the ECU codes.

If you get recurring fault codes for any of the relays, fans, etc, and you know for certain they are okay (have you actually checked that both fans are roaring with the temp sender plug off ??), it may give you some ideas which other areas you can check.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Fri Apr 14, 2006 10:13 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

low speed kicks in at 80*c
Mid speed Kicks in at 105-107*c

dont ask my why you would have the fans kick in when the car is already prety hot?

i thaugt something was shagged in mine too but as i watched it get to around 104*c and fans not clicking into second speed.
then i wired up some resistors and pluged them into the tem sensor input which represented 107*c and the fans kicked in at mid speeed.



Mode1: Motor 1- 1400rpm Motor 2- 1400rpm

Mode2: Motor 1- 2300rpm Motor 2- 1900rpm

Mode3: Motor 1- 2300rpm Motor 2 - 2300rpm

mode no 1 runs boath fans in series.


put your car in the diagnostic mode to read temrature then plug in a series of resistors into your temp sensor connection use around 1.8 -1.9kohm


Sensors - ECT, IAT
resistances (Ohms) Temprature *C

58750 10
37300 20
24270 30
16150 40
7599 50
3843 80
2069 100



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Fri Apr 14, 2006 10:30 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

voids wrote:
low speed kicks in at 80*c
Mid speed Kicks in at 105-107*c

dont ask my why you would have the fans kick in when the car is already prety hot?


'Optimal' running temp is about 95 degrees IIRC. You want the engine to get up to this temperature as fast as possible. Looks to me like the temperatures you posted would do that nicely.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Apr 14, 2006 10:37 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

thats what i found ford has this set at. personally if i was designing the car i would have lowerd second speed of the fans, to kick in below 104*C which is boiling point for ford coolant.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Fri Apr 14, 2006 10:41 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

voids wrote:
104*C which is boiling point for ford coolant.


You sure about that? Is that in a pressurised system or open air?

Edit - yeah, just looked it up. 50/50 coolant mix with have a open air BP of around 106 degrees which will be raised to about 160 degrees in a pressurized cooling system.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Apr 14, 2006 11:40 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

stockstandard wrote:
voids wrote:
104*C which is boiling point for ford coolant.


You sure about that? Is that in a pressurised system or open air?

Edit - yeah, just looked it up. 50/50 coolant mix with have a open air BP of around 106 degrees which will be raised to about 160 degrees in a pressurized cooling system.

intresting. didnt know the presurised boiling point was 160 degrees for coolant



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Sat Apr 15, 2006 8:47 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

boiling point is raised if it's in a pressurised system.
you'll notice if you open the cap when at operating temp (accidently done by myself), the coolant will come out boiling, as it's not under pressure.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile
