 Post subject: Thermostat wiring issue
Posted: Fri Mar 09, 2012 8:13 pm
Stock as a Rock
Offline

Age: 33

Posts: 126

Joined: 11th Jul 2011

Gallery: 2 images

Ride: Ford Falcon ED

Location: Hobart
TAS, Australia

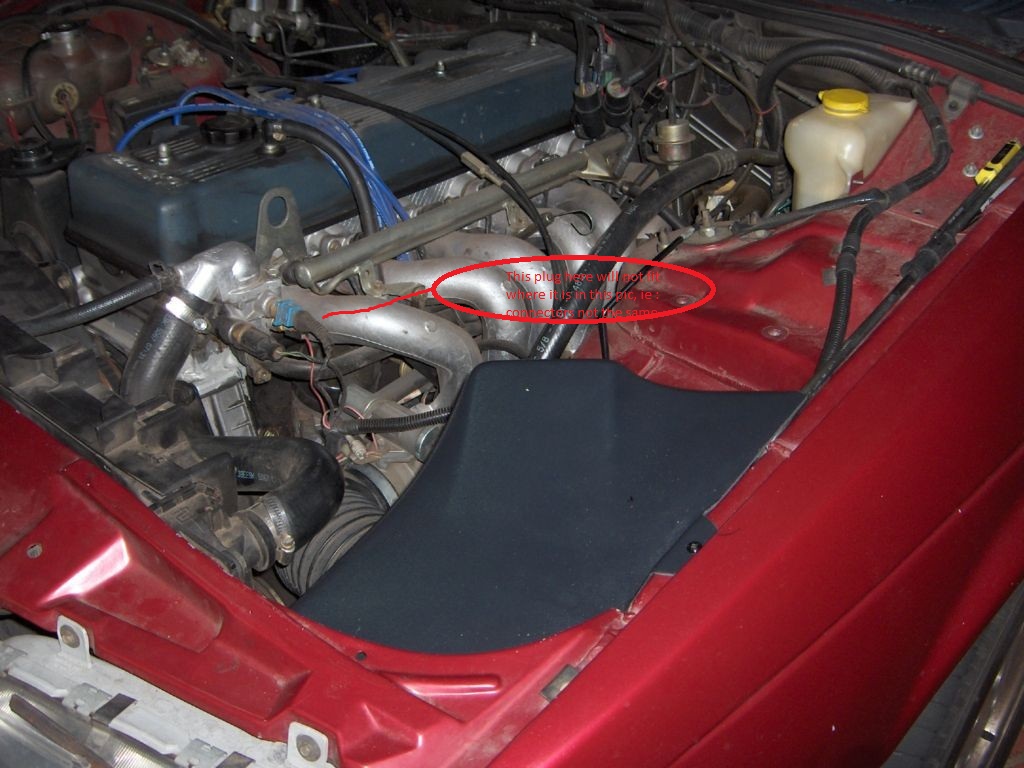

Hey i have a small problem with the wiring on my ed falcon going into the thermostat housing, the picture isnt from my car, just something wrong with my wiring and trying to figure out wot, the blue plug indicated should be plugged in where it is in the picture yes? well the connector wont fit into it, don think its the right one, the one there looks like it the same as the one bellow it, would it be a matter of just getting the correct fitting and switching them over? The temp gauge isn't working either


Attachment:
alksnfa.jpg [ 182.26 KiB | Viewed 390 times ]
Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Fri Mar 09, 2012 8:56 pm
Parts Gopher
Offline

Posts: 51

Joined: 29th Apr 2010

Location: Melbourne
VIC, Australia

The pink wire below that plug is the sensor for the temp gauge and warning light on the dash, 99% sure, The bigger black plug is the sensor for the ECU. Not quite sure what the blue plug is. :?:
Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Fri Mar 09, 2012 9:22 pm
Stock as a Rock
Offline

Age: 33

Posts: 126

Joined: 11th Jul 2011

Gallery: 2 images

Ride: Ford Falcon ED

Location: Hobart
TAS, Australia

oh ok. just trying to figure out wot that other plug is as it wont plug into my thermostat housing..
So my gauge not working would prob be the sensor the pink wire connects to? cheers
Do you know if this will impact the thermostat opening and closing?
Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Sat Mar 10, 2012 4:54 pm
Getting Side Ways
Offline

Posts: 496

Joined: 14th Sep 2011

Ride: BF II Gas Ute

Location: Canberra
ACT, Australia

Hi,

The thermostat is not electric. The connections will be for the temp gauge / ECU. If you have been driving it has it boiled ?

Regards 96ELGli



_________________

Regards 96ELGli

Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Sat Mar 10, 2012 5:04 pm
Stock as a Rock
Offline

Age: 33

Posts: 126

Joined: 11th Jul 2011

Gallery: 2 images

Ride: Ford Falcon ED

Location: Hobart
TAS, Australia

no it hasnt boiled,the temp gauge isnt working not sure if thats the gauge or the temp sender. yea 1 connection for ecu other for temp gauge but what is the other connection (the blue one pictured)?
Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Tue May 22, 2012 11:11 pm
Smokin em up
Offline

Age: 34

Posts: 210

Joined: 22nd Feb 2007

Gallery: 4 images

Ride: EL Falcon 4.0

Location: Adelaide
SA, Australia

hey buddy u ever fix this??



_________________

EL4LTR

mild cam, 2.5 inch lukey exhaust system n genie extractors,Boxed K&N Pod Filter n Big mouth intake,Rolling on 19s, slammed on superlows, shift kitted,XR6 seats,White dash insert with blue back lights n green needles

Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Tue May 22, 2012 11:19 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

the sensor with the blue plug is used on models with electronic climate control, fairmont/ghia...
Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Wed May 23, 2012 12:08 am
Smokin em up
Offline

Age: 34

Posts: 210

Joined: 22nd Feb 2007

Gallery: 4 images

Ride: EL Falcon 4.0

Location: Adelaide
SA, Australia

im in the same boat how do i get my temp gauge workin??



_________________

EL4LTR

mild cam, 2.5 inch lukey exhaust system n genie extractors,Boxed K&N Pod Filter n Big mouth intake,Rolling on 19s, slammed on superlows, shift kitted,XR6 seats,White dash insert with blue back lights n green needles

Top
 Profile


 Post subject: Re: Thermostat wiring issue
Posted: Wed May 23, 2012 12:34 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

If your car is an EL then the temp gauge is driven by the data output of the EEC-V... So does the fuel consumption work in diag mode and the gear position indicator and the like? That'll prove the data connection is there... If it is then try a different cluster, if it isn't then prove the wire for continuity and replace either the EEC-V or the temp sender for the EEC-V

For the ED, if the OP gets a 39ohm resistor and sticks one end of it in the temp gauge sender wire (the red with whatever trace) and the other end of the resistor to earth, this should drive the needle to hot... If it doesn't then prove continuity of the wire to the cluster, and try replacing the cluster.

You can measure the sender ohms from it's single pin to ground... With the car warm it should be like 70-100ohms? Stone cold should be 220odd ohms...

You guys don't have stuck open thermostats by any chance causing the motor to never get warm?

Cheers,
Tim
