 Post subject: Think I found my oil leak (maybe not sump after all) Pics
Posted: Tue Oct 17, 2006 1:31 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

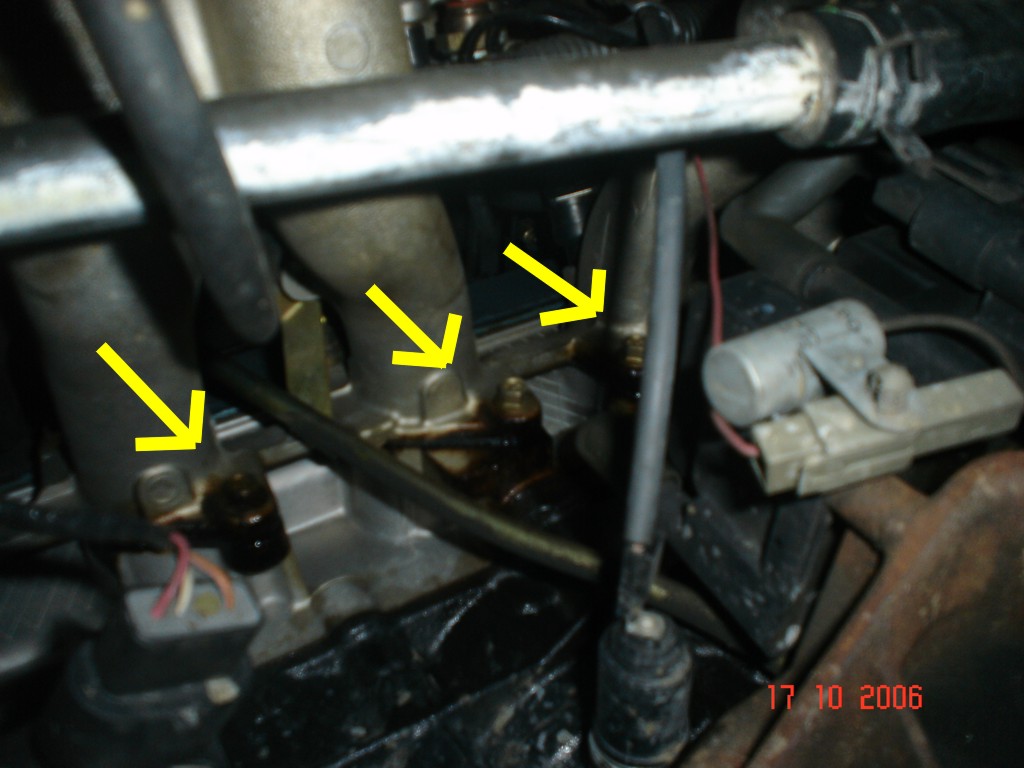

Well when I did my service today, I got to the stage where I was changing my oil filter and found this disturbing sight.

Unfortunately the picture isn't clear where the oil is, but I can describe it as fresh and a considerable amount there.

It is where those bolts are that hold that weird thing with 6 chambers on the right-hand side of the block.

Anywho, what is my problem now, and how much?





Attachments:
File comment: Lame
leaks.jpg [ 118.48 KiB | Viewed 60 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Oct 17, 2006 1:34 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

the wierd chamber thing you refer to is the BBM intake manifold. If oil is leaking around here it could also be the headgasket as the head joins the block very close to that area. however if its not leaking a huge amount you could probably try some gasket sealant (or something similar) and attempt to seal off the area thats leaking from the outside

also dont rule out the rocker cover leaking (it could just be leaking down from the rocker cover down onto the manifold.



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Tue Oct 17, 2006 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Um, no one else wants to say anything? lol.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Oct 17, 2006 9:07 pm
Getting Side Ways
Offline

Posts: 4967

Joined: 22nd Nov 2004

Location: FAR FAR AWAY LAND
QLD, Australia

Till_Lind wrote:
Um, no one else wants to say anything? lol.
Think bluecube covered it



_________________


Top
 Profile


Posted: Tue Oct 17, 2006 9:10 pm
Tyre Shredder
Offline
User avatar

Age: 45

Posts: 336

Joined: 2nd Sep 2005

Location: Normzville
WA, Australia

in that pic the head gasket is dry. that looks like fuel. hook your finger around the bottom of the manifold and smell it. u'll know if it's fuel.



_________________

<a href="http://www.spyderbyte.com.au">
<img border="0" src="http://www.spyderbyte.com.au/updated.gif" width="189" height="45"></a>

Top
 Profile


Posted: Tue Oct 17, 2006 9:36 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

The BBM is above the head gasket so you must have some wierd physics going on if thats the problem.

Could be oil from the rocker cover gasket, but I dont see it anywhere else.

I would tend to think those are stains from from fuel and oil pooling in the ports and leaking through the gasket.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Tue Oct 17, 2006 9:39 pm
Stock as a Rock
Offline

Posts: 120

Joined: 9th Apr 2006

Ride: Falcon

Location: CAIRNS FAR NORTH QUEENSLAND
QLD, Australia

is that pic taken from underneath ?
does this mean you hopped in the engine bay and shut the bonnet and took the pic ? :lol: :lol: :lol:



_________________

2000 AU2 FUTURA WAGON

Top
 Profile


Posted: Tue Oct 17, 2006 9:39 pm
Stock as a Rock
Offline

Posts: 120

Joined: 9th Apr 2006

Ride: Falcon

Location: CAIRNS FAR NORTH QUEENSLAND
QLD, Australia

is that pic taken from underneath ?
does this mean you hopped in the engine bay and shut the bonnet and took the pic ? :lol: :lol: :lol:



_________________

2000 AU2 FUTURA WAGON

Top
 Profile


Posted: Tue Oct 17, 2006 9:49 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Clean it.
Tighten the 10mm bolts from the inside to out.
Reinspect in a couple of days.

the inlet gasket compacts and becomes loose and thats most likey the result of the oilish residue.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Tue Oct 17, 2006 9:59 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Tighten the bolts from the inside to out? wtf. Do you mean tighten the bolts?

If you do, will do. Not sure how I'll access them, but I'll try, lol.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Oct 17, 2006 10:06 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1339

Joined: 7th Nov 2004

Gallery: 3 images

Ride: FGX G6ET

Location: Worrigee
NSW, Australia

Inside to out....start with the inside bolts and work out...
Top
 Profile


Posted: Tue Oct 17, 2006 10:08 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1802

Joined: 16th Jan 2005

Gallery: 7 images

Ride: EF Falcon

Location: Horsham
VIC, Australia

yeah

start at middle out and work you way out

middle of motor to back of motor to front of motor
top and bottem



_________________

EFBIGNIK 145.9 RWKW Falcon / 16.27 @ 86.72mph (Stock)
http://s60.photobucket.com/albums/h38/e ... urnout.flv

Top
 Profile


Posted: Tue Oct 17, 2006 10:14 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

And dont go crazy tightening them either as the bolts are going into an alloy head



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Tue Oct 17, 2006 10:18 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

might pay to check all your bolts dround the engine, once noticed that a slight weep turned into a drip and found at least 3 sump bolts finger tight on my fairmont.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Tue Oct 17, 2006 10:51 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I'd be more concerned with the glycol seap on your heater pipe!
just thought I'd point that out!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile
