Yeah thats something I'm going to have to eventually worry about :p
Right now my aircon doesn't work because of the hack job the previous owner did of taking it out, which means I'll need to get a complete system to install it again -_-



_________________

Wanted, CFI manifold

Top
 Profile


Posted: Fri May 02, 2008 12:08 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

well ive been qouted $250.. :shock:
thats new rubber o rings for the pump and tx valve fittings
new reciever dryer (for new type r134 gas) oil+regas..

if it had already been converted to the new r134 type gas it would have only cost $100 for the gas..
but because all the lines have been undone and the o rings are 19 years old its best to replace them .
Top
 Profile


Posted: Fri May 02, 2008 6:43 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

well i had a set back today the high pressure power steering hose started to leak bad!

im not sure if ef power steering runs higher pressure than ea?
or its just that the hose decided to go because it was old?
i know benj had the same problem with his power steering hose after his engine conversion..

anyway the new hose cost $65 from peps..
once again its all good.. for now lol...
Top
 Profile


Posted: Sat May 03, 2008 12:17 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

is it the higher pressure from the bigger pulley?

that is something I wasn't expecting to have to buy, have to put it on the list of things to get when I'm stripping bits of the next EL.
Top
 Profile


Posted: Sat May 03, 2008 9:31 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

actually its the oposite.. the larger pulley turns slower!

but its definatly something to look at ..
if your driving around and the hose bursts your in trouble.
there now is only one belt! (thats one down side to the serpentine belt lol).
so no power steering fluid mean the power steering pump will die/sieze fast.
and if you were to keep driving the belt would soon fry and then no water pump or alternator will stop you in your tracks.. :cry:

like i said before it could have just been a coincidence?
but im just glad it happened before our cruise this afternoon..lol
Top
 Profile


Posted: Sat May 03, 2008 2:21 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

of course... if the flywheel pully was bigger it'd make that one spin faster, but if that one is smaller it would be faster.. hadn't had much sleep at that time.. :-)

perhaps it does have a higher output per revolution because it spins slower?
Top
 Profile


Posted: Sat May 03, 2008 11:39 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

can you show me a pic of the aircon line setup? i dont have mine connected at the moment as i lost the bolt and it doesnt quite fit correctly



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun May 04, 2008 12:03 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

yea ok..
its a bit dark at the moment lol. ill take some pics and ill post up a pic in the morning..
Top
 Profile


Posted: Sun May 04, 2008 2:05 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

huggiebear wrote:
can you show me a pic of the aircon line setup? i dont have mine connected at the moment as i lost the bolt and it doesnt quite fit correctly

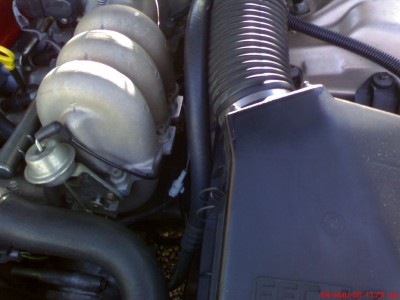

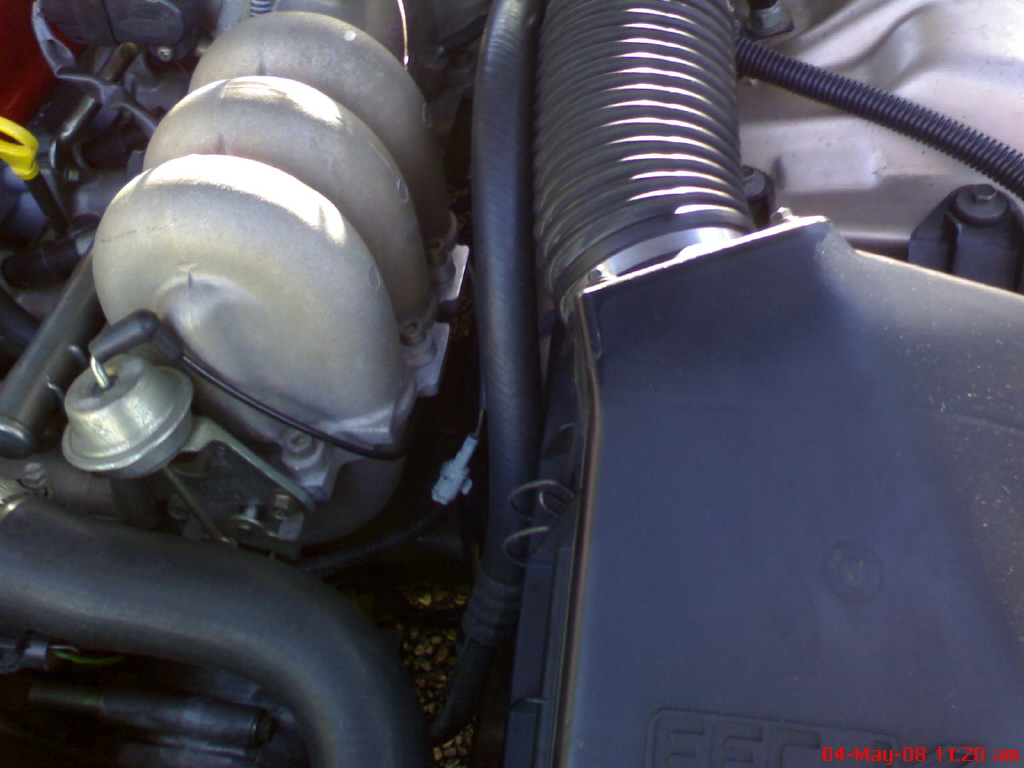

here are a few pics of the aircon lines..

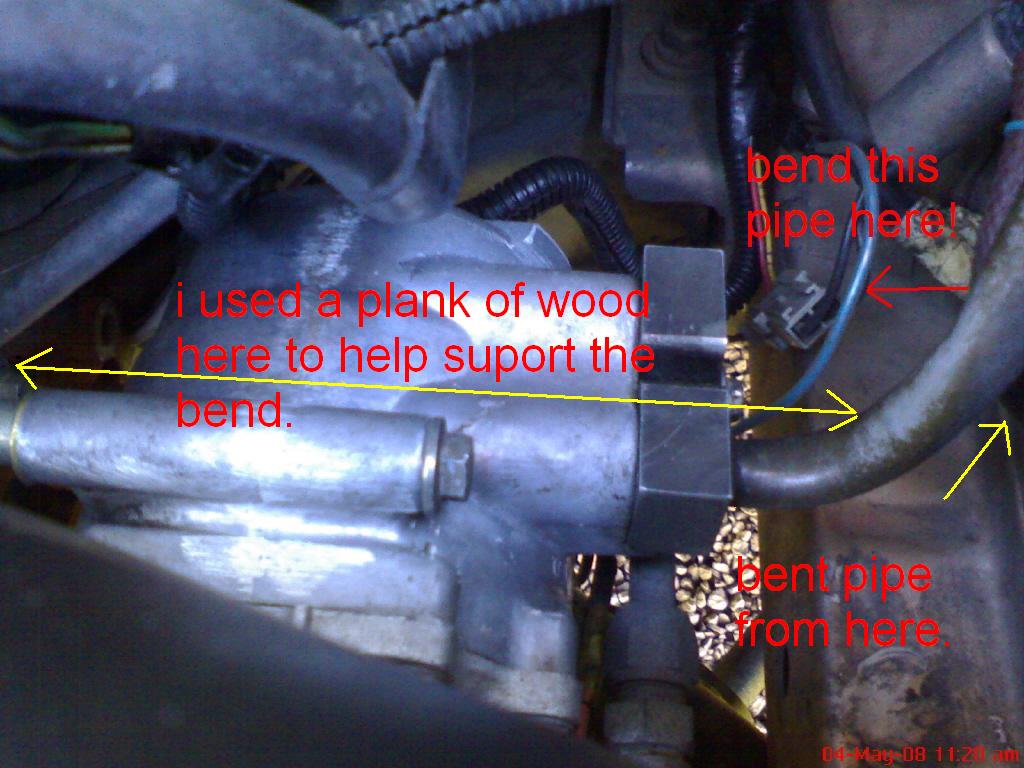

i had to bend the metal pipe on the line at the pump a bit to clear the airbox.. but be carefull not to bend it to much as you will end up with a kink in the pipe..
i used a plank of wood and wedged it in between the metal pipe and the block then used another length of wood and wedged it between the chasis rail and the outside of the pipe and leavered it bit by bit trying not to kink the pipe.,.





Attachments:
aircon line a.JPG
aircon line a.JPG [ 105.78 KiB | Viewed 39 times ]
File comment: the bent pipe needed to be bent to clear the airbox.
aircon line2.JPG
aircon line2.JPG [ 248.72 KiB | Viewed 44 times ]

Last edited by TROY. on Wed May 07, 2008 7:06 pm, edited 1 time in total.

Top
 Profile


Posted: Sun May 04, 2008 2:12 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

how did you go with those 2 little tabs on the aircon unit? my NC had them on the top where as the EL has them on the bottom.

see the 2 little circled bits



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun May 04, 2008 3:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

mine has them on the bottom like your one ..
the bottom of the square block on the aircon line seats against those lugs and the bolt goes through the centre..
those lugs are there to hold the pipe block in position so the block dont turn when you so the bolt up and keeps the hose ports lined up.
it still fits the same just the lugs are on the bottom insted of the top.

also i forgot to mention that you need to remove the airbox to fit the line so you can bend it into position..
then you put the airbox back in.
Top
 Profile


Posted: Sun May 04, 2008 9:46 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ahhhh :evil: f--kn mother f--kn c--t of a thing :twisted:

a new teethin problem..
actually if it had teeth ill nock the f--kn things out...

the alternator decided it was going to f--k me over..
just had to pick the msrs up and stoped at a set of lights and i see the charge light on and volt guage is under 12v.. wtf
so i turned the music off to hear a loud whinning noise and squeeling ..oh no..
it seems i now need a new alternator.... prick!

ah well thats what happens when you use 2nd hand parts from a wreck!
anyway i just needed to vent some anger!
so new alternator here we come..
Top
 Profile


Posted: Sun May 04, 2008 10:55 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Bugger Troyman

Thats not good news. Need any help?

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Mon May 05, 2008 7:54 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Have alternator at home if your interested, not sure of condition but is there if needed.
Top
 Profile


Posted: Mon May 05, 2008 9:39 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

BenJ wrote:
Bugger Troyman

Thats not good news. Need any help?

BenJ



thanks ben
it should be ok.
i got my dads camry at the moment, and there are a few auto electricians or wrecker close by..
