troymans serpentine conversion+air con retro fitt(finished)



Page 7 of 8 [ 106 posts ] Go to page Previous  1 ... 4, 5, 6, 7, 8  Next


Posted: Tue May 20, 2008 6:57 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

well here is the car now lol
i decided not to f**k around anymore.
im half way there.
the heater box is out and ive fitted the ef heater core and evaporator core.

but ive run out of light so ill get back into it in the morning..





Attachments:

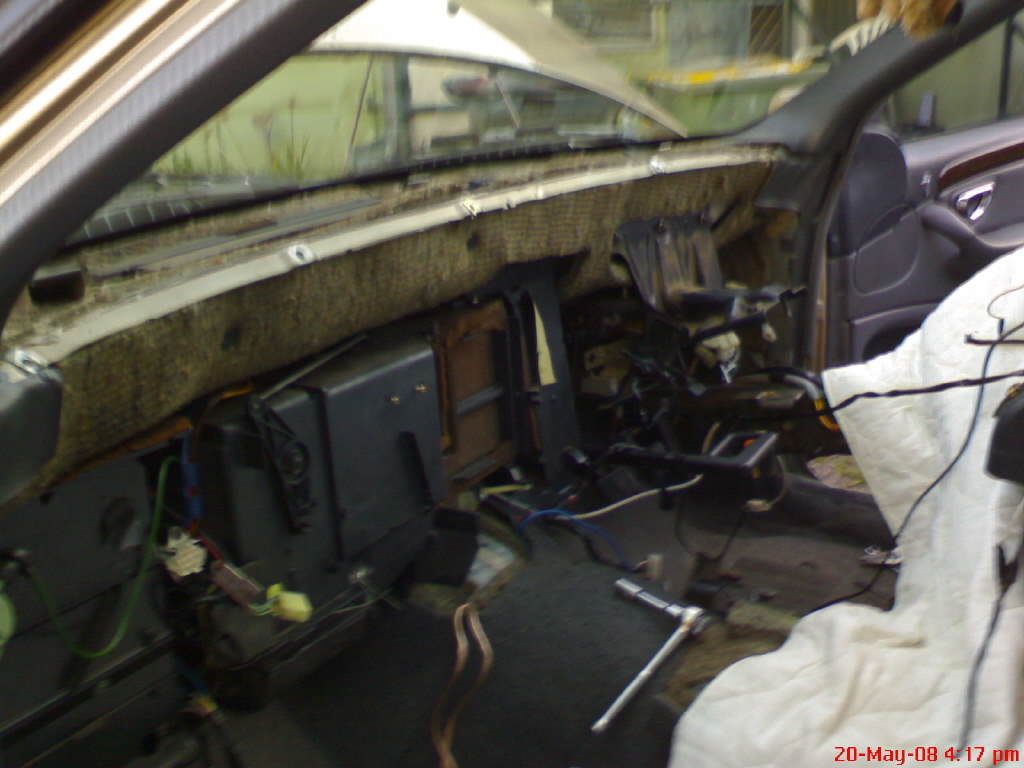

File comment: dash out
DSC00780.JPG [ 264.56 KiB | Viewed 31 times ]

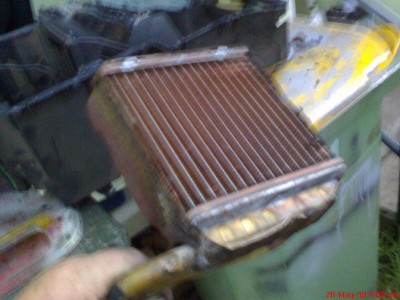

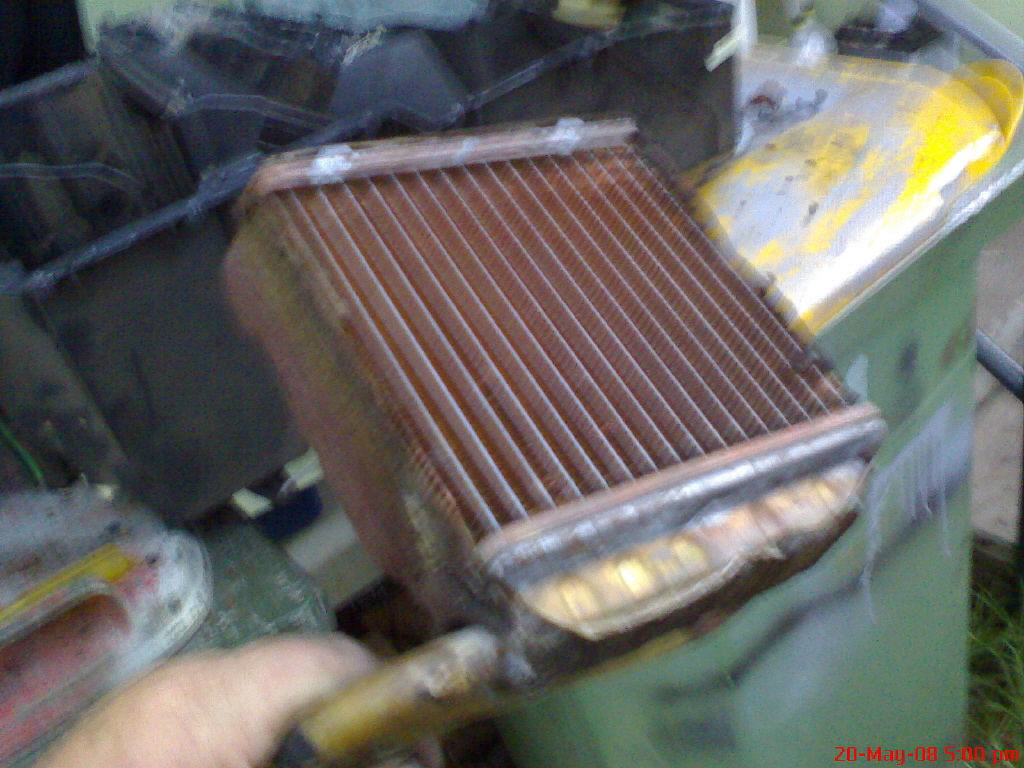

File comment: the old heater core
DSC00782.JPG [ 458.6 KiB | Viewed 40 times ]

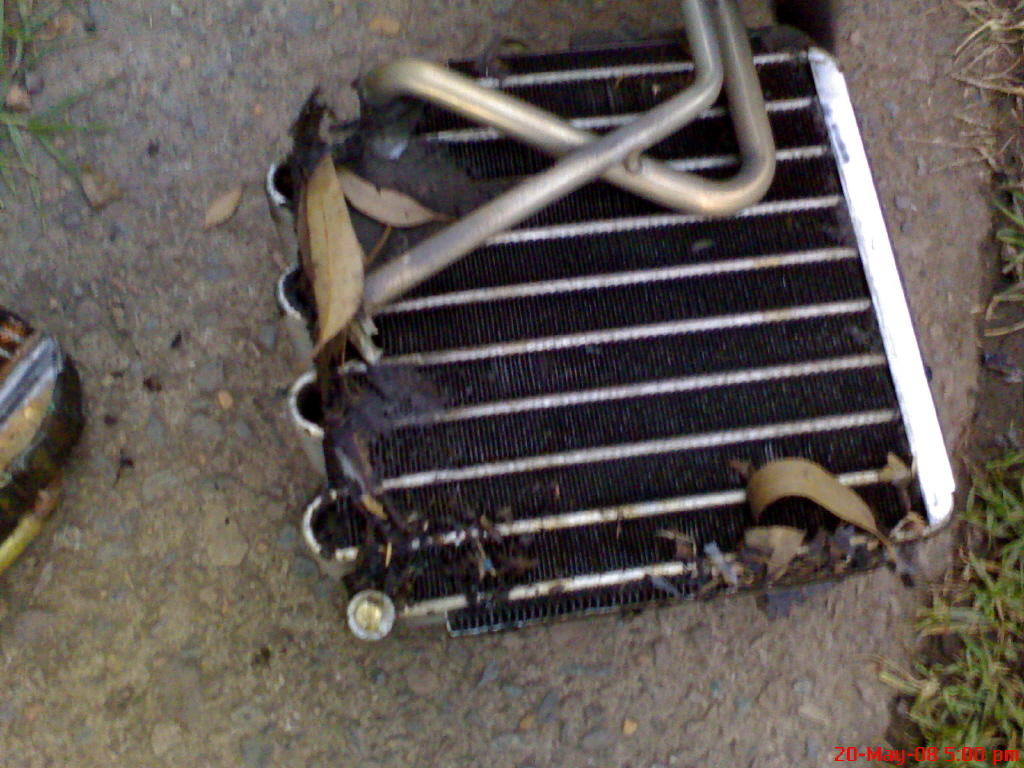

File comment: the old evaporator
DSC00783.JPG [ 465.07 KiB | Viewed 32 times ]

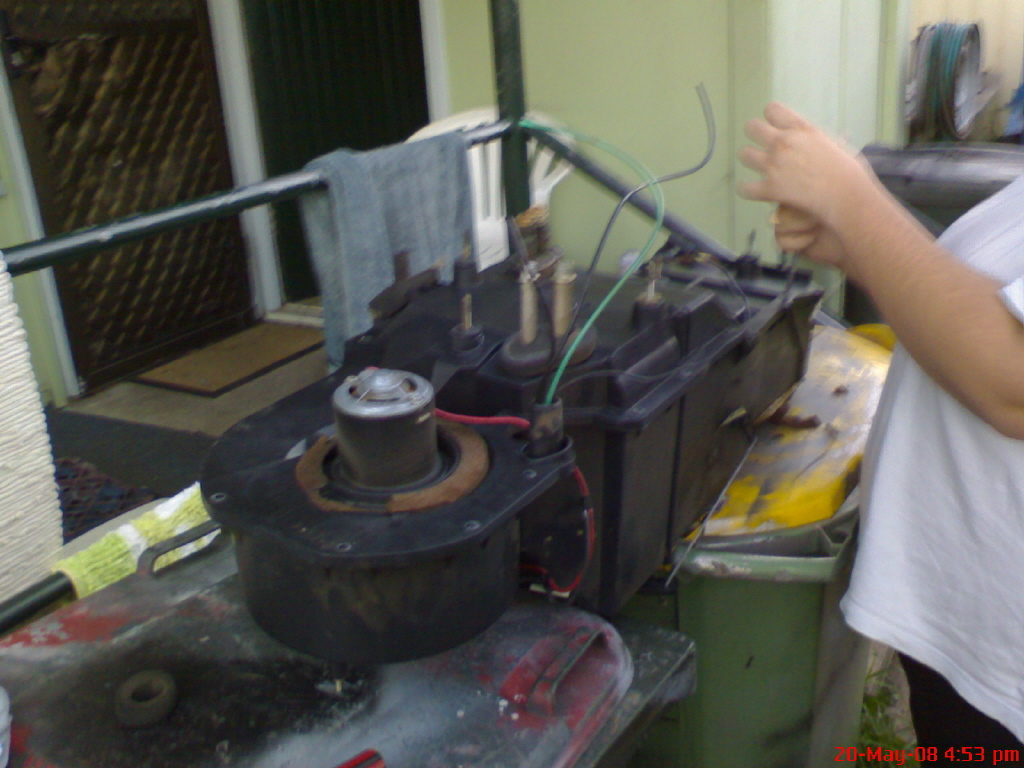

File comment: i got the mrs puting the heater box back together lol
DSC00781.JPG [ 278.53 KiB | Viewed 32 times ]

Last edited by TROY. on Tue May 20, 2008 9:08 pm, edited 1 time in total.

Top
 Profile


Posted: Tue May 20, 2008 8:40 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

crazy stuff... i need to pull mine apart its making funny noises



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Tue May 20, 2008 8:51 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Gold!!!!! "Got the Mrs putting it back together" LOL

Good job mate, you can do mine next, will be around in the morning.

So, how did you get the heater hoses off?

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Tue May 20, 2008 9:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

BenJ wrote:
Gold!!!!! "Got the Mrs putting it back together" LOL

Good job mate, you can do mine next, will be around in the morning.

So, how did you get the heater hoses off?

BenJ


ahh special trick :lol: ..

na i took the hoses of when i did the bbm conversion because the heater core was leaking..

tomorrow i still got to put the heater box back in(its a pain to get to those little nuts behind the engine :roll: ),re solder a few wires i cut :lol:
and the plastic airhose manifold on the heater box broke so i hope the one on the ef is ok?.
and the fun part of getting the heater hoses back on lol...
i should have the car back on the road tomorrow arvo or thursday??

then i need another ef tx valve and high/low pressure switch, another aircon re-gas :roll: and fingers crossed it wont give me anymore trouble..

oh and the mrs will be happy to have a heater again...
Top
 Profile


Posted: Tue May 20, 2008 9:43 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Sounds like a balanced partnership Troy, the heater to warm the missus up and the aircon to cool you down! LOL
I'm sure that between Ben and yourself, finding a Tx valve and switch won't be too difficult...or costly. LOL
He was playing around with EF bits to-day, just follow his fingerprints...
Mac



_________________

What goes around, comes around.

Top
 Profile


Posted: Tue May 20, 2008 9:47 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

so whens the dual climate control coming? lol kia carnivals have these stock lol. well its like a 3way one, rear has its own controls and the drivers and passengers are different to each other. would love to have something like this fitted to mine, hot as hell for me warm for the other half



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Wed May 21, 2008 7:52 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

woo hooo :lol:
its all back together again!
the dash is back in and the heater now works great.
i had to buy a new heater tap and hoses.

tomorrow im off to get a new tx valve,hi/low pressure switch and o rings then re-gas the aircon.. again!!
Top
 Profile


Posted: Wed May 21, 2008 9:04 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

That's good news.
Will you be mingling with us on Friday night or will you just sit in the car with the engine and heater on grinning like a Cheshire cat? LOL
Cheers,
Mac



_________________

What goes around, comes around.

Top
 Profile


Posted: Wed May 21, 2008 10:15 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

:lol: :lol: :lol: :D

yes we will be there on friday but i know we will be warm driving there and back
Top
 Profile


Posted: Wed May 21, 2008 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

that sux.... I don't wanna have to pull my dash out again.. must be a way to adapt the two together even if I have to braze an adaptor onto it.
Top
 Profile


Posted: Wed May 21, 2008 11:38 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Sigh, so this looks like something I will be doing soon Sigh

So how did you go getting the heater hoses on?

And good job mate.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


Posted: Thu May 22, 2008 1:51 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I want to know what the TX valve does and in what way the EA one differs from the EF/EL one..

I hate pulling dashes out... :-(
Top
 Profile


Posted: Thu May 22, 2008 9:35 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

frankieh wrote:
that sux.... I don't wanna have to pull my dash out again.. must be a way to adapt the two together even if I have to braze an adaptor onto it.



i would say if you dont want to pull your dash out it would be easier to get custom lines made up!
i tried to use a mix of factory parts and it did work! but i could not get the ef tx valve to seal properly on the ea evaporator..

so i took the step and pulled the dash out because the heater core was stuffed aswell..
otherwise i should have just got the custom lines made up...

and i wouldnt try brazing the pipes on the evaporator as the heat might cause the brass or lead on the core to melt and then you will need to pull the dash out to change that...
Top
 Profile


Posted: Thu May 22, 2008 9:56 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

BenJ wrote:
Sigh, so this looks like something I will be doing soon Sigh

So how did you go getting the heater hoses on?

And good job mate.

BenJ



thanks ben
i got the heater hoses on ok..
i have scratches all over my hands and arms from forcing my arms between the bbm manifold and body lol..
i found it easier to fit the heater hoses by removing the air intake,aircon lines.and washer bottle.

ben i would recommend fixing your heater problem before fixing the aircon.
that way you can remove your aircon lines to get to the heater hoses?
that way you dont have to lay under the car to get the hoses off...

i used ea heater hoses as my engine still has the ea engine pipe.
the funny part is it only took 2 1/2 hours to pull everything out including the heater box..
and it then took 7 hours to put everything back together including the heater hoses,re-solder some of the extra wires added from the bbm conversion that i had to cut :lol:
Top
 Profile


Posted: Fri May 23, 2008 1:01 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ok
its all fixed and finished. :D :D
its now been fitted with a new tx valve ect..
i got it re-gassed today and its all working a treat..
the heater is hot as hell and the aircon is as cold as ice.. 8-)

as long as the aircon dont leak its something that i dont want to do again! :lol:
