Unexplained loss of coolant



Page 2 of 3 [ 40 posts ] Go to page Previous  1, 2, 3  Next


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 10:36 am
Getting Side Ways
Offline

Age: 34

Posts: 747

Joined: 8th Nov 2009

Ride: ford au

Location: brisbane
QLD, Australia

When the engine is hot the level will raise in the resevoir, when it is cold the level will drop. Keep an eye on it the air should be out of it by now.



_________________

Daily Driver, Series 1 Au Forte

Quote:
Posted by Xcabbi, Does it slap or rattle? Rattle is more to do with timing chains and tensioners. Slap is more to do with lifters, rings, bearings or GENIII boat anchors

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 11:47 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Thanks to Timmytimtim, teknoslasher and frd906n for their input.

Brought a new radiator cap from Supercheap 120kpa it looks different to the original one on the plastic bubble.

When it cools down I'll take a photo of it and upload here.

The original looks sought of bent or twisted but has the ford signature whereas the one from Supercheap is straight.

Question is, does the cap need to be original i.e. purchased from ford?

Cheers
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 11:57 am
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

bondy99 wrote:
Thanks to Timmytimtim, teknoslasher and frd906n for their input.

Brought a new radiator cap from Supercheap 120kpa it looks different to the original one on the plastic bubble.

When it cools down I'll take a photo of it and upload here.

The original looks sought of bent or twisted but has the ford signature whereas the one from Supercheap is straight.

Question is, does the cap need to be original i.e. purchased from ford?

Cheers


I don't think it has to be a Ford item, as long as the cap can hold the proper pressure you should be safe. If the old one has worn out, it may be letting coolant seep/leak out below the recommended pressure even if the bottle is not overfilled. Only escape route is through the overflow tube.

Hope this fixes the problem :).



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 12:16 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

phongus wrote:
bondy99 wrote:
Thanks to Timmytimtim, teknoslasher and frd906n for their input.

Brought a new radiator cap from Supercheap 120kpa it looks different to the original one on the plastic bubble.

When it cools down I'll take a photo of it and upload here.

The original looks sought of bent or twisted but has the ford signature whereas the one from Supercheap is straight.

Question is, does the cap need to be original i.e. purchased from ford?

Cheers


I don't think it has to be a Ford item, as long as the cap can hold the proper pressure you should be safe. If the old one has worn out, it may be letting coolant seep/leak out below the recommended pressure even if the bottle is not overfilled. Only escape route is through the overflow tube.

Hope this fixes the problem :).



Thanks, so do I.

I'll let you know in about 4 days time when I'll check it again,

Cheers
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 1:27 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I thought the factory one was 160kpa? or was it 16psi... :? can't quite remember now...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 2:29 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

timmytimtim wrote:
I thought the factory one was 160kpa? or was it 16psi... :? can't quite remember now...

Cheers,
Tim


G'day Tim,

Sorry, I don't know about that one, all I seen on mine was a cap saying 120Kpa.

I purchased the vehicle of another person, maybe it was fitted with an incorrect cap.

Cheers, Peter
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 2:48 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

bondy99 wrote:
timmytimtim wrote:
I thought the factory one was 160kpa? or was it 16psi... :? can't quite remember now...

Cheers,
Tim


G'day Tim,

Sorry, I don't know about that one, all I seen on mine was a cap saying 120Kpa.

I purchased the vehicle of another person, maybe it was fitted with an incorrect cap.

Cheers, Peter


Mine has the 120kPa too. 160kPA seems a bit excessive...will blow hoses off.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 3:39 pm
Getting Side Ways
Offline

Age: 44

Posts: 1275

Joined: 30th Sep 2007

Ride: g6e 2009

Location: hiding in the bushes
WA, Australia

could it also possibly be a block in the overflow pipe, which builds up pressure resulting in a heap of coolant being pushed out? if so it will clean itself up after a bit as the over flow should remove the blockage
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 4:18 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

16psi = 110kpa... I think thats what I may have been thinking of... :mrgreen:



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 5:37 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

G'day all,

Yeah, I had a double check of that cap , she does not look good on clse up inspection, rubber seal is warped and slighly perished on the side.

I've replaced the cap and will see how it goes.

No blockage in the pipes, I've checked.

I'll upload the pics here shortly, to show you all.

Cheers
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 6:06 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Here are the pics





Attachments:

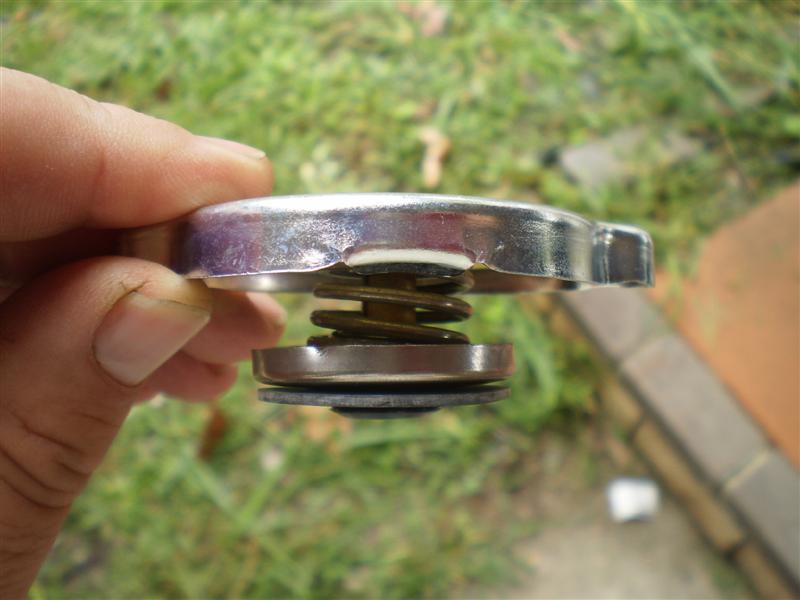

view 2 of old cap when turned slightly (Medium).JPG
view 2 of old cap when turned slightly (Medium).JPG [ 50.44 KiB | Viewed 177 times ]

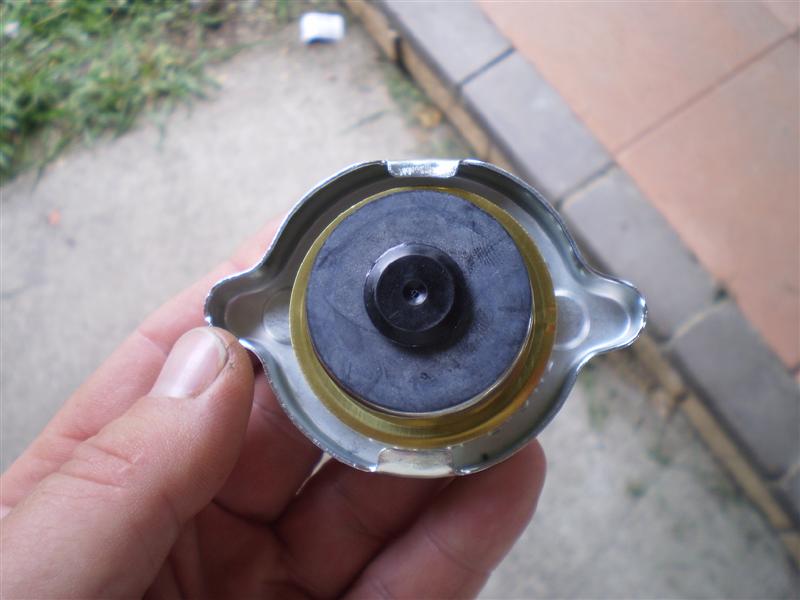

rubber seal  perishing (Medium).JPG
rubber seal perishing (Medium).JPG [ 51.33 KiB | Viewed 209 times ]

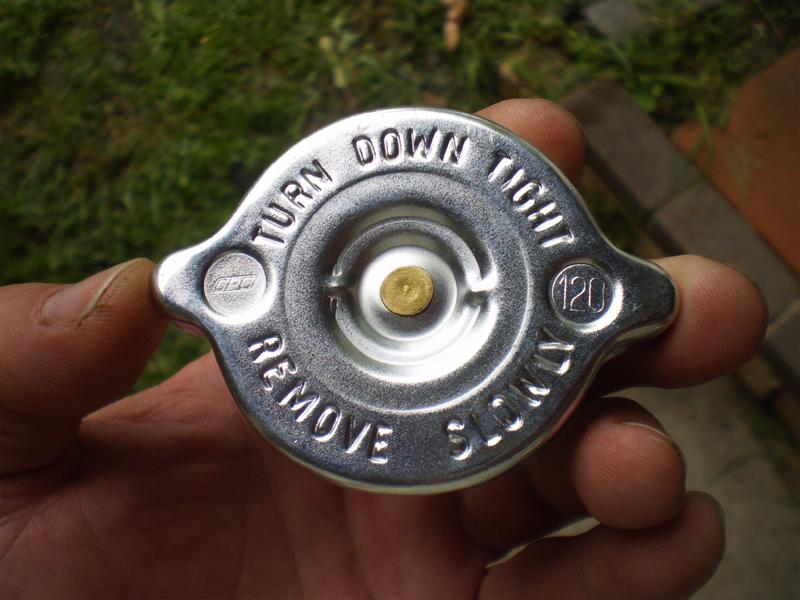

new cap top view (Medium).JPG
new cap top view (Medium).JPG [ 65.61 KiB | Viewed 216 times ]

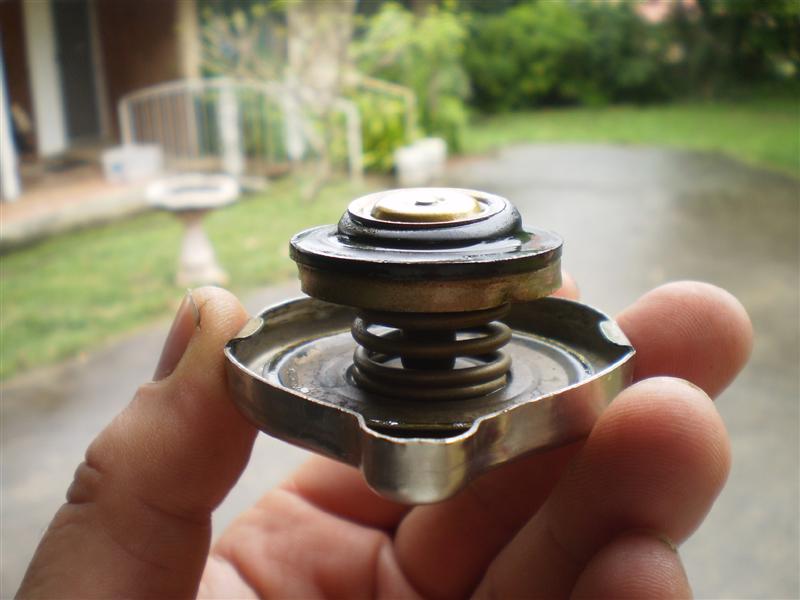

new cap underneath (Medium).JPG
new cap underneath (Medium).JPG [ 49.56 KiB | Viewed 201 times ]

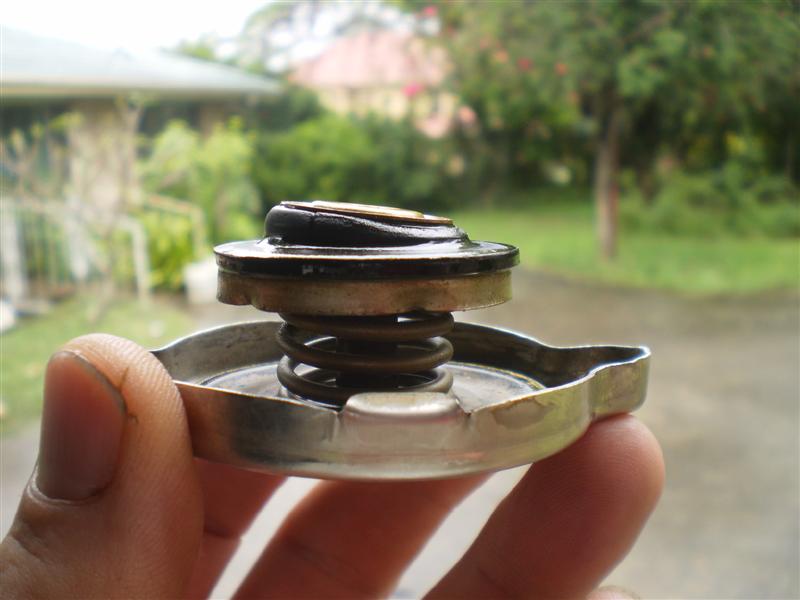

new cap side view (Medium).JPG
new cap side view (Medium).JPG [ 53.47 KiB | Viewed 204 times ]
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 6:10 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

yeah that old cap is stoofed...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Sun Oct 03, 2010 6:28 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

timmytimtim wrote:
yeah that old cap is stoofed...


G'day Tim,

Yeah I hope that's the problem , I will know in a few days time, about 4 days from today and I'll also check for coolant leaks on the ground.
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Tue Oct 05, 2010 5:56 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Well, after replacing the radiator filler cap, some 2 days later, yeah I did notice some coolant loss again, it was half way between maximum and minimum.

I originally filled up to maximum.

Maybe it still has an air pocket for some unknown reason or leaking elsewhere, cannot see any internal leaks or external this time round.

Any ideas people?

Cheers, Peter
Top
 Profile


 Post subject: Re: Unexplained loss of coolant
Posted: Tue Oct 05, 2010 6:01 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

only that it may be leaking into a cylinder...

Will require a compression test to see if it blows air back into the cooling system...

Like I said, falcon systems are self bleeding... Once its been hot and the thermostat has open, it should be impossible to have an air pocket anywhere in the system... Thats the whole idea of the separate header tank place higher than the motor...

None of your welsh plugs are leaking? Have been under the car and looked up under the manifolds, etc to make sure you can't see nothing from that angle?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile
