Wade 1673 cam installation



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 4:48 pm
Fordmods Newbie
Offline

Age: 26

Posts: 9

Joined: 30th Aug 2009

Ride: EL 5spd

Location: Shepparton
VIC, Australia

Installed a wade 1673 cam into my el yesterday and just thort id post sum piks for the ppl who dont kno whats involved.

The pic of the timing chain is to show that u dont need to take out the tensioner to get the gear off, just use a wedge to release the tension instead, saves alot of time.

Ran like s**t on first start up cos it fouled 2 plugs cos it runs so rich, but after we cleaned them up it ran beautiful. also runs really well on gas, for ppl wondering how they work with gas...





Attachments:
File comment: timing chain wedge to release tension on chain
17102009054 (NXPowerLite).jpg
17102009054 (NXPowerLite).jpg [ 71.26 KiB | Viewed 110 times ]

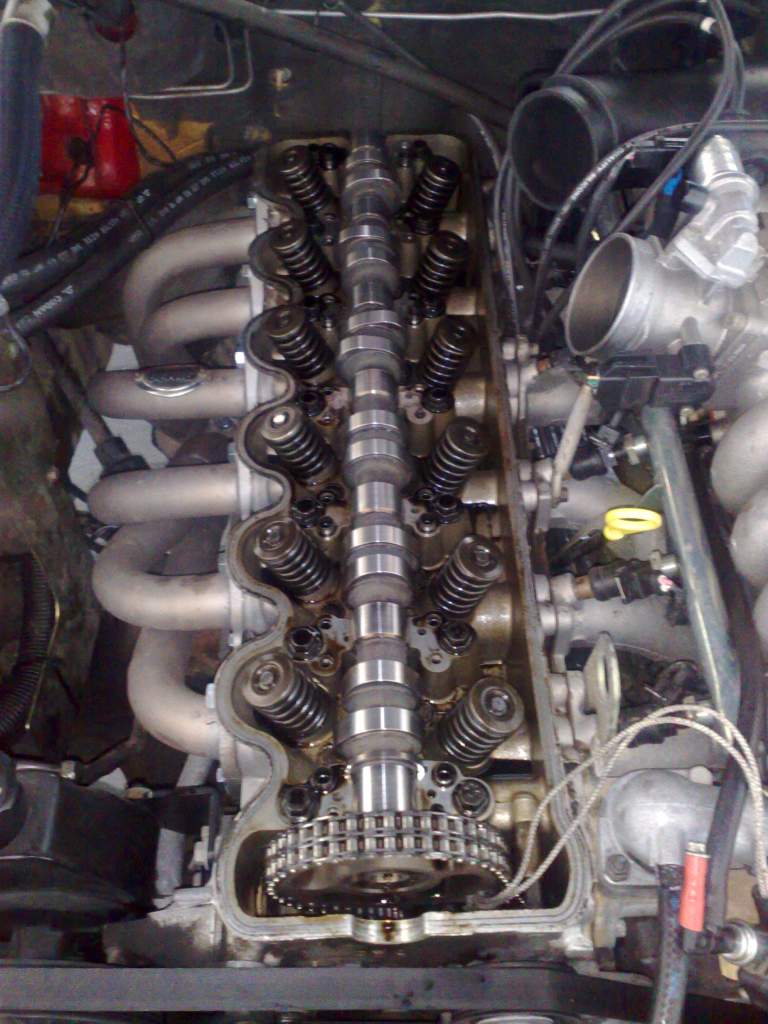

File comment: new cam just sittin in there
17102009053 (NXPowerLite).jpg
17102009053 (NXPowerLite).jpg [ 93.94 KiB | Viewed 132 times ]

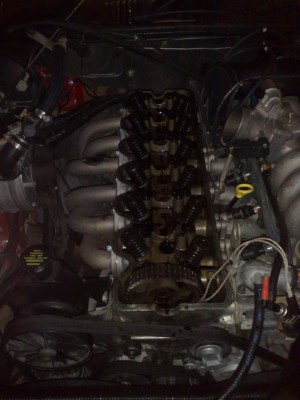

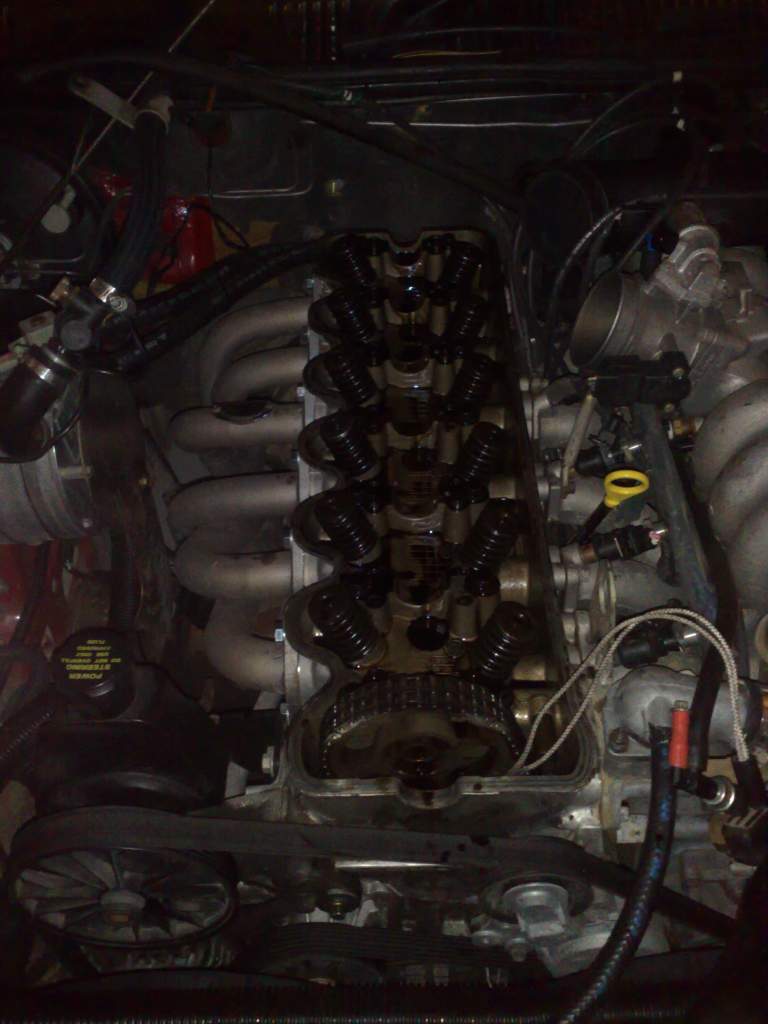

File comment: no cam
16102009051 (NXPowerLite).jpg
16102009051 (NXPowerLite).jpg [ 60.24 KiB | Viewed 108 times ]

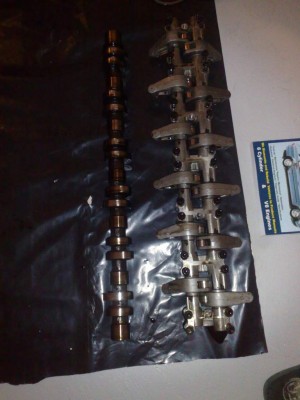

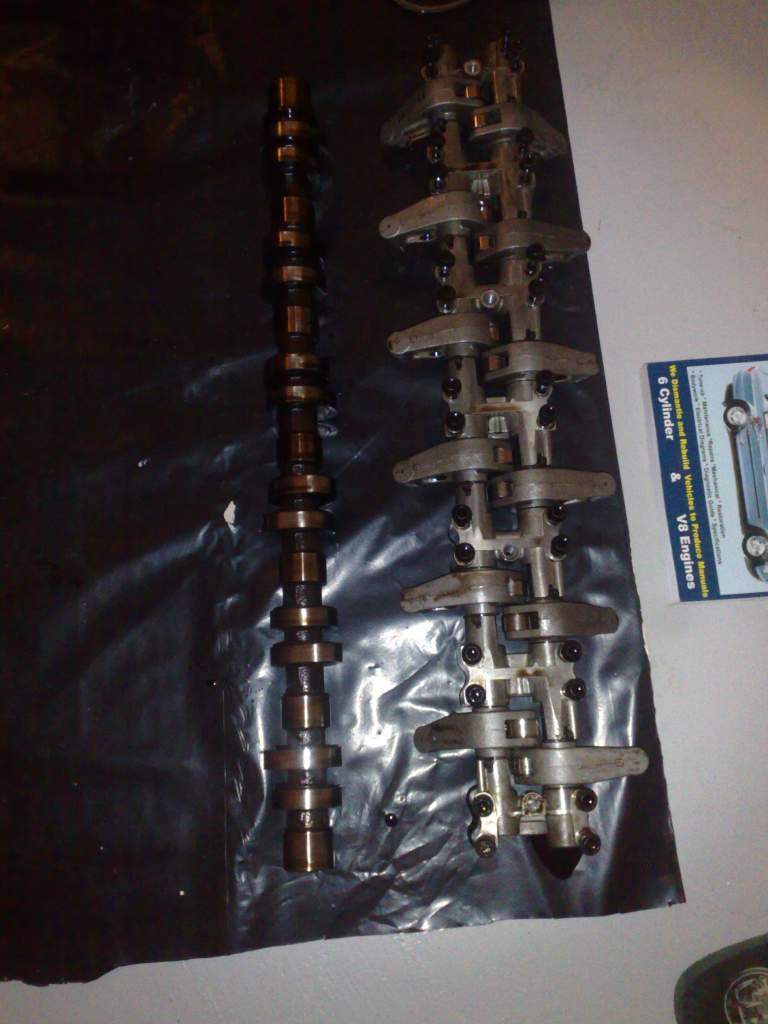

File comment: old cam and rocker gear
16102009052 (NXPowerLite).jpg
16102009052 (NXPowerLite).jpg [ 61.15 KiB | Viewed 118 times ]
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 5:11 pm
Technical Contributor
Offline
User avatar

Age: 26

Posts: 676

Joined: 7th Jun 2009

Ride: Ford EB II Falcon

Location: Morphett Vale
SA, Australia

Good work is your car manual or auto?



_________________

OLD CAR: EB II Falcon, Everglade Green, 250thous (Rough Guess), Wildcat Extractors, 2.5 Exhaust with Muffler + Hot Dog, 18 Inch Rodney Jane Mags, XH Snorkel, EA MPEFI Tubing !

NEW CAR: 1996 TE Magna...Mods Soon To Come

Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 5:20 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

How much of a difference have u noticed???



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 8:27 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

How much was the Cam
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 8:31 pm
Getting Side Ways
Offline
User avatar

Posts: 1543

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia

SV-Valiant wrote:
How much was the Cam


$151 if you supply your own + $15 for postage

Shims are approx $60 for 12 :)



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole

Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 8:36 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

Thanks for that will have to have a look at doing mine
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 9:06 pm
Fordmods Newbie
Offline

Age: 26

Posts: 9

Joined: 30th Aug 2009

Ride: EL 5spd

Location: Shepparton
VIC, Australia

its a manual el sedan, noticed a fair bit of increase in torque especially from like 3500 up it just pulls. yeh was $151 plus postage and 20 buks for shims from wreckers with lifters and rocker gear. wen u do decide to do ur cam sv-valiant, make sure u line up the groove on the timing gear with the one on the cam before u put the rocker gear on or you'll make things harder for yourself lol.
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Sun Oct 18, 2009 9:48 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

Thanks I will, been there and had that problem a couple of years ago when i replaced the head i think i buggered a few parts up while learning lol
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 12:17 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hey, nice write up.

I installed a Wade 1673 in to my Wagon today, and I agree with you. It is a great cam, with no loss of bottom end, and works well in the mid to high rev range.

I also have LPG, and I have the same drive-ability as before. I do suffer from a lack of top end while on LPG, but am intending to get the mixtures checked.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 12:54 pm
Fordmods Newbie
Offline

Age: 26

Posts: 9

Joined: 30th Aug 2009

Ride: EL 5spd

Location: Shepparton
VIC, Australia

yeh its prob the cam runnin out of torque but it wouldnt be much of a loss if any. it only works through a certain rev range
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 2:36 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

raptor04 wrote:
yeh its prob the cam runnin out of torque but it wouldnt be much of a loss if any. it only works through a certain rev range


On petrol it pulls all the way to the redline.

On LPG it runs out of puff, due to the inability of the LPG system to be able to deliver enough gas at high rpm. Even with the stock cam this was the case while on LPG.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 2:38 pm
Stock as a Rock
Offline

Age: 33

Posts: 100

Joined: 7th Feb 2009

Ride: EL Fairmont Ghia

Location: Gold Coast
QLD, Australia

i instaled 1673 cam about 8 months ago gained very little power, after dialing it in and getting timing rite it went alot better sounds alot better too has a smooth idle with ISC connected, after driving a standard falcon other day got into my car could really feel the difference, good value for money
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 2:47 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Sorry to hijack the thread but would this be a good turbo cam? Been looking but can't find much off the shelf.
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Mon Oct 19, 2009 5:41 pm
Fordmods Newbie
Offline

Age: 26

Posts: 9

Joined: 30th Aug 2009

Ride: EL 5spd

Location: Shepparton
VIC, Australia

call up wade cams and ask them wat a good regrind for a turbo'd falcon is.
Top
 Profile


 Post subject: Re: Wade 1673 cam installation
Posted: Wed Oct 28, 2009 8:08 pm
Stock as a Rock
Offline

Age: 32

Posts: 132

Joined: 18th Oct 2009

Gallery: 5 images

Ride: EF xr6 AU3 220kw xr8

Location: frankston
VIC, Australia

What type of extractors do u have fitted, exhaust system been done too? how long did it take to fit the cam. Did wade cams regrind your existing cam or was that a changeover/straight buy.



_________________


Top
 Profile
