What is this? (EF BBM Controller)



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next

Post New Topic Post Reply  Previous topic Next topic

Slabz
 Post subject: What is this? (EF BBM Controller)
Posted: Tue Jan 24, 2006 3:00 pm
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia
hey guys. just wondering if any1 can tell me exactly what this thing is and how does it work? its got 3 wires and a vacuum line hose connector. it came from an EF and i think (hope) its to control the BBM.

i'm also wondering how it connects to the vacuum lines on the BBM manifold pictured also? (if it is the bbm controller)





Attachments:

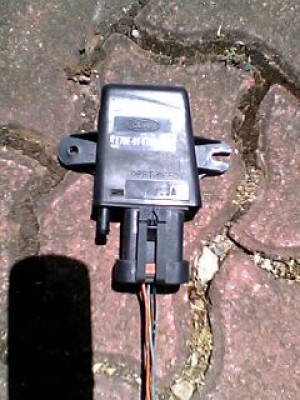

File comment: wtf is this?
picture00086.jpg [ 24.22 KiB | Viewed 112 times ]

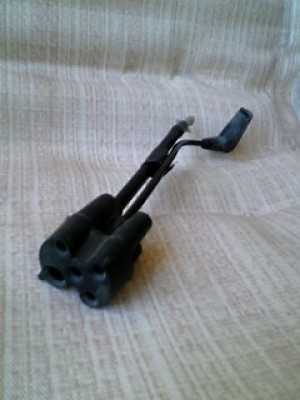

File comment: and how does it connect to this?
picture00087.jpg [ 18.8 KiB | Viewed 105 times ]



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors
