What Is This? (Photo Attached)



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: What Is This? (Photo Attached)
Posted: Fri Aug 31, 2007 12:56 pm
Stock as a Rock
Offline

Age: 35

Posts: 157

Joined: 20th Nov 2004

Gallery: 13 images

Ride: 2008 BF MKII SR

Location: Brisbane
QLD, Australia

My car is a '98 EL Fairmont Ghia (Sedan).

I recently had a collision with a gutter which tore one side of the front bumper from it's mounts, clips, etc. The collision also caused the black stone guard to warp so I have been driving without the stone guard (stupid move I know).

I was driving down the highway yesterday and a small black/grey box fell out from under the bumper and went hurtling into a gulley beside the highway. I have been unable to locate the box.

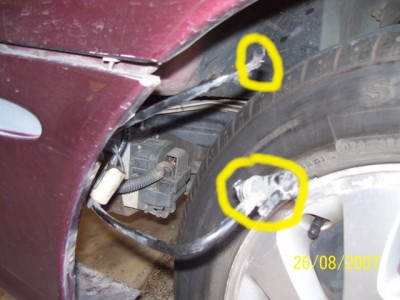

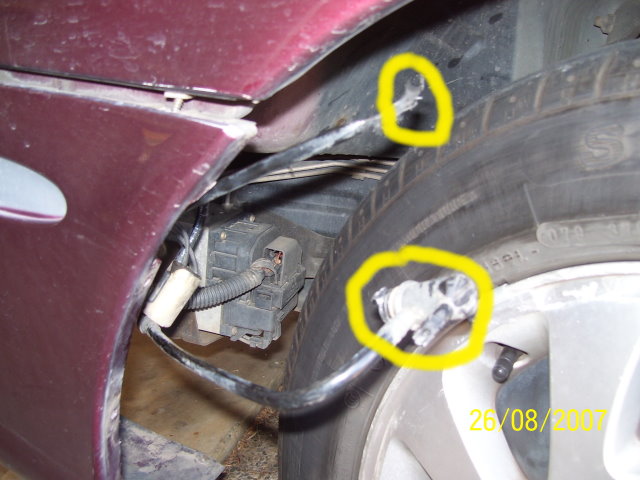

I am hoping that after viewing the attached image someone might be able to tell me what that box actually was. The yellow circles show the hose/tube and connector that were attached to it, it doesn't look as though fluid flowed through it.

Thanks for your help.





Attachments:
fordmods.jpg [ 107.78 KiB | Viewed 115 times ]
Top
 Profile


Posted: Fri Aug 31, 2007 1:00 pm
Tyre Shredder
Offline

Posts: 322

Joined: 27th Jan 2006

Location: Hobart
TAS, Australia

Something to do with ABS?
Top
 Profile


Posted: Fri Aug 31, 2007 1:02 pm
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Sat Jun 07, 2014 12:53 am, edited 1 time in total.

Top
 Profile


Posted: Fri Aug 31, 2007 1:04 pm
Stock as a Rock
Offline

Age: 35

Posts: 157

Joined: 20th Nov 2004

Gallery: 13 images

Ride: 2008 BF MKII SR

Location: Brisbane
QLD, Australia

blackjack_original wrote:
I think that'd be the charcoal canister mate.


Does the charcoal canister do anything important? I assume it does.
Top
 Profile


Posted: Fri Aug 31, 2007 1:08 pm
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Sat Jun 07, 2014 12:53 am, edited 1 time in total.

Top
 Profile


Posted: Fri Aug 31, 2007 3:03 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

blackjack_original wrote:
I think that'd be the charcoal canister mate.

blackjack_original wrote:
It basically collects your petrol fumes from the tank, and than when you drive your car it releases them into the engine. It's emissions control crap. Nothing that I would call important. You should put it back though, or else you'll notice the smell of petrol a lot more. It's only $5-$15 dollars from the wreckers, and you might need some hose too, and some cable ties to hold it in place.


yeah while car is at idle the solenoid turns on so to speak and all the unburnt fumes go to the canister and collects and absorbs in the charcoal not that important but it is a defectable item..... (as some people think the car will go better when they remove them :roll: )



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Fri Aug 31, 2007 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3785

Joined: 5th Nov 2004

Ride: Ford

Location: Victoria
VIC, Australia

Definately get it back into working order because your car is classed as unroadworthy without it functioning correctly.....It will also void your insurance too.



_________________


Top
 Profile


Posted: Fri Aug 31, 2007 8:32 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

i will have a look at mine tomora to see if it is the charcol canister as i have no splash gaurds due to my kit , never had anything fly off though lol



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Fri Aug 31, 2007 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2351

Joined: 11th Nov 2004

Gallery: 30 images

Ride: Blown XR8

Location: Melbourne
VIC, Australia

I lost mine a while back too, it re-appeared when the car was getting fixed and resprayed. Gave me a laugh.
Top
 Profile


Posted: Wed Sep 05, 2007 8:59 am
Stock as a Rock
Offline

Age: 35

Posts: 157

Joined: 20th Nov 2004

Gallery: 13 images

Ride: 2008 BF MKII SR

Location: Brisbane
QLD, Australia

Does anyone know exactly how many hoses, etc. connect to the charcoal canister?

Is it just the two hoses that are showing in my photo or are there others?

Maybe someone might be kind enough to take a photo of their carbon canister for me :-)

Thank you.
Top
 Profile


Posted: Wed Sep 05, 2007 2:04 pm
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Sat Jun 07, 2014 12:58 am, edited 1 time in total.

Top
 Profile


Posted: Wed Sep 05, 2007 5:41 pm
Oompa Loompa
Offline

Posts: 36

Joined: 5th Nov 2004

Location: Sydney
NSW, Australia

G'day all,

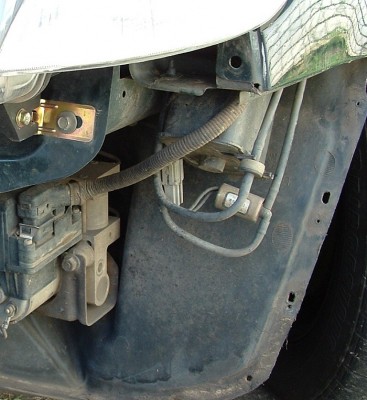

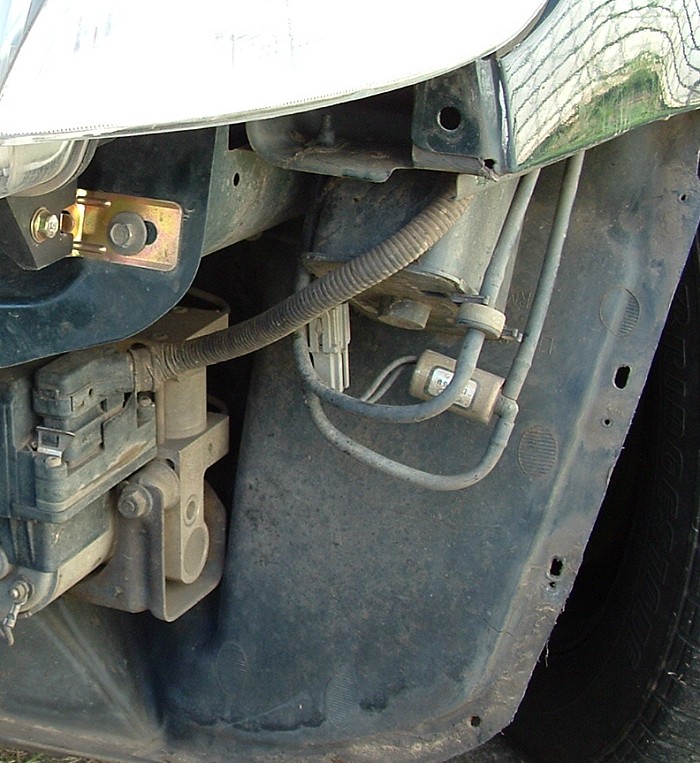

Heres a pic I took while getting my air con fixed.

The charcoal canister is the square thing, the solenoid is the little thing with the 2 wires and 2 hoses coming out.

cya
EFfutura





Attachments:
fuelcanista.jpg [ 143.82 KiB | Viewed 106 times ]
Top
 Profile


Posted: Wed Sep 05, 2007 8:24 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

EL-FAIRMONT-GHIA wrote:
Does anyone know exactly how many hoses, etc. connect to the charcoal canister?

Is it just the two hoses that are showing in my photo or are there others?

Maybe someone might be kind enough to take a photo of their carbon canister for me :-)

Thank you.


One hose will come from the fuel tank, to gather fumes, and the other one will be connected to the fuel vapour solenoid.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Wed Sep 05, 2007 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 740

Joined: 20th Nov 2004

Ride: BA Falcon

Location: Melbourne
VIC, Australia

your quite the artist black_jack :D
Top
 Profile


Posted: Mon Nov 12, 2007 3:37 pm
Stock as a Rock
Offline

Age: 35

Posts: 157

Joined: 20th Nov 2004

Gallery: 13 images

Ride: 2008 BF MKII SR

Location: Brisbane
QLD, Australia

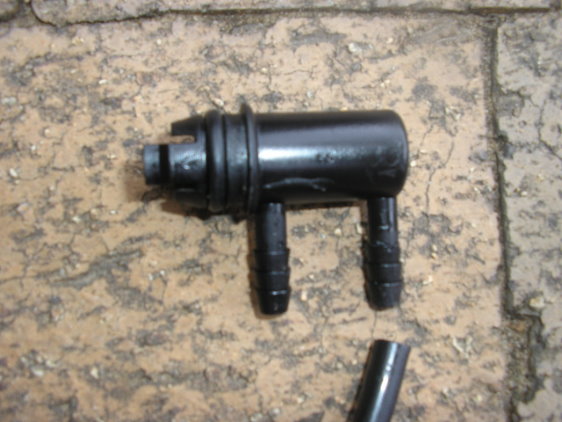

This is going to seem like a stupid question but is there a special method to attach the hoses (rather stiff hose) to the plastic ribbed connectors (see blurred photo below).

I haven't been able to attach the hoses, even brute force won't work! hehe





Attachments:
P1010008.JPG [ 60.41 KiB | Viewed 48 times ]
