what size and model oversize valves are good for I6 e series



Page 1 of 1 [ 11 posts ]

Post New Topic Post Reply  Previous topic Next topic

Xflow
 Post subject: what size and model oversize valves are good for I6 e series
Posted: Mon Oct 29, 2007 7:19 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia
hey guys

mate got this engine(EB XR6) in shop and he looking for some over size valves to fit to his head before port and polishing.

what size and brand do you guys recommend?

i heard something about ford v8 valves are good but i find that hard to beleave.

thx jason



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit
Top
 Profile


dasmq
Posted: Mon Oct 29, 2007 7:59 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia
I think it is as big as you can go in a tickford head. but I could be wrong.



_________________

In Henry I Trust
Top
 Profile


Xflow
Posted: Mon Oct 29, 2007 8:17 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia
you sure? i thought you could go bigger that than but hay you might be right hopefully find out soon



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit
Top
 Profile


opto
Posted: Mon Oct 29, 2007 9:11 pm
Getting Side Ways
Offline
User avatar

Age: 60

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia
You can put 351 C valves in but the valves have to be turned down on a lathe to the correct diameter.



_________________

I post here cos the russian tank driver doesn't
Top
 Profile


tickford_6
Posted: Mon Oct 29, 2007 9:33 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004
the XR6 exhaust valve is plenty big enough and doesn't need changing.

as for the intake, you will not find an off the shelf valve to in the right size to fit. You'll only fit about 60thou larger in space there is and for that you need to modify a valve from a different engine or have some custom made
Top
 Profile


Xflow
Posted: Mon Oct 29, 2007 9:37 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia
opto wrote:
You can put 351 C valves in but the valves have to be turned down on a lathe to the correct diameter.


ill be darn lol

the stem on the valve to thick? is what what you mean?

they same lenght?

they have 1 or 2 groves for the valve locks? one aint it?

are they any larger? if so how much by?



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit
Top
 Profile


cjh
Posted: Mon Oct 29, 2007 10:04 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia
The 351C valves will fit in the guides, but, they ( inlets ) are slightly longer than original valves. The 351C exhaust valves are shorter than the 4.0I6 ones.

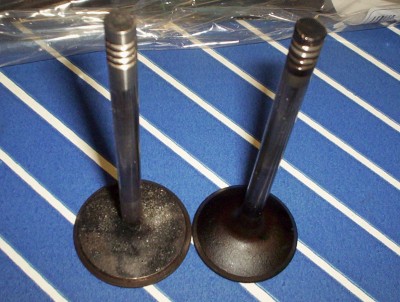

Here are some pics to show. The Clevo ( 2V ) ones are on the left.

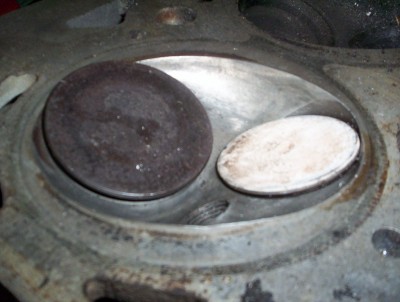

Also are pics of the Clevo valves in the 4.0 I6 cyl head.





Attachments:
351C 2V valves Vs 4.0I6 valves 009.jpg
351C 2V valves Vs 4.0I6 valves 009.jpg [ 267.74 KiB | Viewed 101 times ]
351C 2V valves Vs 4.0I6 valves 003.jpg
351C 2V valves Vs 4.0I6 valves 003.jpg [ 244.65 KiB | Viewed 142 times ]
351C 2V valves Vs 4.0I6 valves 001.jpg
351C 2V valves Vs 4.0I6 valves 001.jpg [ 429.1 KiB | Viewed 114 times ]
351C 2V valves Vs 4.0I6 valves 005.jpg
351C 2V valves Vs 4.0I6 valves 005.jpg [ 376.8 KiB | Viewed 126 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


cjh
Posted: Mon Oct 29, 2007 10:06 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

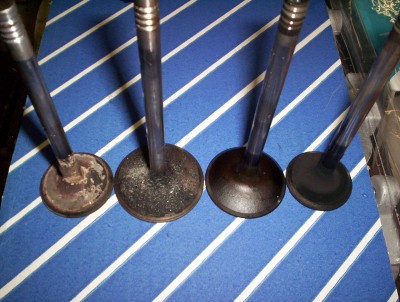

This is all 4 valves together, Clevo on the left.





Attachments:
351C 2V valves Vs 4.0I6 valves 007.jpg
351C 2V valves Vs 4.0I6 valves 007.jpg [ 500.83 KiB | Viewed 110 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


Xflow
Posted: Mon Oct 29, 2007 10:12 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia
so can u still use the exhaust ones even knowing there shorter or just got to go with xr6 exhaust and 351 clev inlets



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit
Top
 Profile


cjh
Posted: Mon Oct 29, 2007 10:21 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia
Xflow wrote:
so can u still use the exhaust ones even knowing there shorter or just got to go with xr6 exhaust and 351 clev inlets

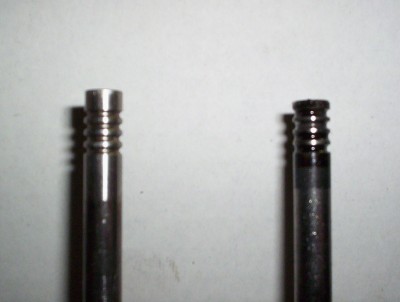

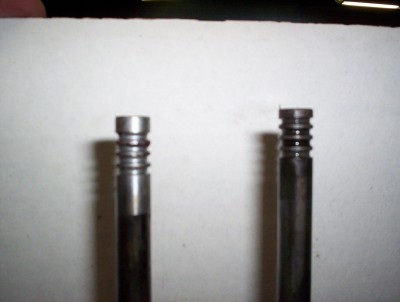

Did you notice the tip heights are different. The Clevo ones are higher. I don't know how far the hardness goes down on the tips of the Clevo valves.



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


Xflow
Posted: Mon Oct 29, 2007 10:32 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia
ow i see stupid me lol

just cut off the excessive grove and cut new grove lower down or just get a regrind cam and that should make up for shims lol just shim other side all good.

just get some stainless steal valves or titanium.
