what the hell does this do??



Page 1 of 1 [ 6 posts ]


 Post subject: what the hell does this do??
Posted: Wed Nov 15, 2006 8:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi
im full of questions this week.

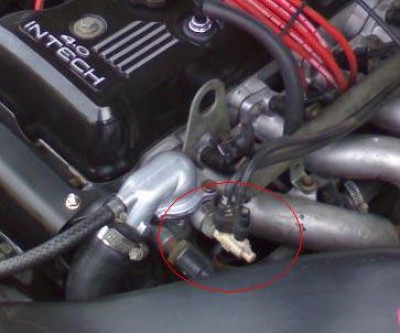

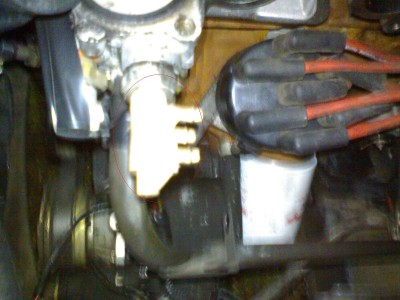

there is a sensor of some kind on my thermostat housing it has 2 vac lines running off it . but the ford manual doesnt say anything about it..

im doing the bbm conversion and its getting in the way of the water neck because im using the ea thermostat housing..

here are some pics





Attachments:
DSC00037.JPG [ 289.99 KiB | Viewed 20 times ]
dsc00035_edited.jpg [ 25.92 KiB | Viewed 25 times ]
Top
 Profile


Posted: Wed Nov 15, 2006 8:44 pm
Fordmods Newbie
Offline

Posts: 12

Joined: 10th Nov 2004

Location: Newcastle
NSW, Australia

The connector you are referring to changes the air conditioning mode from fresh to recirculating if engine is about to overheat so that some of the air conditioning load (heat build up) is removed to assist the cooling system. (as per factory manual)
Top
 Profile


Posted: Wed Nov 15, 2006 8:58 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ohh

but ive noticed that the later ones dont have it...

so can i just bypass it...because my recurculating/ fresh doesnt work due to a broken lever on the flap that changes it over so mine is always on recurculate...
Top
 Profile


Posted: Wed Nov 15, 2006 9:18 pm
Fordmods Newbie
Offline

Posts: 12

Joined: 10th Nov 2004

Location: Newcastle
NSW, Australia

If your fresh/recirc does not work I cant see how it could hurt by disconnecting. Just turn off air con if it starts to overheat

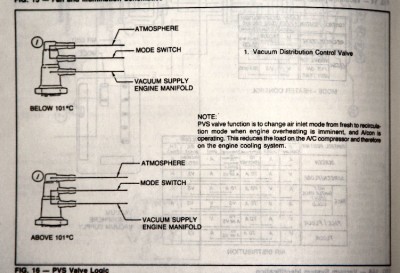

Disconnecting would be accomplished by plugging the vacuum hose , not connecting the hoses together as per the (hopefully attached) diagram.





Attachments:
IMG_1254b.JPG [ 98.69 KiB | Viewed 28 times ]
Top
 Profile


Posted: Wed Nov 15, 2006 9:22 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

WhiteKnight wrote:
The connector you are referring to changes the air conditioning mode from fresh to recirculating if engine is about to overheat so that some of the air conditioning load (heat build up) is removed to assist the cooling system. (as per factory manual)


I found it in the work shop manual im blind :oops: :lol:
i was looking in the cooling section not the heater and aircon section..

thanks for your help...
Top
 Profile


Posted: Wed Nov 15, 2006 9:45 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

lol oops... i joined mine togather... altho im swapping to climate control unit from a fairmont ghia when i install the T5 in a week or 2 so i guess it dosnt matter... oh and im missing my air con setup, so that also has to go on



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html
