 Post subject: What the hell is this!!!!!??!?!?
Posted: Sun Jul 03, 2005 2:13 pm
Stock as a Rock
Offline
User avatar

Posts: 158

Joined: 12th Apr 2005

Gallery: 8 images

Location: East Burwood
VIC, Australia

hey

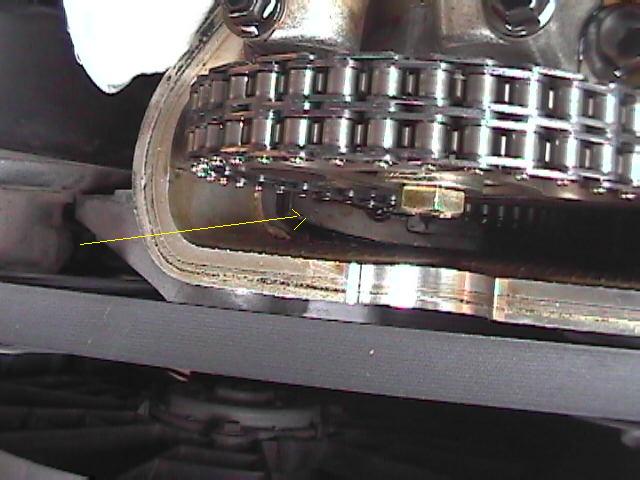

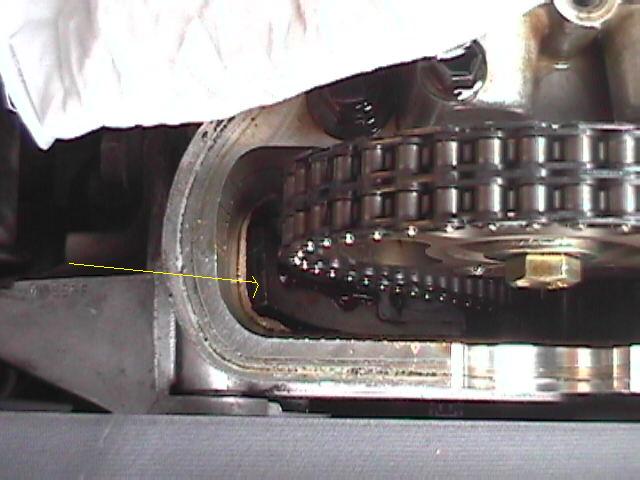

i noticed while driving there was a fairly loud rattling noise the other night. anyway i stopped to check it out bt didnt find anyhting loose or so. anyway this morning im taking off my rocker cover coz im gonna spray it. being the first time i had taken off the rocker cover on my car i was having a look at the cam etc and i noticed this big chunk of metal whihc was broken off from somewhere just sitting under the chain!!!!!! ive got pics of it too. has anyone else ever had this happened to them? Its and EF I6. we were tryin to take it out with some long nose pliers but another piece came off and is very close to falling in...!!! :cry: :cry: :cry:





Attachments:
DVC00119.JPG [ 52.27 KiB | Viewed 48 times ]
DVC00118.JPG [ 47.06 KiB | Viewed 42 times ]



_________________

Past: 150rwkw 5spd EF Futura - 4499's, 2.5" exh, Intake, Filter, Wade 1636, Head and Valve Work, Raised Comp.

Present: 5spd AUIII XR6 VCT Ute - 4480's, 2.5" exh, Tickford Intake, Pod in Box.
coming soon: 3.9:1 diff, Flashtune.

Top
 Profile


Posted: Sun Jul 03, 2005 2:33 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

hard to see what it is, but by the sounds of it you may have a broken timming chain guide.



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sun Jul 03, 2005 3:20 pm
Stock as a Rock
Offline
User avatar

Posts: 158

Joined: 12th Apr 2005

Gallery: 8 images

Location: East Burwood
VIC, Australia

yea thats wat i was thinking it could of been. can i get away with just removing it or do i have to get a new one?



_________________

Past: 150rwkw 5spd EF Futura - 4499's, 2.5" exh, Intake, Filter, Wade 1636, Head and Valve Work, Raised Comp.

Present: 5spd AUIII XR6 VCT Ute - 4480's, 2.5" exh, Tickford Intake, Pod in Box.
coming soon: 3.9:1 diff, Flashtune.

Top
 Profile


Posted: Sun Jul 03, 2005 4:40 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

yep, thats a snapped timing chain guide. Exact same place mine went a couple of years back.



You have to get it out before it gets caught up in the chain and destroys the enigne (although it might sit there happily for a few years). Changing the guides will involve taking the timing cover off, which youll need to either drop the front of the sump or pull the head off to do. Good chance to change a head gasket if you need to.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Jul 03, 2005 5:02 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

May as well replace the other 2 as they go brittle also



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Sun Jul 03, 2005 5:57 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2376

Joined: 5th Nov 2004

Gallery: 3 images

Ride: Shell with 4 wheels

Location: Richmond,
NSW, Australia

yeah mine aint looking to go so i will be changing next week when i change headgasket
Top
 Profile


Posted: Sun Jul 03, 2005 7:14 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

opto wrote:
May as well replace the other 2 as they go brittle also


Is there another way? I have only seen the guides in the kits (~$60) which have the guides, tensioner, and chain.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Jul 03, 2005 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Sorry to say Stockstandard but no



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Sun Jul 03, 2005 9:00 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

thats the timing chain tensioner replace them all while your at it,the guide on the other side is prob brocken already anyway



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Sun Jul 03, 2005 9:04 pm
Parts Gopher
Offline

Age: 35

Posts: 66

Joined: 6th Nov 2004

Ride: EL XR6

Location: Adelaide
SA, Australia

Yep thats exactly what my el looked like about 7 months ago. took the motor out to fix it properly, does not weep any oil between head and timing cover now.
Top
 Profile


Posted: Sun Jul 03, 2005 9:12 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

opto wrote:
Sorry to say Stockstandard but no


Didnt think so. Cant imagine anyone buying the kit, pulling there enigne down then replacing just the one. Suppose somebodies done it though :?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Jul 03, 2005 9:14 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

It really depends on where the piece has come from. If it came from the top of the top guide, which it appears to be. Then you can get by without replacing it. The same happened in my EA, broke the top 20-30mm off and I just fished it out and drove around for several years without any problems.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sun Jul 03, 2005 9:18 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

its the tensioner side not the top guide



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Sun Jul 03, 2005 9:26 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

madeaspack wrote:
its the tensioner side not the top guide


yeah, it will look like then when it is pulled down


The sump will be full of crap as well. When they break bitd of plastic shatter and go everywhere.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Jul 03, 2005 9:31 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

i broke the big gear at the bottom off my old engine thanks to my old rocker cover,ints an intermediate shaft that drives the dizzy



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile
