What the hell is this??



Page 1 of 2 [ 27 posts ] Go to page 1, 2  Next


 Post subject: What the hell is this??
Posted: Wed Dec 13, 2006 4:36 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

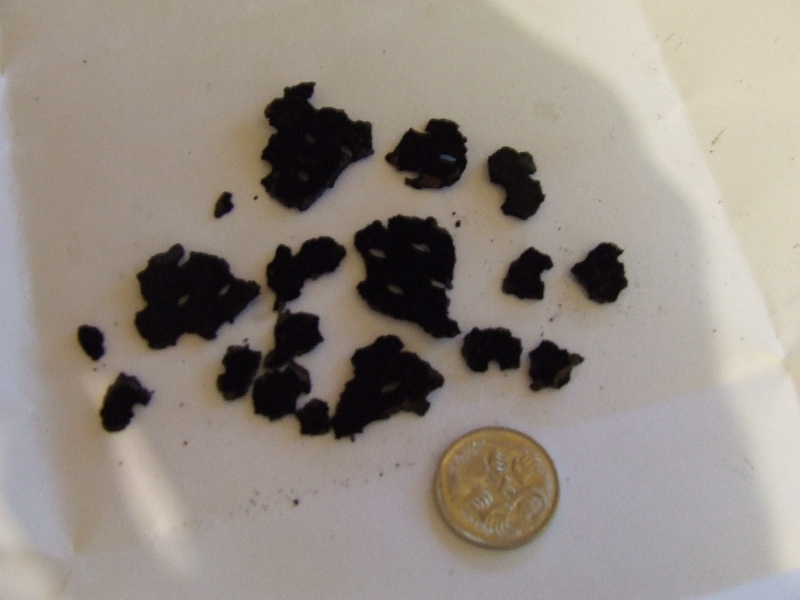

It looks alot like head gasket to me, but im hoping it could possibly be cat converter?

The reason is this s**t is currently coming out the back of my exaust pipe when I rev it.
The car got subject to some hot temps and has not been running right since. Black smoke out the exaust, rough idle, gas backfires.. Initially I thaught it was from the MAP sensor vacum hose blowing off during a backfire which did fix everything the first time, but now it runs s**t regardless...

blown head gasket? damaged MAP sensor? both??

--

Just to add to few things, I cant self test anymore for some reason, STI works and the car enters the test mode, but STO gives no output so I cant figure much at this point.





Attachments:
File comment: wtf
DSCF0503.JPG [ 170.96 KiB | Viewed 53 times ]



_________________

EL XR6 5spd

Last edited by Bug on Wed Dec 13, 2006 4:39 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Dec 13, 2006 4:37 pm
Fordmods Addict
Offline

Age: 32

Posts: 2245

Joined: 5th Nov 2004

Ride: BA XR6T

Location: Bayswater
VIC, Australia

maybe part of the muffler/cat?



_________________


Top
 Profile


Posted: Wed Dec 13, 2006 4:46 pm
Oompa Loompa
Offline

Age: 36

Posts: 47

Joined: 31st Oct 2006

Ride: ED Fairmont

Location: Melton
VIC, Australia

Check under the oil cap.
Is there white stuff underneath?



_________________

Speed. Is there anything that compares?

Top
 Profile


Posted: Wed Dec 13, 2006 5:10 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Doesn't appear to be any, also the overflow tank does not look suspicious.



_________________

EL XR6 5spd

Top
 Profile


Posted: Wed Dec 13, 2006 5:27 pm
Oompa Loompa
Offline

Age: 36

Posts: 47

Joined: 31st Oct 2006

Ride: ED Fairmont

Location: Melton
VIC, Australia

Well, that's a good sign to start with :)
Not sure how to test everything else without the right tools.

Think I'll have to leave it to others..



_________________

Speed. Is there anything that compares?

Top
 Profile


Posted: Wed Dec 13, 2006 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 4370

Joined: 5th Nov 2004

Ride: BA Fairlane Ghia

Location: Karratha
WA, Australia

What is that? metal? ceramic of sorts?
Top
 Profile


Posted: Wed Dec 13, 2006 7:12 pm
Oompa Loompa
Offline

Age: 36

Posts: 47

Joined: 31st Oct 2006

Ride: ED Fairmont

Location: Melton
VIC, Australia

Looking at the colour changes in it, it really does look like gasket material.



_________________

Speed. Is there anything that compares?

Top
 Profile


Posted: Wed Dec 13, 2006 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1231

Joined: 6th Nov 2004

Ride: 2010 Nitro Blue FG

Location: Melbourne
VIC, Australia

judging by the pics in the photo each bit has perforations in them. It looks most likely like a exhaust gasket that bolts your cat to your pipe...it wouldnt be a head gasket, you'd notice more dramas than that.



_________________

The boogieman checks under his bed for chuck norris

Top
 Profile


Posted: Wed Dec 13, 2006 8:13 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

I would think if it was head gasket, a leak would be reasonably large, i.e. water/oil or both - granted sometimes a HG can blow and not have water leaking, but as I say, seems like a lot of material.
The other thing is would the material make it to the exhaust rear, as it would have to get through the cat, resonator and 2 mufflers.
I would think it would be out of the cat or the resonator or the 2 mufflers, possibly most likely the rearmost one behind the rear axle (if your system is stock).

Best to get the coolant checked for combustion gases, but if you're not experiencing any water loss, I doubt the head gasket is the issue.

Correct me if I'm wrong though . . . . .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Dec 13, 2006 8:42 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Looks like carbon crust built up from the perforation pipe inside the muffler. the pieces are to big to be blown through the cat converters honeycomb.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Wed Dec 13, 2006 9:21 pm
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Another vote for an exhaust gasket.



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


Posted: Wed Dec 13, 2006 10:58 pm
Oompa Loompa
Offline
User avatar

Age: 31

Posts: 43

Joined: 13th Dec 2006

Gallery: 4 images

Ride: 81 XD Falcon

Location: Skye
VIC, Australia

G'day this is my first post... by the looks of the rubbish in the pic its exhaust gasket... could even be from the manifold and it could of blocked ya Co2 sensor and they might be the reason why ur car is running like s**t. so take the c02 sens out and clean it and maybe look at ur cat or ya rear muffler... also if it was head gasket it would make it out of the cylinder and chunks that big would have a hard time getting past the valves.

Regards rob



_________________

1981 Ford XD Falcon, XE 4.1, Extractors, no exhuast for now, auto... for now,

Top
 Profile


Posted: Wed Dec 13, 2006 10:59 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

I am also leaning towards the exhaust gasket. BTW is your exhaust an aftermarket 2.5" connected to the 2.25" cat converter?

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Dec 13, 2006 11:04 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

The thing is I am now experiencing considerable water loss, the exaust is blowing white smoke too.

I had a leak before this whole thing happened, which is how the thing got hot to start with, but the white smoke has me concerned, shortly after this s**t blew out my black smoke turned to white smoke.



_________________

EL XR6 5spd

Last edited by Bug on Wed Dec 13, 2006 11:09 pm, edited 2 times in total.

Top
 Profile


Posted: Wed Dec 13, 2006 11:05 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

phongus wrote:
I am also leaning towards the exhaust gasket. BTW is your exhaust an aftermarket 2.5" connected to the 2.25" cat converter?

phong =P~



That is true..



_________________

EL XR6 5spd

Top
 Profile
