 Post subject: whining nosie coming from engine
Posted: Thu Nov 07, 2013 10:56 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

just driving home from darts and turn the radio down to see what I could hear a whining noise coming from the engine so when I got home i pop the bonnet to have a better listen and the whining noise appears to be coming from the top of the rocket cover now could this be a timing chain tensioner problem or something worse?
Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 1:10 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

jamie22_cole wrote:
just driving home from darts and turn the radio down to see what I could hear a whining noise coming from the engine so when I got home i pop the bonnet to have a better listen and the whining noise appears to be coming from the top of the rocket cover now could this be a timing chain tensioner problem or something worse?


Could be a few things....broken cam chain guide, over tensioned cam chain tensioner, power steering pump oil level too low, alt. bearings going, water pump bearings going, belt tensioner pulley bearings going......etc......

Any previous work done lately ?????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 8:12 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

Well I took the belt off this morning and the same whining noise is still there its definitely coming from the timing chain area
Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 9:03 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 646

Joined: 22nd Jan 2008

Gallery: 1 images

Ride: EBII, XR6

Location: The Hills, Sydney
NSW, Australia

I will put a bet on it being the top timing chain guide.

It happened to mine and I just let it go (engine had around 400K kms on it so wasn't too fussed what happened).

It lasted 2 years not being driven lightly as is.

If your motors fairly good though I'd replace it as soon as you can, my chain ended up snapping and completely destroyed the motor.



_________________

Weekender: 07 BFII XR6T - Conquer
Retired: 1992 EBII SXR6 - Black Pearl

Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 12:12 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

Well that sucks if it is. Gonna have to pull the motor out to fix that if it is.
Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 6:35 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

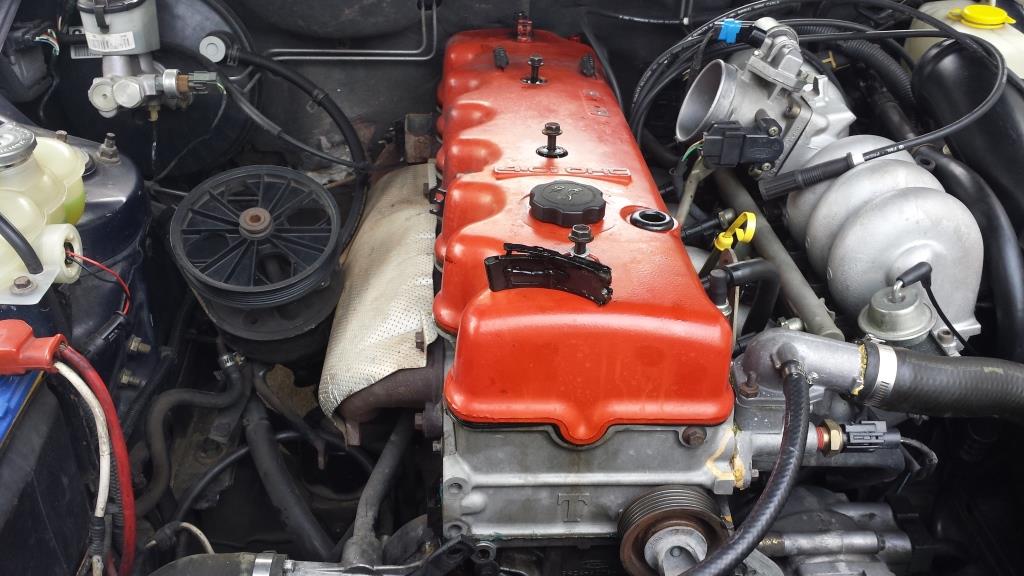

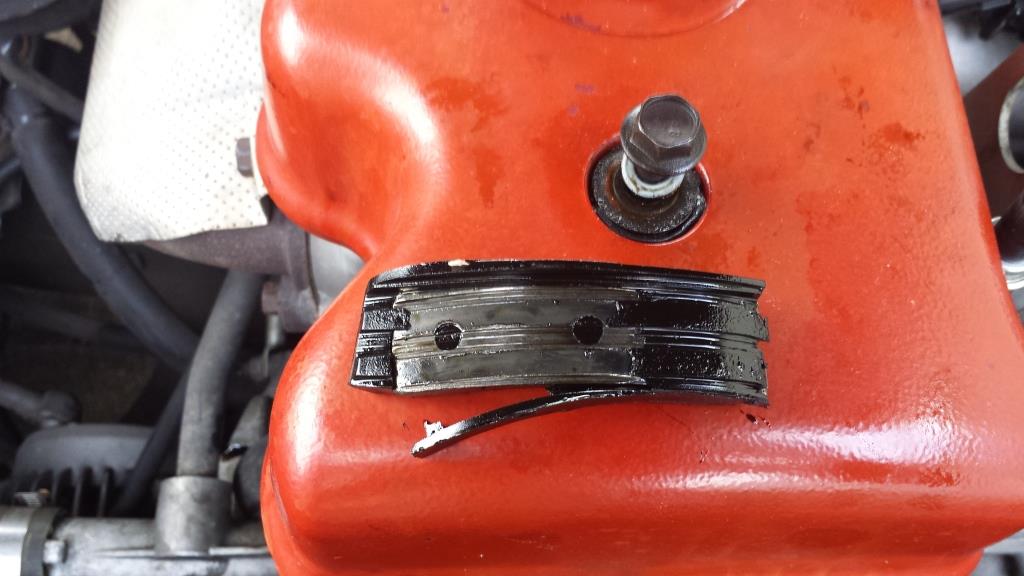

well pull off the power steering pump etc to get to the tensioner and as I was trying to get it out in one piece the last main bit wouldn't come out so I took of the rocket cover to see what was going on and I found this piece of timing chain guide sitting there.





Attachments:
20131108_180705.jpg [ 100.4 KiB | Viewed 187 times ]
20131108_180717.jpg [ 74.83 KiB | Viewed 195 times ]
Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 7:41 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 646

Joined: 22nd Jan 2008

Gallery: 1 images

Ride: EBII, XR6

Location: The Hills, Sydney
NSW, Australia

Exactly what happened with mine...



_________________

Weekender: 07 BFII XR6T - Conquer
Retired: 1992 EBII SXR6 - Black Pearl

Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Fri Nov 08, 2013 9:51 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

jamie22_cole wrote:
well pull off the power steering pump etc to get to the tensioner and as I was trying to get it out in one piece the last main bit wouldn't come out so I took of the rocket cover to see what was going on and I found this piece of timing chain guide sitting there.


They usually get broken by someone not watching what they are doing when removing or refitting the cylinder head.....looks like the one that a bolt goes through the front of the head to hold it.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Sat Nov 09, 2013 5:39 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

nah this one is broken from the tensioner side
Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Sun Nov 10, 2013 10:48 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

jamie22_cole wrote:
nah this one is broken from the tensioner side


Must have had the tensioner not installed properly then.....wonder how the aux. shaft bore is in the block ????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: whining nosie coming from engine
Posted: Sun Nov 10, 2013 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 553

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

its was install correctly when rebuilt 80,000ks ago don't know why it would just break like that. ive never had one break like that before.
