Will i lose power with Double Valve springs



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: Will i lose power with Double Valve springs
Posted: Mon Jan 12, 2009 11:49 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Gday

Im about to put my Wade 1671 cam in (similar spec to a 1673) and i have bought a set of Crowcams double valves springs to suit AU head and i have been looking around to see what other advantages are of having double valves springs, other then valve bounce. I have come across that the more presure on the valves i can lose power from it, is this true if so how much would i lose :?: and is it worth putting the double valve springs in.

Cheers



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Tue Jan 13, 2009 12:34 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

i doubt u would loose any power

more effort would be required to open the valves but nothign i would worry about

they are a great idea

so do it!



_________________

RIP SCOTT

Top
 Profile


Posted: Tue Jan 13, 2009 12:41 am
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

whats the specs on the cam?

i wouldnt fit double valve springs unless they are needed for the cam, as they put alot more stress on the valve train. Can also cause faster camshaft wear....
Top
 Profile


Posted: Tue Jan 13, 2009 10:27 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

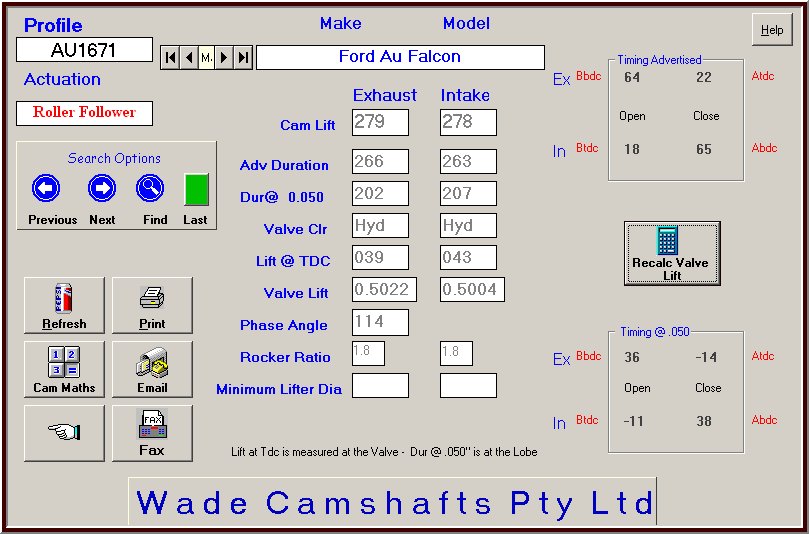

Heres the sheet





Attachments:
AU1671.jpg [ 78.78 KiB | Viewed 1519 times ]



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Tue Jan 13, 2009 12:20 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

yes you will loose a small amount of power, minimal though, its only natural, more force is required to compress the spring, so some of that motive force that would normally make it to the rear wheels is used for the valve spring compression, BUT it should be offset by your cam choice, providing you havemade the correct choic that is.



_________________


I have a car.

Top
 Profile


Posted: Tue Jan 13, 2009 12:36 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

Seems like a mild cam, i wouldnt use double valve springs.

Something like crow XR springs would be perfect, theyre $92 on the crow website, but thats for an Eseries head, im not sure whats the equivalant for the hybrid head?
Top
 Profile


Posted: Tue Jan 13, 2009 12:52 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

yeah i got the double valve springs because thats all they had for AU. They were only $140 which i thought was pretty good



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Tue Jan 13, 2009 7:49 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

GeZza200 wrote:
yeah i got the double valve springs because thats all they had for AU. They were only $140 which i thought was pretty good


Are they double valve springs or a spring with a damper?????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue Jan 13, 2009 7:55 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

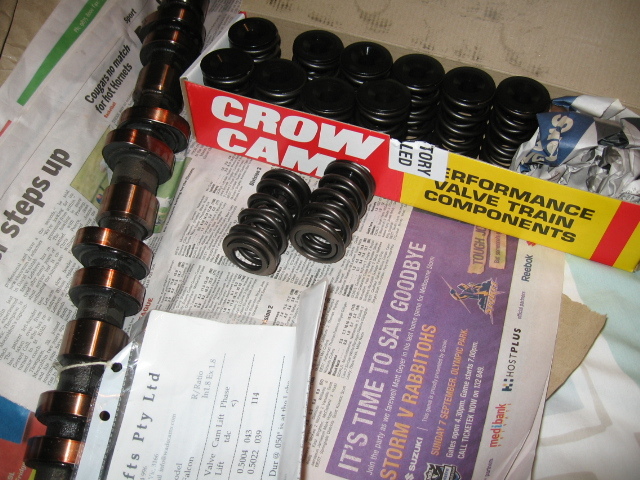

I took a pic





Attachments:
31182870007_large.jpg [ 186.56 KiB | Viewed 1452 times ]



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: double valve springs
Posted: Tue Jan 13, 2009 8:39 pm
Oompa Loompa
Offline

Posts: 33

Joined: 11th Sep 2007

Location: melbourne
VIC, Australia

Lost 1kw on clevo going to double valve springs!
Top
 Profile


Posted: Tue Jan 13, 2009 9:02 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

GeZza200 wrote:
I took a pic


Compare the the wire diameter of the Crow items to the std items. They may be very similar, just one can cope with more lift....???



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue Jan 13, 2009 9:04 pm
Tyre Shredder
Offline

Age: 47

Posts: 346

Joined: 16th Jul 2007

Ride: EL Falcon

Power: 146 rwkw

Location: sydney
NSW, Australia

I would not use double valve springs.
The double valve springs are only used for valve lifts over .525 thou. your cam is only .502 thou which the xr6 springs would be fine.
A heavyer valve spring that is not required will make you loose power even strip a lobe off the cam.



_________________

FORD EL 4.0L. Crow cam, T.I Performance J3 Chip, Vernier cam gear, CMS stage 3 head, 68mm TB, AU head gasket + ARP studs, AU injectors, Pacey 4480, High flow cat, Shift kit, Stallie, 3:73 TrueTrac.

Top
 Profile


Posted: Tue Jan 13, 2009 10:16 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Would the standard springs be able to handle that lift though?



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Tue Jan 13, 2009 11:14 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1775

Joined: 10th Jul 2007

Gallery: 8 images

Ride: BFII Turbo

Power: 253 rwkw

Location: Waurn Ponds
VIC, Australia

good ol mate gezza, everytime im looking at something your about a week ahead of me and my questions are answered.

no double valve springs for me then. crow xr's it is.

im going the 1673 with lobe sep opened up 2 deg to suit auto.

gotta source a spare cam first tho.
question though: what made you ditch the 1521a? too much lift?



_________________

enough isn't enough

Top
 Profile


Posted: Tue Jan 13, 2009 11:20 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Grimketel wrote:
good ol mate gezza, everytime im looking at something your about a week ahead of me and my questions are answered.

no double valve springs for me then. crow xr's it is.

im going the 1673 with lobe sep opened up 2 deg to suit auto.

gotta source a spare cam first tho.
question though: what made you ditch the 1521a? too much lift?


yeah i might take the doubles back and get some xr ones if i can, i dind't have 1521a, i use to get mixed up with the numbers aswell. I have a 1502Au in mine atm which is similar to the 1636. So i have a pretty mild one in atm i just want to go to the level up.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile
