will porting the straight through side of bbm have neg affec



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: will porting the straight through side of bbm have neg affec
Posted: Sun Aug 03, 2008 3:17 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

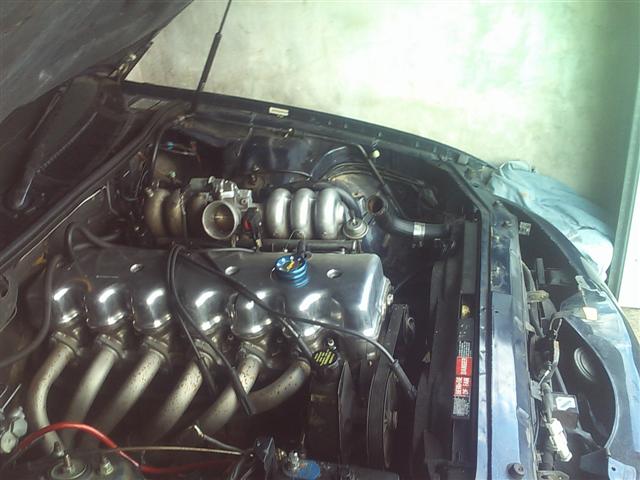

hi guys,i have removed the plenum from my bbm today for polishing
after inspection have decided to polish the inside aswell looks worse than the outside :roll: .
just wondering if opening out the pipes that bypass the butterflys or even removing the most part of them would make any positive/negative difference.
i am assuming that it wont affect the bbms job and just let more air through the bypass. but you know what they say about assuming :wink:
any thoughts much apreciated cheers

btw g/f's project car in shed n/a i6 extrs,pod,plugs etc no engine mods this year any way. but this engine will only ever be n/a.only cause ba's are geting so cheap and she will have hers p's when im finished





Attachments:
PIC_00042 (Small).jpg
PIC_00042 (Small).jpg [ 64.26 KiB | Viewed 1286 times ]
Top
 Profile


Posted: Sun Aug 03, 2008 5:02 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 824

Joined: 10th May 2007

Ride: Xr6 Turbo

Location: Melbourne
VIC, Australia

i was told by someone that polishing the inside of the manifold has a negative effect on it. with the ripples in the manifold is disturbs the air going into each cylinder chamber, it is used like another filter that captures all the dirty silty stuff. when it enters the chamber for ignition there is more air for ignition which then gives a better burn. dunno if its true or not. but sounds plausible



_________________


Previous cars


1995 ef futura - nothing special
2003 xr6 turbo 5 -speed 307rwkw

Top
 Profile


Posted: Sun Aug 03, 2008 7:10 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Ah the boundary layer theory. I don't think it affects plenum chambers as much as cylinder ports where the air speeds are high enough. Best bet is to have a look inside an FG plastic inlet manifold and see if its smooth or not. if it is then go ahead and polish your plenum away.
Top
 Profile


Posted: Sun Aug 03, 2008 7:21 pm
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

the short runner section of the manifold where the 6 butterflys are have been polished and the rest has been deburred/smoothed on my new bbm manifold.

the idea of not polishing is for the head intake ports when there is fuel in the mix, not the intake manifold, if car is on gas perhaps polishing the manifold might not be a good idea.



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Sun Aug 03, 2008 9:34 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

thanx heaps rushed,
so do you guys then think i should polished or honed surface for internal


rocker cover took ages perfect stress relief
Top
 Profile


Posted: Sun Aug 03, 2008 9:43 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

thanx everyone else to
ive been considering removing part of each of the ducts in the plenum.
the more more i look at it the more my brain tells to take me out to the shed and grind tha f out it
Top
 Profile


Posted: Sun Aug 03, 2008 9:46 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

If you were going to turbo it then you could get away with hogging it right out but in an NA application its not all that straight forward.

First question, how do you drive your car and where do you like it to start pulling from?
Top
 Profile


Posted: Sun Aug 03, 2008 10:33 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

it will be driven on the street , its auto needs diff so that might change.
my missus has had her l plates for 5 years and she drives all the time.
but we both drive it pretty quick, how do i answer that without coming off like a d**k or incriminating myself lol





Attachments:
nnnnnnnnnn.jpg [ 35.96 KiB | Viewed 1213 times ]
Top
 Profile


Posted: Sun Aug 03, 2008 10:39 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

bit more very bottom end would be nice .
Top
 Profile


Posted: Sun Aug 03, 2008 11:07 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

If you need bottom end then I would advise against hogging out the BBM.
Top
 Profile


Posted: Sun Aug 03, 2008 11:34 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

yeah it would take forever anyway outside shiney will have to do.
one thing i did notice was there was thin oil around the manifold when i took it off wtf? is this good
i was thinkin it got there via the hoses from the rocker cover
Top
 Profile


Posted: Mon Aug 04, 2008 12:30 am
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

you know its bad if there is a pool of oil in the bottom of the runners, when i pulled the manifold of my old "VERY" dead motor there was alot of oil in there o.0

i didnt gut the lower section, only do that if you are going to turbo (fyi xr6 turbs have no butterflys there). as i said i polished the six trumpet looking bits where the butterflys are, and just deburred and lightly smoothed the rest of it.

if youve got it apart its not to hard to just give it a small once over in the butterfly section, all depends on where you want to go in the future :)

ive got some pics around here somewhere ill see if i can find tomorrow.



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Mon Aug 04, 2008 10:26 am
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

damn you vile falcon nah just jokes ,
it goes hard for what it is + doesnt use oil or blow any smoke (bought the engine last year}, im guessing plenum has never been removed before or the chance someone over filled it with oil
also i was maybey driven it for 3 months alday every day with a stainles fine mesh cap on the throttle body,
plan is a catch can
Top
 Profile


Posted: Tue Aug 05, 2008 2:36 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

rushed wrote:
you know its bad if there is a pool of oil in the bottom of the runners, when i pulled the manifold of my old "VERY" dead motor there was alot of oil in there o.0

i didnt gut the lower section, only do that if you are going to turbo (fyi xr6 turbs have no butterflys there). as i said i polished the six trumpet looking bits where the butterflys are, and just deburred and lightly smoothed the rest of it.

if youve got it apart its not to hard to just give it a small once over in the butterfly section, all depends on where you want to go in the future :)

ive got some pics around here somewhere ill see if i can find tomorrow.


how'd you clean it?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Tue Aug 05, 2008 11:40 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

rushed wrote:
you know its bad if there is a pool of oil in the bottom of the runners, when i pulled the manifold of my old "VERY" dead motor there was alot of oil in there o.0



Where did you get that crap from? If there's oil in there the factory pollution control system is doing its job. If you don't want oil in there then spend a few hundred bucks on an oil air separator or throw a bit of sponge in both of your lines that run from the rocker cover to the inlet manifold.
Top
