XF-XR6TURBO engine install please give me feedback



Page 1 of 2 [ 29 posts ] Go to page 1, 2  Next


 Post subject: XF-XR6TURBO engine install please give me feedback
Posted: Fri Jan 25, 2008 5:09 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

i am currently installing a BF XR6Turbo engine into my XF and i have been told that i will have to spend 8grand on just WIRING another 8on ECU and 3 on gear box. can anyone toll me what sort of stand alone ECU i will need to be able to run only the engine and engine components without the the boost limiter and other useless limiters and stuff and where i can get it installed in bris northside preferably and what sort of driveline i should be running including exhaust system and turbo relocation, brakes , diff and gearbox ... etc
i have already run over budget with this install so any good lasting reputations with a great price even RECO or USED parts recomended would be great PLEASE HELP!?!?!?!?!?
Top
 Profile


Posted: Fri Jan 25, 2008 8:57 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

You can source a T56 for around the $3.5-4k mark.

Do you want the DVCT or not? if not a Haltech E6X/E11V2 would work, they are around the $1500-2k mark, both ECU's have in gear boost limiting that you can use, but dont have to.

How much power are you after? if its fairly high, check out a 9" Conversion

For the wiring, run what you can yourself, and then pay to get the rest done, and for a good place for tuning from what i have heard, give BPS Chipteck a call (dont have there number sorry)



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sat Jan 26, 2008 10:34 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

you may also want to look at Magesquirt ECU's that is if you have the time to build it yourself, do a search around there is plenty of info on them, otherwise either a haltech or an older motec should come in on budget for you. what sort of $$ you got to play wih? you said already over budget, how much have you sunk into this project?



_________________


I have a car.

Top
 Profile


Posted: Sat Jan 26, 2008 7:57 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

thanks for your replies I do want to keep the DVCT cause at the moment they are set fairly low and with tuning it is useful. POWER wanting between 270 and 300 rwkw

as for my spendings so far lets just say that i didnt plan on needing a new engine and so i got the 250 worked and the mechanic tuning it cracked the block somehow so buying the engine as a "simple conversion for a straight fit and run " so i was told has sent me well over not to mention the wastage on the other engine

PLEASE KEEP THE RESPONSES TO THIS THRAD COMING AS I NEED ALL THE HELP I CAN GET THANX ALL
Top
 Profile


Posted: Sun Jan 27, 2008 2:30 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

For the 270-300rwkw figure, a BW 78 Series (EB2 -EL) would cope with that figure (PYROAY had 451rwkw through a BW78), im not sure of any aftermarket ECU's that can run the DVCT, maybe check a few websites like www.motec.com.au and www.haltech.com.au



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sun Jan 27, 2008 8:26 am
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

From what i've been told, the DVCT on the BA motors is only used in factory setups to change cold start emissions, and to help heat the cat quicker for lower emissions.

However, thats just what i;ve been told

David



_________________

If you're not driving a manual, you are only steering...

Top
 Profile


Posted: Sat Mar 08, 2008 6:36 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

here is the progress i made today i have to shave the left engine mount so it fits around the oil filter then i can bolt it in and i had a clearance issue with the stabiliser bar so i have to re install that aswell. i still havent got my hands on another gearbox yet either still looking
Top
 Profile


Posted: Sun Mar 09, 2008 4:09 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia

nice progress... but the engine seems a tad forward ????

remember to put the sway bar back on too :P
Top
 Profile


Posted: Sun Mar 09, 2008 10:54 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

As far as i know only a MoTEc will control the DVCT on the Barra engines. Haltech do make an ECU to control DVCT, just not the Ford engines. I have contacted them directly and they told me straight, "the E11 will NOT work".

Consider using the factory BA ECU, this is what i am doing, although not many have attempted this i have been assured that you can get the ECU to work.
Top
 Profile


Posted: Mon Mar 10, 2008 9:45 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

these are some pics i took this arvo i had to take the manifold off to bolt the mounts up properly and i shaved the left mount today to fit around the filter anyway as you can see in the pics the manifold wont line up now due to space . if you look at my pic posted yesterday i actually had my manifold bolted in upside down to try and lift the turbo to make some room but then the clearance issue arose with the turbo not fitting under even the extra space with the scoop . it is to tight a fit to be able to take the engine back a bit as you can see in my update of photo bucket
Top
 Profile


Posted: Mon Mar 10, 2008 9:45 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

Top
 Profile


Posted: Mon Mar 10, 2008 9:47 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

Top
 Profile


Posted: Fri Mar 21, 2008 11:55 am
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

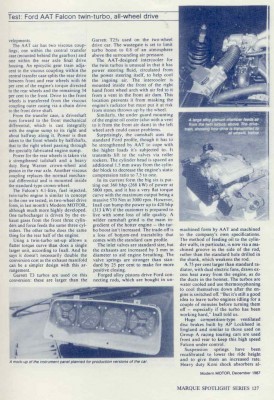

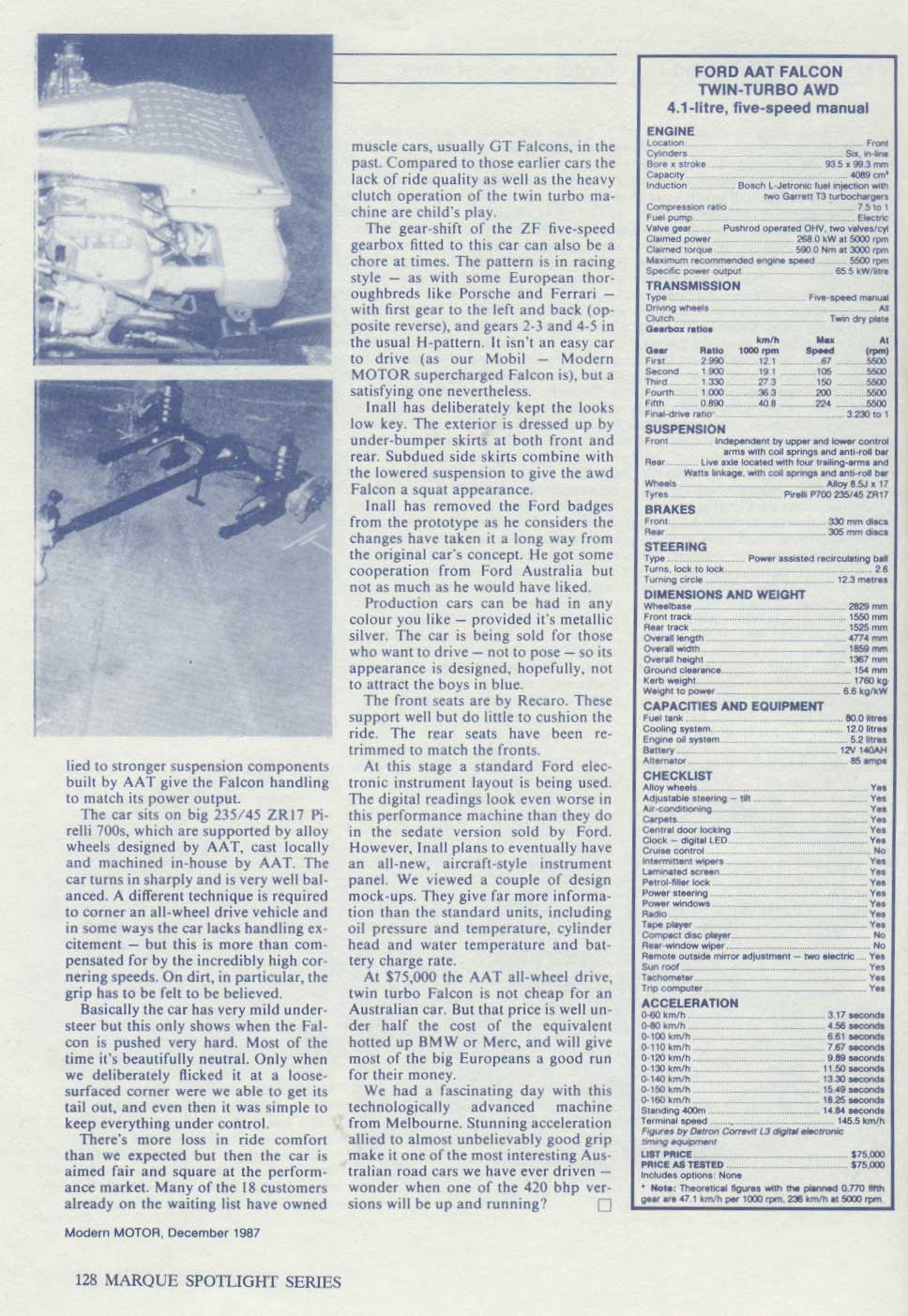

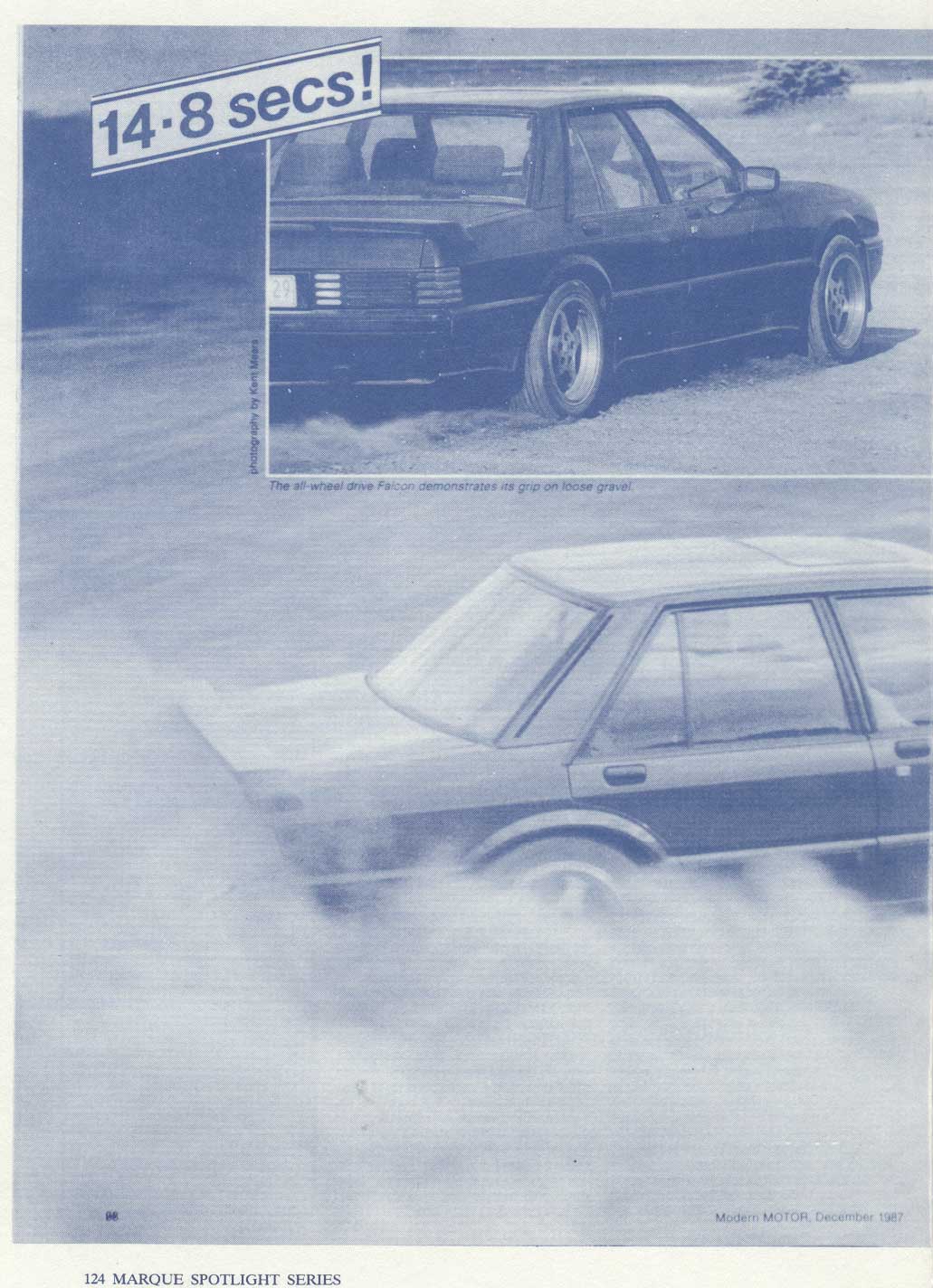

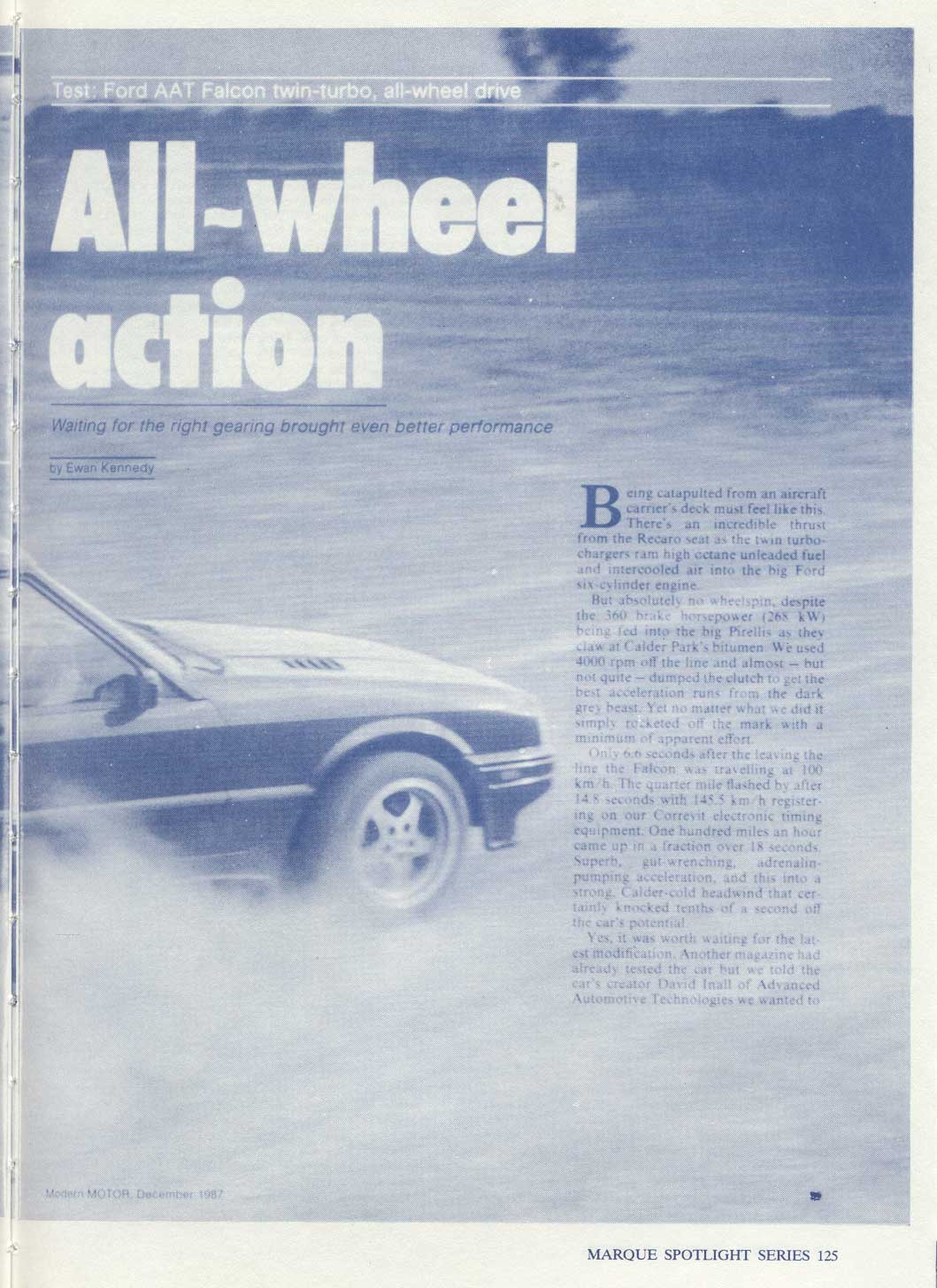

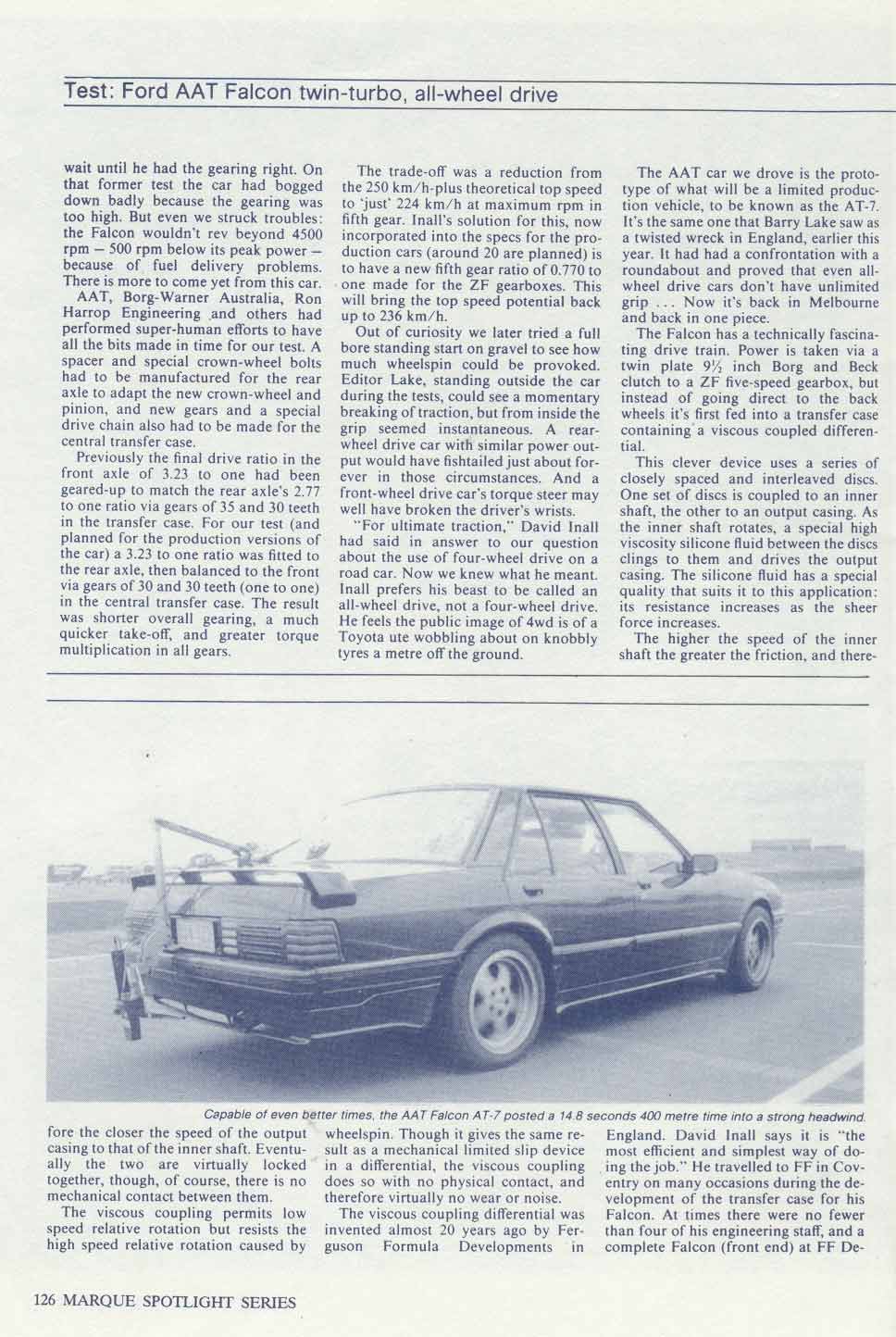

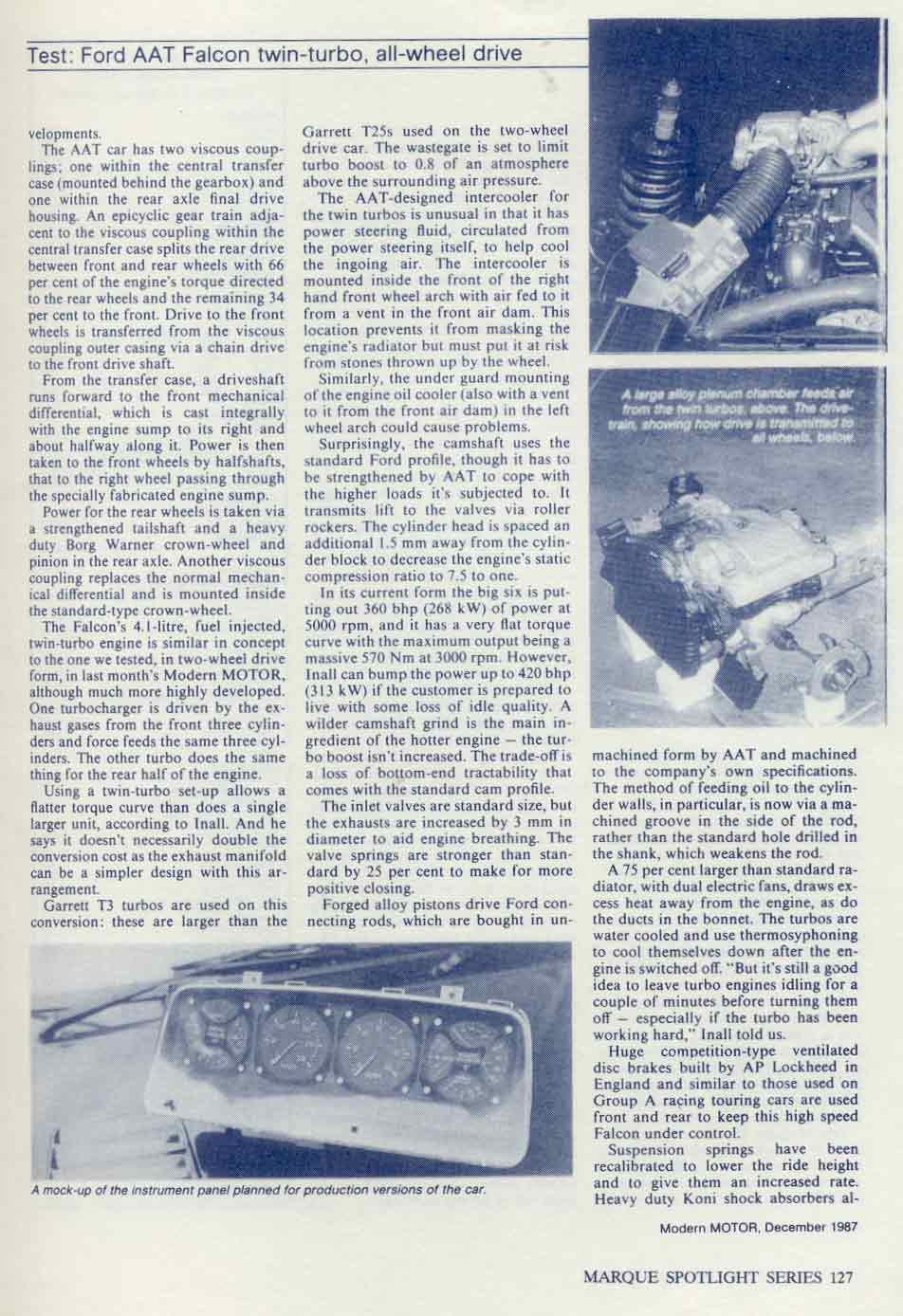

check out this twin turbo xf prototype





Attachments:
awd-falcon-page5[1].jpg [ 196.5 KiB | Viewed 214 times ]
awd-falcon-page4[1].jpg [ 116.4 KiB | Viewed 135 times ]
awd-falcon-page3[1].jpg [ 140.33 KiB | Viewed 130 times ]
awd-falcon-page2[2].jpg [ 137.23 KiB | Viewed 120 times ]
awd-falcon-page1[1].jpg [ 124.55 KiB | Viewed 98 times ]
Top
 Profile


Posted: Sun Mar 23, 2008 2:39 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

what do you think?

Top
 Profile


Posted: Mon Mar 31, 2008 5:21 pm
Oompa Loompa
Offline

Posts: 27

Joined: 18th Jan 2008

Ride: XF XR6T

Location: brisbane
QLD, Australia

hey all i am going back while i still can with my conversion :shock: i have run out of money patience and time i wish i didnt have to do this but im puting it back to a 250 crossflow but adding efi =simpler and cheaper :cry:
