Alarm on EF (Does it have a remote?)



Page 1 of 1 [ 9 posts ]


 Post subject: Alarm on EF (Does it have a remote?)
Posted: Fri May 09, 2008 12:47 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 2nd May 2008

Location: Sydney
NSW, Australia

Hi there,

The alarm on my EF Falcon is a pain to turn on.

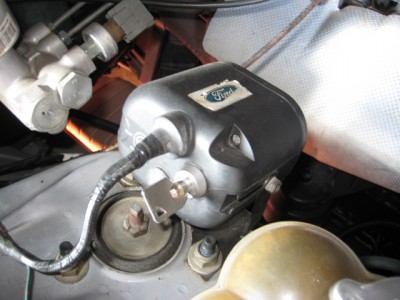

It has a sticker on top that says Ford, but no other markings or S/N. There are 3 positions for key [Off/On/Test].

Q: Is there a remote that comes with this alarm, or do i need to pop the bonnet everytime i want to activate the alarm?

http://homepage.mac.com/jerlou/PhotoAlbum2.html

Any help would be much appreciated.

Thanx

J





Attachments:
alarm.JPG [ 101.91 KiB | Viewed 60 times ]



_________________

1994 EF/Futura Station Wagon

Top
 Profile


 Post subject: Re: Alarm on EF (Does it have a remote?)
Posted: Fri May 09, 2008 1:22 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

jerlou3 wrote:
Hi there,

The alarm on my EF Falcon is a pain to turn on.

It has a sticker on top that says Ford, but no other markings or S/N. There are 3 positions for key [Off/On/Test].

Q: Is there a remote that comes with this alarm, or do i need to pop the bonnet everytime i want to activate the alarm?

http://homepage.mac.com/jerlou/PhotoAlbum2.html

Any help would be much appreciated.

Thanx

J


The factory alarm (if still working) utilizes the bem wiring, To activate you simply turn the key to on (alarm) and lock the car with the fob.
1st one wont work.
2nd lock should work.

Chances are the battery is dead in the siren, as in stuffed.

The brain is in the kick panel of the drivers side. Its activiated via sentral door locking WITH hazards Im lead to believe.

I've had around 4 of these alarms and each 'usuable' with a bit of tinkering.

They are only that, remote entry enable/disable, also has a shock sensor.

Test is for battery backup, on = on off = off as you've figured.

Also, by the pic, thats one of the first generation alarms.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Fri May 09, 2008 2:18 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 2nd May 2008

Location: Sydney
NSW, Australia

Krytox wrote:
jerlou3 wrote:
Hi there,

The alarm on my EF Falcon is a pain to turn on.

It has a sticker on top that says Ford, but no other markings or S/N. There are 3 positions for key [Off/On/Test].

Q: Is there a remote that comes with this alarm, or do i need to pop the bonnet everytime i want to activate the alarm?

http://homepage.mac.com/jerlou/PhotoAlbum2.html

Any help would be much appreciated.

Thanx

J


The factory alarm (if still working) utilizes the bem wiring, To activate you simply turn the key to on (alarm) and lock the car with the fob.
1st one wont work.
2nd lock should work.

Chances are the battery is dead in the siren, as in stuffed.

The brain is in the kick panel of the drivers side. Its activiated via sentral door locking WITH hazards Im lead to believe.

I've had around 4 of these alarms and each 'usuable' with a bit of tinkering.

They are only that, remote entry enable/disable, also has a shock sensor.

Test is for battery backup, on = on off = off as you've figured.

Also, by the pic, thats one of the first generation alarms.
Thanx again Krytox.

The alarm works. I'll have to check the battery. I'm assuming that all i need to do is turn the alarm to [TEST] & if I hear beeps then the battery is working.

I pickup some 2nd hand key fobs on Monday. I'll post results next week.

It's good to know that i can activate via the fob, saves me from looking like a nob - opening bonnet everytime I get out of the car.



_________________

1994 EF/Futura Station Wagon

Top
 Profile


Posted: Tue May 13, 2008 3:36 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Not really,
You put on test mode when plugged in, it'll run from the power source.

Either way, its best to replace the battery.
IIRC these items aren't really in the good books in regards to fire hazards.

1: overcharging a 7.2v battery
2: heat from exhaust doesn't do the battery justice

I replaced mine with an 8.4v NiMH 9volt (style) and have had great success.

better than the button cell blister inside.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Wed May 14, 2008 9:55 am
Fordmods Newbie
Offline

Posts: 16

Joined: 2nd May 2008

Location: Sydney
NSW, Australia

Krytox wrote:
Not really,
You put on test mode when plugged in, it'll run from the power source.

Either way, its best to replace the battery.
IIRC these items aren't really in the good books in regards to fire hazards.

1: overcharging a 7.2v battery
2: heat from exhaust doesn't do the battery justice

I replaced mine with an 8.4v NiMH 9volt (style) and have had great success.

better than the button cell blister inside.
I received the key fobs yesterday & all seems well.

In regards to the alarm battery do I simply open up the alarm casing, unplug battery & replace the 7.2v button cell with a 8.4 NiMH 9v?

I'll source the battery out from Auto Barn or Repco this weekend. Thanx again Krytox



_________________

1994 EF/Futura Station Wagon

Top
 Profile


Posted: Wed May 14, 2008 9:55 am
Fordmods Newbie
Offline

Posts: 16

Joined: 2nd May 2008

Location: Sydney
NSW, Australia

I received the key fobs yesterday & all seems well.

In regards to the alarm battery do I simply open up the alarm casing, unplug battery & replace the 7.2v button cell with a 8.4 NiMH 9v?

I'll source the battery out from Auto Barn or Repco this weekend. Thanx again Krytox



_________________

1994 EF/Futura Station Wagon

Top
 Profile


Posted: Wed May 14, 2008 10:11 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

nah not that simple, you have to unsolder the battery, and modify it a bit.

repco/autobarn won't sell any battery like this.

Jaycar/dse yes, or you can even replace it with the correct type from batteryworld (master instruments manufacture them) for around $25.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Wed May 14, 2008 10:13 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

you can always run it without the battery, or even as it is.

downside is that if someone opens the bonnet, and unplugs the siren, the noise will stop.

eitherway, if the prick gets that far.. the cars long gone anyways.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Thu May 15, 2008 1:19 am
Fordmods Newbie
Offline

Posts: 16

Joined: 2nd May 2008

Location: Sydney
NSW, Australia

Can you check the battery by opening up the alarm casing & using a multimeter or other device?

If the battery is that cheap, i might as well change it as i think your right about the battery probably being dead.

What are the chances of anyone stealing a 94 EF? If they make the effort to bypass the smartlock & alarm, they must be Ford Falcon Fanboys.
