 Post subject: AMP WIRING - 4 channels into 1
Posted: Wed Sep 15, 2010 3:19 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

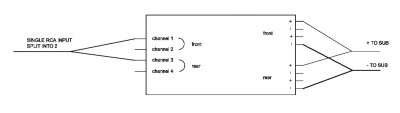

To put it simply, will a setup like the one ive drawn work?

one rca split into 2, one feeding front, one feeding rear

then bridging the 2 channels together at the other end as i have drawn

my logic is that the same signal is going into each channel, therefore same output from each channel, so really im using 2 channels to power one sub.
It sounds ok in MY head, but i am no expert with car audio :lol:





Attachments:
AMP DIAGRAM Model (1).jpg
AMP DIAGRAM Model (1).jpg [ 29.14 KiB | Viewed 53 times ]



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


 Post subject: Re: AMP WIRING - 4 channels into 1
Posted: Wed Sep 15, 2010 8:09 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

What is the amp you got mate? only certian AMP's can go from 4/2/1 channel.



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: AMP WIRING - 4 channels into 1
Posted: Thu Sep 16, 2010 12:13 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

In short, no that won't work.

As you say you're feeding the same signal into two channels, therefore the outputs will be the same = sub not moving (best case), smoke being released (worst case)

Most amps (99.99999% of them) won't work like that.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: AMP WIRING - 4 channels into 1
Posted: Thu Sep 16, 2010 11:13 pm
Getting Side Ways
Offline

Age: 30

Posts: 410

Joined: 27th Jul 2005

Ride: Mazda CX-5 & 96 EL Falcon

Location: Adelaide
SA, Australia

as its been said, some amps can do the 4/2/1 but not all, check the amps manual, some websites have old manuals on them.

best option (if the amp supports it) is to do what I've done, run the two RCA's into the rear channels (3 and 4) then hook the positive of the sub to the positive of channel 3 and the negative to the negative of channel 4.
This will only work if the amp is bridgeable and internally at that, otherwise look up bridging on google and see what you can find.

Also as I said CHECK THE MANUAL or even the amp casing and see if it can be done, otherwise you will more than likely have a nice smoke show of your amp going bang.



_________________

My EL Gli.

Top
 Profile


 Post subject: Re: AMP WIRING - 4 channels into 1
Posted: Fri Sep 17, 2010 9:21 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

its definately a 4/3/2 channel amp, i dont think i going to try it anyway, not worth the risk. but i thought it may be possible to feed to seperate channels to one sub.

like running 2 RCAs from the same signal into 2 diferent mono block amps, and then powering a single sub with both amps....



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile
