Another BA Aftermarket Head Unit Thread - COMPLETE



Page 2 of 6 [ 80 posts ] Go to page Previous  1, 2, 3, 4, 5, 6  Next


Posted: Wed Dec 10, 2008 6:40 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Ok, I've done it, and here's how:

Here are the speaker wire colours and their easiest accessible locations (kick panels)


Forgive it not being a ford, but meh. The passenger kick panel's speaker wires are at the bottom of the big orange plug:


Here are the wires you need:


You need to connect extension wires to the speaker cable and leave the ICC side of it unplugged. Here's a pic showing which side to connect to:


And this is the loom under the driver's kick panel that has the right front speaker wires in it:


So yeah, wire up a bunch of extensions, thread them through the dash etc and connect up to the new head unit. If you're mounting a sub and amp, this kick panel is a good place to run your power cable too. Just push it through the bonnet release cable's grommet and into the bonnet:


Finished product looks something like this:



If anyone's got any questions about how i've done any of this, feel free to PM.



_________________


Top
 Profile


Posted: Sun Jan 04, 2009 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 2159

Joined: 15th Nov 2005

Gallery: 17 images

Ride: TS40

Location: Latrobe Valley
VIC, Australia

that looks great shoony... good on you for the photos im sure they will come in handy for alot of people...

if you didnt know im attempting a ba dash conversion and ill be getting a ICC in the next week to modify for au heater controls and a din spot in you're original location...

Cheers Cam



_________________

Was - 2001 AUIII Ford Falcon Forte
Genuine T2 TS50 bodykit, 18" BF Cobras, Boge and Eibach Suspension and Complete AU2 Fairmont Ghia Interior

Now - 2012 FG Mk2 Ford Falcon XR6
Swift Green,6 Speed Auto, Stock... and a Fuel Card :)

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri May 15, 2009 11:22 am
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 135

Joined: 1st Feb 2006

Gallery: 9 images

Ride: BA XT

Location: Morwell
VIC, Australia

Shoony, Howd you get the head unit to look so Flush on the bottom in the tissue tray? I wana do this for mine so i can use my Pioneer MP3 Player. Also im thinking i should splice into the speaker wire for the Factory head unit rather than cutting. And awesome guide as well, ive already printed it off in preparation for the weekend now that i have my new amp and the car is finally back from the shop



_________________

Ford Falcon BA XT 2003, Stock Engine, Factory Fitted LPG, Monroe GT Sports Shockers, King Coil Springs, Advanti Shine 19" 8x5 Rims, 2 1/2" Exhaust,DNA Fascia, Pioneer DEH-1350MPG Head Unit, Powervox 500watt 4 Channel Amp, Aerpro Hi/Lo Audio level converter, Pioneer 10" Sub Woofer

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri May 15, 2009 4:04 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

That looks like one of the DNA branded one DIN replacement pockets. It's made to fit flush.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri May 15, 2009 4:30 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 135

Joined: 1st Feb 2006

Gallery: 9 images

Ride: BA XT

Location: Morwell
VIC, Australia

Yep thats what it is thanx....BA Fascia $93 Bucks.....Bit Pricey....Wonder if i can whip something up



_________________

Ford Falcon BA XT 2003, Stock Engine, Factory Fitted LPG, Monroe GT Sports Shockers, King Coil Springs, Advanti Shine 19" 8x5 Rims, 2 1/2" Exhaust,DNA Fascia, Pioneer DEH-1350MPG Head Unit, Powervox 500watt 4 Channel Amp, Aerpro Hi/Lo Audio level converter, Pioneer 10" Sub Woofer

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Sat May 23, 2009 8:10 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Sorry about being absent for a bit, had other stuff on.

It is a DNA brand fascia, obtainable thru most car audio shops, sometimes even super-cheap. When sliding the fascia+head unit into its slot, be careful to tuck any cabling up behind the ICC otherwise you'll have isses getting it to fit in. Because of this, my head unit is a little skew to one side but meh, it doesn't really bother me.

For those attempting to 'splice' the speaker cables instead of disconnecting, I would warn you to do this very carefully. If your head unit is high-powered, you could conceivably push some high current the wrong way into the stock ICC and damage it, or even have excessive noise because of the two systems using the same lines. If you have the patience, you could attempt to re-run the stock cabling back to the centre as well, and then create some sort of switch between head units to be safe.

Having said that, since installing this, I have never felt the need to use the stock ICC for anything except its clock and a handy 6-cd storage case!

Happy modding, and please, if you have any questions don't hesitate to PM



_________________


Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Sat May 23, 2009 11:34 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

shoony wrote:
a handy 6-cd storage case!


LOL, that's a great idea.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Tue Oct 27, 2009 8:13 pm
Fordmods Newbie
Offline

Age: 27

Posts: 6

Joined: 23rd Sep 2009

Ride: Ba Xl Falcon Ute

Location: Wagga Wagga
NSW, Australia

how did you get the ciggy lighter socket to move to the bottom?
Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Wed Oct 28, 2009 9:26 am
Getting Side Ways
Offline

Posts: 686

Joined: 26th Jul 2009

Ride: EF daily, xc project

Location: Park Central
NSW, Australia

just hook up a high series overlay with the colour screen and then attach a car puter,

easy, lol, then you can play games on the drive, need for speed or gran turismo, lol



_________________

ef falcon daily driver
78 xc falcon 500 project
http://www.fordmods.com/the-garage-f53/bradley4567-s-xc-t83750.html

calling an illegal alien an 'undocumented immigrant' is like calling a drug dealer an 'unlicensed pharmacist'

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri Nov 06, 2009 3:16 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

Hello, Bloody nice install mate!!

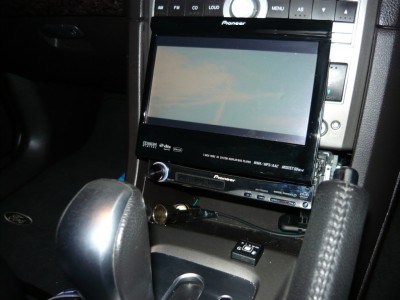

This is my deck install, it isnt finished yet cuz im deciding what to do with the big gap around the deck. And it tends to get a little hot so i wanna put some sort of heat sink or fan arrangement in there. And i know what your thinking, "wouldn't that hit the gear stick?". Its dam close, about 2mm between the screen and the gear stick when its retracting.

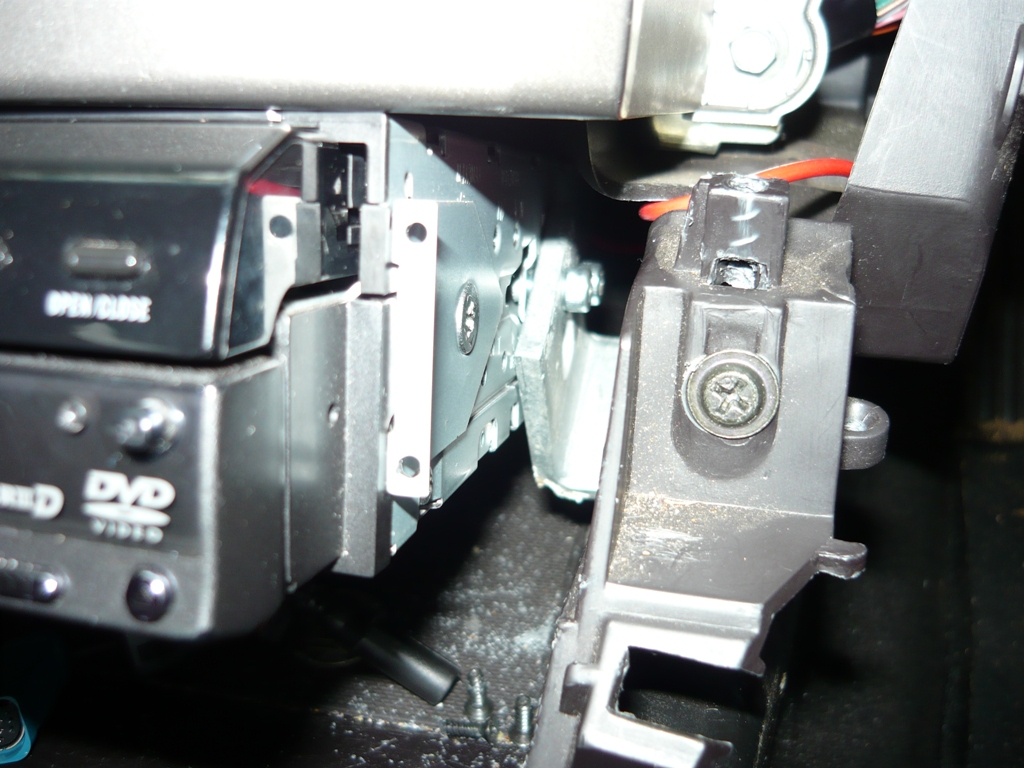

I used 2 90 degree 3mm thick steel brackets to mount mine. And drilled holes into them in the position the deck would be. Then went to bunnings got some longer screws and viola

Hmmmm, i wonder if alberts car stereo have that silver fascia.





Attachments:
P1000162.JPG [ 415.89 KiB | Viewed 336 times ]



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri Nov 06, 2009 3:17 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

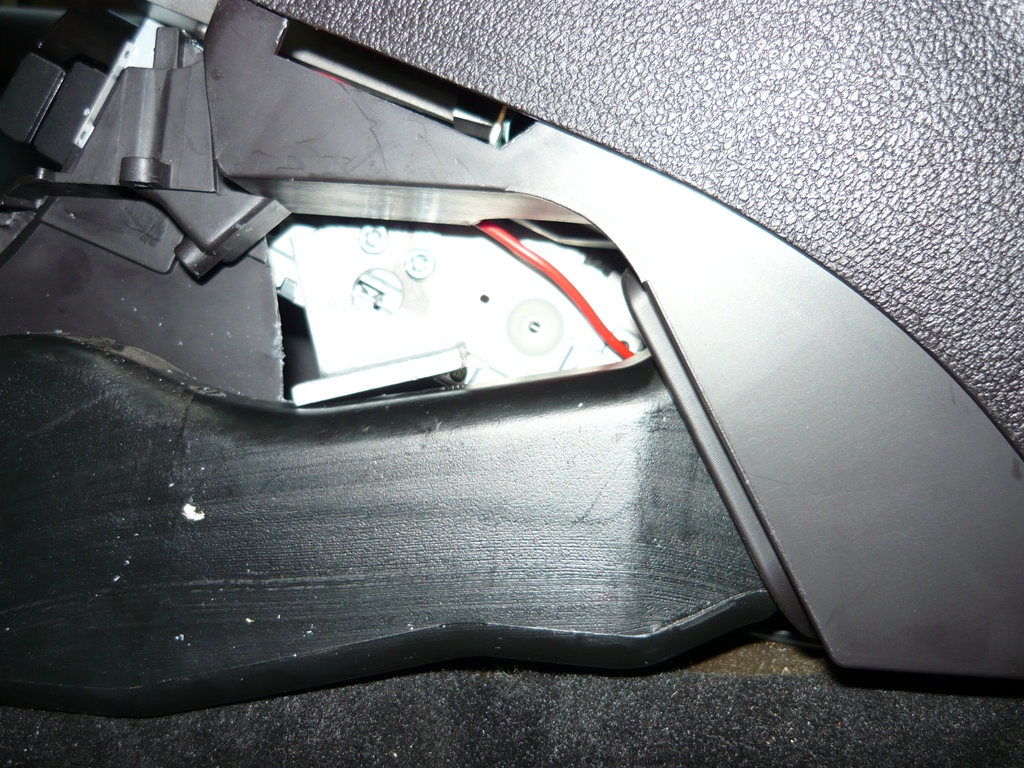

Another pic, this upload system is crap.





Attachments:
P1000158.JPG [ 432.96 KiB | Viewed 185 times ]



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Fri Nov 06, 2009 3:17 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 276

Joined: 14th Apr 2009

Gallery: 12 images

Ride: Fairmont Ghia BA 5.4L V8, AU 6

Power: 205 rwkw

Location: Perth
WA, Australia

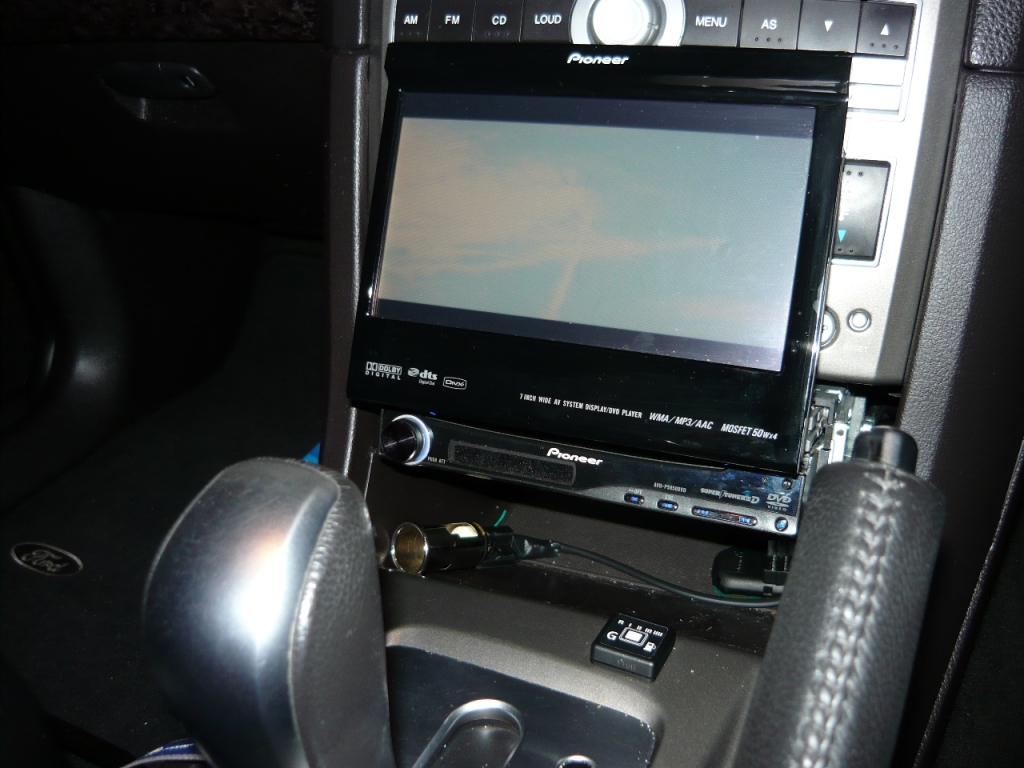

And finally......





Attachments:
P1000157.JPG [ 412.62 KiB | Viewed 193 times ]



_________________

Chaos, Panic and Disorder. My work here is finally done.
BA Fairmont Ghia 5.4L. Mods -Full Exhaust, Chipped, Custom Intake, CAI @205.4RWKW.
Stezza - Alpine Type R Splits & 6x9's, Alpine 400w RMS 4ch, 380w RMS Pioneer Mono, 2x12" Pioneer Subs and an AVH-P5950DVD Player.

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Sun Nov 08, 2009 3:28 pm
Fordmods Newbie
Offline

Age: 27

Posts: 6

Joined: 23rd Sep 2009

Ride: Ba Xl Falcon Ute

Location: Wagga Wagga
NSW, Australia

ok so im wiring everything in. ive got the yellow wire to the battery, black wire to ground the speaker wires connected but where does the red wire go to. it says i have to wire it to some ignition part so it turns off. where abouts did you find that and what colour wire is it?
Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Sun Nov 08, 2009 6:27 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

stefman wrote:
ok so im wiring everything in. ive got the yellow wire to the battery, black wire to ground the speaker wires connected but where does the red wire go to. it says i have to wire it to some ignition part so it turns off. where abouts did you find that and what colour wire is it?


Easiest place to grab that, is from the power at the cig lighter.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: Another BA Aftermarket Head Unit Thread - COMPLETE
Posted: Sun Nov 08, 2009 9:34 pm
Getting Side Ways
Offline

Posts: 686

Joined: 26th Jul 2009

Ride: EF daily, xc project

Location: Park Central
NSW, Australia

or you can connect it to the battery also,
that way you will be able to turn the head unit on and off without a key



_________________

ef falcon daily driver
78 xc falcon 500 project
http://www.fordmods.com/the-garage-f53/bradley4567-s-xc-t83750.html

calling an illegal alien an 'undocumented immigrant' is like calling a drug dealer an 'unlicensed pharmacist'

Top
 Profile
