 Post subject: EF Stereo Install
Posted: Mon Feb 26, 2007 12:31 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 680

Joined: 20th Sep 2006

Ride: 97 EL Fairmont

Power: 247 rwkw

Location: Adelaide
SA, Australia

Hi Guys,
I am part way through installing a Pioneer Head Unit in my EF Falcon, however I have run into a couple of issues regarding mounting.

The issue I have is that the mounts from the stock head unit, the screw hoels on them to not match the new head unit, hence I am unable to mount the headunit.

Does anyone have any suggestions to a fix for my issue? Can I purchase a new set of mounting rails that will suit an after market head unit?

All the best, and many thanks!
Simon



_________________

1998 EL XR8 - Opt 20, Explorer Manifold, Pacemaker 4000's, Sunroof, BBQ Fuel

1975 XB Falcon 500 - 351 2V, Toploader, Twin 2.5", Genie headers, Holley 750

Top
 Profile


Posted: Mon Feb 26, 2007 12:39 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 514

Joined: 29th May 2006

Gallery: 3 images

Ride: eb falcon

Location: perth
WA, Australia

a drill and a hammer



_________________

own a falcon?
live in perth?

www.perthfalcons.com

Top
 Profile


Posted: Mon Feb 26, 2007 12:41 pm
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

drill holes int he bracket, not the head unit. lol. im sure someone would of done it the other way at some stage



_________________

Now driving a Hilux

Top
 Profile


Posted: Mon Feb 26, 2007 12:45 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

find where it sit flush with the radio surrond and drill a hole in each bracket where the screw will fit in a hole on the head unit ive done to many now from standard head units to flip out screens and so on



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Mon Feb 26, 2007 1:07 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 680

Joined: 20th Sep 2006

Ride: 97 EL Fairmont

Power: 247 rwkw

Location: Adelaide
SA, Australia

Too easy, will do that tonight. Were their aftermarket rails available though?

Cheers



_________________

1998 EL XR8 - Opt 20, Explorer Manifold, Pacemaker 4000's, Sunroof, BBQ Fuel

1975 XB Falcon 500 - 351 2V, Toploader, Twin 2.5", Genie headers, Holley 750

Top
 Profile


Posted: Mon Feb 26, 2007 2:02 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

dont think so as most steros are in a cradle like what you would have got with your stero



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Tue Feb 27, 2007 10:18 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

Can talk with your local car audio dealer as you can get multi fit cradles but the majority of the time its just quicker an easier to mod your own to fit when you go to install it...saves money too.



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Sat Mar 17, 2007 7:02 pm
Getting Side Ways
Offline

Age: 37

Posts: 512

Joined: 7th Mar 2006

Ride: Falcon GLI

Location: Perth
WA, Australia

absolute pain in the a** to install stereos into ef, cut the sides off both stereo brackets and mount the ford sides onto the new stereo bracket
Top
 Profile


Posted: Sat Mar 17, 2007 7:05 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Pain in the a** to install into and EF/EL?

Woah.... I'd have to say they're the most basic car to put an aftermarket head unit in.
Try a 2006 Focus.. now they're hard.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 18, 2007 12:49 pm
Getting Side Ways
Offline

Age: 29

Posts: 1538

Joined: 4th May 2006

Gallery: 4 images

Ride: ef fairmont turbo

Power: 213 rwkw

Location: melbourne
VIC, Australia

i had the same problem, what i did was i bent the brackets the other way and jammed the hed unit in(very very tight). sits in perfectly wont come out anymore now. 10sec job aswell



_________________

96 EF FAIRMONT
Garrett gt40turbo, iceman plenum, ported head, turbo cam, double valvesprings, 023 fuel pump, 36lb injectors 4' cat, 4' dump, 2.5 exhaust, build bottom end, hypertonic pistons rods & rods, king bearings, j3. c10 3500 stall
232rwkw@4psi

Top
 Profile


Posted: Wed Mar 21, 2007 12:48 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 598

Joined: 12th Nov 2004

Gallery: 9 images

Ride: Modified EA-S Falcon

Power: 142 rwkw

Location: Southern Highlands
NSW, Australia

Krytox wrote:
Pain in the a** to install into and EF/EL?

Woah.... I'd have to say they're the most basic car to put an aftermarket head unit in.
Try a 2006 Focus.. now they're hard.


dido, not sure what planet GLI is from but they are a cinch, the screw straight onto most after market decks with either none or little modding. there is far worse out there mate, falcons are by far one of the easiest
Top
 Profile


Posted: Wed Mar 21, 2007 1:34 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

gli wrote:
absolute pain in the a** to install stereos into ef, cut the sides off both stereo brackets and mount the ford sides onto the new stereo bracket


your EF much have been wierd - they're one of the easiest to install into!!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Wed Mar 21, 2007 3:10 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 19th Mar 2007

Gallery: 11 images

Ride: EL XR6

Location: Gold Coast
QLD, Australia

I wouldnt say there the easiest. Ive installed many a stereo and the el was a mid level challenge. it requires a little thought. You have to drill holes in the standard brackets, bash peices of them flat and cut certain peices with snips.
The way i did it anyway im sure there are ways that are a little more simple but lack of tools means u make do with what u have.

Its a good challenge to take on as installs by car audio places are IMO overpriced considering the work they actually have to do. No offence to audio installers by trade its just how i see it.

Anyways best of luck with the install. Ive put some pics below too.





Attachments:

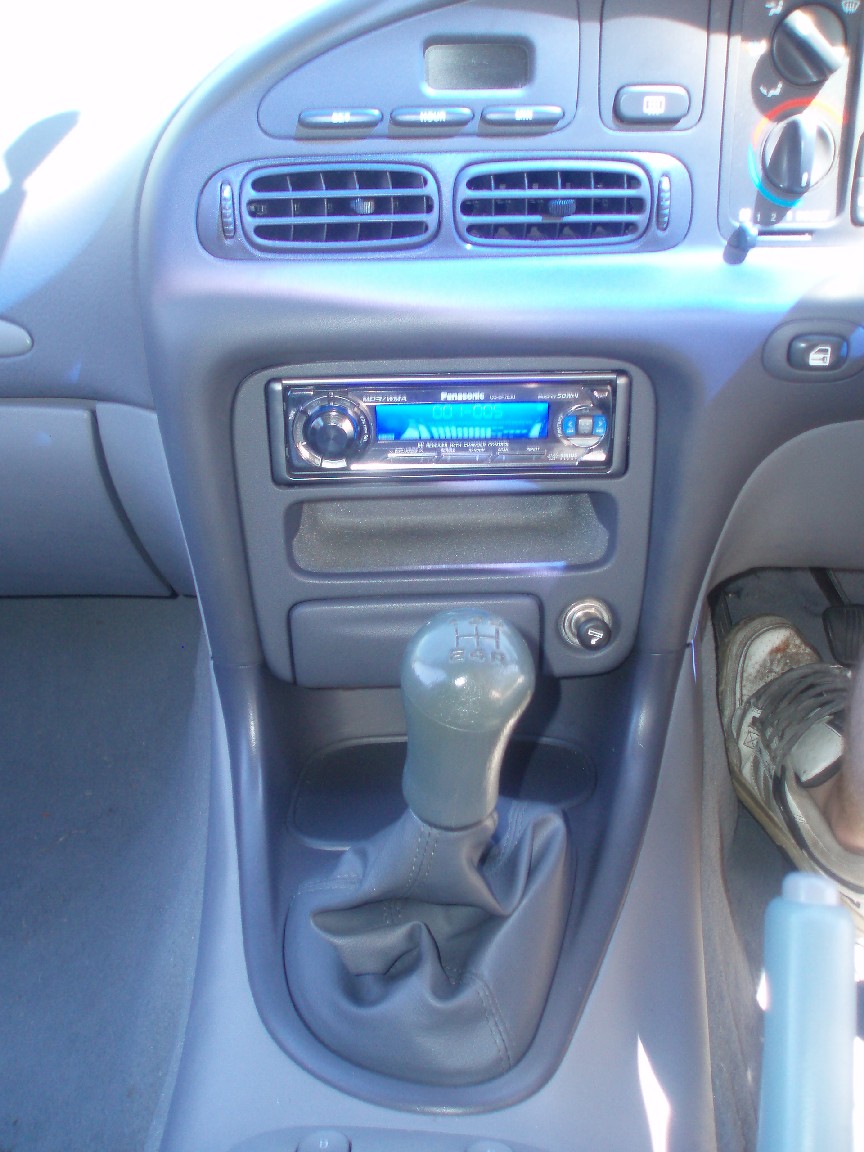

stereo final.JPG
stereo final.JPG [ 193.3 KiB | Viewed 103 times ]

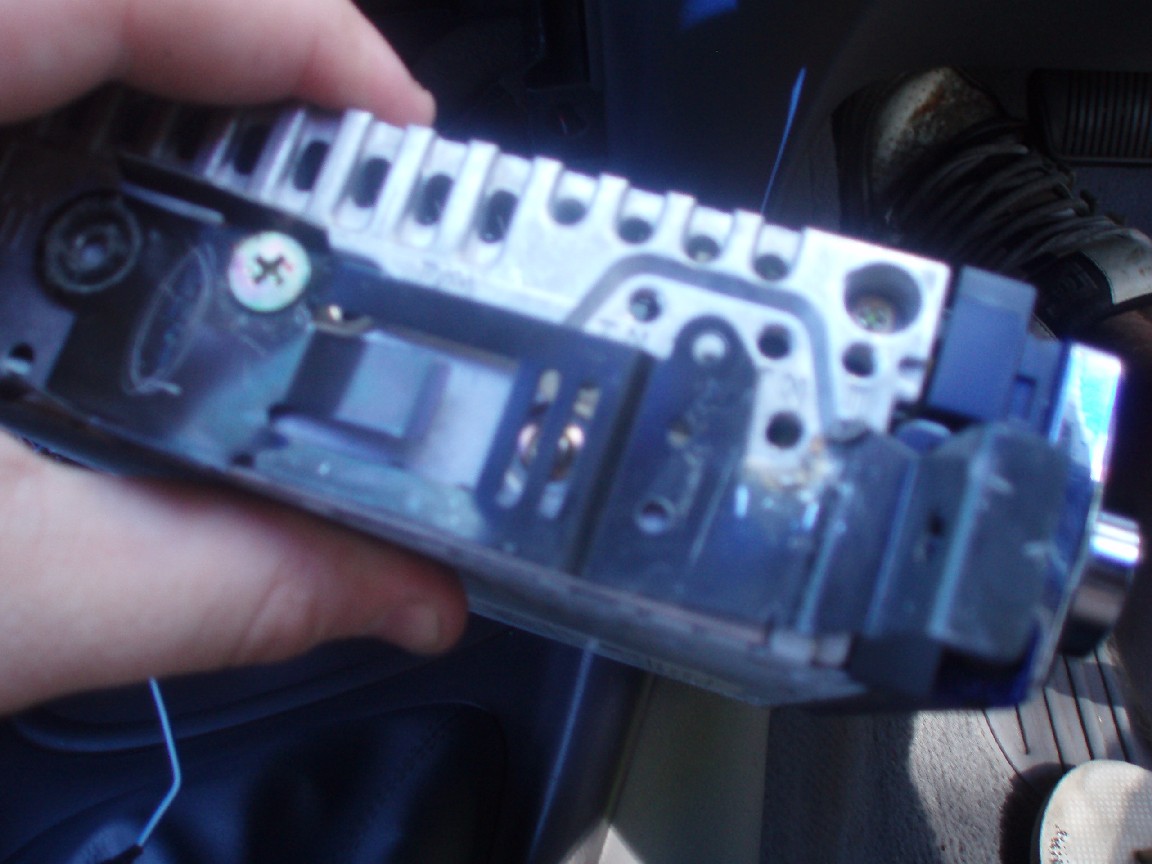

stereo brackets 2.JPG
stereo brackets 2.JPG [ 146.72 KiB | Viewed 111 times ]

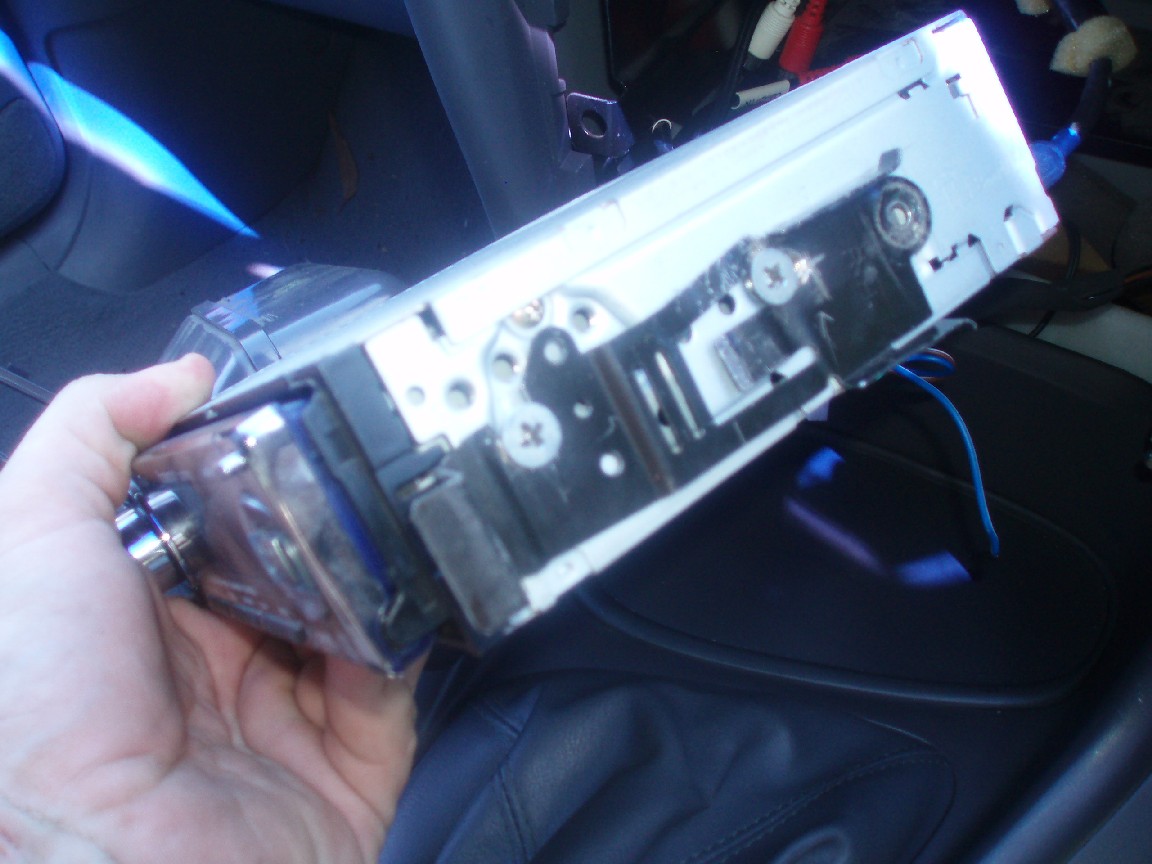

stereo brackets 1.JPG
stereo brackets 1.JPG [ 153.43 KiB | Viewed 110 times ]
Top
 Profile


Posted: Wed Mar 21, 2007 3:10 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

The pioneer H/U's are a little off square witht eh factory holes, mark and drill the bracket.

Did mine a few weeks ago, I thought it was obvious what needed to be done, so happy to share that info with you.

BTW what H/U did you get?



_________________


I have a car.

Top
 Profile


Posted: Wed Mar 21, 2007 3:15 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

find a need fill a need - there's an idea for someone to make up brackets which adapt for the EF/EL - go forth and make millions :P
