 Post subject: Re: Electric Aerials
Posted: Thu Oct 14, 2010 9:15 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

TROYMAN wrote:
Lowlane7 wrote:
One Drone wrote:
Lowlane7 wrote:
You can buy new ones aftermarket through repco or autobarn, $145 from memory. Cheaper than original and it would have a warranty through the store too.


That's $125 more than just the mast. :|


Yeah sure it is. But it's a brand new complete unit, not a second hand motor and a new mast, also no playing around swapping masts, and comes with a warranty if it stuffs up soon after installation. For an extra 125 I'd pay for the peace of mind knowing I won't have to endeavour the not so fun job of replacing it for another 5-10 years (unless you happen upon an a**hole again lol)

Electrical stuff is often a little more pricey. But in my experience the new parts often save grief.


yes but its not hard to replace the mast and they dont normally stuff up, except if it doesnt get used for long periods of time (mast ceases) or someone has bent it....



Yeah the ford motors were made pretty strong.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Thu Oct 14, 2010 9:53 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Yeah,

Thanks for the tips people

Another problem with buying new complete electrical aerial is a waste of $145.00 especially when some ahole comes along and either bends or snaps it just for the hell of it. hmmm me like to snap their arm off, they wont do it again.
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Fri Oct 15, 2010 12:21 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

That's not really a good reason though when you think about it.

A properly working new electric aerial should wind the aerial down into a recess when the car is turned off, IE; whenever you are away from it, which would be the most likely time that someone would break your aerial (which would already be broken/ not functioning correctly if it was sticking up for someone to break anyway)

As mentioned my view is guided toward peace of mind on this one.

Either way your gonna end up with a working aerial.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sat Oct 16, 2010 10:38 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Troyman

G'day Mate, slight problem with the electric aerial.

I have unscrewed the retaining nut but for some reason I cannot remove the part that pushes into the main mast (the part where the retainer screw goes on).

I have taken the cover off the gear wheel to expose the white chord.

The main mast has the coax cable attached. (This coax also goes through a grommet with two wires from the motor).

My question ..Does the inner aerial come apart from the main barrel, if so, how is it done, I'm stumped on this one and refuse to buy a brand new one.

Also, whats good to clean the old grease with? And what type of grease should I replace it with to assist the cable and wheel cog?

Thanks
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sat Oct 16, 2010 10:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

there is normally a small philips head screw on the side of the outer mast that holds it in place.
one the screw is removed the main body/outer mast should just pull out, might need a bit of and twist and pull..

with the grease you can just wipe the old grease off with a rag..
i used molybdenum grease i had from when i has an rc car..
i guess any multi purpose grease will do..

if i get a chance ill take a pic of one i have here to show how it comes out...
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sat Oct 16, 2010 11:25 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

TROYMAN wrote:
there is normally a small philips head screw on the side of the outer mast that holds it in place.
one the screw is removed the main body/outer mast should just pull out, might need a bit of and twist and pull..

with the grease you can just wipe the old grease off with a rag..
i used molybdenum grease i had from when i has an rc car..
i guess any multi purpose grease will do..

if i get a chance ill take a pic of one i have here to show how it comes out...


Hi.

Yes, I did remove that small screw , also had to break the seal or glue that was placed around the main body.

Thats where I did not progress any further as the main body still has the coax cable attached and the two wires from the motor sharing the same plug as the coax cable.

At that point I reattached the small washers back in situ until I find a way how to remove the telescopic aerial from the main shaft..

A photo or two might come in handy and further instructions.

I'll take a photo of mine on Sunday arvo or Monday morning and post it here also.

Cheers. Peter
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sun Oct 17, 2010 11:11 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

bondy99 wrote:
My question ..Does the inner aerial come apart from the main barrel, if so, how is it done, I'm stumped on this one and refuse to buy a brand new one.


Hahaha. Good fun isn't it? I've done em on VTs and EBs.... That's why I suggested a new one to save you the greif... But I'm young and wouldn't know good ideas yet I guess...

I hope you figure it out though....it's really annoying when you get it all back in place, turn off the radio to make it wind down...and it still sticks up an inch!!!

Let us know how you go...



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sun Oct 17, 2010 12:49 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Yeah, I'll upload those photos soon.

Cheers
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sun Oct 17, 2010 4:10 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

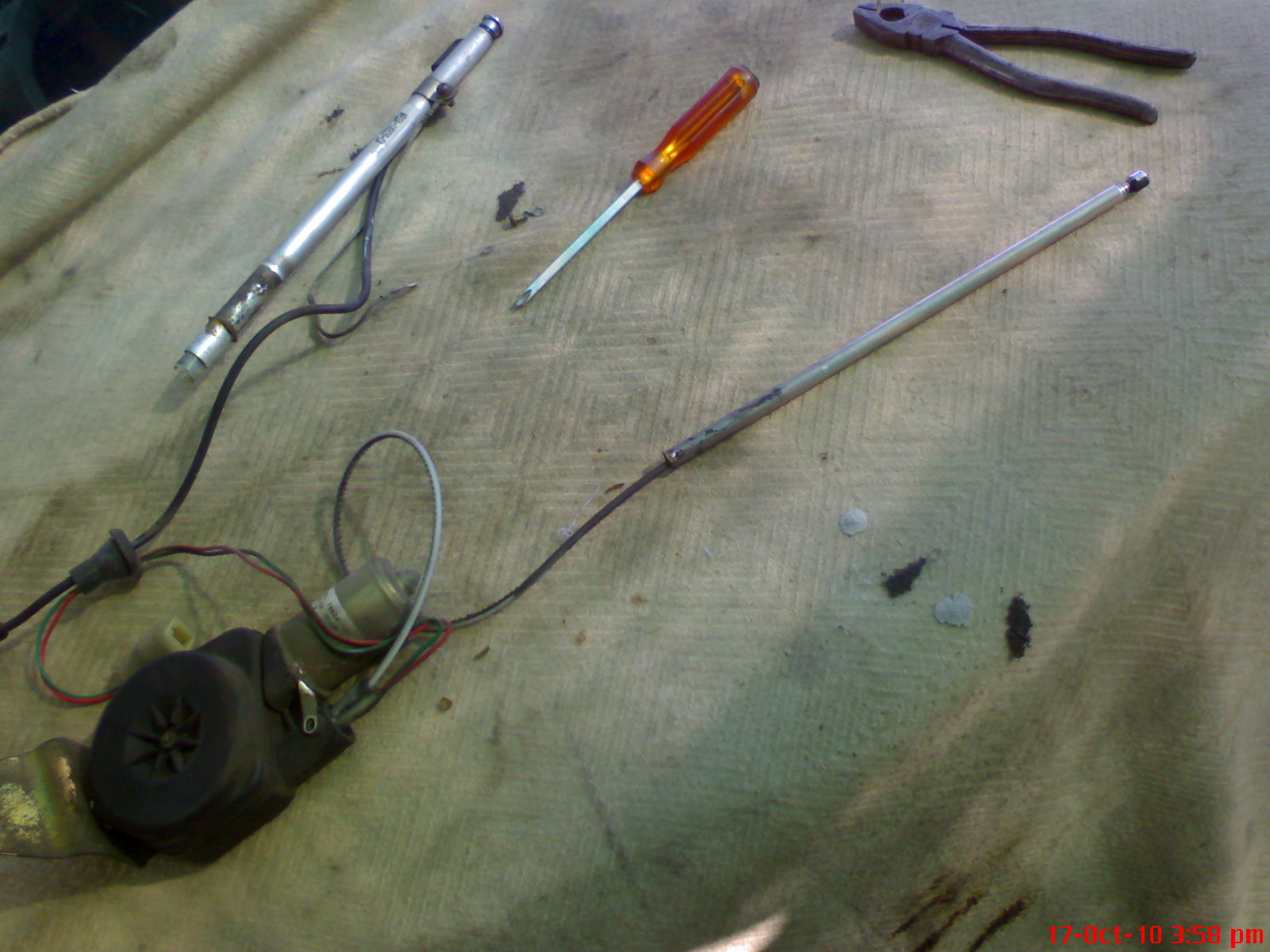

As stated hear are three pics.

Let me know if the brass threaded section is an integral part of the main body or does it slide out.

If so, how can one dislodge it, its like stubborn as a goat.

Cheers





Attachments:

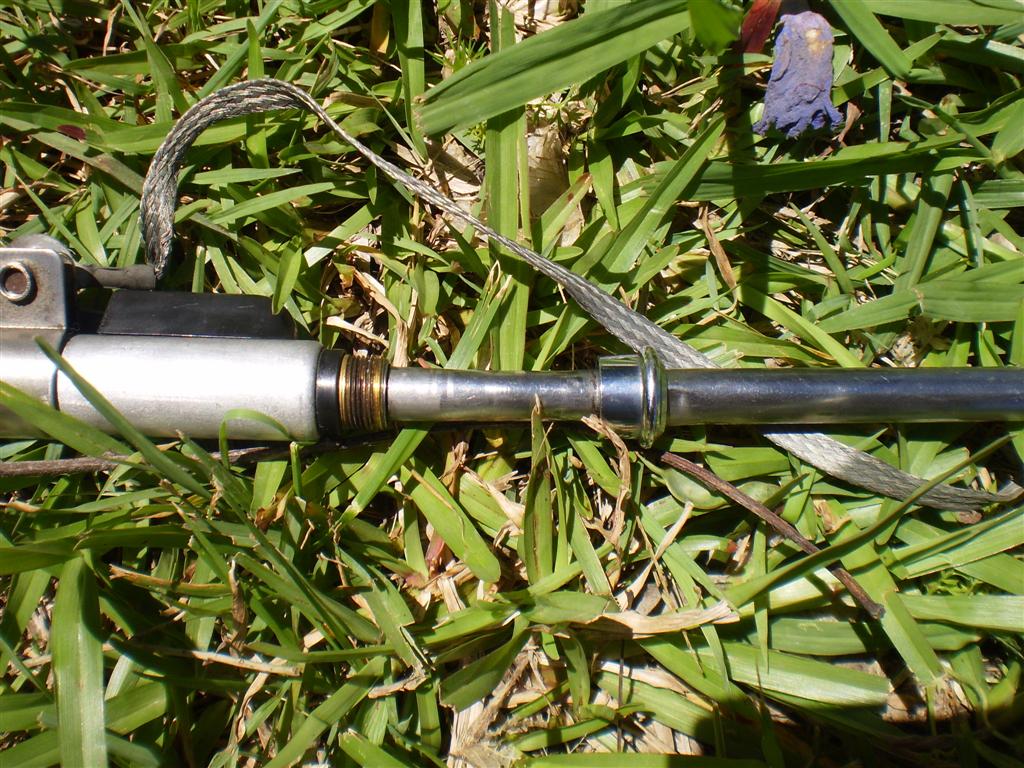

screw cap released but still stuck to main mast (Large).JPG
screw cap released but still stuck to main mast (Large).JPG [ 193.92 KiB | Viewed 64 times ]

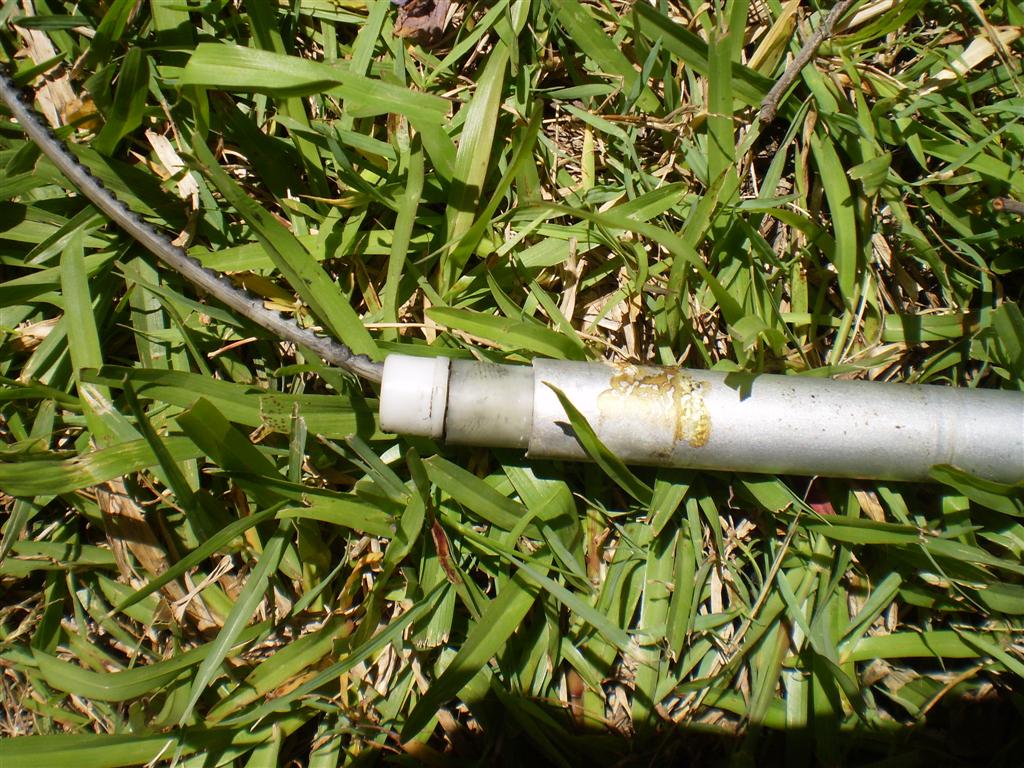

coax cable on main mast (Large).JPG
coax cable on main mast (Large).JPG [ 112.76 KiB | Viewed 51 times ]
Bottom of aerial cable (Large).JPG
Bottom of aerial cable (Large).JPG [ 197.97 KiB | Viewed 68 times ]
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sun Oct 17, 2010 5:02 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

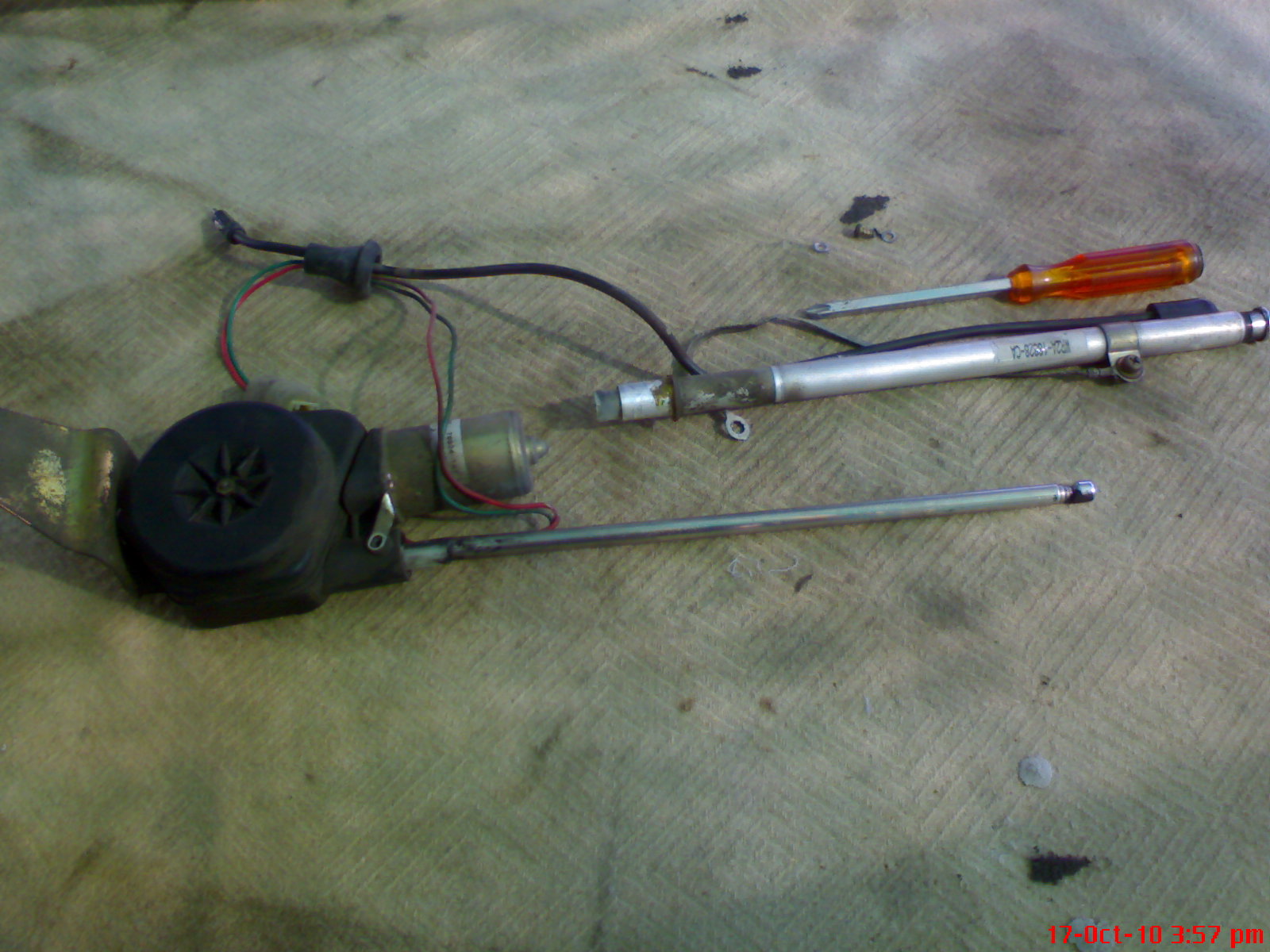

here are pics of one i pulled apart today..

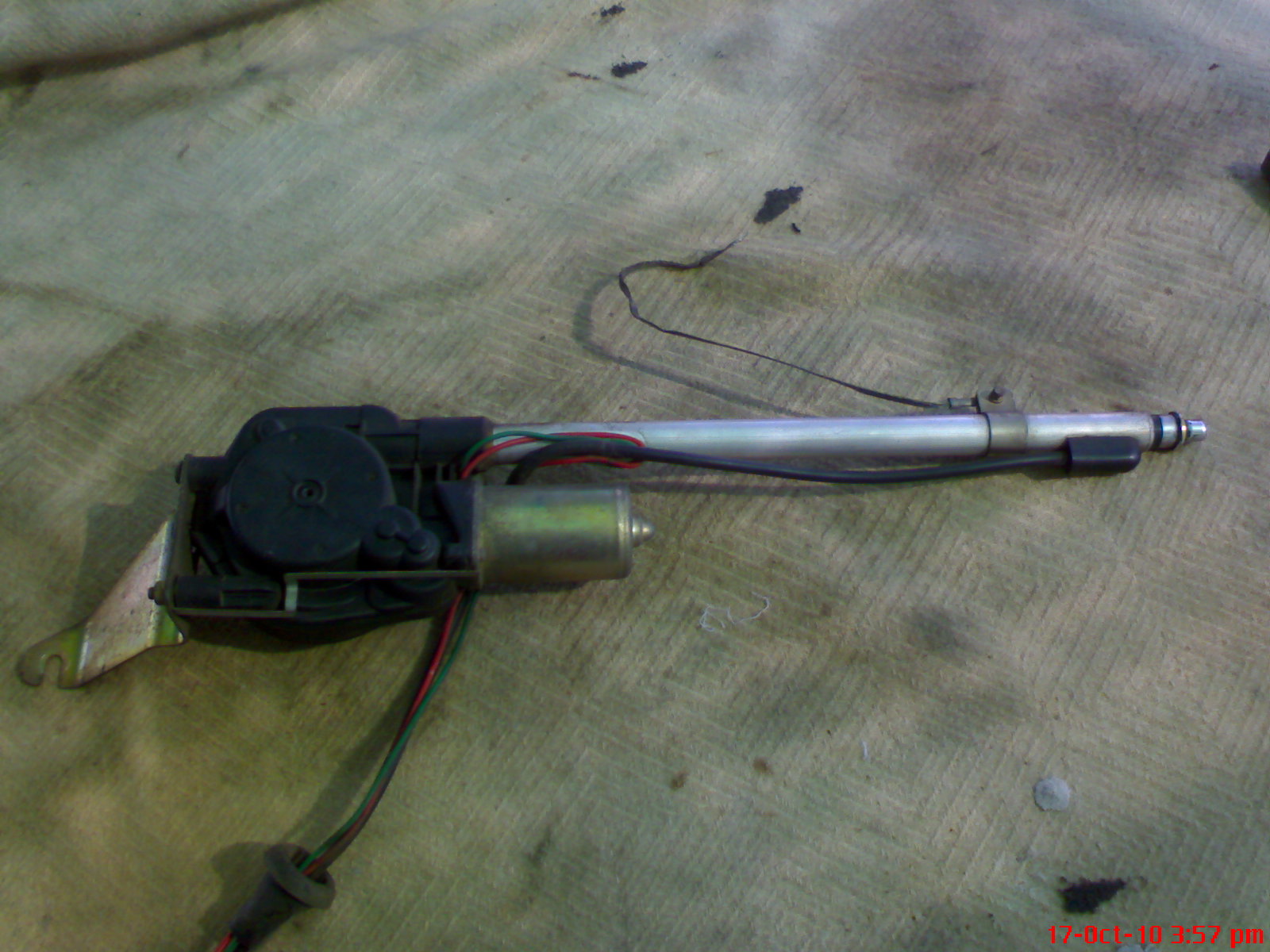

assembled au antanna
Attachment:
DSC02043.JPG [ 293.37 KiB | Viewed 75 times ]


once screw is removed, pull apart..
Attachment:
DSC02044.JPG [ 300.03 KiB | Viewed 71 times ]


now pull firmly and the inner mast comes out.
Attachment:
DSC02045.JPG [ 294.11 KiB | Viewed 61 times ]

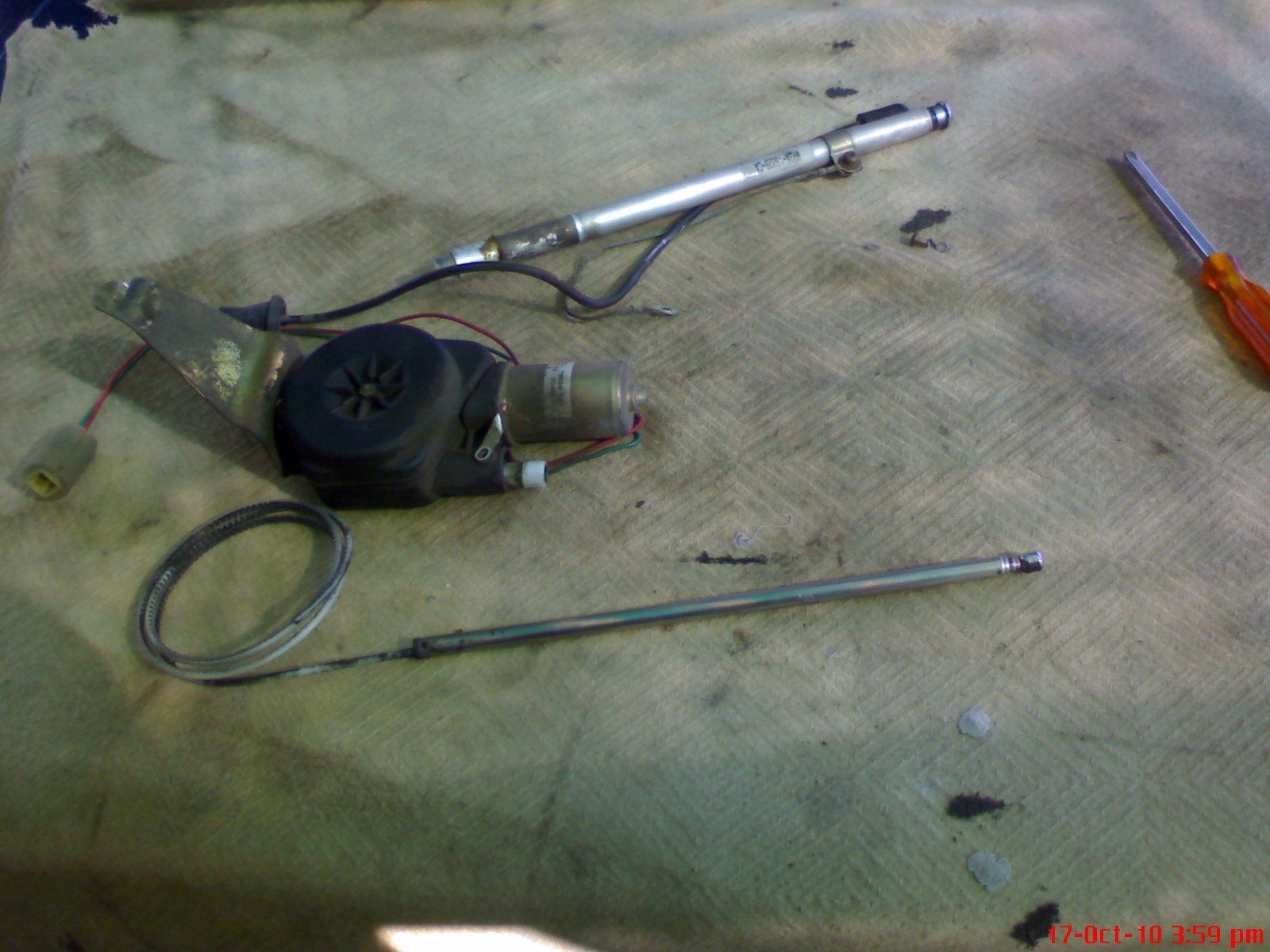

inner mast removed..
Attachment:
DSC02046.JPG [ 291.83 KiB | Viewed 56 times ]


to re assemble carefully feed the new mast cord toothed side towards the center and power it up so it retracts the cord pulling the mast in..

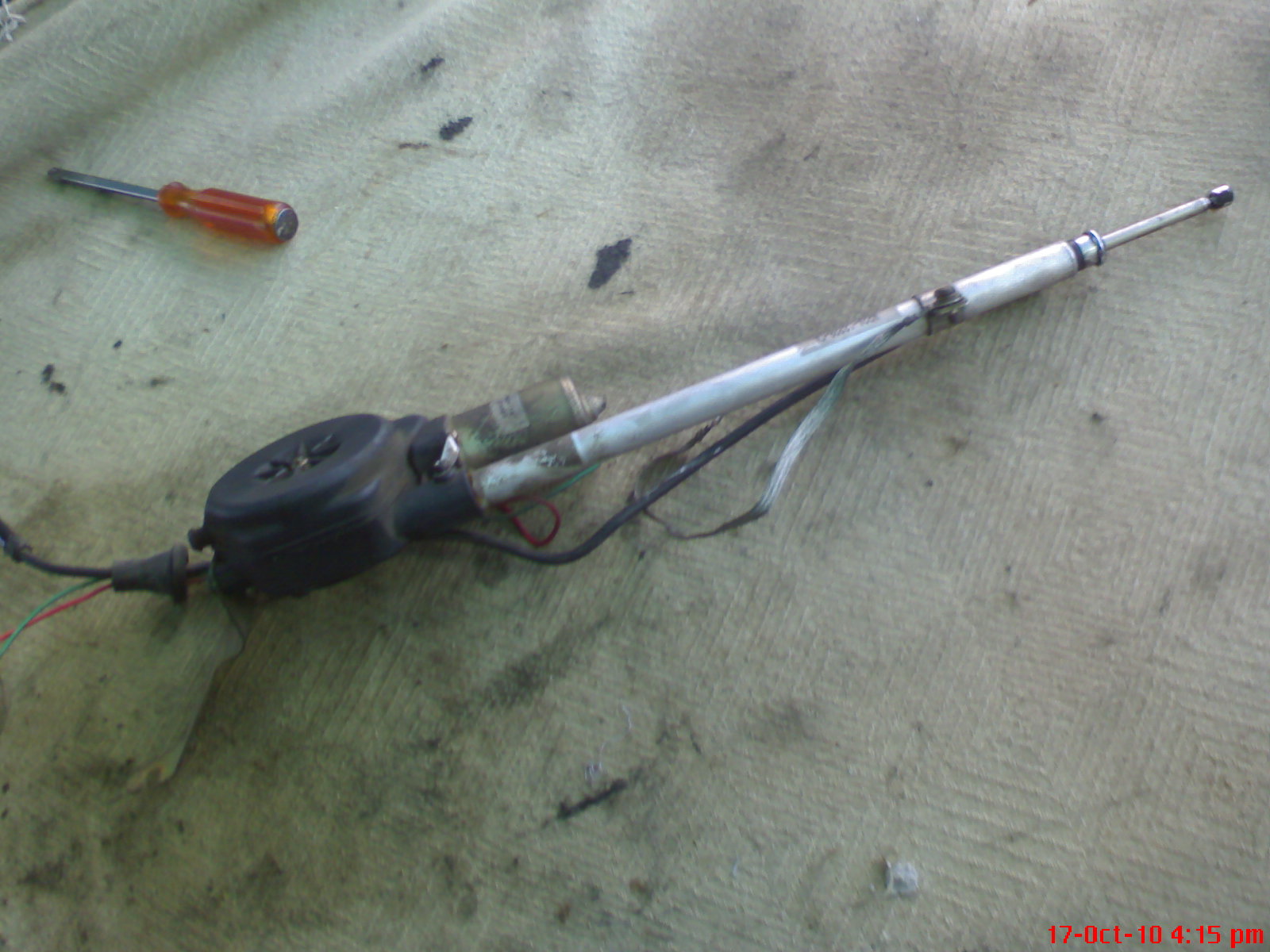

... re assembled...
Attachment:
DSC02047.JPG [ 268.09 KiB | Viewed 60 times ]
Top
 Profile


 Post subject: Re: Electric Aerials
Posted: Sun Oct 17, 2010 9:07 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Troyman,

Thanks for the pictures mate. Well, I buggered the first mast as the whole inner assembly (telescopic section) did not want to retract all the way down.

There was a section that was squashed previously (prior to me) very close to the threaded nut flange.

Got another one from the wreckers, will test it tomorrow.

Thanks, Peter
