Factory speaker wires?? Which colour pos and neg?



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Factory speaker wires?? Which colour pos and neg?
Posted: Wed Jun 11, 2008 7:33 pm
Getting Side Ways
Offline

Age: 31

Posts: 2337

Joined: 25th Apr 2008

Ride: Boxcar Love

Location: Brisbane
QLD, Australia

Hey guys.

After my EB EF conversion, i'm currently fitting the factory premo headunit, and i am about to wire in my amp to the rear channels, and my new door speakers to the front channels.

The LF speaker wire colours are orange/light green and orange black
The RF speaker is grey/green and grey black
The LR is pink/green and pink/black
And the RR is blue/red and blue/black.

My question is, which is positve and which is negative???

I can't find it anywhere, not even in the factory manuals!

Thanks guys.

Andrew.



_________________

Commodore australia's favorite car??? What a load of s**t

Top
 Profile


Posted: Wed Jun 11, 2008 8:38 pm
Getting Side Ways
Offline

Posts: 553

Joined: 28th Oct 2005

Ride: Peacock EB Falcon

Location: Brisbane
QLD, Australia

Simple, black is almost always earth/negative.



_________________

Wanted, CFI manifold

Top
 Profile


Posted: Wed Jun 11, 2008 8:40 pm
Getting Side Ways
Offline

Age: 31

Posts: 2337

Joined: 25th Apr 2008

Ride: Boxcar Love

Location: Brisbane
QLD, Australia

Cool, thats what i was hoping.

Thanks mate.

Andrew.



_________________

Commodore australia's favorite car??? What a load of s**t

Top
 Profile


Posted: Fri Jun 13, 2008 12:02 am
Smokin em up
Offline

Age: 27

Posts: 230

Joined: 22nd Jul 2007

Ride: eb xr6 and EL Falcon

Location: Lang Lang
VIC, Australia

ive just wired in my 6x9's in the el and i joined the black striped cable from the pioneer wire to the black striped factory wire. i just thought that they matched. the pioneer wire with the black stripe goes to the positive on the speaker. i thought that if you wired the positives to the negatives that you wouldnt get any bass because it would be cancelled out or something but my speakers have bass... whats the go
Top
 Profile


Posted: Fri Jun 13, 2008 9:20 am
Getting Side Ways
Offline

Age: 31

Posts: 2337

Joined: 25th Apr 2008

Ride: Boxcar Love

Location: Brisbane
QLD, Australia

Yeah i'm still a little confused.

The old stereo in it (installed by previous owner) was using the black stripe in the cars wiring as the positive, and it sounded fine.

Yet every other stereo on the planet uses the black stripe as neg. I also put my multimeter on the wires while the swtereo was playing, and it said the black stripe in the car was positve when running off the factory headunit. ???



_________________

Commodore australia's favorite car??? What a load of s**t

Top
 Profile


Posted: Sun Jun 15, 2008 1:14 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

duderat wrote:
ive just wired in my 6x9's in the el and i joined the black striped cable from the pioneer wire to the black striped factory wire. i just thought that they matched. the pioneer wire with the black stripe goes to the positive on the speaker. i thought that if you wired the positives to the negatives that you wouldnt get any bass because it would be cancelled out or something but my speakers have bass... whats the go


That only applies if 1 speaker is wired out of phase, if they are all wired the same then you won't get cancellation.
The easy way to confirm the orientation of the black stripe is to simply use a AA battery (no bigger) and attach it to the speaker wiring in question and the wire attached to the + terminal is the positive wire if the cone moves out, if the cone moves in then the wire attached to the + terminal on the battery then that is the - wire.
Easy.....



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Sun Jun 15, 2008 10:27 am
Getting Side Ways
Offline

Age: 31

Posts: 2337

Joined: 25th Apr 2008

Ride: Boxcar Love

Location: Brisbane
QLD, Australia

Thanks outlaw,

i performed this, and turns out ford indeed used the black stripe as positive wire, why the f**K they did that i'll never know.

Confirmation also came from when i look at the dash tweeter wiring, the ford black stripe wire goes the the positive terminal on the pioneer tweeters.


So anyway, the factory unit is now wired into my new front speakers, and the rear channels are now driving my sub amp and sub, and it sounds good enough for a pretty much factory system.

Thanks guys.



_________________

Commodore australia's favorite car??? What a load of s**t

Top
 Profile


Posted: Sat Aug 09, 2008 10:34 am
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

Hello
I am kind of new to ford mods I have owned a ford for a week now, I am having problem wiring up the radio properly

This is my question my car is a ef Fairmont the original plug was removed and the wires joined there are a couple of wires not connected

Dose any one know that all the wires on the ef radio harness do?

Cheers
Tom



_________________

need a rotisserie for a classic resto 0471525912 Tom

Top
 Profile


Posted: Sat Aug 09, 2008 10:50 am
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

The body is negative earth so if you wire them up properly it saves problems i.e. Popping noise when you adjust the volume (that is why I had to redo my radio the colours and positions were all wrong)


When crossing over speaker wires use +left rear and +right rear it kind of combines the sound when using a sub and an amp. Amps are wired up for that inside and will not (should not) blow. Doing this to a head unit might not be a good idea. Sub are normally isolated from the car using foam, plastic bracket or a sub box so there is no earthing

dude rat wrote:
I’ve just wired in my 6x9's in the el and I joined the black striped cable from the pioneer wire to the black striped factory wire. I just thought that they matched. The pioneer wire with the black stripe goes to the positive on the speaker. I thought that if you wired the positives to the negatives that you wouldn’t get any bass because it would be cancelled out or something but my speakers have bass... what’s the go



_________________

need a rotisserie for a classic resto 0471525912 Tom

Top
 Profile


Posted: Sat Aug 09, 2008 1:14 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 581

Joined: 5th Mar 2007

Gallery: 13 images

Ride: EF Fairmont AU Falcon FG XR6

Location: Eastern Suburbs,VIC
VIC, Australia

based on ef 94 and up

i found this for u guys it might help

Wiring for Low and Mid Series Decks

Main Wiring Plug - 12 Pins
Pin 1 Grey / Dark Green Positive (+) Speaker Line for the Right hand side Front speakers (Drivers Side)
Pin 2 Blue / Light Green Positive (+) Speaker Line for the Left hand side Front speakers (Passenger Side)
Pin 3 Brown Button Backlighting (Park Lamps power)
Pin 4 Dark Green / Yellow Constant Battery Voltage (+ Positive power)
Pin 5 Dark Blue / White Accessories Power (As taken from the Ignition switch)
Pin 6 Light Green Telephone Mute (Factory Telephone System)
Pin 7 Red / Dark Blue Power Antenna Output (Positive Trigger) Used to extend the power antenna
Pin 8 Dark Blue / Red Instrument Cluster LCD Backlight and Dimming Signal (Negative)
Pin 9 < !-space-> < !-space->
Pin 10 < !-space-> < !-space->
Pin 11 Blue / Black Negative (-) Speaker line for the right hand side Front speaker
Pin 12 Grey / Black Negative (-) Speaker line for the Left hand side Front Speaker
Secondary Wiring Plug - 8 Pins (Rear Speakers)
Pin 1 < !-space->
Pin 2 < !-space-> < !-space->
Pin 3 Pink / Dark Green Positive (+) Speaker Output for the Rear Left Hand (Passenger) Side Speaker
Pin 4 Pink / Black Negative (-) Speaker Output for the Rear Left Hand (Passenger) Side Speaker
Pin 5 < !-space-> < !-space->
Pin 6 Dark Blue / Red Positive (+) Speaker Output for the Rear Right Hand (Drivers) Side Speaker
Pin 7 Dark Blue / Black Negative (-) Speaker Output for the Rear Right Hand (Drivers) Side Speaker
Pin 8 < !-space-> < !-space->


Wiring for High Series (Premium) Decks (FAIRMONT GHIA, FAIRLANE series EF / EL / NF / NL / DF / DL


Pin 1 Grey / Dark Green Positive (+) Speaker Line for the Right hand side Front speakers (Drivers Side)
Pin 2 Blue / Light Green Positive (+) Speaker Line for the Left hand side Front speakers (Passenger Side)
Pin 3 Brown Button Backlighting (Park Lamps power)
Pin 4 Dark Green / Yellow Constant Battery Voltage (+ Positive power)
Pin 5 Dark Blue / White Accessories Power (As taken from the Ignition switch)
Pin 6 Light Green Telephone Mute (Factory Telephone System)
Pin 7 Red / Dark Blue Power Antenna Output (Positive Trigger) Used to extend the power antenna
Pin 8 Dark Blue / Red Instrument Cluster LCD Backlight and Dimming Signal (Negative)
Pin 9 < !-space-> < !-space->
Pin 10 < !-space-> < !-space->
Pin 11 Blue / Black Negative (-) Speaker line for the right hand side Front speaker
Pin 12 Grey / Black Negative (-) Speaker line for the Left hand side Front Speaker



_________________

My Fairmont

Top
 Profile


Posted: Sat Aug 09, 2008 4:25 pm
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

thanks for your reply will have a look tommrrow make sure it is rite



_________________

need a rotisserie for a classic resto 0471525912 Tom

Top
 Profile


Posted: Sun Aug 10, 2008 11:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 581

Joined: 5th Mar 2007

Gallery: 13 images

Ride: EF Fairmont AU Falcon FG XR6

Location: Eastern Suburbs,VIC
VIC, Australia

so how did ya go ?????????



_________________

My Fairmont

Top
 Profile


Posted: Mon Aug 11, 2008 12:07 am
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

i wired it up rite but i have 3 extra wires left
i will take a picture everything sounds rite but it is these extra wires and it i strongly belive there speaker wires not the phone wire or power ant it is strange i will take a picture
picture is worth 1000 words and then try and see if i can post it here



_________________

need a rotisserie for a classic resto 0471525912 Tom

Top
 Profile


Posted: Mon Aug 11, 2008 12:52 am
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

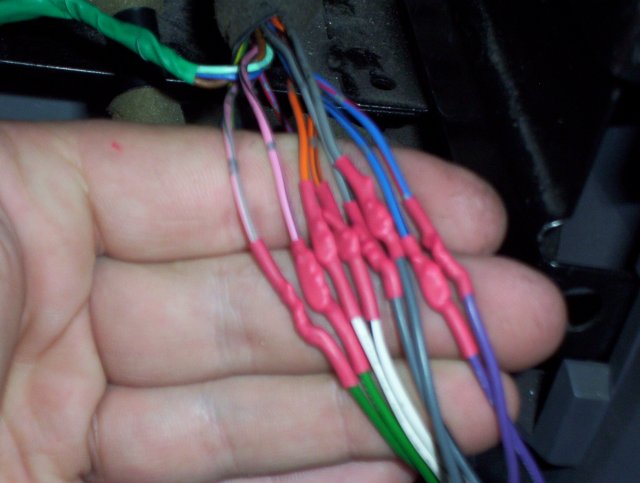

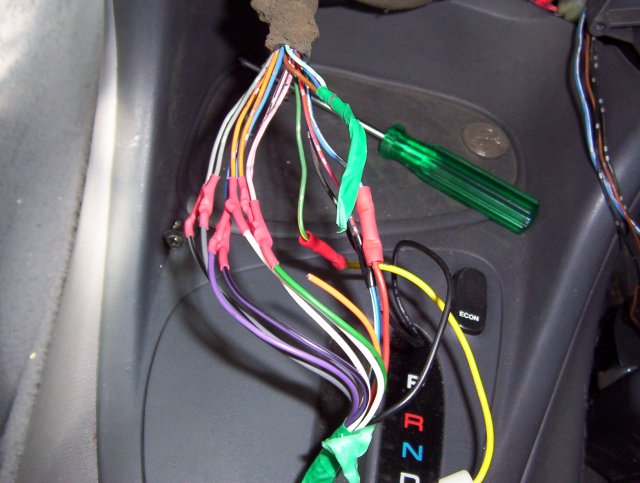

i dont know why they just didnt get the addapter wires from strathfield or jb





Attachments:
100_7704a.jpg [ 57.83 KiB | Viewed 6378 times ]
100_7702a.jpg [ 40.92 KiB | Viewed 6376 times ]



_________________

need a rotisserie for a classic resto 0471525912 Tom

Last edited by muncher2002 on Mon Aug 11, 2008 4:20 pm, edited 6 times in total.

Top
 Profile


Posted: Mon Aug 11, 2008 11:24 am
Parts Gopher
Offline
User avatar

Age: 37

Posts: 86

Joined: 1st Aug 2008

Gallery: 34 images

Ride: EF fairmont + upgrades

Location: Werribee
VIC, Australia

still having problem as the colours of my loom don't match the ones listed above
my car is a 94 ef could it be posible that i have ed loom for the radio???

this is what i have and what is connected


Grey / green = (+) right hand front
Grey/ black = (-) right hand front
Blue / red (1 silver dot) = (+) right hand rear
Blue / black = (-) right hand rear
Orange / green= (+) left hand front
Orange / black = (-) left hand front
Pink / green = (+) Left hand rear
Pink / black = (-) Left hand rear
Red / blue = unknown (connected to power ant I think)
The next 3 wires are thicker then the rest
Green / yellow = Power
Blue / white = Power
Black (2 silver dots) = power
Brown (1 silver dot) = unknown
Light green (2 silver dots) = unknown
Blue / red (2 silver dots) = unknown

There is a 8 pin plug near it too I think it might go to the back there all thin wires like the speaker wire

1 = brown
2 = green / yellow
3 = grey / black
4 = not connected
5 = blue / red
6 = blue / black
7 = red
8 = orange / green

everything appears to be connected but i still nave no dash speakers



_________________

need a rotisserie for a classic resto 0471525912 Tom

Top
 Profile
